Skydroid T12 R12 12-Channel 2.4GHz Receiver
₹6,099Incl. GST
SKU SKYDROID-T12-R12-RX
RC Protocol: FHSSMade in India: NoBrand: SkydroidFrequency: 2.4GHz
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

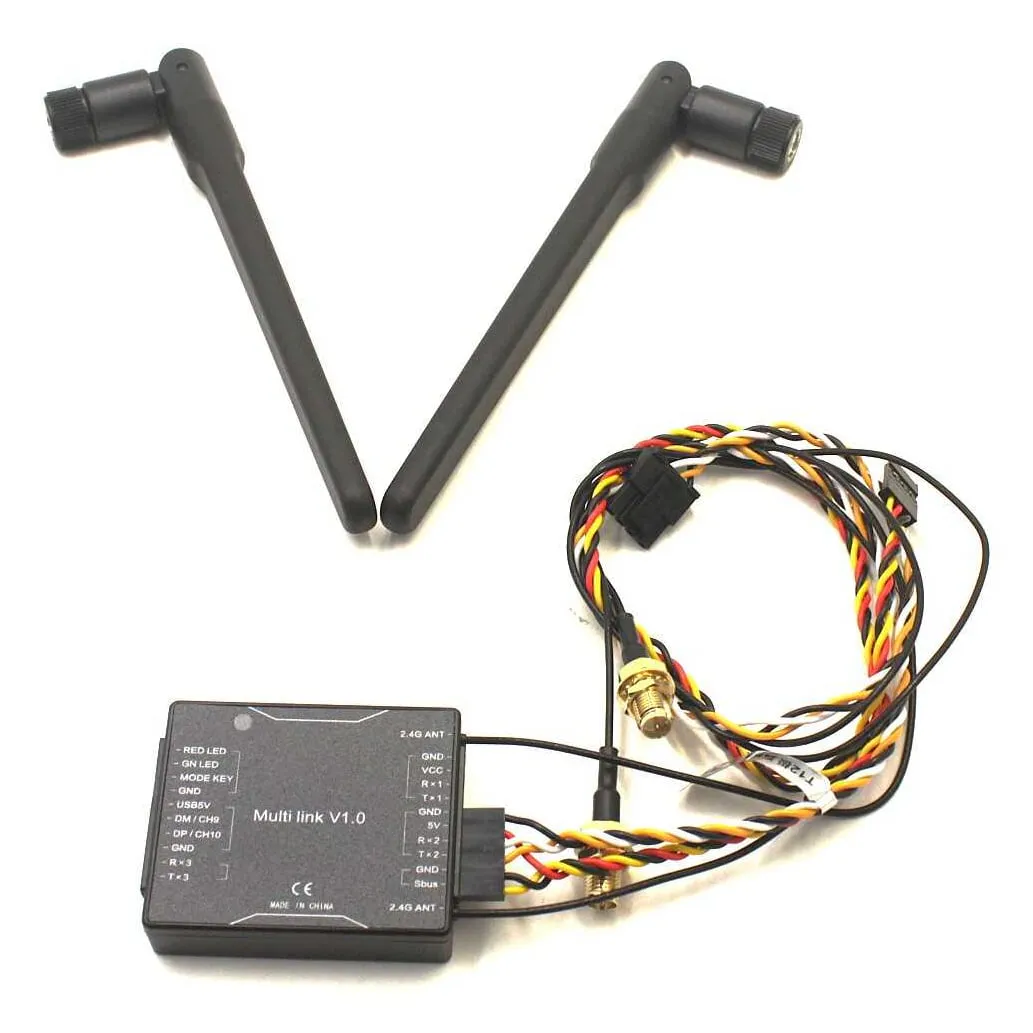

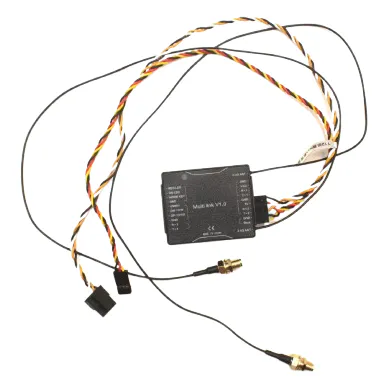

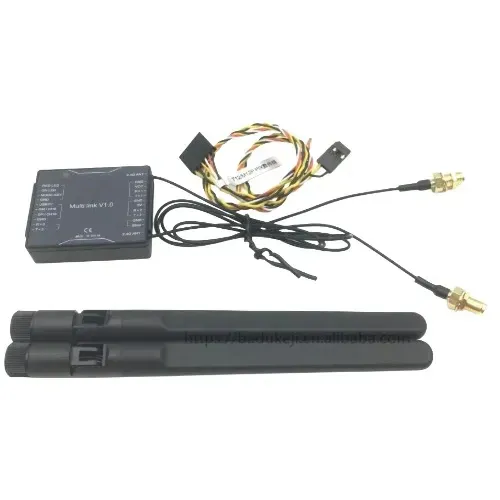

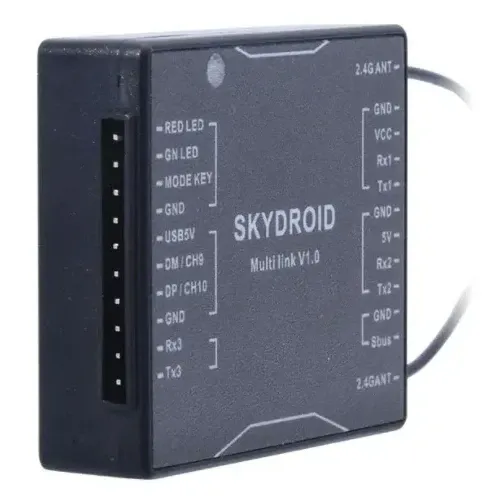

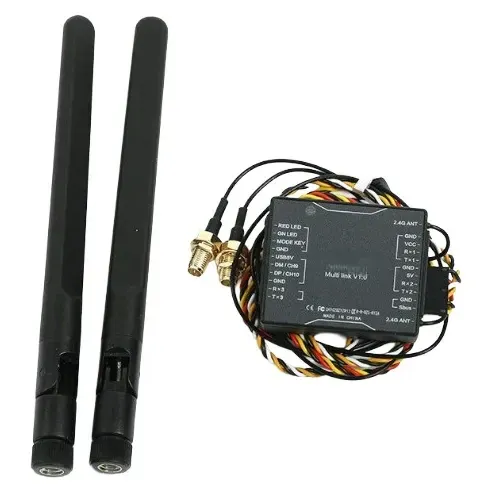

The R12 is the airborne receiver for the Skydroid T12 remote controller — use it to replace a lost or damaged unit, or to set up another aircraft for an existing T12. It links on FHSS frequency hopping and passes its channels to the flight controller, including Pixhawk, Cube and other ArduPilot or PX4 autopilots.
Key features
- S.Bus output for the autopilot
- Compact and light: 51 × 41 × 13 mm and 14 g
- Runs on 4.5–5.5V, drawing 140mA at 5V
- Binds to the T12 by cable or through the Skydroid app
Specifications
- Model: R12, for the Skydroid T12
- Channels: 12
- Frequency: 2.400–2.483GHz
- Modulation: FHSS
- Working voltage: 4.5–5.5V
- Working current: 140mA at 5V
- Dimensions: 51 × 41 × 13 mm
- Weight: 14 g
Feed it from a regulated 5V rail on the flight controller or a BEC; it is not rated for direct battery voltage.
| RC Protocol | FHSS |
|---|---|
| Made in India | No |
| Brand | Skydroid |
| Frequency | 2.4GHz |
| Weight | 14 g |
| Channels | 12 |
| Output Protocol | SBUS, PPM |
| Compatible With | Skydroid T12 |
| Product Type | Receiver |
