Radiolink R12DS 2.4GHz 12CH SBUS/
SKU RADIOLINK-R12DS
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

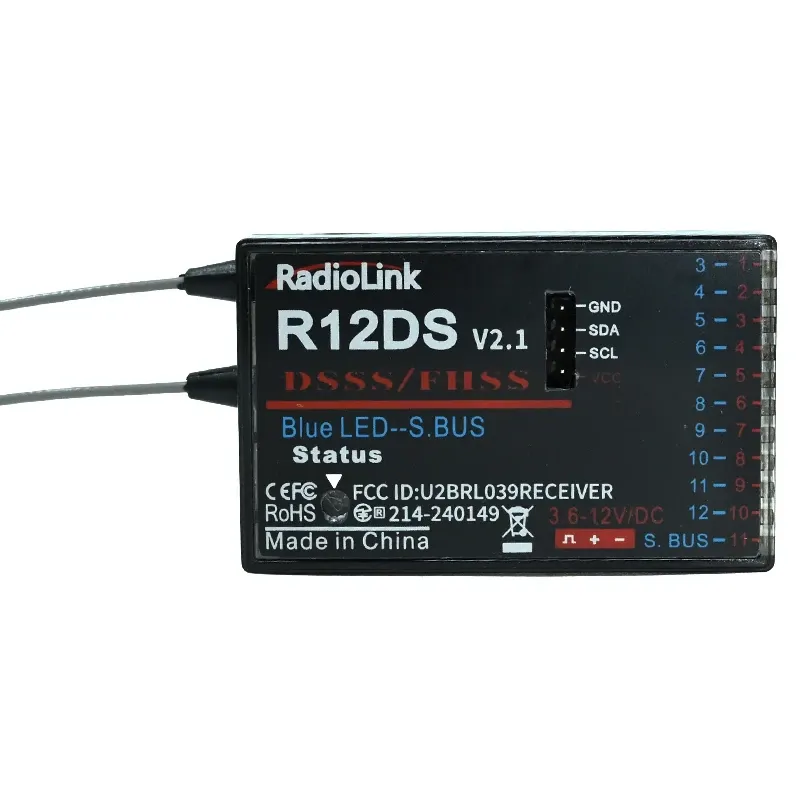

The Radiolink R12DS is a 2.4GHz receiver for Radiolink AT9, AT9S, AT9S Pro, AT10 and AT10II transmitters, providing 12-channel SBUS and PWM control for custom multirotor, fixed-wing and other RC builds.
Key features
DSSS and FHSS spread-spectrum operation gives a stable link with strong resistance to interference.
Outputs 12 channels over SBUS and PWM together, or 11 channels on PWM alone.
4096-step resolution at 0.25 microseconds per section for smooth control response.
Rated control distance of around 4km in the air and 2km on the ground in open, interference-free conditions.
Connects to the PRM-01 telemetry module for voltage feedback, or PRM-03 for OSD data with a compatible flight controller.
Specifications
Dimensions: 50 x 32 x 14.5mm
Weight: 14g
Antenna length: 215mm
Operating voltage: 3-10V
Operating current: 38-45mA at 5V
Bind only to a listed Radiolink transmitter, and check your flight controller's SBUS or PWM input before wiring.
| RC Protocol | FHSS |
|---|---|
| Made in India | No |
| Brand | Radiolink |
| Frequency | 2.4GHz |
| Weight | 14 g |
| Channels | 12 |
| PWM Channels | 11 |
| Output Protocol | SBUS, PWM |
