Fat Shark Dominator HDO+ FPV Goggles

The Fat Shark Dominator HDO+ are analog FPV goggles with twin OLED panels, an adjustable optical engine and a modular receiver bay. They suit pilots flying analog 5.8GHz quads who want a sharp, high-contrast OLED image. They come in three packages: the goggles on their own, with an ImmersionRC Rapidfire 5.8GHz receiver module, or with the Rapidfire plus a Foxeer antenna and an 11dBi patch antenna.

Key features

• Two 0.49-inch OLED displays at 1920 x 1080, with brightness and contrast control
• 50-degree diagonal field of view

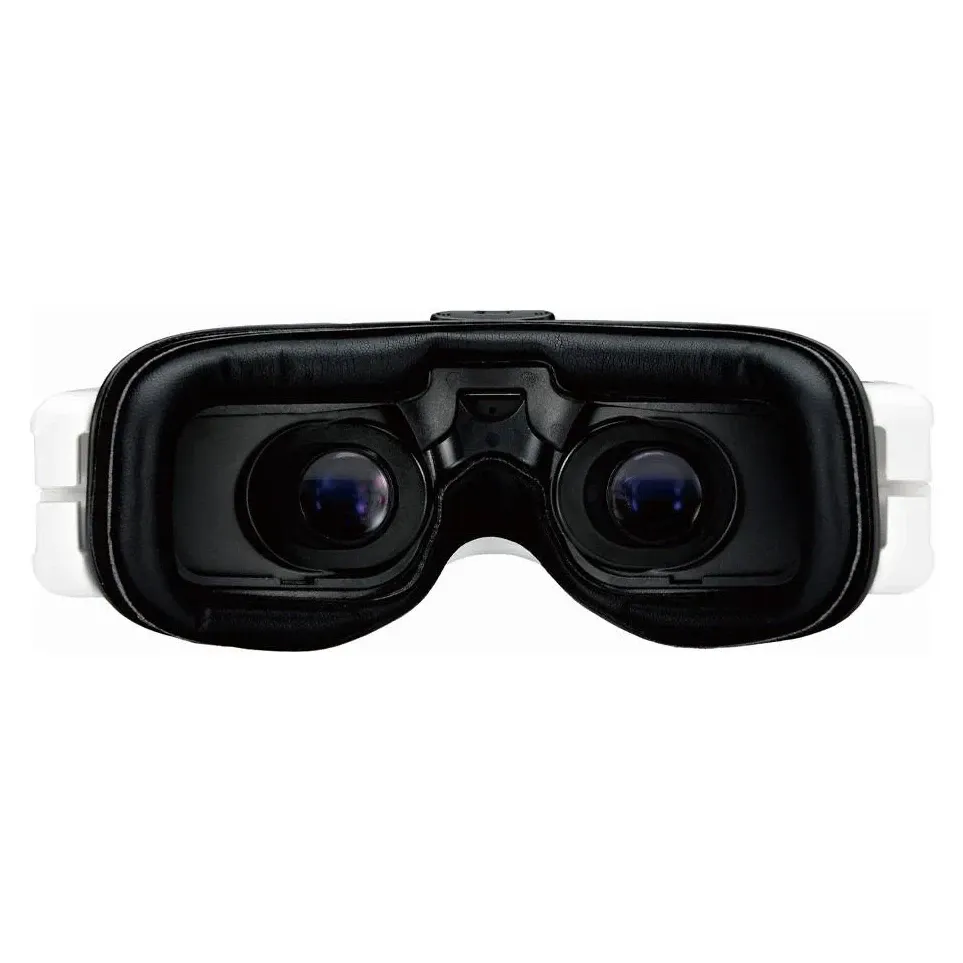

• Adjustable IPD from 57 to 70 mm and focus from +2 to -6 dioptres, so short-sighted pilots within that range can fly without glasses
• Built-in analog DVR that records to microSD (up to 32 GB) and plays footage back in the goggles
• Runs on a 2S-6S supply (7-25V), with a low-battery warning
• 16:9 and 4:3 AV modes with automatic NTSC/PAL detection, plus 3.5 mm AV in/out and stereo earphone ports

Specifications

• Displays: 2 x 0.49-inch OLED
• Resolution: 1920 x 1080
• Field of view: 50 degrees diagonal
• IPD: 57-70 mm
• Focus: +2 to -6 dioptres
• DVR: MJPEG AVI, 6 Mbps, 30 fps, microSD up to 32 GB
• Input voltage: 7-25V (2S-6S)

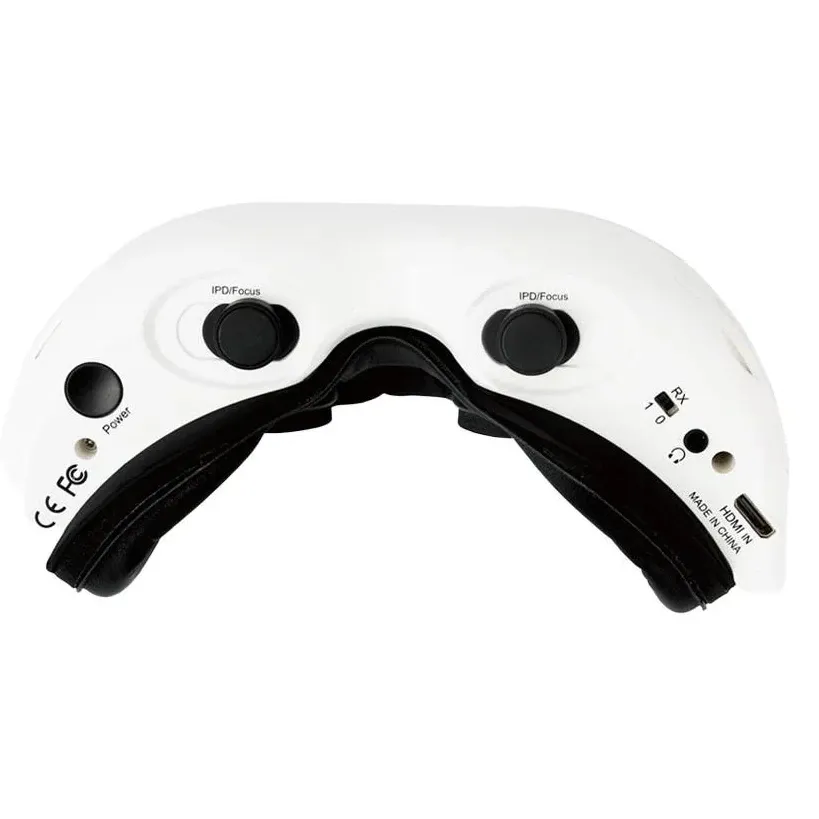

• Ports: 3.5 mm AV in/out, 3.5 mm earphone, power input, microSD, RF module bay

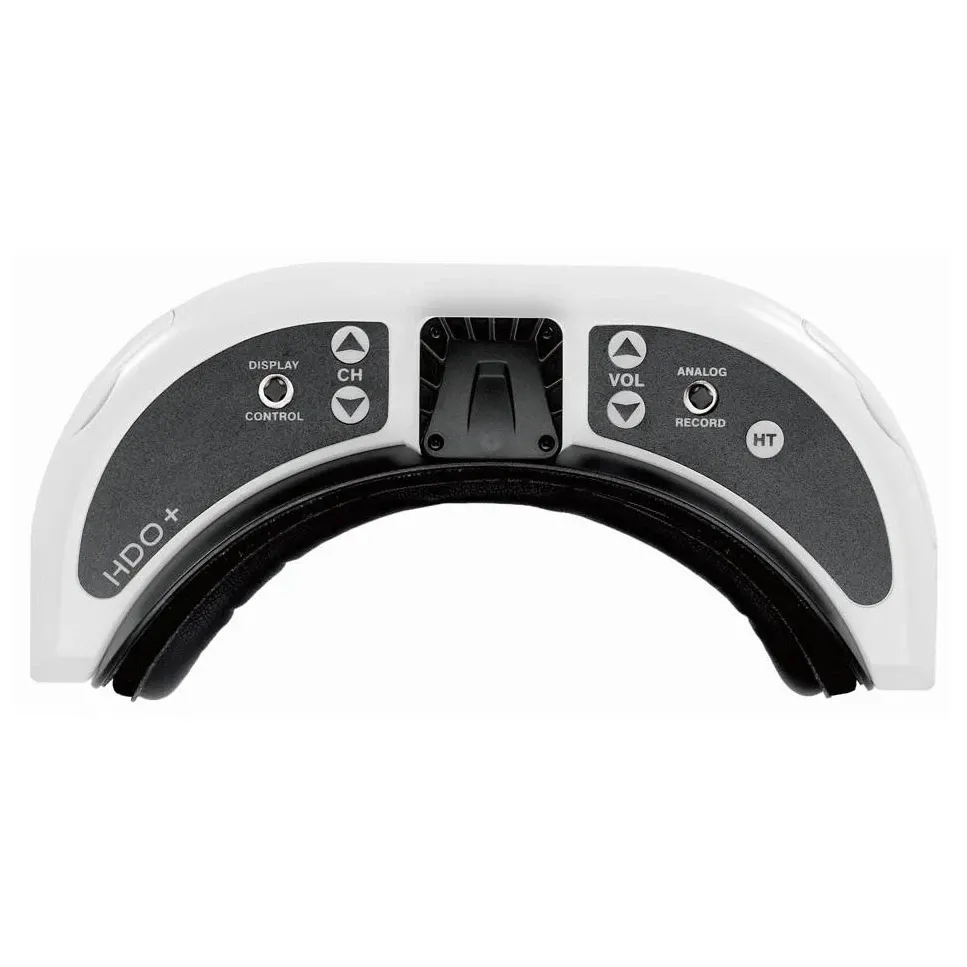

• Controls: Power/fan, channel, volume, mode, DVR, brightness/contrast
• Dimensions: 169.2 x 80 x 45.5 mm
• Weight: 235.8 g

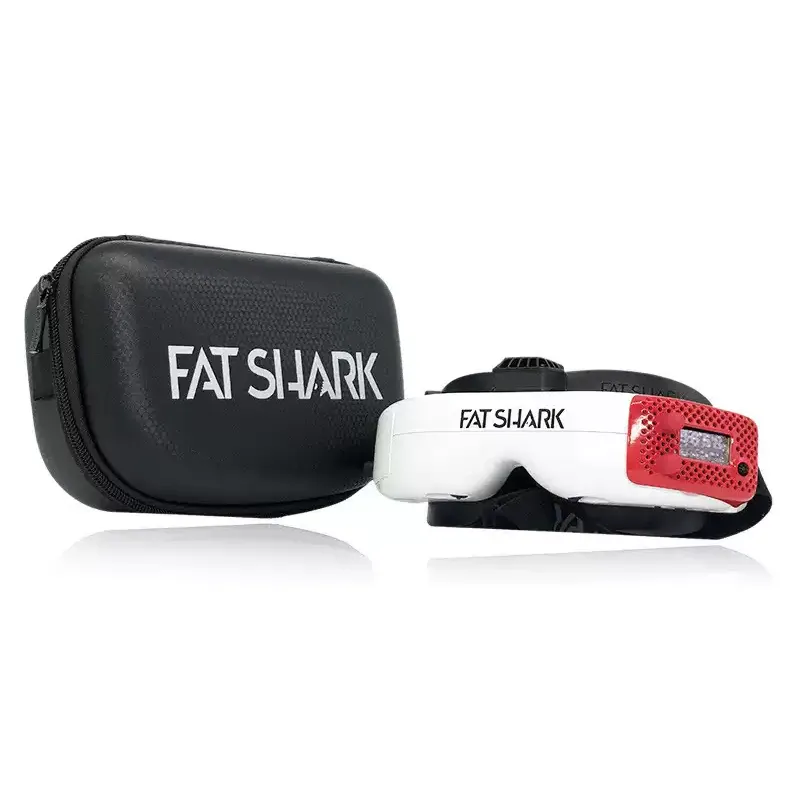

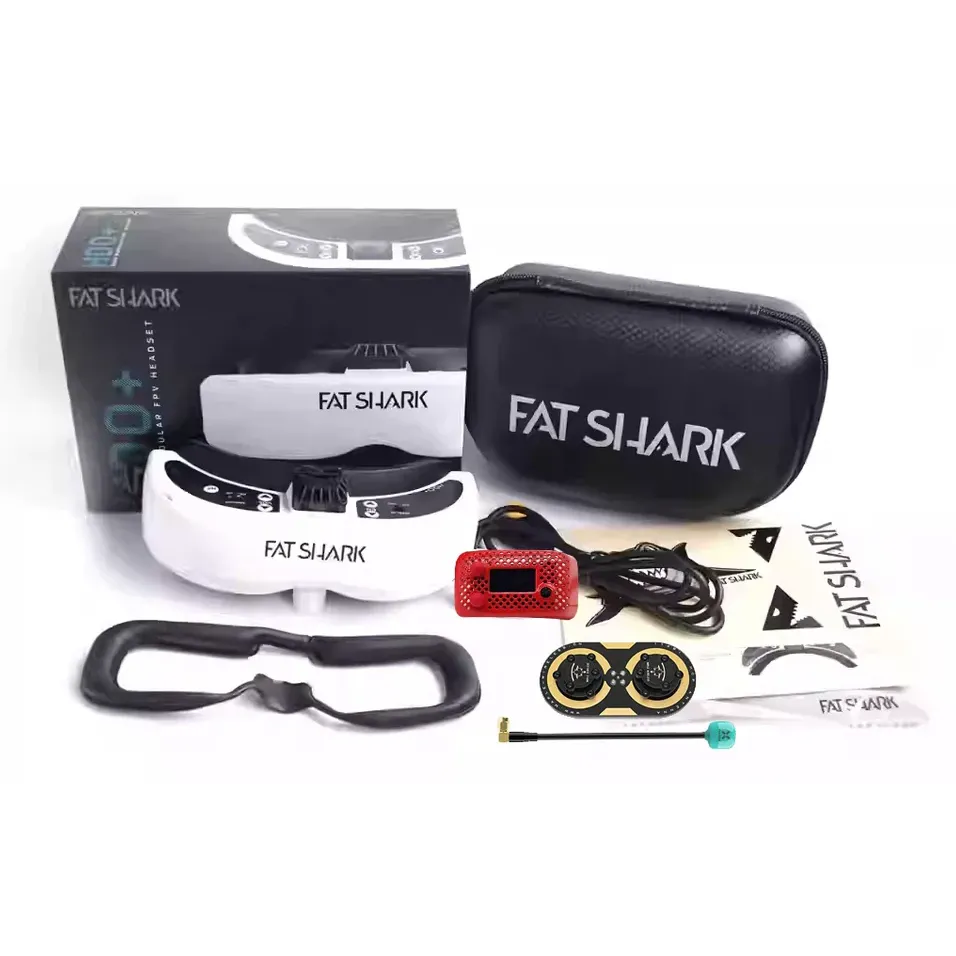

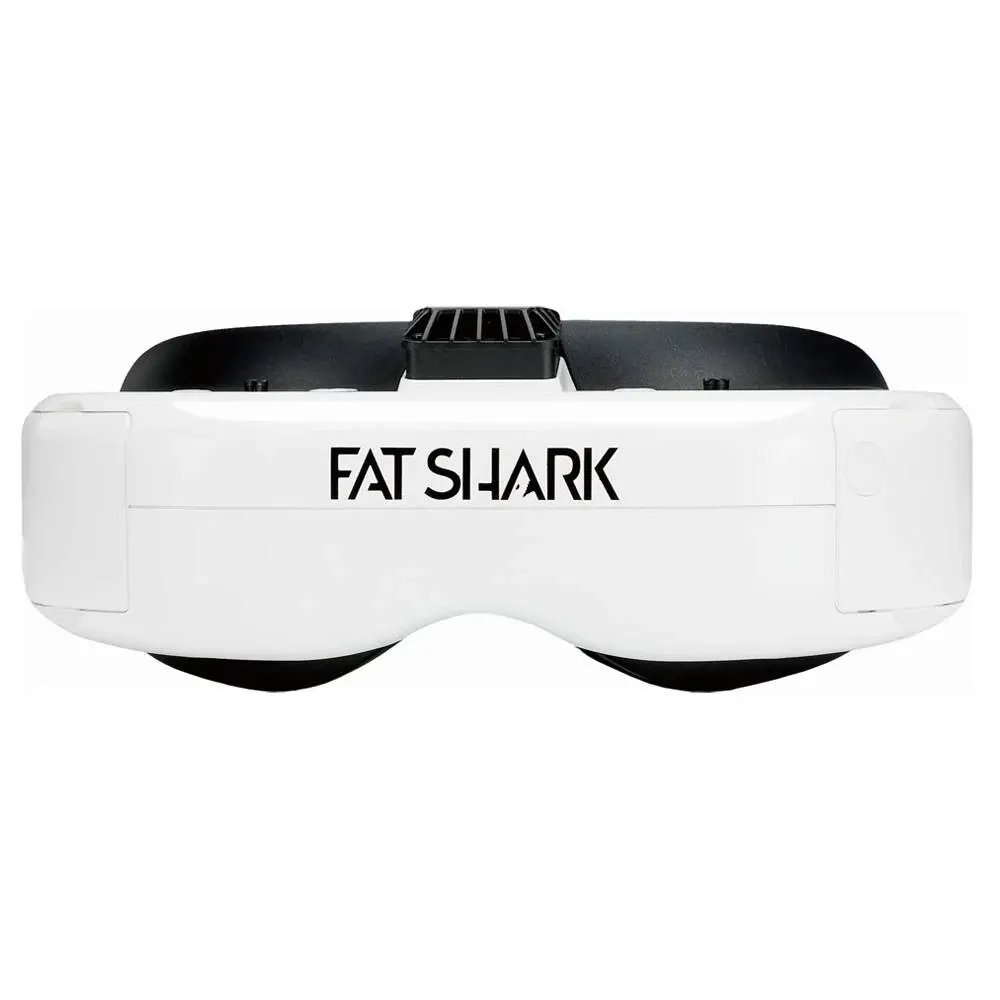

The With Rapidfire Module package lets you fly analog 5.8GHz straight away. The antenna package adds a Foxeer antenna and an 11dBi directional patch antenna to the Rapidfire module. The Goggles Only package has an empty module bay, so you will need a receiver module of your own before you can fly. In every package, the goggles are powered from a separate 2S-6S pack through the power input.
