Skydroid T12 12CH Remote Control with R12 Receiver

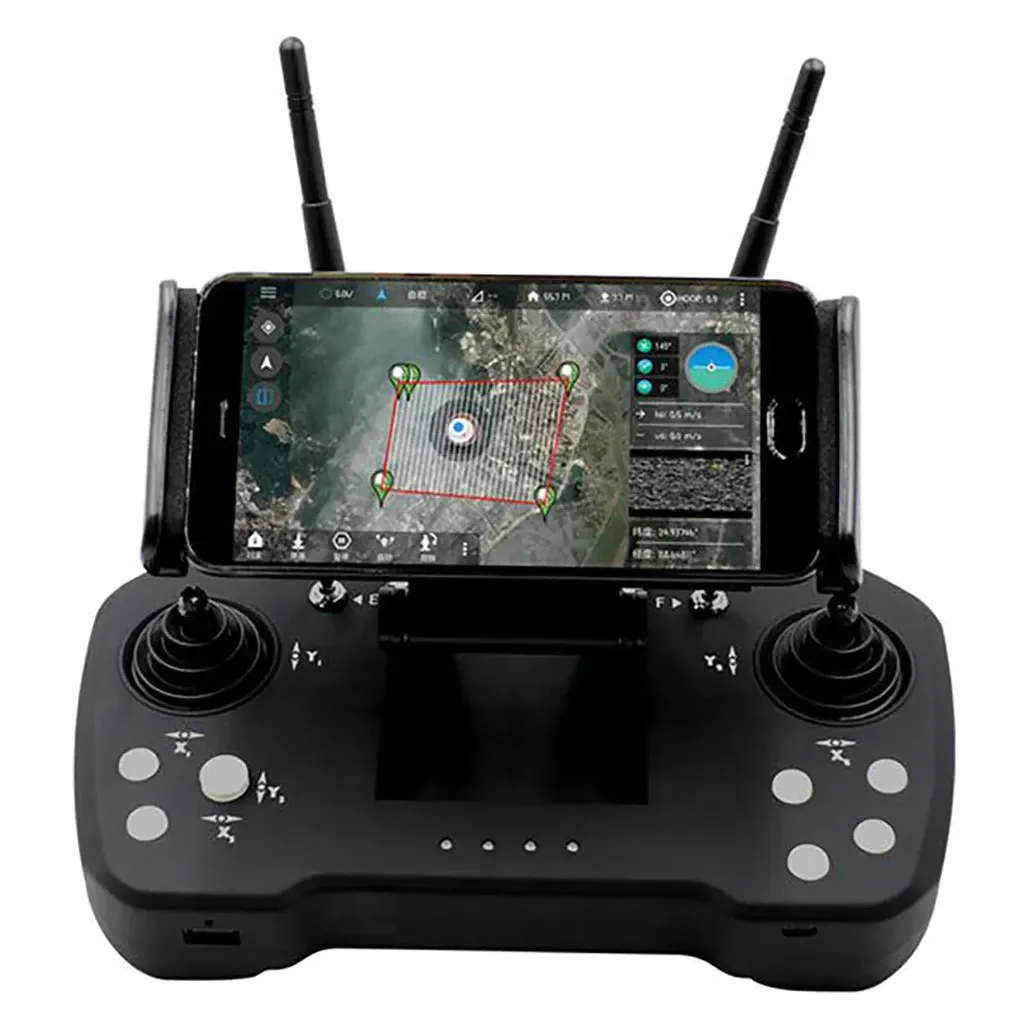

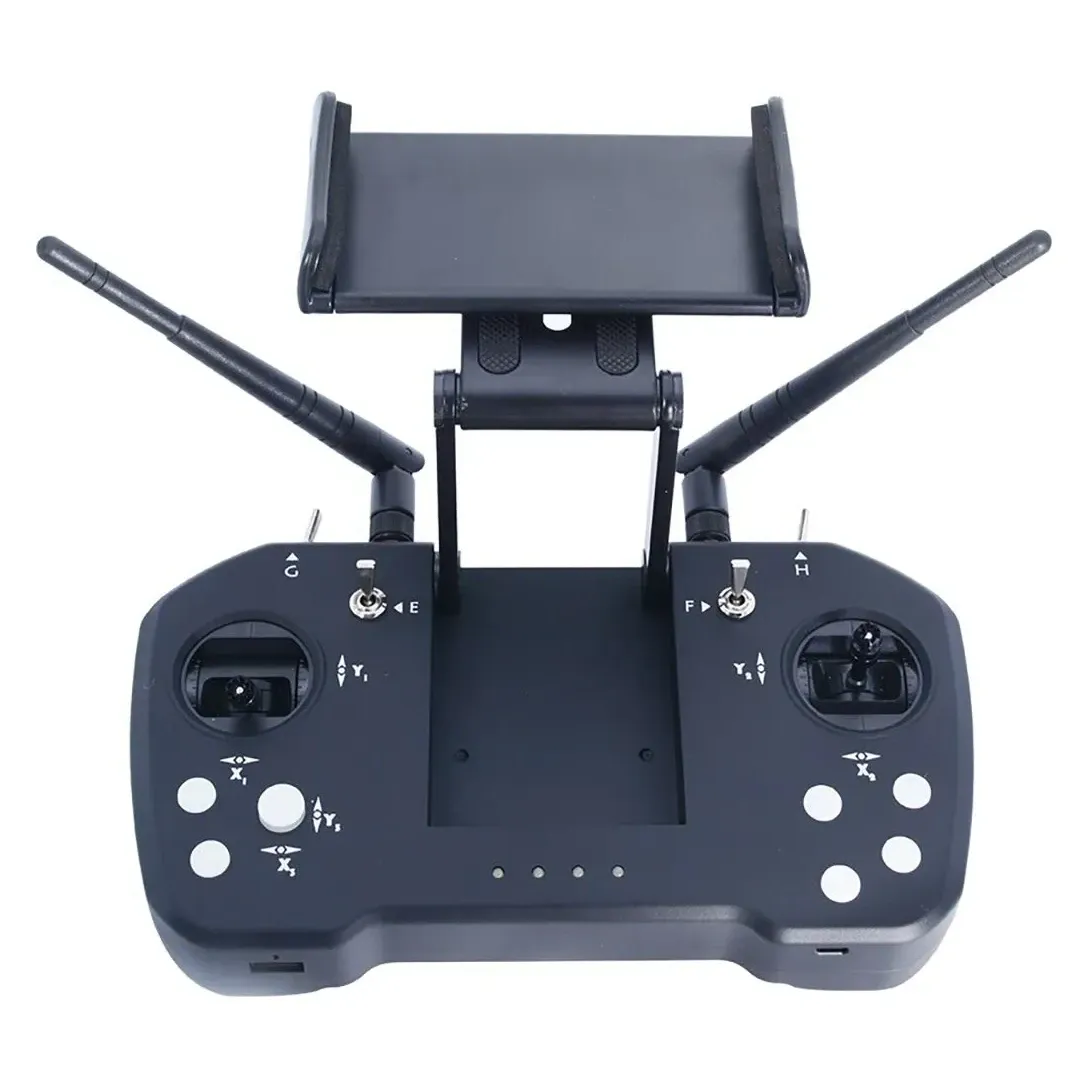

The Skydroid T12 is an all-in-one 12-channel radio transmitter built for ArduPilot and PX4-based agricultural, industrial and mapping drones. Instead of separate telemetry radios, RC receivers and FPV screens, the T12 combines control link, bidirectional data telemetry and HD digital video transmission into a single 2.4GHz system. A built-in folding bracket holds an Android phone or tablet, passing data via USB or Bluetooth to ground station apps like Mission Planner, QGroundControl or the Skydroid FPV app.

Key features

• Combines HD video, data telemetry and 12-channel control on one 2.4GHz link.
• Digital video transmission reaches up to 20 km at SD resolution, and the integrated data link up to 30 km.

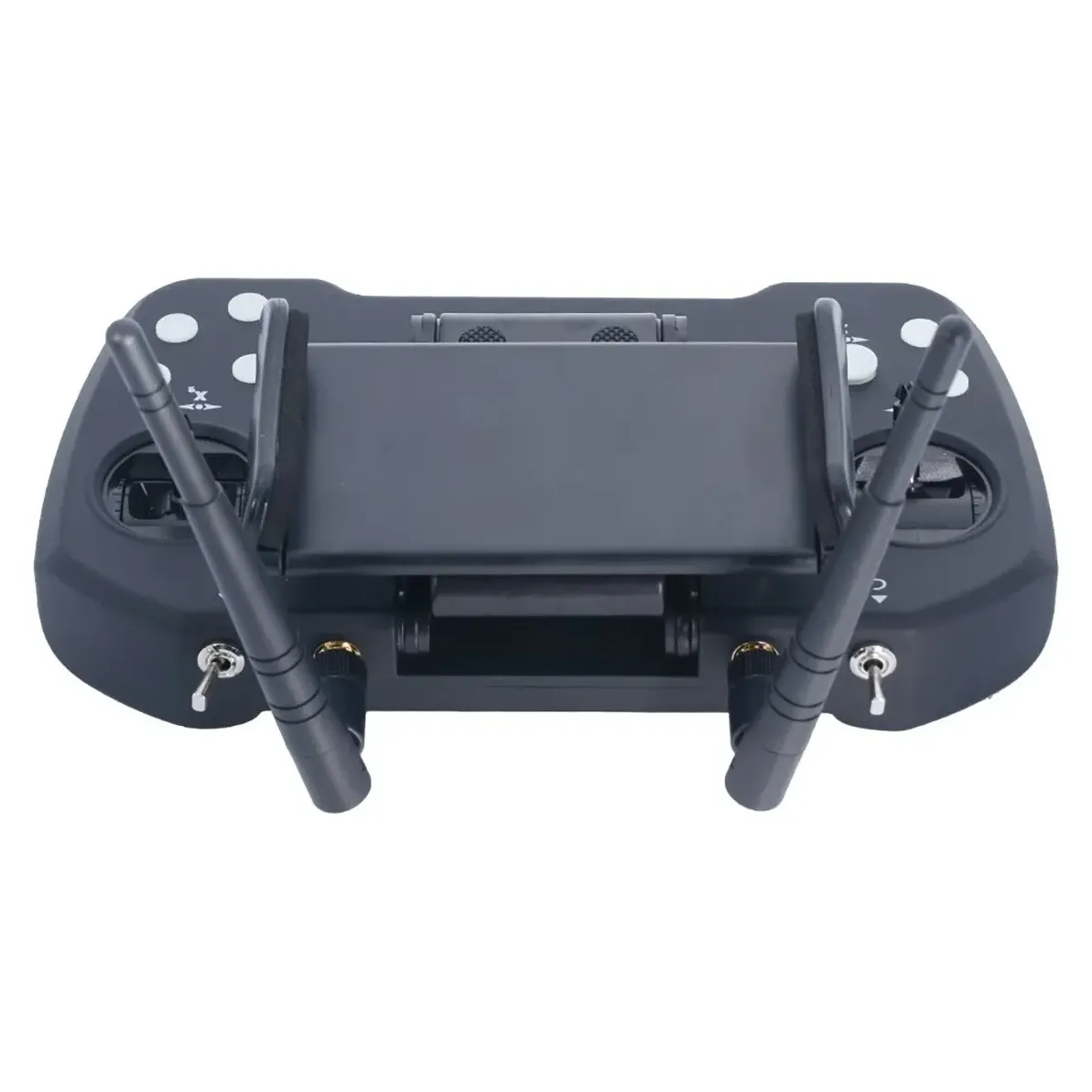

• Integrated smartphone mount with direct USB/Bluetooth routing for Android ground station software.
• Built-in 4000mAh battery rated for up to 25 hours of continuous operation.
• Weather-resistant housing for dust and moisture in agricultural environments.

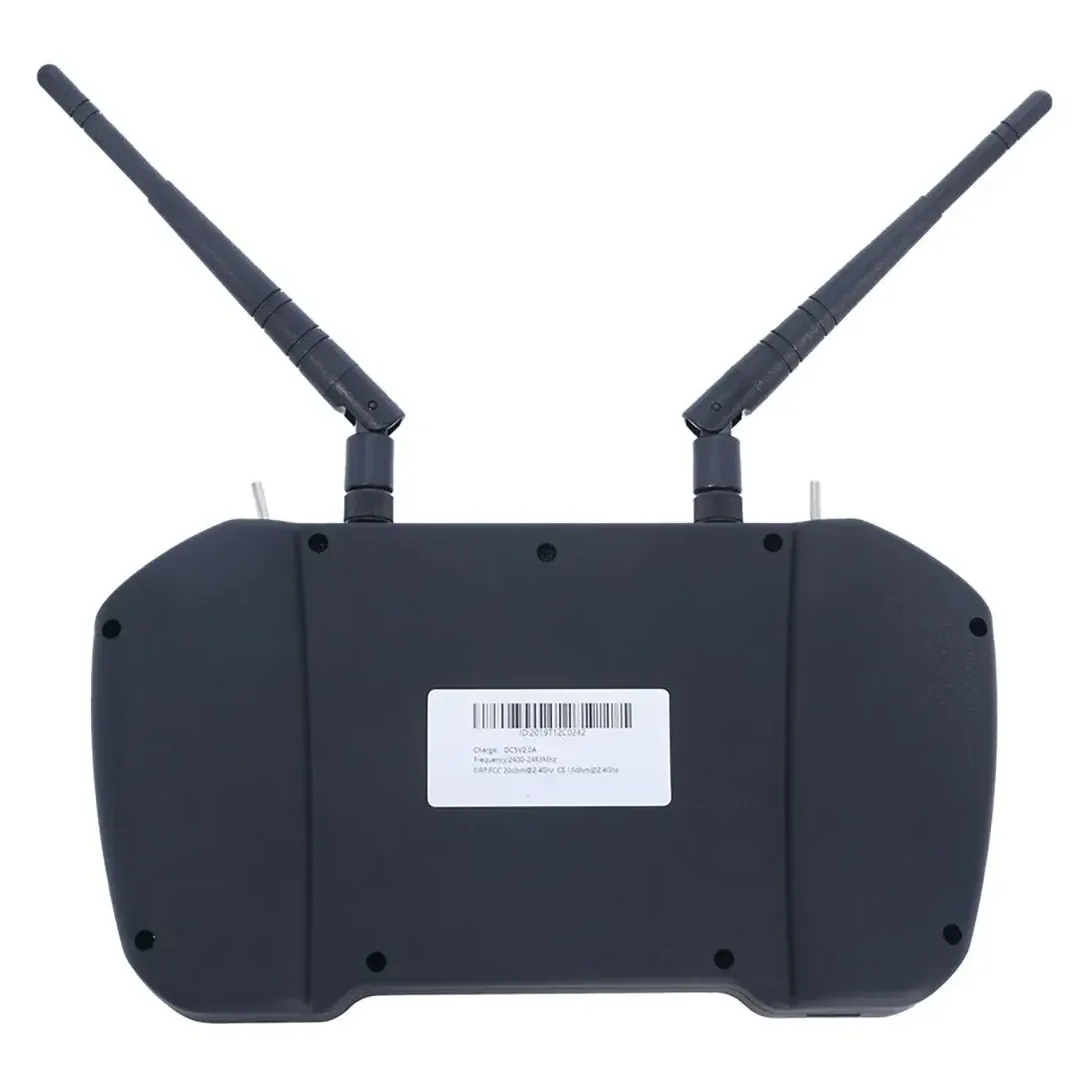

• Dual antennas and dual RF modules with FHSS frequency hopping for a stable link.

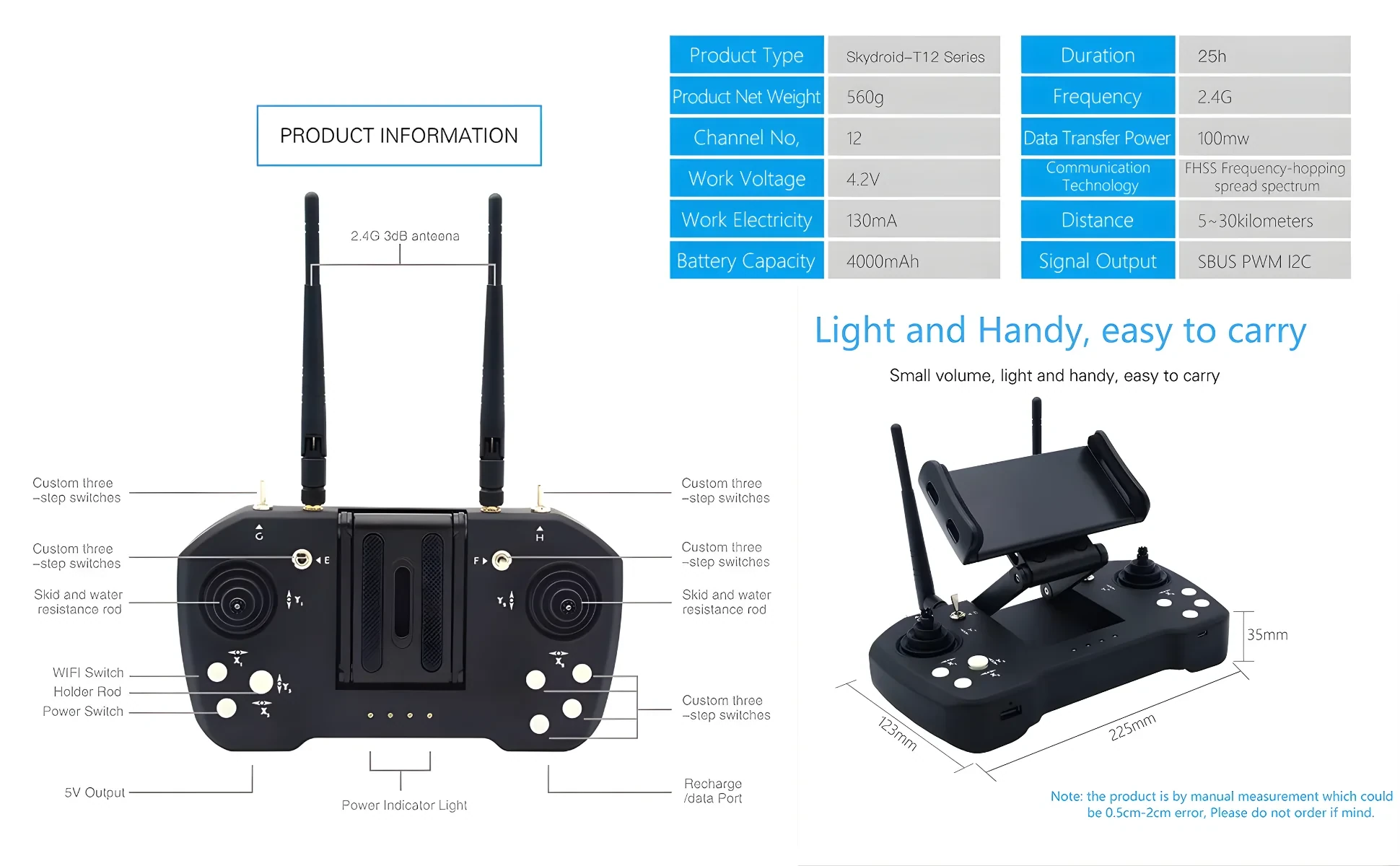

Specifications

• Channels: 12
• Operating frequency: 2.400-2.483GHz
• Maximum range: 20 km video (SD resolution), 30 km data link
• Battery: Built-in 4000mAh (3.7V), up to 25 hours
• Supported ground stations: Skydroid FPV, QGroundControl, Mission Planner, Tower

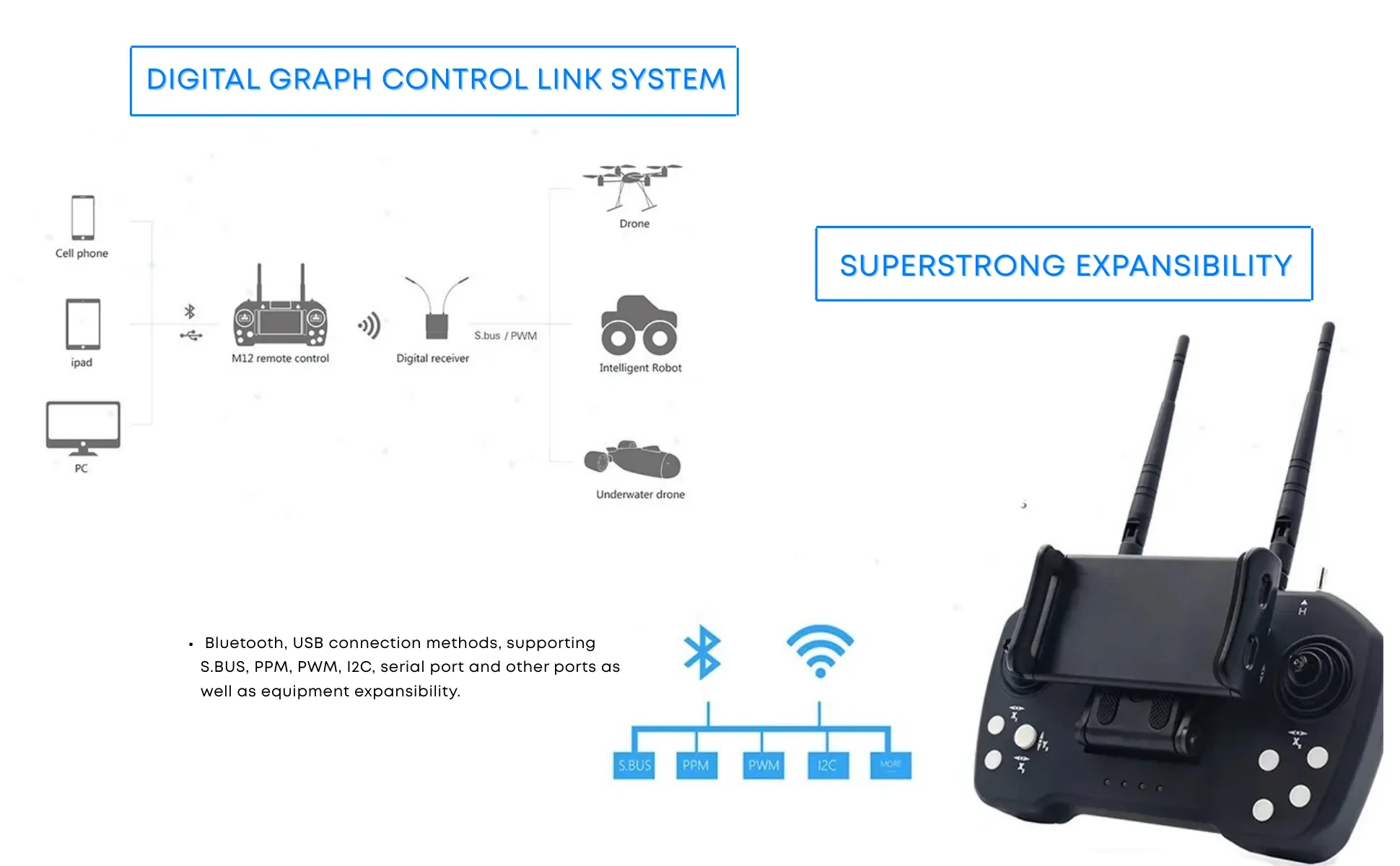

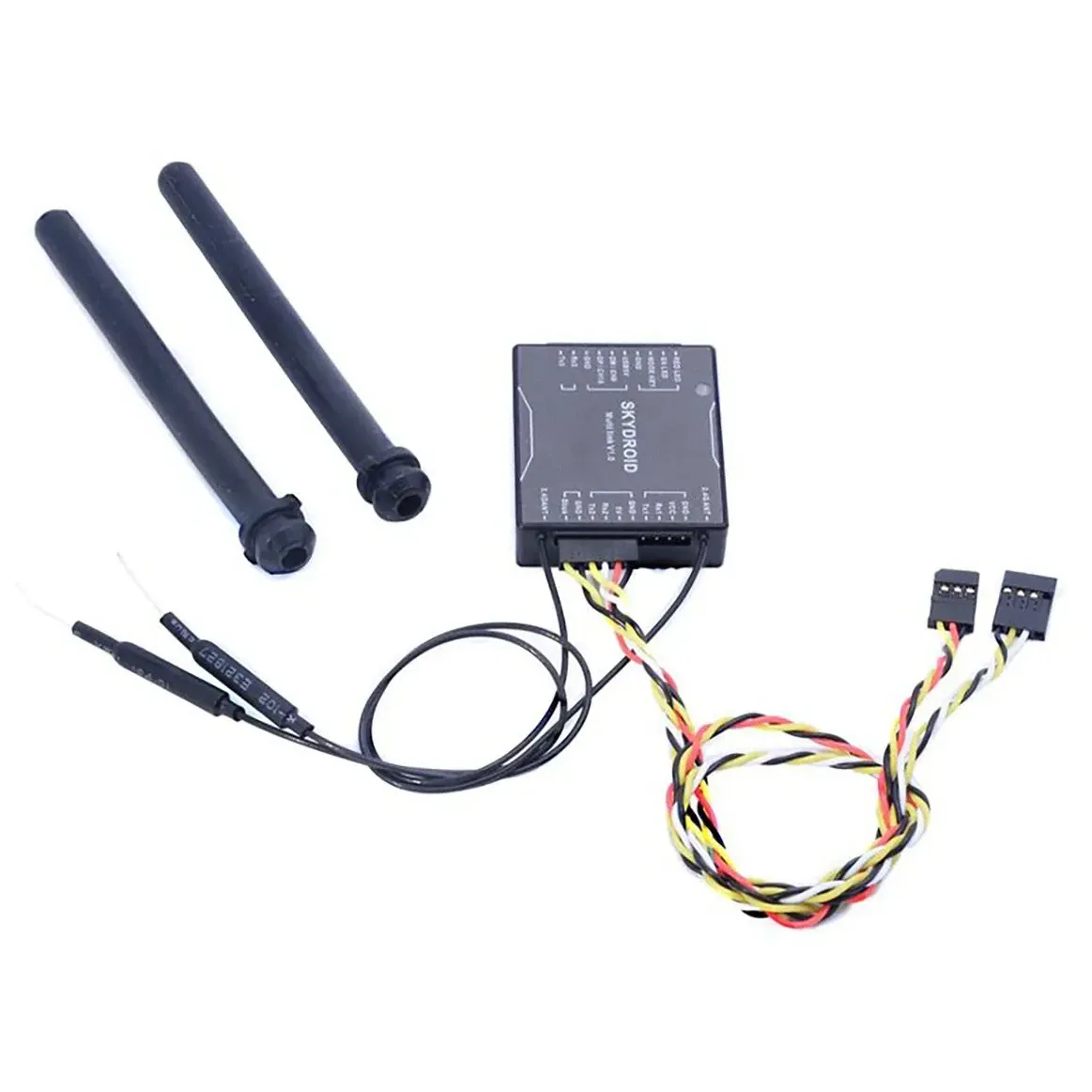

• Receiver: R12 receiver included, with S.BUS, PPM, PWM, I2C and serial interfaces
• Charge port: Micro-USB
• Dimensions: 225 x 123 x 35 mm
• Weight: 560g

Pairs well with heavy-lift multirotors and fixed-wing UAVs for long-range autonomous missions with live video monitoring, cutting down the ground-station hardware you need in the field.
