Skydroid C12 Pro Dual-Light 3-Axis Thermal Gimbal Camera

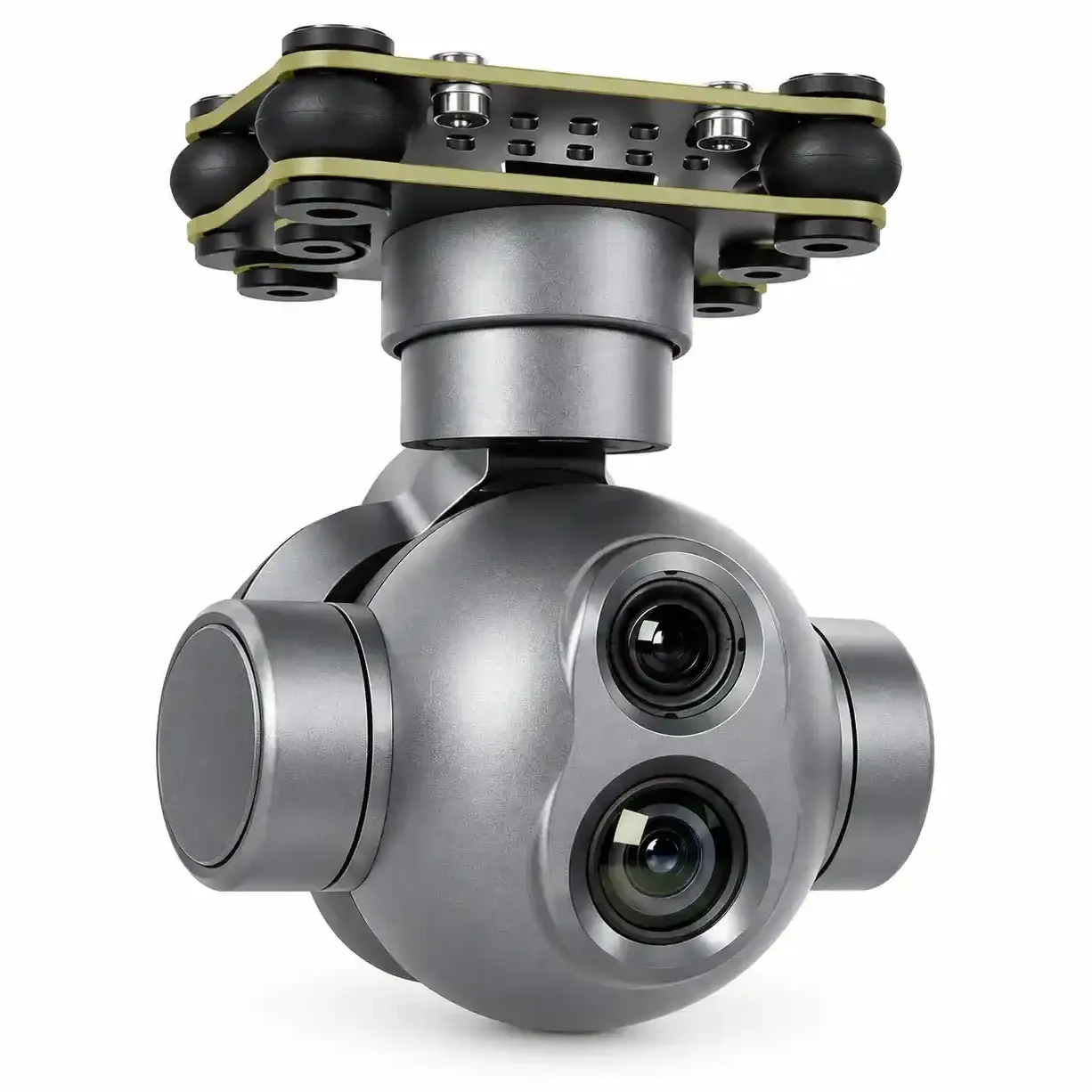

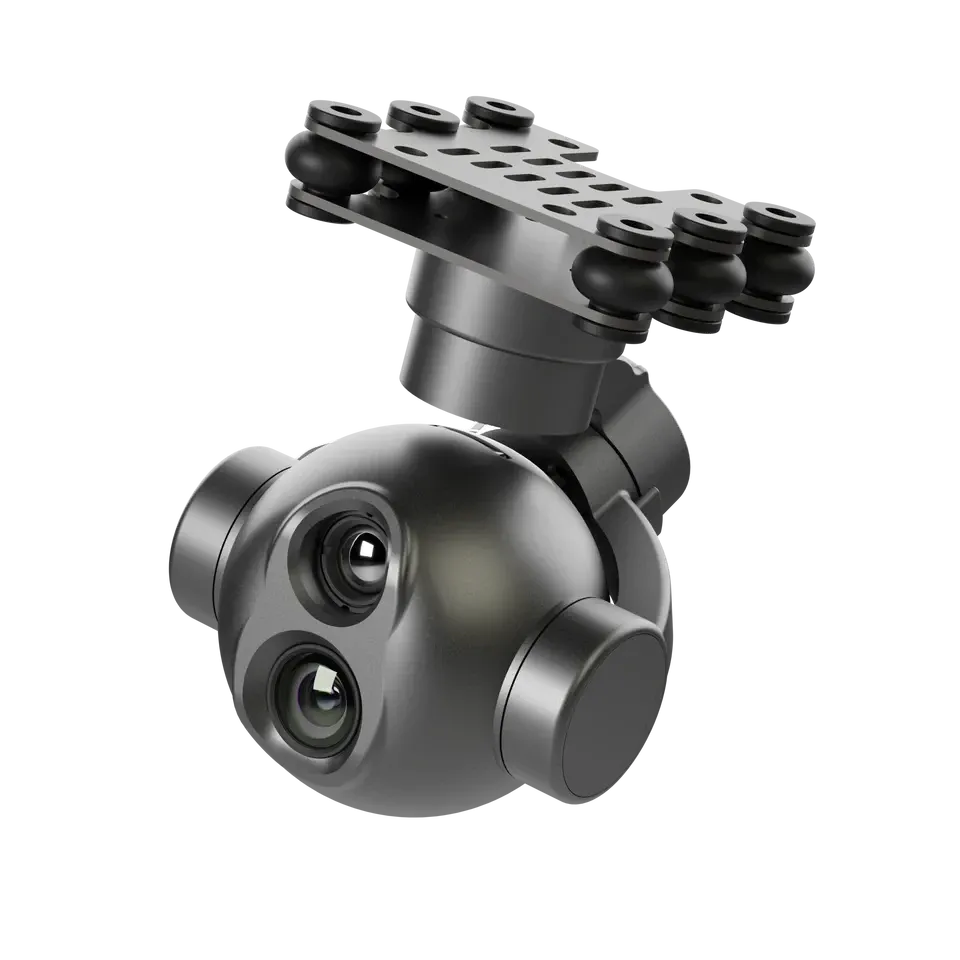

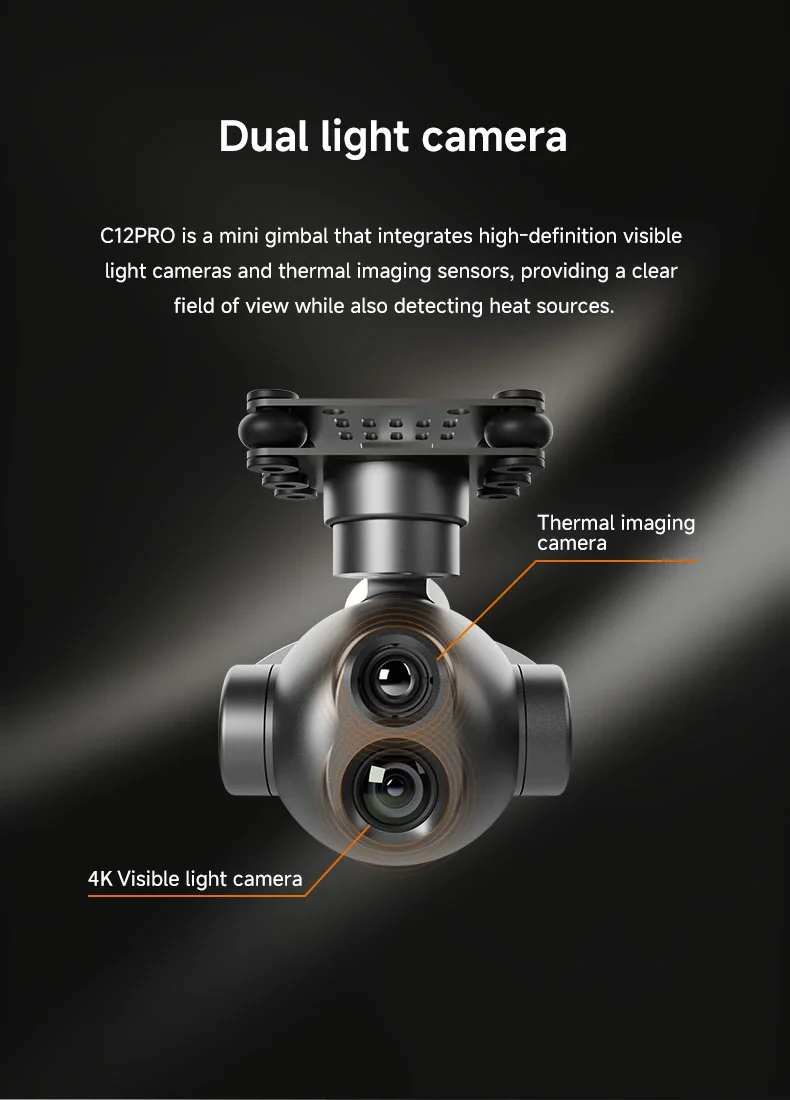

The Skydroid C12 Pro is a 140 g dual-light camera pod that puts a 4K daylight camera and a 512 × 384 thermal camera on one precision 3-axis gimbal. It suits firefighting, search and rescue, security, patrol and industrial inspection drones that need to pick out heat sources as well as fine visual detail.

Key features

• 8 MP 1/2.7-inch daylight camera recording 3840 × 2160, with 30x digital zoom for distant subjects

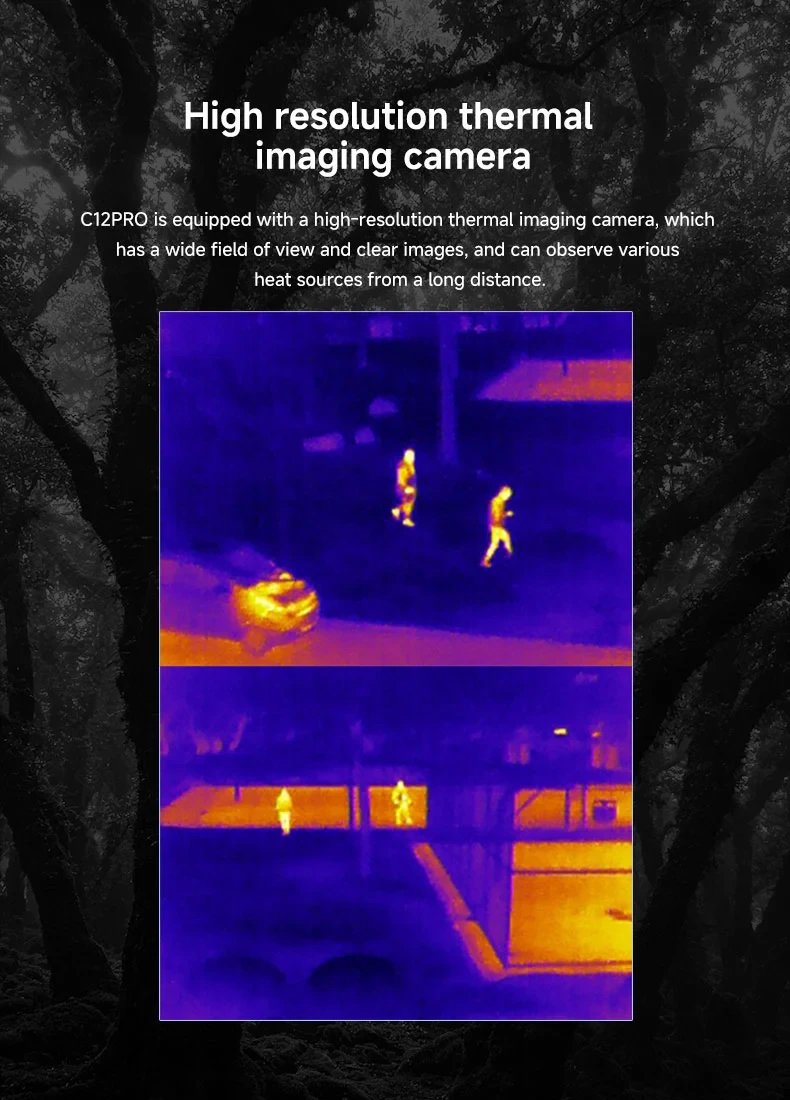

• 512 × 384 thermal camera (8–14 μm, 12 μm pixel pitch) behind a 7 mm F1.0 lens

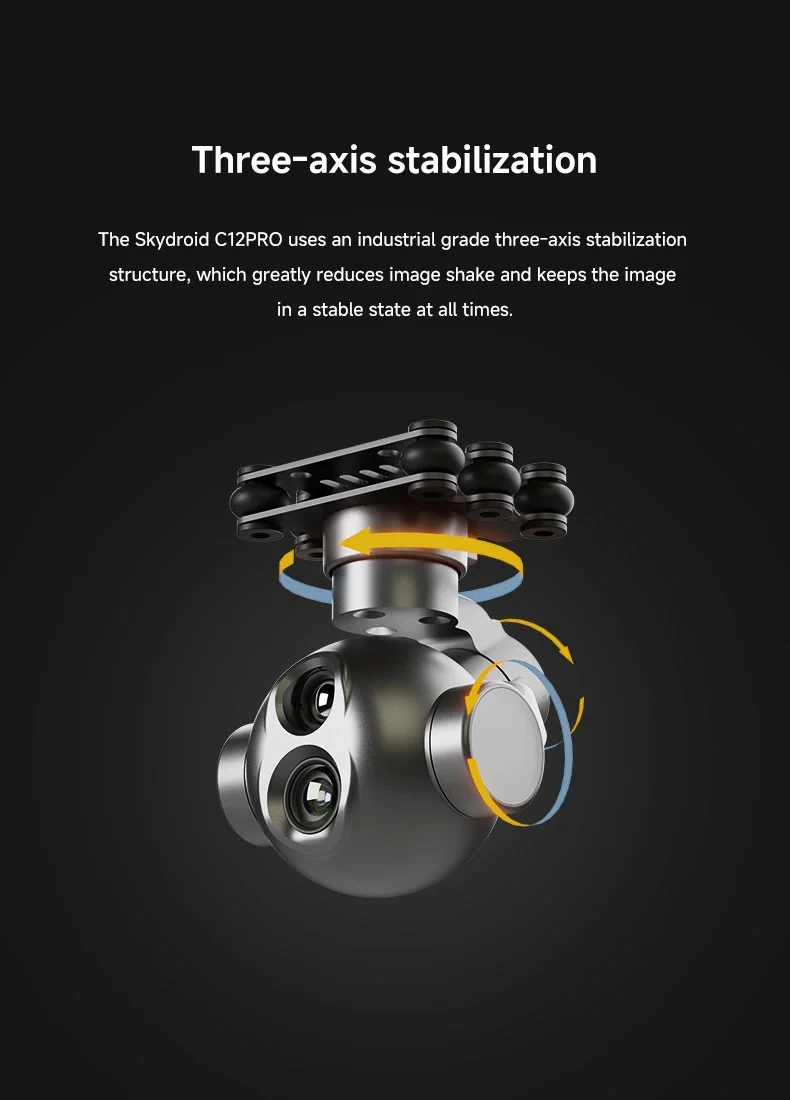

• Hover jitter held to ±0.01° and flight jitter to ±0.02°

• RTSP video and UDP control over one LAN port for integration with UAV receivers and onboard computers

• Industrial CNC-machined housing with a 15–80 V input that runs from 5S to 19S packs

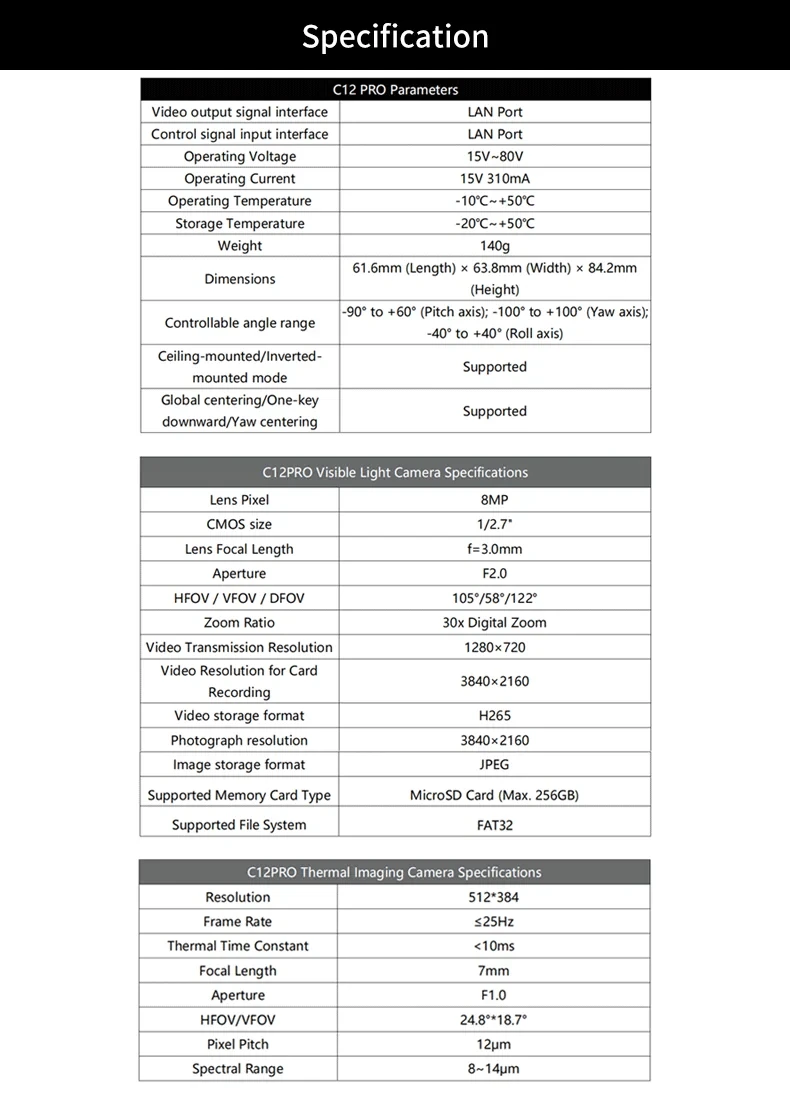

Specifications

• Daylight sensor: 1/2.7-inch CMOS, 8 MP

• Daylight lens: 3.0 mm, F2.0; 105° H / 58° V / 122° D

• Recording: 3840 × 2160 photo and video

• Live stream: 1280 × 720, H.265

• Zoom: 30x digital

• Thermal resolution: 512 × 384

• Thermal lens: 7 mm, F1.0; 24.8° H / 18.7° V

• Spectral range: 8–14 μm

• Thermal frame rate: up to 25 Hz

• Gimbal range: pitch −90° to +60°, yaw −100° to +100°, roll −40° to +40°

• Stability: ±0.01° hovering, ±0.02° in flight

• Interface: LAN (RTSP video, UDP control)

• Input voltage: 15–80 V

• Current draw: 310 mA at 15 V

• Operating temperature: −10 °C to +50 °C

• Weight: 140 g

• Dimensions: 61.6 × 63.8 × 84.2 mm

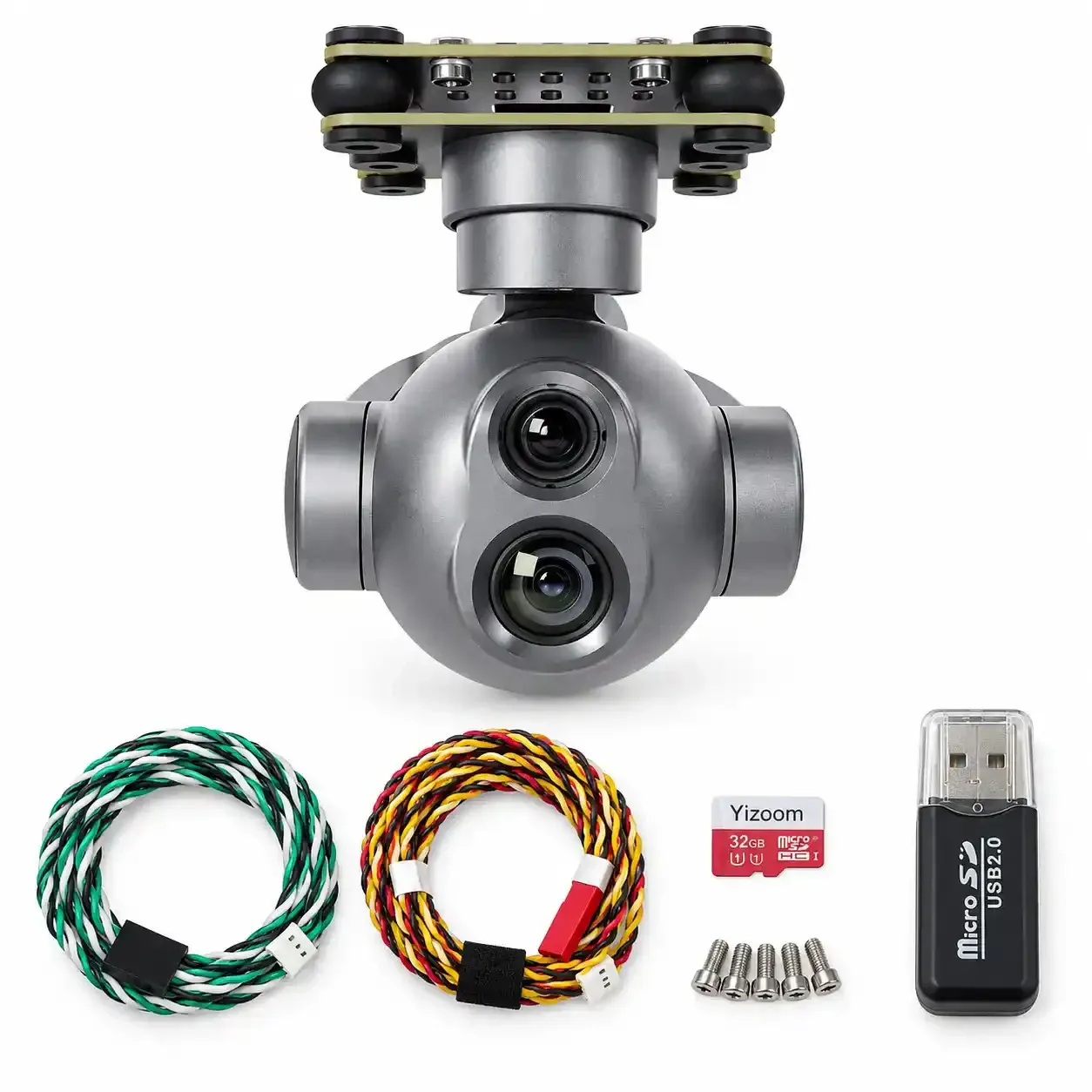

Supplied with a connection/control cable and mounting accessories. Plan for an air unit or companion computer with an Ethernet input, since both video and control run over LAN.
