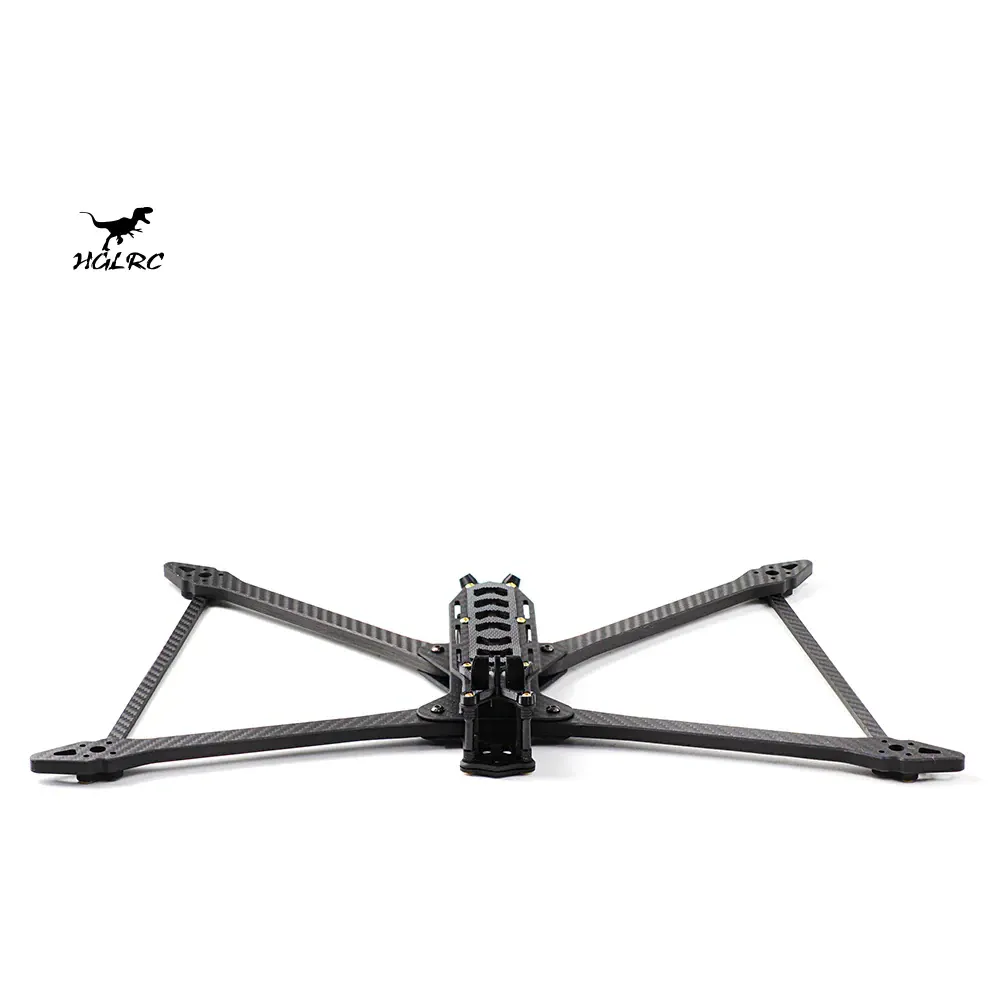

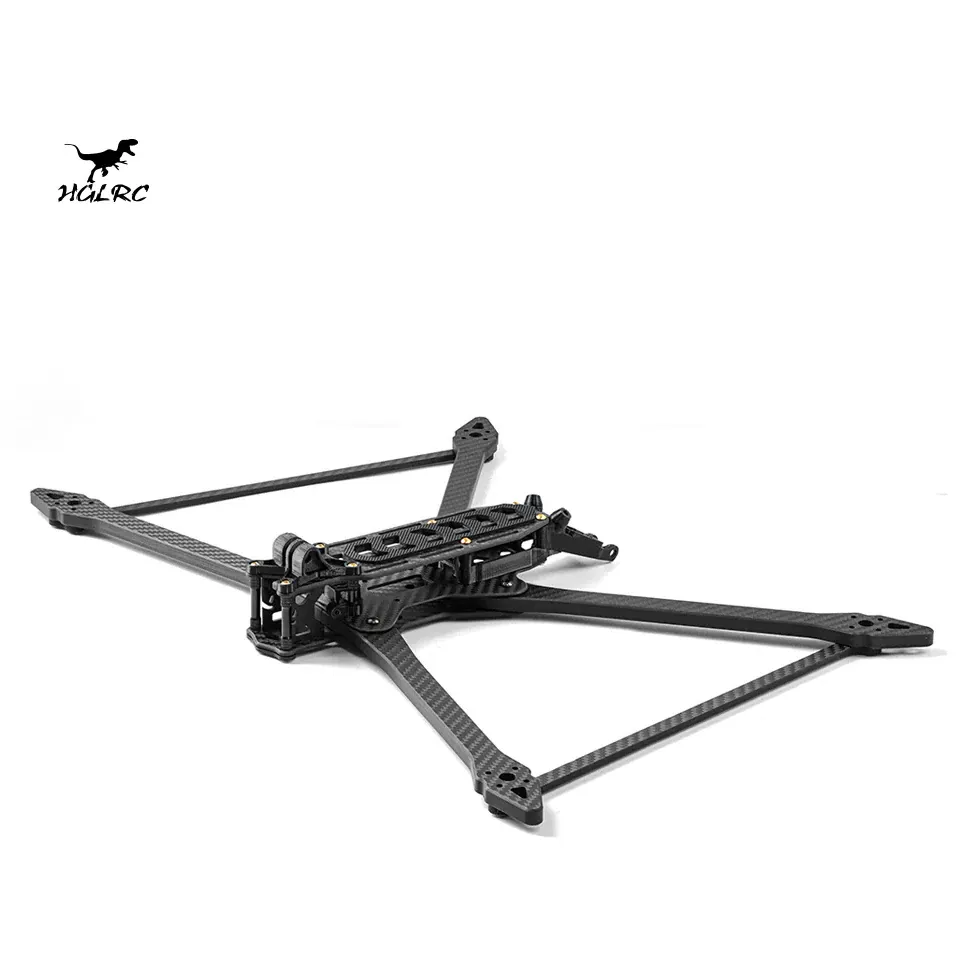

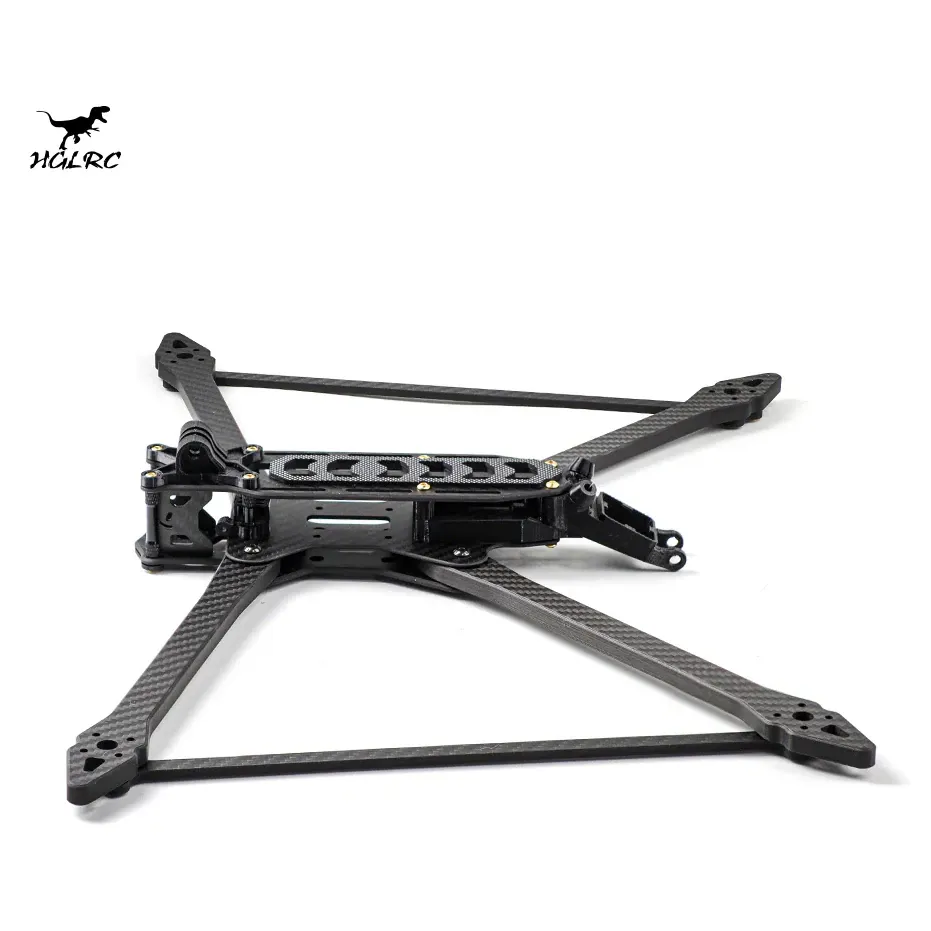

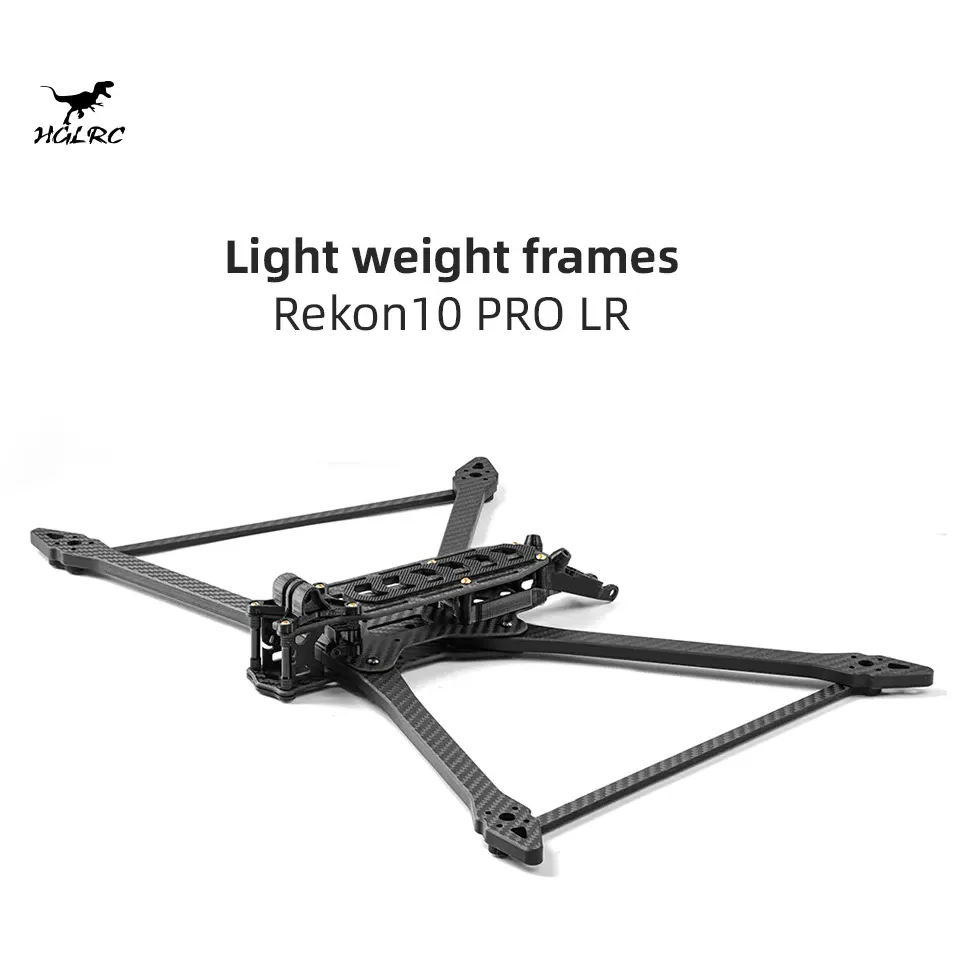

Rekon10 Pro 10" Long Range Frame Kit
SKU REKON10-PRO-10IN-FRAME
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Rekon10 Pro is a 10-inch long-range FPV frame kit engineered for heavy payloads, extended mountain surfing, and maximum flight endurance. Built to swing massive 10-inch propellers, this frame offers the clearance and structural rigidity required to carry high-capacity Li-Ion or LiPo battery packs while maintaining stable flight dynamics over long distances.
Key features
- Massive 455mm wheelbase geometry optimised for 10-inch efficiency and heavy-lift stability.
- Ultra-rigid carbon fibre construction featuring 8mm thick arms to suppress low-frequency vibrations.
- Spacious central body accommodates large stacks for high-power long-range electronics.
- Designed with generous mounting clearance for major digital HD video systems including the DJI O3 Air Unit.
Specifications
- Model: Rekon10 Pro
- Supported propeller size: 10"
- Wheelbase: 455mm
- Overall size: 476 x 298mm
- Material: 3K carbon fibre
- Arm thickness: 8mm
- Plate thickness: 3mm top and bottom / 2mm mid
- FC/ESC mounting: 30.5x30.5mm
- Motor mounting: 19x19mm
- Supported cameras: 19mm, 20mm (O3 compatible)
- Weight: 396.7g (frame kit)
Pair this large-scale frame with 31xx or 32xx brushless motors, a 60A-class ESC, and dense 6S Li-Ion packs to extract its full extended-range potential.
| Prop Size | 10" |
|---|---|
| Brand | Rekon |
| Weight | 396.7 g |
| Made in India | No |
| Mounting Size | 30.5x30.5 |
| Motor Mount | 19x19mm |
| Camera Size | 19mm, 20mm |
| Wheelbase | 455 mm |
| Arm Thickness | 8 mm |
