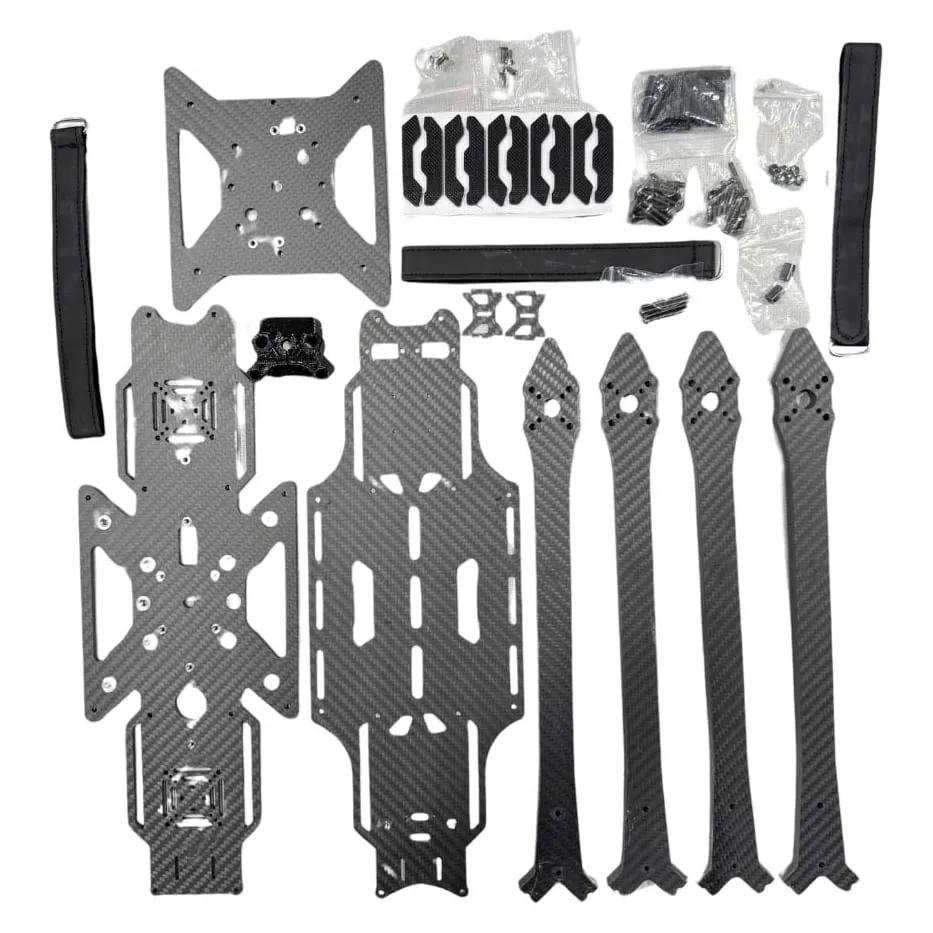

Shadow X 15-Inch True-X Carbon Fiber FPV Frame Kit

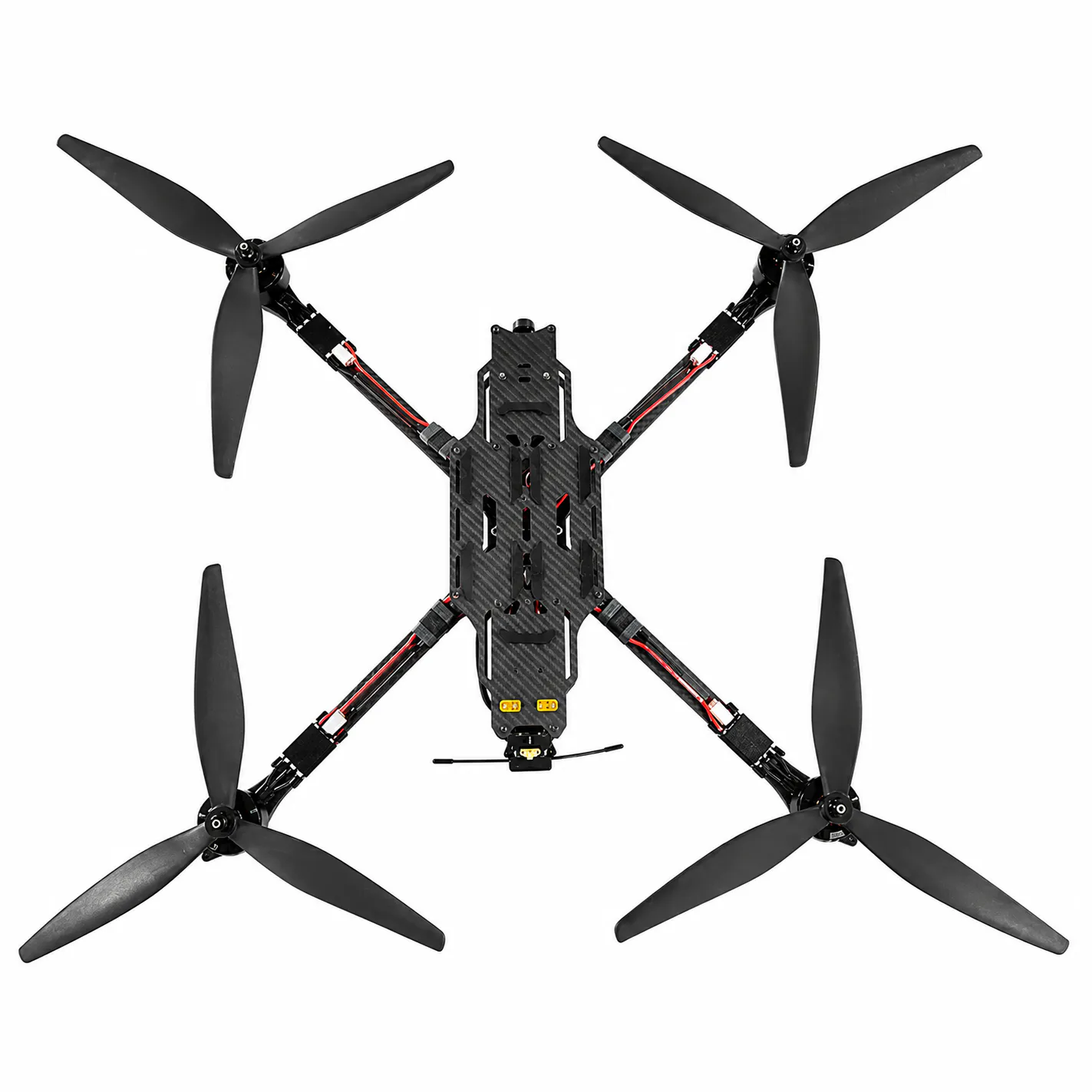

The Shadow 15-inch frame is a heavy-lift, true-X carbon fibre chassis built for large-scale FPV builds, long-range cinelifters and custom aerial platforms that need to swing 15-inch propellers. T300 3K carbon fibre construction and 10mm-thick arm tubes give it the rigidity to handle high-thrust motors and heavy camera payloads without excessive flex.

Key features

• True-X frame geometry for balanced thrust distribution with large motors and 15-inch propellers.
• T300 3K carbon fibre plates and 10mm-thick carbon arms for a stiff, impact-resistant build.
• 4mm top and bottom plates with a 25mm internal stack height, leaving room for large flight stacks and ESCs.
• Multiple VTX mounting-hole patterns (M2 20mm/25.5mm and M3 30.5mm) and a 30.5mm flight-controller stack pattern for broad component compatibility.
• Standard mounting layout for the FPV camera, keeping it drop-in compatible with common camera cases.

Specifications

• Propeller size: 15 inch
• Frame material: T300 3K carbon fibre
• Arm thickness: 10 mm
• Top/bottom plate thickness: 4 mm
• Internal stack height: 25 mm
• Flight controller mounting: 30.5 x 30.5 mm
• Motor mounting: 30 x 30 mm (M4)
• Frame weight: approx. 768 g

When speccing electronics for this frame, choose flight controllers and ESCs rated for the high-voltage systems typically paired with 15-inch, high-thrust motors, and use heavy-duty straps to secure large LiPo or Li-ion packs.
