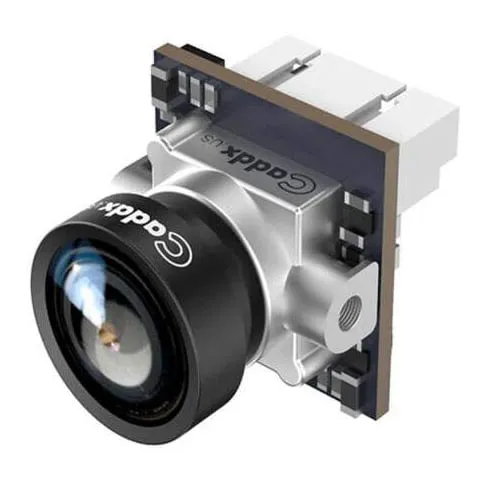

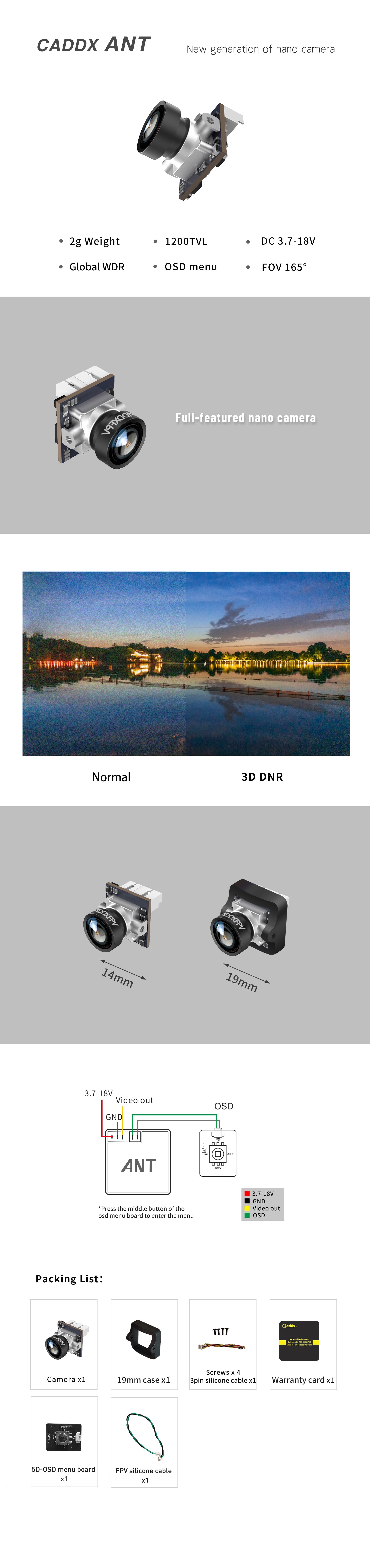

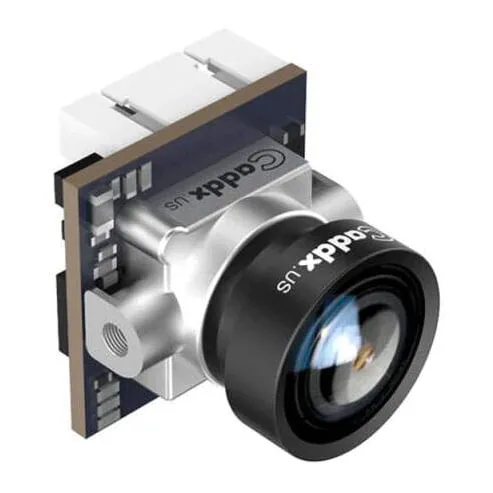

Caddx Ant 1200TVL 2g Ultra Light FPV Camera

The Caddx Ant is an ultra-light 2g analogue FPV camera built for tiny whoops, toothpicks and other micro builds where every gram counts. A 14x14mm nano-format board houses a 1/3" CMOS sensor delivering 1200TVL resolution, with a bundled 19mm bracket letting it drop into micro-sized camera mounts.

Key features

• 1/3" CMOS sensor with a 1.8mm lens for 1200TVL resolution
• Global WDR and 3D DNR keep the image clear across bright highlights and low light
• Onboard OSD menu allows on-the-fly NTSC/PAL switching and image adjustment
• Wide 3.7-18V input runs natively on 1S to 4S power systems
• Ships with a 19mm bracket to adapt the 14x14mm nano frame to micro-sized mounts

Specifications

• Image sensor: 1/3" CMOS
• Resolution: 1200 TVL
• Lens: 1.8mm
• TV system: NTSC / PAL (switchable)
• Minimum illumination: 0.001 lux at F1.2
• Video output: CVBS
• Input voltage: 3.7-18V
• Dimensions: 14x14mm (19x19mm with bracket)
• Weight: 2g

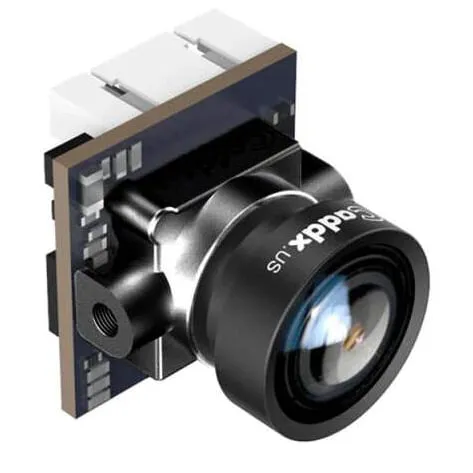

• Versions: 16:9 (silver) or 4:3 (black)

A drop-in weight-saving upgrade for sub-250g analogue builds that still need a clear, adjustable image.
