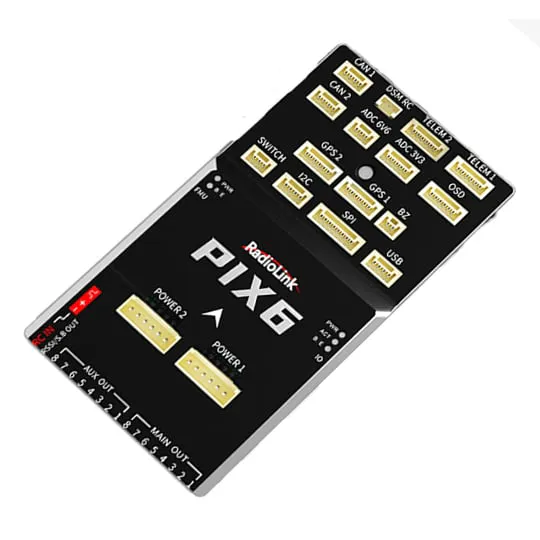

Radiolink PIX6 Flight Controller

The Radiolink PIX6 is a highly capable flight controller engineered for autonomous drones, heavy-lift platforms, and fixed-wing aircraft. Built around an F7 processor, it fully leverages the ArduPilot and PX4 firmware ecosystems to deliver rock-solid navigation and sensor processing for agriculture rigs, commercial mapping drones, and complex VTOL builds.

Key features

• F7 processor with dual onboard gyros (BMI088 and ICM-42688-P) for redundant, vibration-isolated sensor data
• Native compatibility with the ArduPilot and PX4 flight stacks
• Built-in barometer for precise altitude hold and autonomous waypoint mapping
• 5 UARTs for GPS, telemetry radios, companion computers and other serial peripherals
• Supports 2S to 12S input power, suiting everything from small multirotors to heavy-lift agriculture platforms
• 16 PWM output channels and an integrated OSD for analogue or digital (DJI, Walksnail) video feeds

Specifications

• Processor: F7
• Gyro: BMI088, ICM-42688-P
• Barometer: Yes
• UARTs: 5
• PWM outputs: 16
• OSD: integrated
• Input voltage: 2S-12S
• Current (power module): 90 A total
• Supported firmware: ArduPilot, PX4
• Vehicle support: Multirotor, fixed-wing, VTOL, rover
• Telemetry protocol: MAVLink
• In the box: flight controller, 2-12S power module, buzzer, safety switch, 4 GB microSD card, connection cables, Type-C cable, double-sided tape, user manual

Whether you are building an X-Class drone or outfitting a high-payload agriculture quadcopter, the PIX6 provides the advanced scripting and safety capabilities required for professional enterprise use. Pair it with a reliable M10 GPS and compass module to unlock full autonomous mission planning and return-to-home functions.
