Radiolink CrossFlight Flight Controller Kit with TS100 M8N GPS

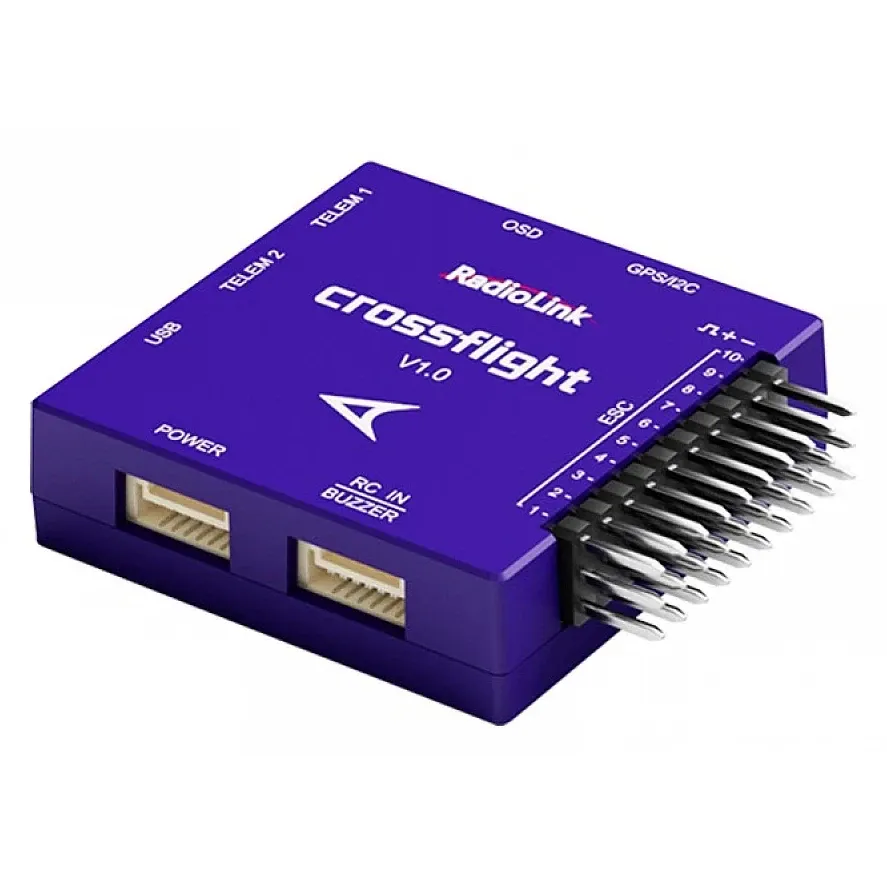

Radiolink's CrossFlight is an ArduPilot flight controller with a built-in OSD, supplied here as an install-ready kit with the TS100 Mini M8N GPS, a 2-12S power module and the wiring accessories. It suits multirotors, fixed-wing aircraft, helicopters, cars and boats where you want GPS flight modes, missions and on-screen telemetry without adding a separate OSD board.

Key features

• HC32F4A0 processor with ICM42670 IMU, LPS22HB barometer and an onboard compass
• Integrated OSD overlays flight data on analogue FPV video
• 10 PWM outputs, PPM/SBUS receiver input, two MAVLink telemetry ports and a GPS/I2C port
• Power module accepts 2-12S packs, measures current up to 90 A and powers the board through its 5.3 V BEC
• Preflashed with Radiolink's ArduCopter build; configure in Mission Planner or QGroundControl
• USB Type-C and a microSD card for flight logs

Specifications

• Processor: HC32F4A0
• IMU: ICM42670
• Barometer: LPS22HB
• Compass: VCM5883 onboard, plus the GPS compass
• Input voltage: 2-12S (7.4-50.4 V) via power module
• Current sensing: up to 90 A
• BEC output: 5.3 V +/-0.2 V, 2 A
• PWM outputs: 10
• RC input: PPM / SBUS
• Serial ports: 2 MAVLink telemetry, 1 GPS
• USB: Type-C
• FC dimensions: 39.7 x 39.7 x 13 mm
• FC weight: 16.5 g (54 g with cables)

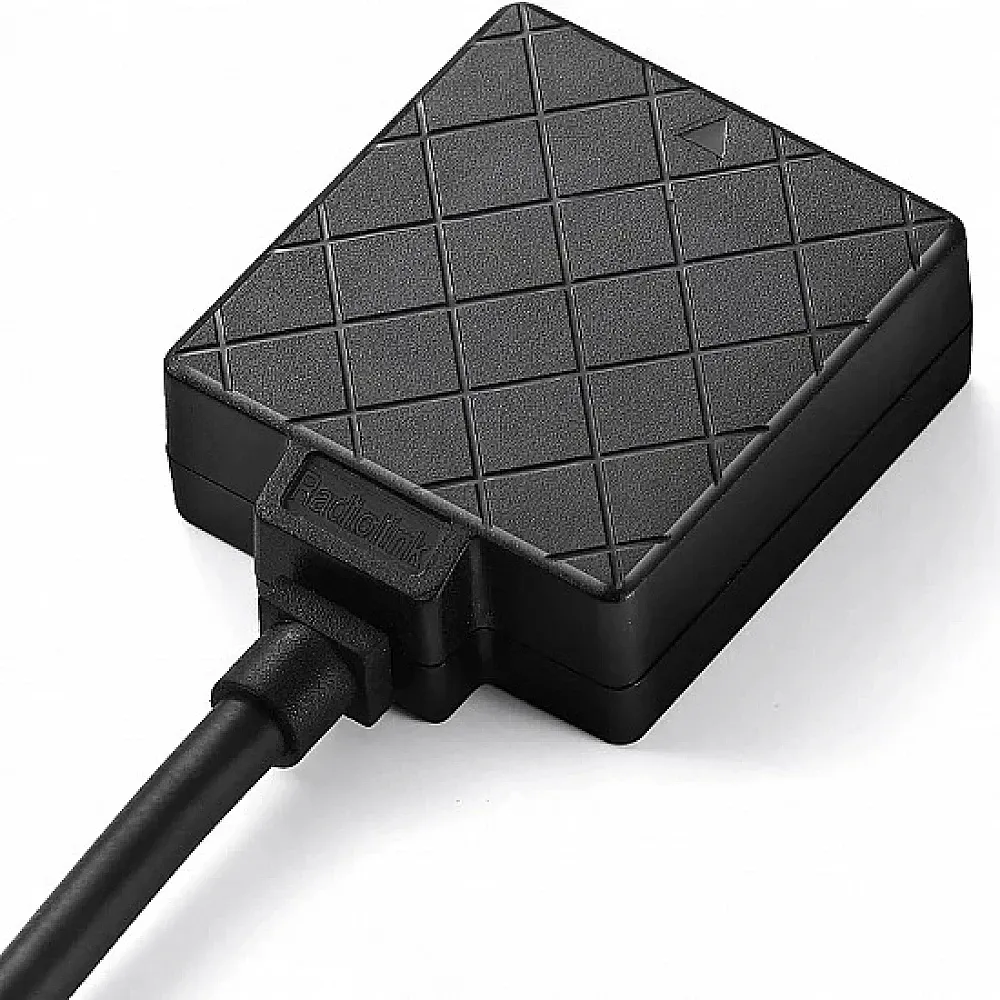

• GPS: TS100 Mini M8N, 50 cm accuracy, 31 x 31 x 12 mm
• In the box: CrossFlight FC, power module, buzzer, I2C transfer board, status LED, cables, TS100 GPS, foldable GPS mount, shock absorber set

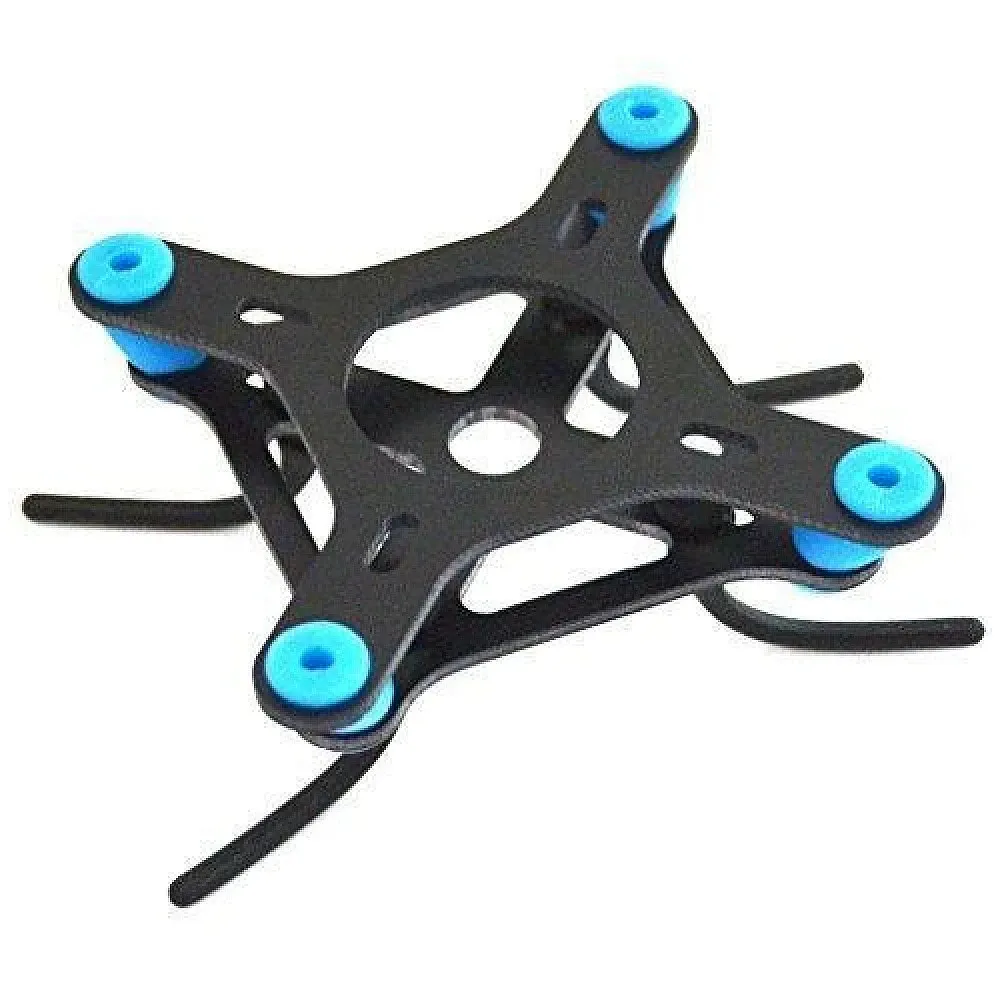

Mount the GPS on the folding mast away from power leads and ESCs, then calibrate the compass and accelerometer in Mission Planner before the first flight. The shock absorber set isolates the board from frame vibration on larger airframes.
