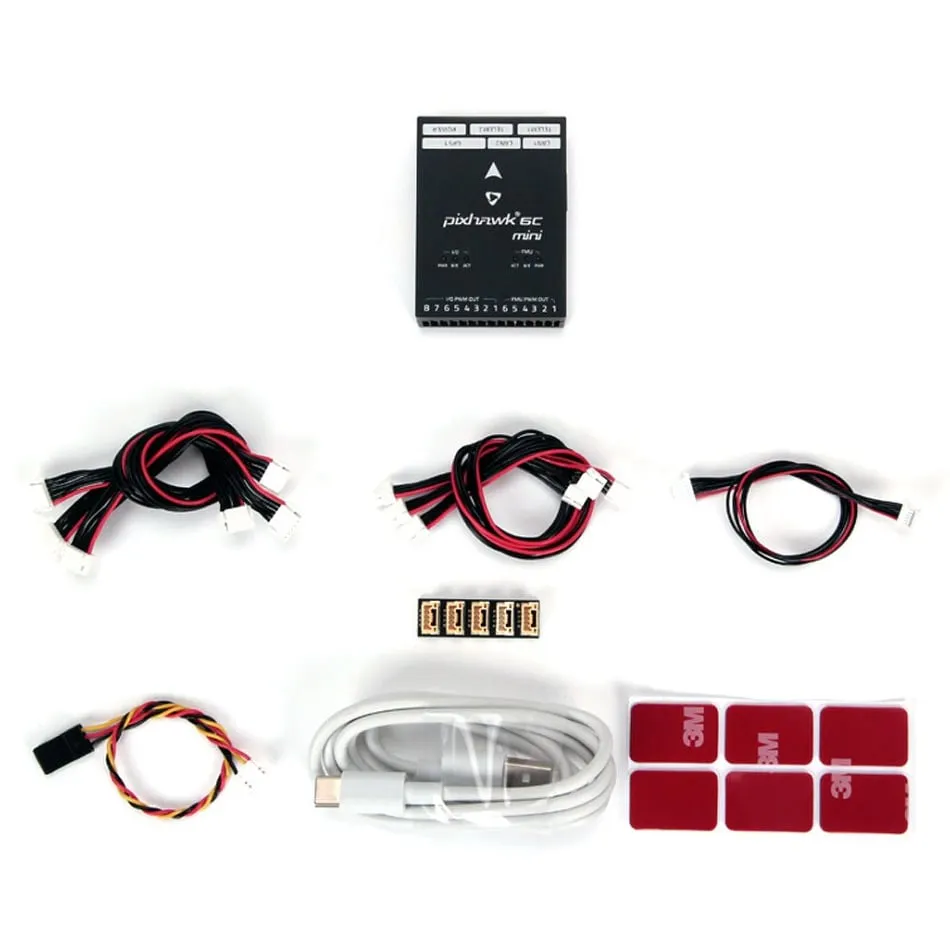

Holybro Pixhawk 6C Mini Flight Controller

The Holybro Pixhawk 6C Mini is a compact autopilot built on the Pixhawk FMUv6C open standard, sharing the STM32H743 processor and sensor set of the full-size Pixhawk 6C. A built-in PWM header replaces some of the 6C's ports to save space, which suits small multirotors, VTOLs, fixed-wings and research airframes running PX4 or ArduPilot.

Key features

• STM32H743 Cortex-M7 at 480 MHz with 2 MB flash and 1 MB RAM, backed by an STM32F103 IO co-processor
• Redundant ICM-42688-P and BMI088 IMUs on a vibration-isolation system
• Onboard MS5611 barometer and IST8310 magnetometer
• 14 PWM servo outputs (8 from IO, 6 from FMU), two CAN buses and two GPS ports
• Model A and Model B differ in which way the pin header faces, for flexible installation; Model A is the revised board with a steadier PWM signal under load

Specifications

• FMU processor: STM32H743, 480 MHz, 2 MB flash, 1 MB SRAM
• IO processor: STM32F103, 72 MHz, 64 KB SRAM
• IMUs: ICM-42688-P, BMI088
• Barometer: MS5611
• Magnetometer: IST8310
• PWM outputs: 14 (8 IO + 6 FMU)
• Ports: Telem1, Telem2, GPS1 (full), GPS2 (basic), 1 x I2C, 2 x CAN
• RC input: Spektrum DSM, S.BUS, CPPM; analogue/PWM RSSI
• Power input: 6 V max; USB 4.75–5.25 V; servo rail 0–36 V
• Dimensions: Model A 54.3 x 39 x 17.5 mm; Model B 58.3 x 39 x 18.15 mm
• Weight: Model A 42.4 g; Model B 46.8 g
• Operating temperature: -25 to 85 °C

The board runs on a regulated 5 V supply (6 V maximum), so power it through a Pixhawk-standard power module rated for your battery, and add an external GPS module for position hold and autonomous missions.
