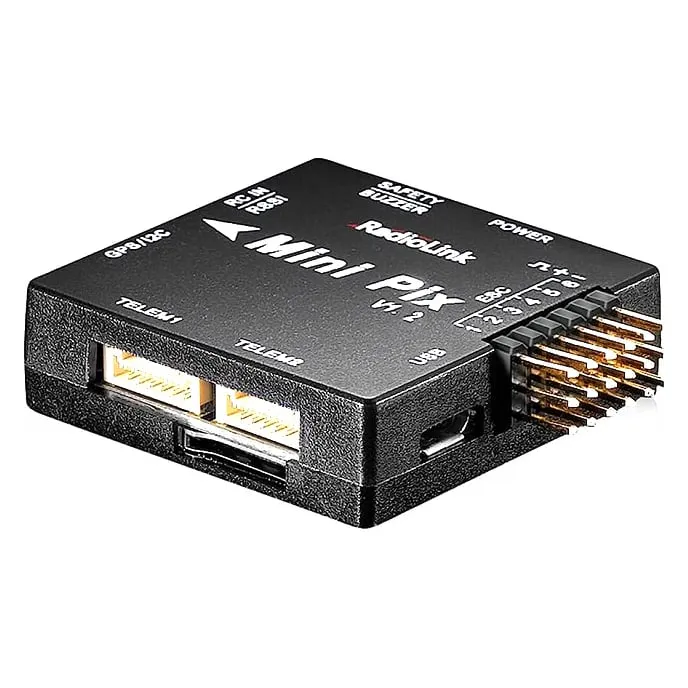

Radiolink Mini Pix Flight Controller

The Radiolink Mini Pix packs the robust autonomous capabilities of the classic Pixhawk architecture into a highly compact, 12-gram footprint. Encased in a protective shell with built-in vibration isolation, it is engineered for space-constrained builds like small fixed-wing planes, multirotors, and specialised UAVs running ArduPilot.

Key features

• Enclosed shell protects internal components and simplifies tape-mounting on cramped frames.

• Internal vibration dampening optimises data from the MPU6500 IMU and LPS22HB barometer.

• Supports up to six PWM outputs for standard quadcopters, hexacopters, or fixed-wing control surfaces.

• Fully compatible with Radiolink's streamlined Mission Planner for straightforward ArduPilot setup and calibration.

Specifications

• Processor: STM32F405VGT6

• Gyro/IMU: MPU6500

• Barometer: LPS22HB

• Internal compass: QMC5883L

• PWM outputs: 6

• Telemetry ports: 2

• Connectors: 1.25 mm pitch JST-GH

• Operating voltage: 5.1 V

• Operating temperature: -40 to 80 °C

• Supported firmware: ArduPilot

• Dimensions: 39 × 39 × 12 mm

• Weight: 12 g (with case)

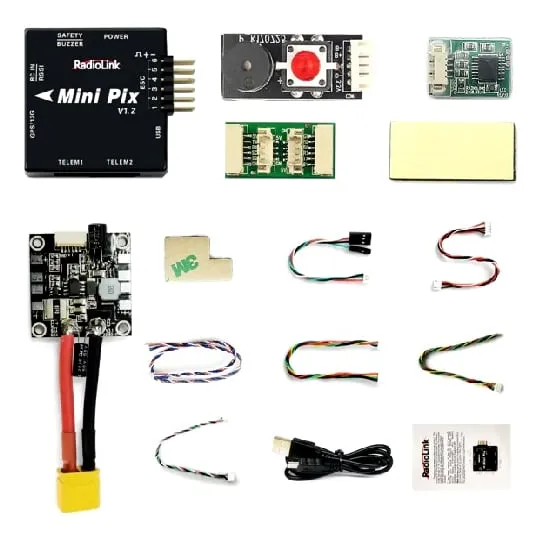

• In the box: flight controller, power module, buzzer and safety switch, I2C transfer board, status LED, connector cables, USB cable, double-sided tape, user manual

This flight controller provides a solid foundation for autonomous missions. Pair it with a compatible M8N or TS100 GPS module for full waypoint navigation and reliable return-to-home functionality.
