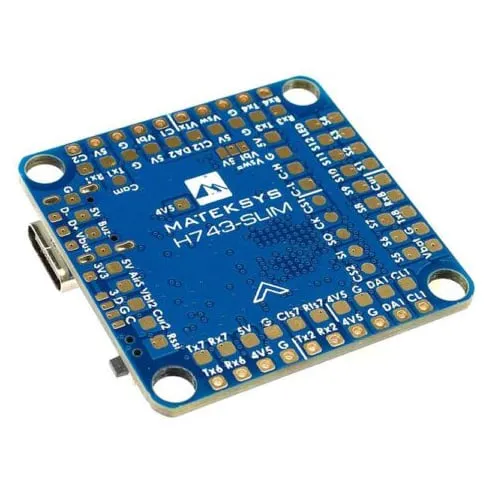

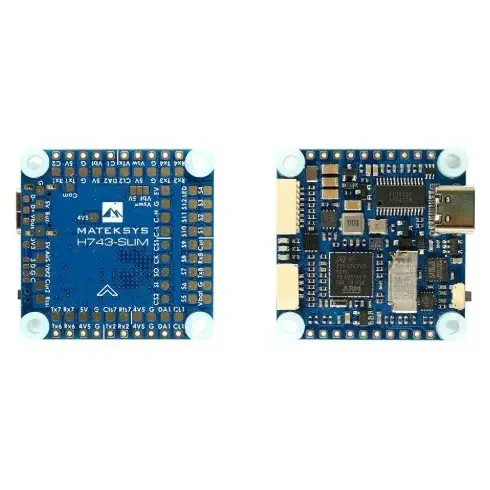

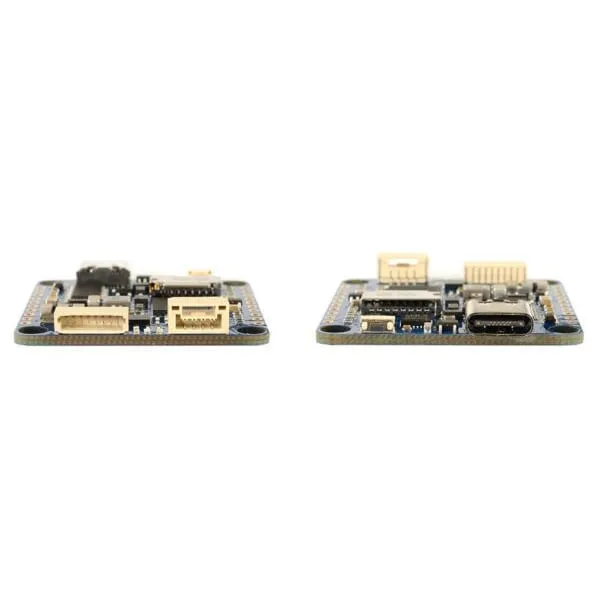

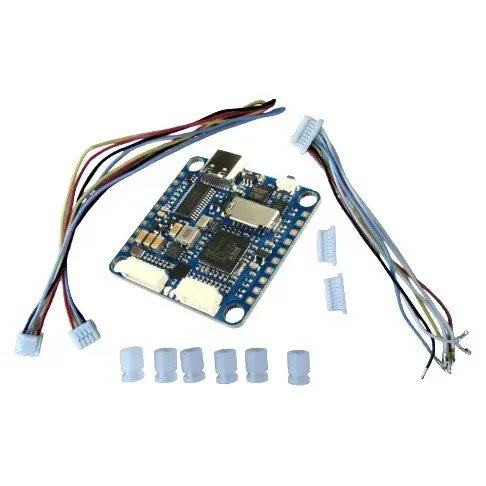

Matek H743-Slim V3 Flight Controller

The MATEKSYS H743-Slim V3 is a 30.5×30.5 mm flight controller built on the 480 MHz STM32H743 processor. It targets ArduPilot and INAV on multirotors, fixed-wings and VTOLs, and also runs Betaflight, bringing the logging and sensor redundancy that autonomous and long-range aircraft call for.

Key features

• Dual IMU (ICM42688P and ICM42605) on separate SPI buses for sensor redundancy
• DPS310 barometer and AT7456E analog OSD on board; DJI OSD works on any spare UART
• 7 UARTs with built-in inversion, 13 PWM outputs, 2 I2C buses and a CAN port on a JST-GH 4-pin connector
• MicroSD card slot for blackbox and flight logs
• Runs from 2–8S (6–36 V) with a 5 V 2 A BEC for the receiver, GPS and peripherals
• Dual camera input switch and a switchable 5V/Vbat filtered output

Specifications

• MCU: STM32H743VIH6, 480 MHz, 1 MB RAM, 2 MB flash
• IMU: ICM42688P (SPI1) and ICM42605 (SPI4)
• Barometer: Infineon DPS310
• OSD: AT7456E
• Blackbox: MicroSD card
• Interfaces: 7 UARTs, 13 PWM outputs, 2 I2C, 1 CAN, 6 ADC, USB-C
• Input voltage: 6–36 V (2–8S LiPo)
• BEC: 5 V 2 A continuous (3 A max); 3.3 V LDO up to 200 mA
• Current sensor: none on board (Current and Cur2 ADC inputs)
• Mounting: 30.5×30.5 mm, 4 mm holes with 3 mm grommets
• Firmware target: MATEKH743 (ArduPilot, INAV, Betaflight)

Wire a power module or your ESC's current output to the Current pad for battery monitoring, and power high-draw servos from a separate BEC, since the onboard 5 V regulator is rated at 2 A continuous.
