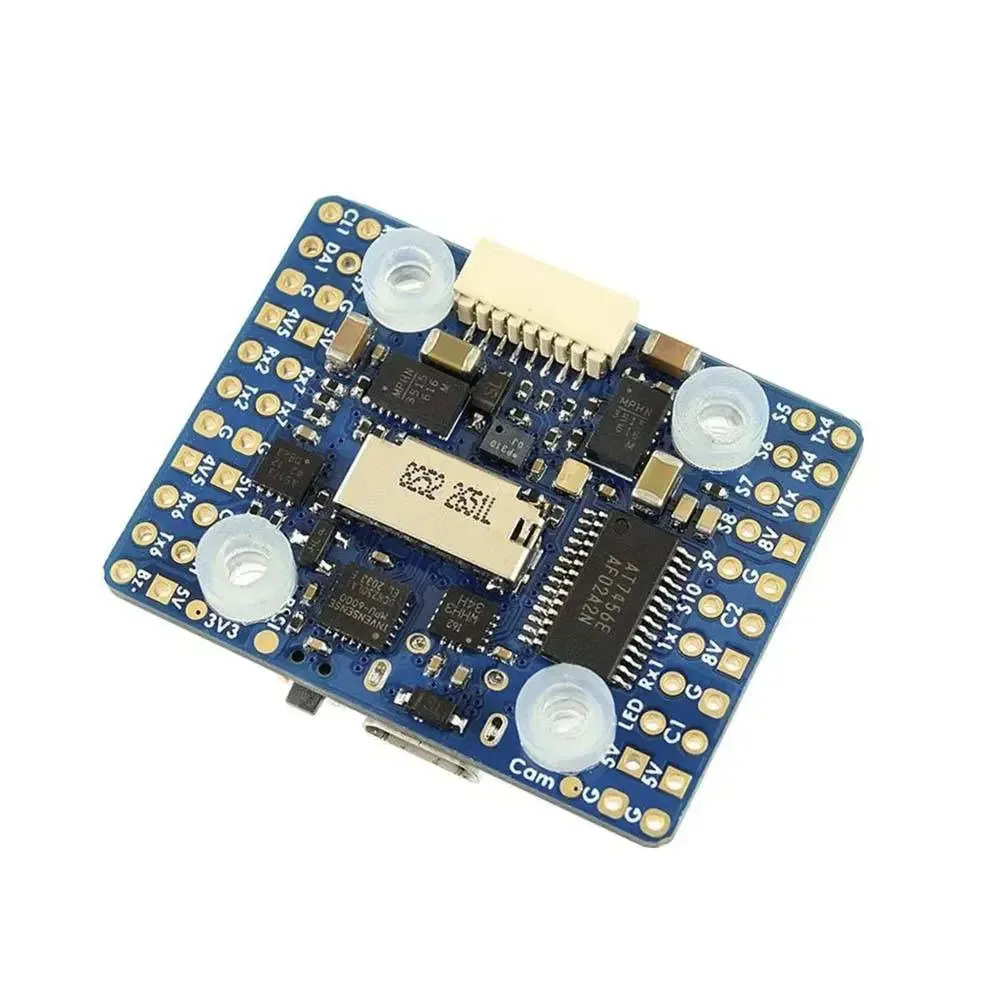

Matek H743-Mini V3 Flight Controller

The Matek H743-Mini V3 is a compact 20x20 flight controller built around the STM32H743 processor, giving mini and tight-stack builds H7-class processing headroom. It runs Betaflight, ArduPilot and INAV, making it a flexible pick whichever firmware your build standardises on.

Key features

• STM32H743 MCU (480MHz, 1MB RAM, 2MB flash) with dual gyros (ICM42688P and ICM42605) for accurate, low-noise flight data.
• Integrated DPS310 barometer and AT7456E OSD chip on board.

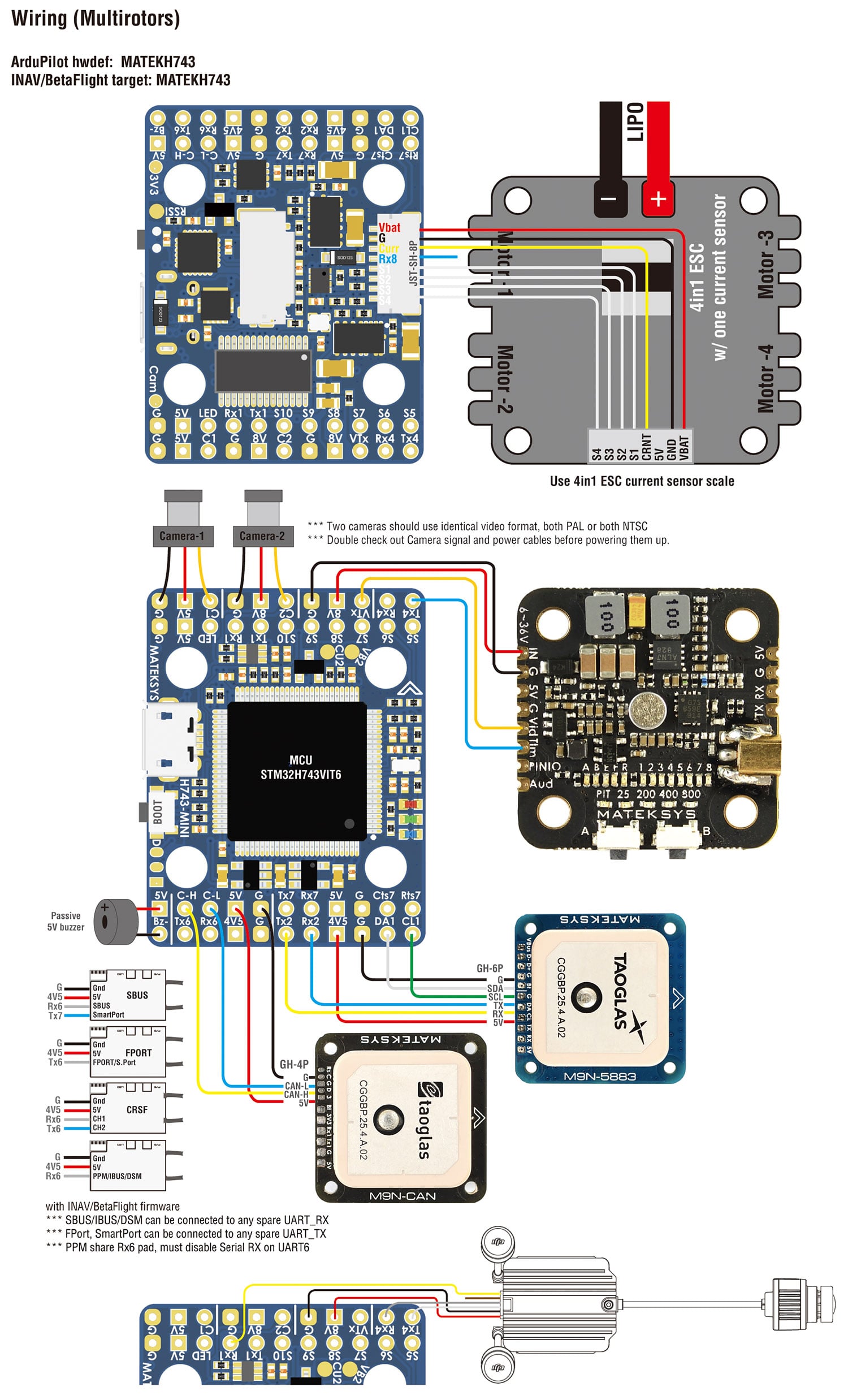

• MicroSD blackbox logging, several UARTs for receiver, GPS, telemetry and VTX control, plus a CAN bus for DroneCAN peripherals.
• Dual camera-input switch simplifies wiring analogue and digital video setups on the same board.
• 20x20mm mount with silicone and brass grommets included for vibration isolation.

Rated for 2S-8S LiPo input with onboard 5V and 8V BECs, it suits mini freestyle quads and tighter long-range stacks that need full H7 performance in a 20x20 footprint.

Specifications

• Processor: STM32H743, 480MHz
• Gyro: ICM42688P / ICM42605
• Barometer: Infineon DPS310

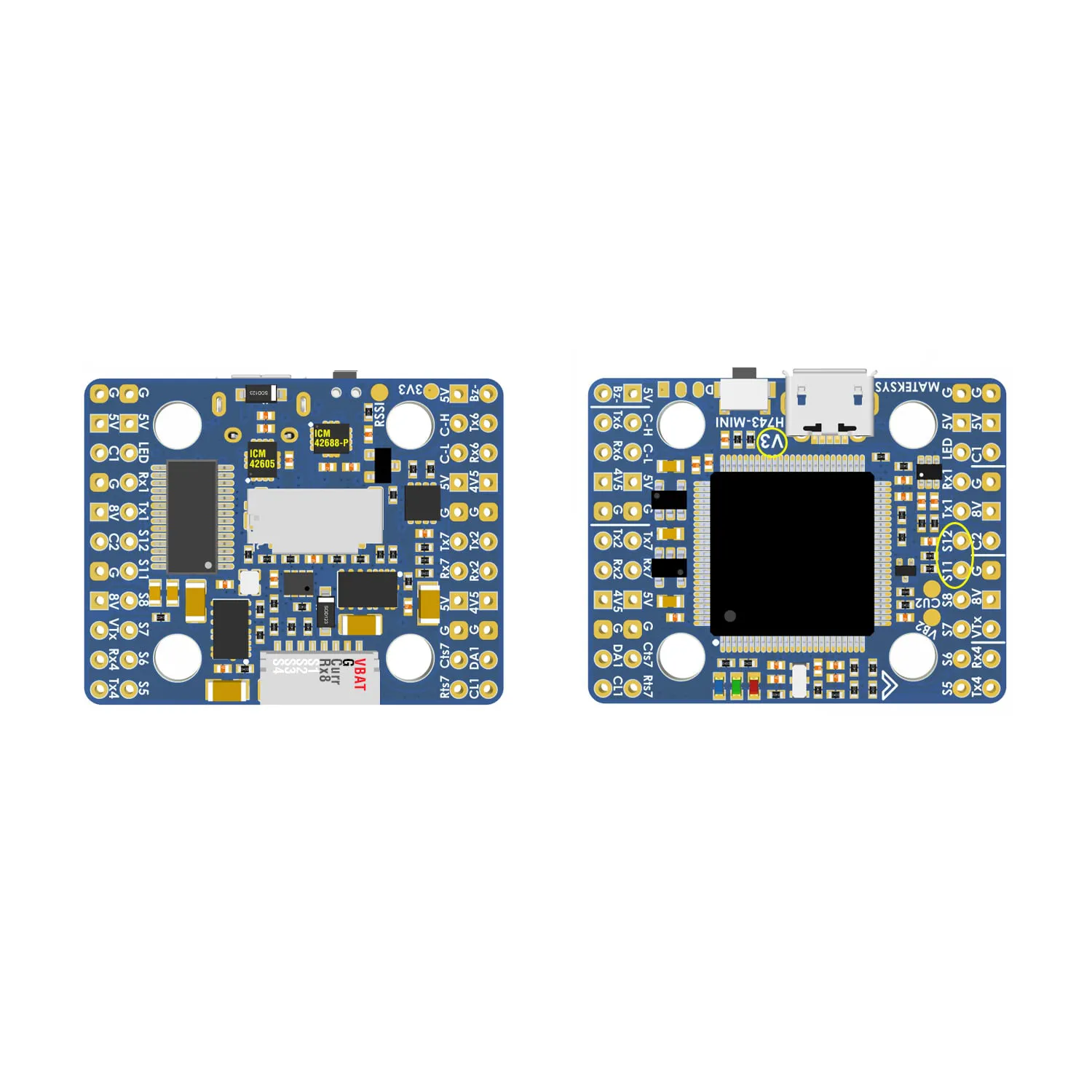

• Mounting: 20 x 20mm
• Input voltage: 2S-8S LiPo
• Firmware: Betaflight, ArduPilot, INAV

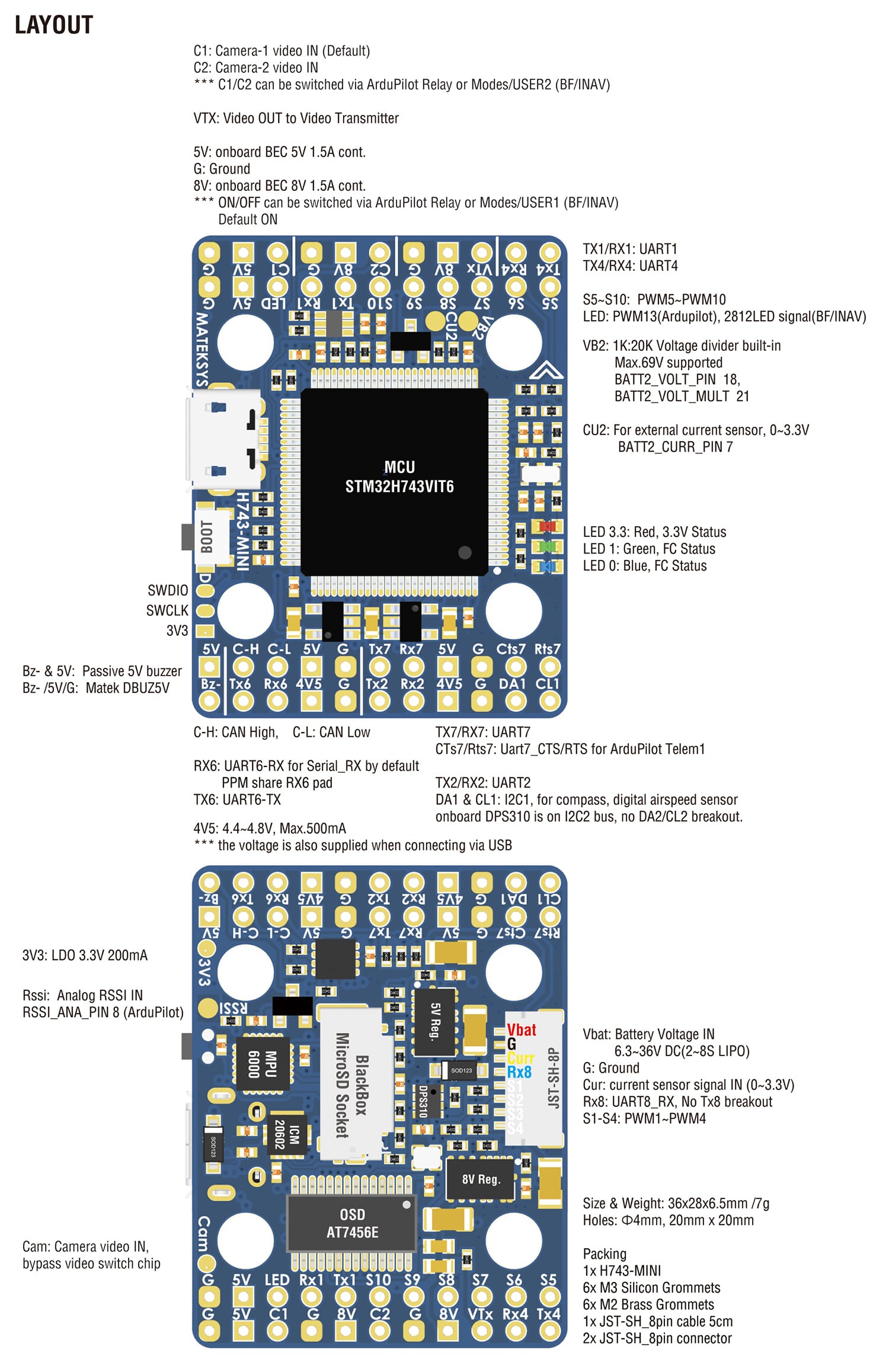

• UARTs: 5 full UARTs plus RX8 (receive only)
• Outputs: 11 PWM/DShot
• BEC: 5 V 1.5 A and 8 V 1.5 A continuous (2 A max each)
• Dimensions: 36 x 28 x 6.5 mm
• Weight: 7 g
