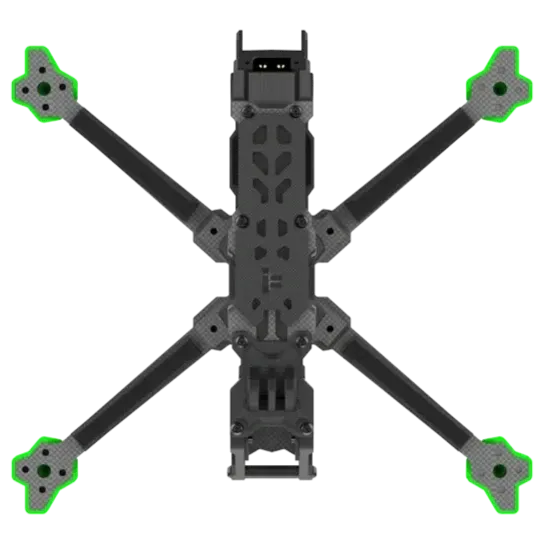

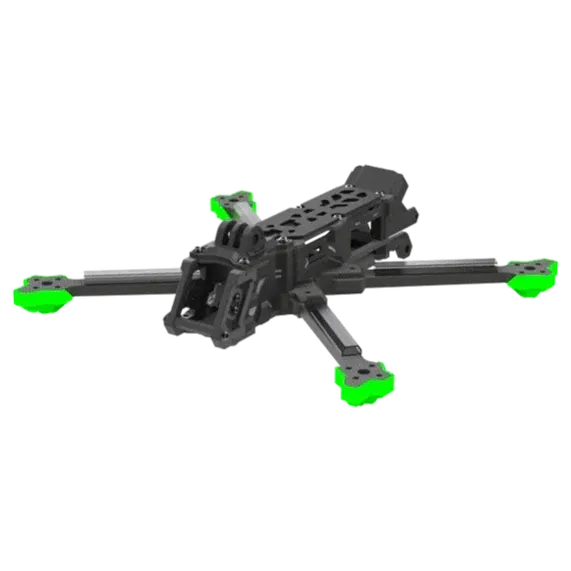

iFlight Nazgul Evoque F5X V2 5" Frame Kit
₹9,199Incl. GST
SKU IFL-NAZG-EVOQ-F5X-V2
Prop Size: 5"Wheelbase: 225 mmMade in India: NoBrand: iFlight
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The iFlight Nazgul Evoque F5X V2 is a 5-inch freestyle frame kit built around the DJI O3 HD Air Unit, with a carbon-fibre chassis that also accepts an analogue camera and VTX for pilots who prefer that setup.
Key features
- Purpose-designed heatsink for the DJI O3 Air Unit.
- Wide-FOV camera mount with silicone damping inserts to reduce vibration in footage.
- Redesigned side panels that fit the O3 Air Unit snugly at the rear of the frame.
- Dual 5.8GHz VTX antenna TPU mount, so both antennas of a dual-antenna VTX are supported out of the box.
- TPU arm guards and front/rear bumpers add crash protection around the frame's carbon arms.
Specifications
- Prop Size: 5 inch
- Material: Carbon fibre
- Video system: DJI O3 HD Air Unit (analogue also supported)
- Geometry: Squashed X
- Wheelbase: 225mm
- Frame dimensions: 258 x 199 x 25mm
- Arm thickness: 6mm
- Plate thickness: 3mm bottom, 2mm top, 3mm upper, 3mm camera plate
- Max flight stack height: 22mm
- Max VTX height: 23mm
- Motor mounting: 16x16mm
- Flight stack mounting: 20x20mm (M3)
- VTX mounting: 25.5x25.5mm (M1.6)
Includes the O3 heatsink, antenna pigtails, dual-antenna TPU, battery pads and straps; an anti-spark filter and single-antenna TPU are sold separately for pilots not using the dual-antenna DJI setup.
| Prop Size | 5" |
|---|---|
| Wheelbase | 225 mm |
| Made in India | No |
| Brand | iFlight |
