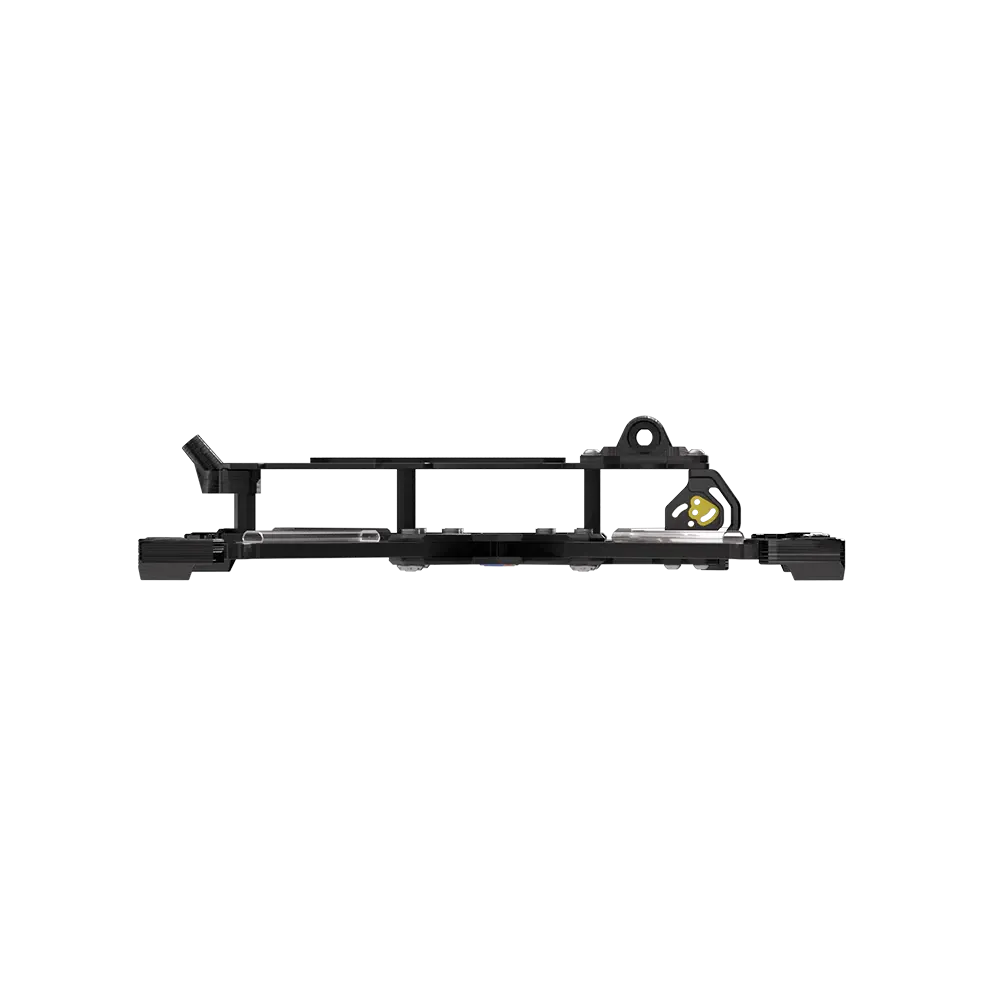

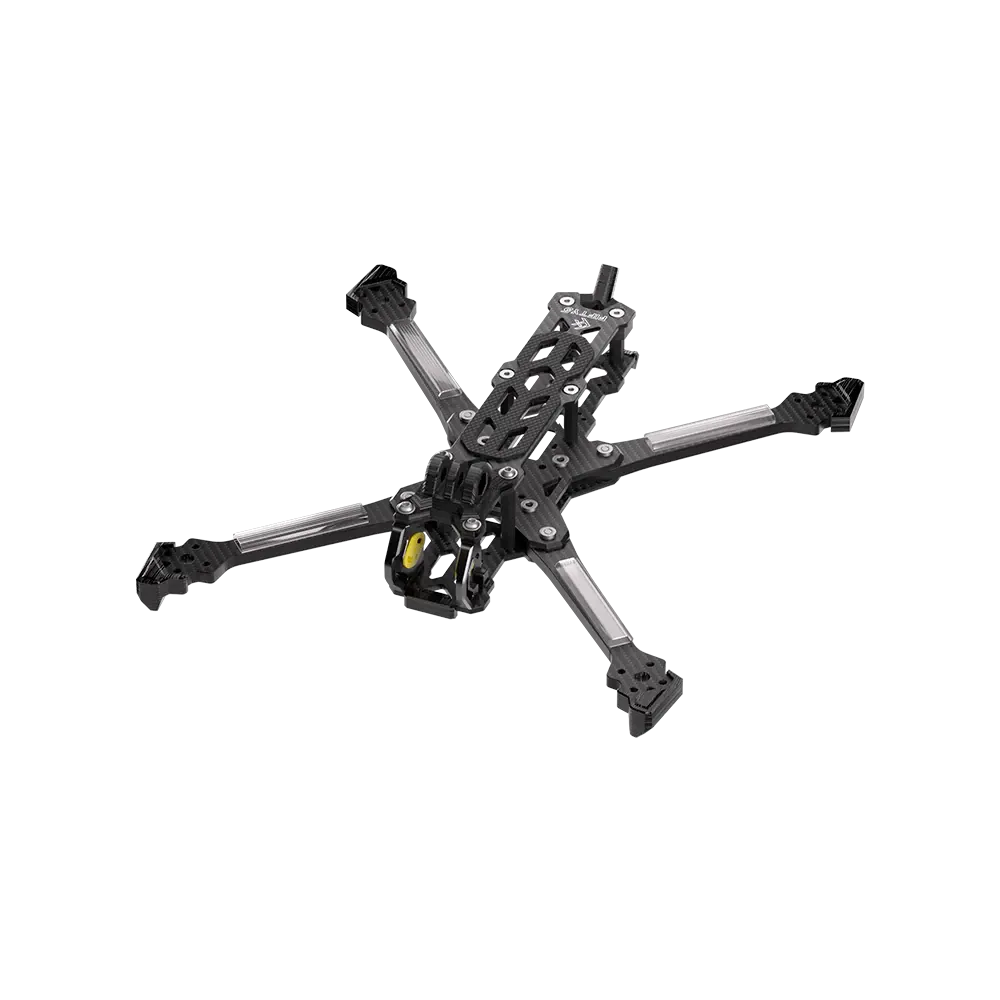

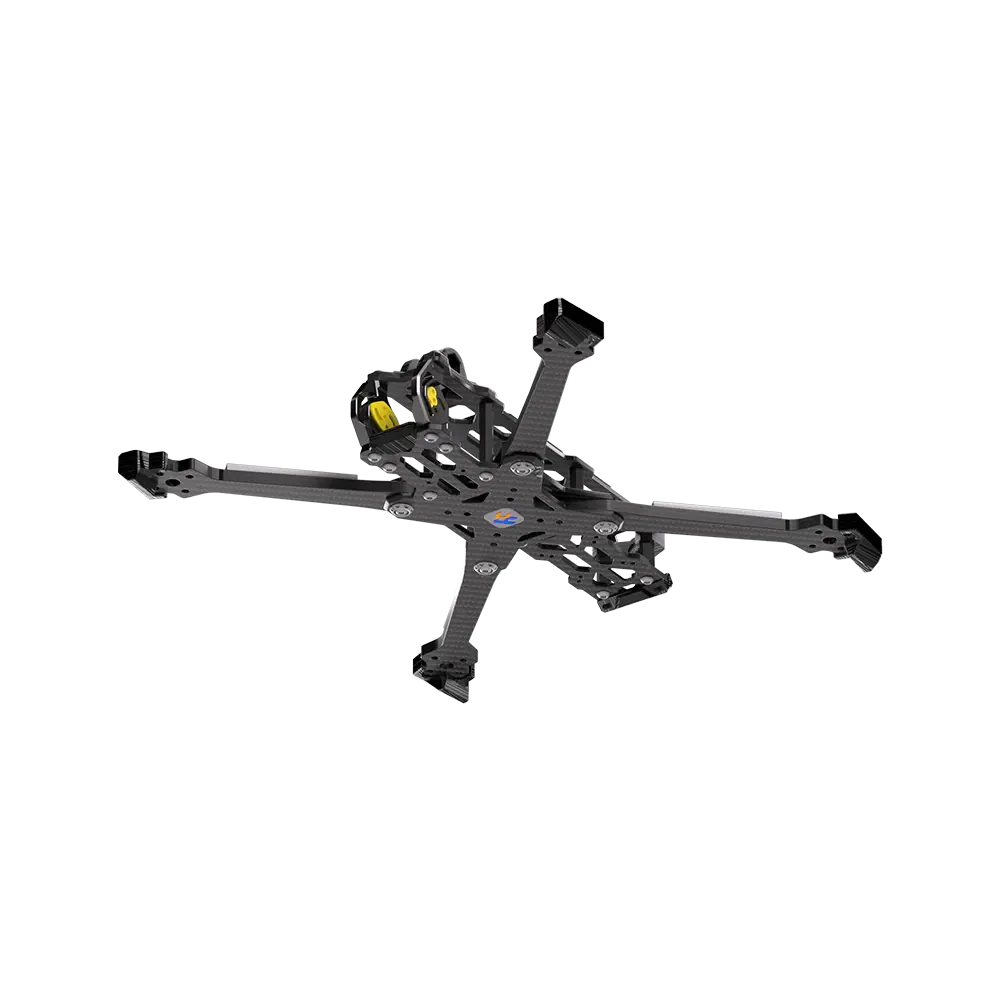

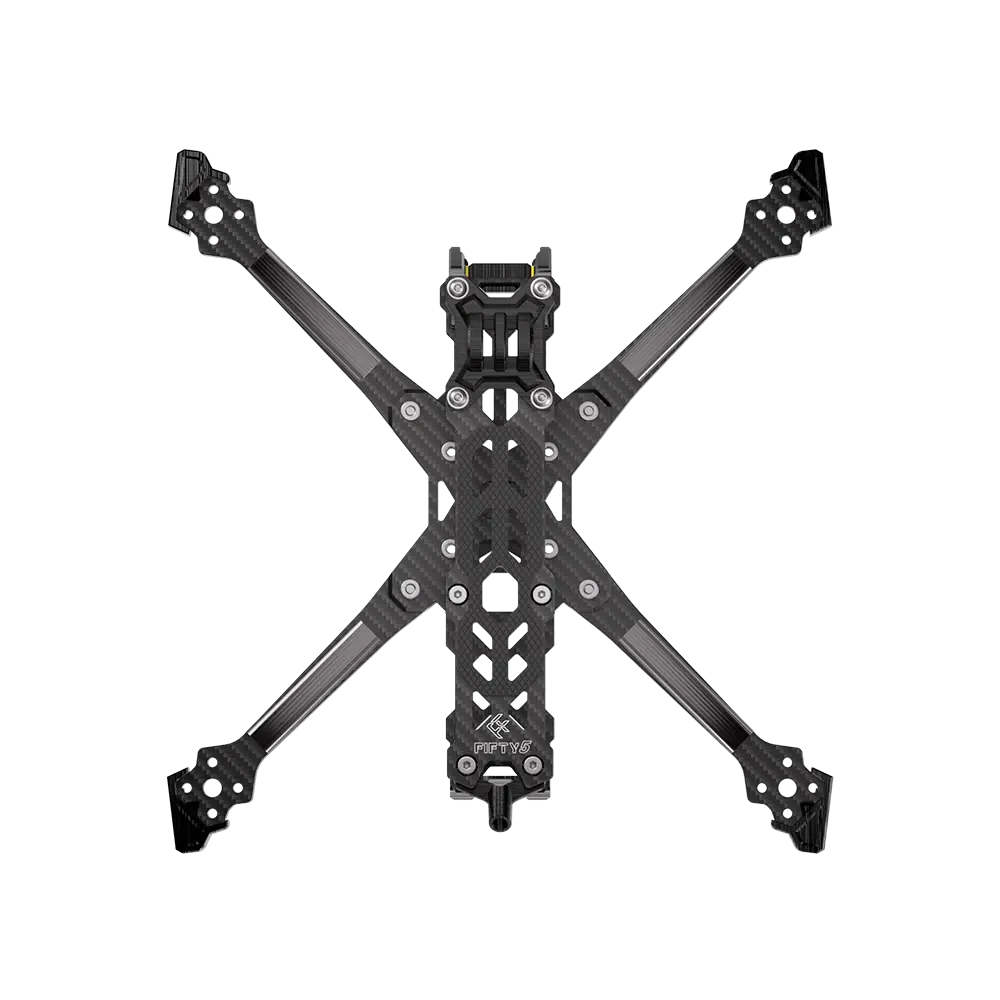

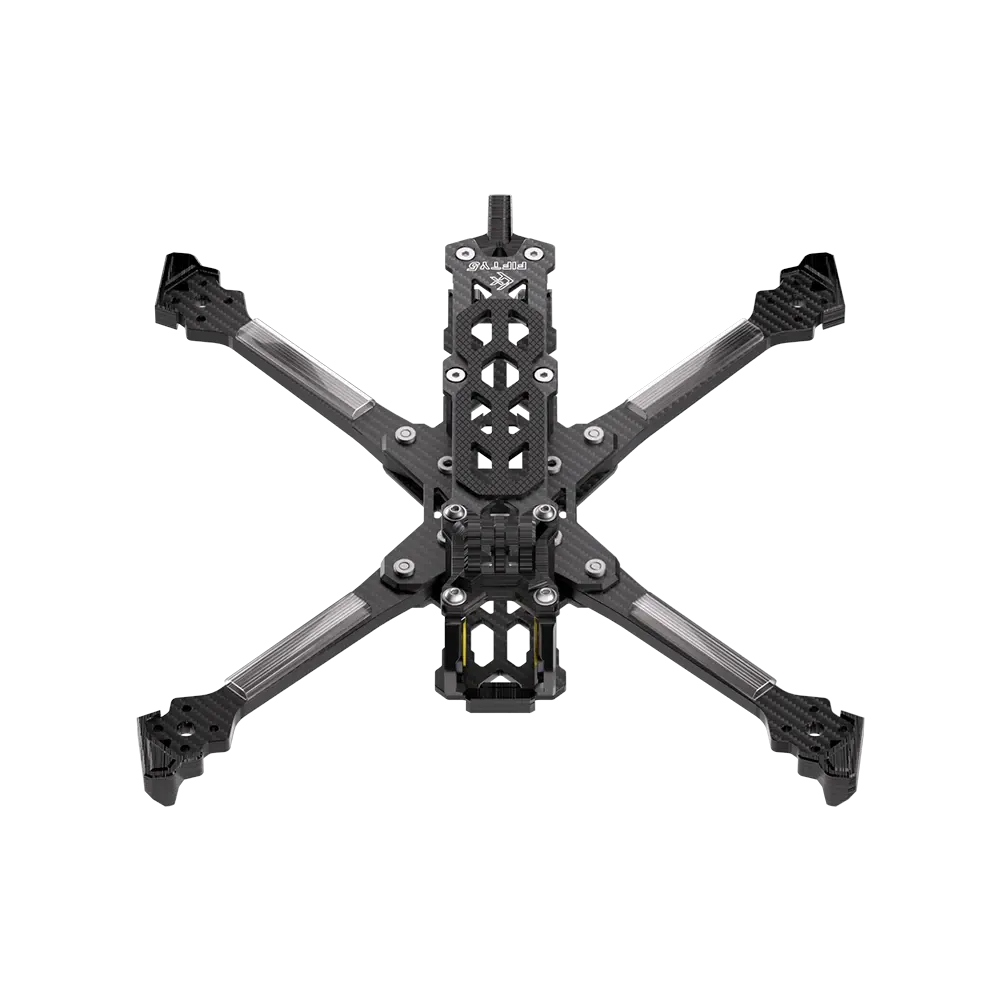

FlyFishRC FIFTY5 O4 Freestyle Frame Kit
₹6,599Incl. GST
SKU FFRC-FIFTY5-O4-FRAME
Prop Size: 5", 5.5"Wheelbase: 255 mmCamera Size: 19mm, 20mmMade in India: No
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The FlyFishRC FIFTY5 is a 5 to 5.5-inch True-X freestyle frame built around the DJI O4 Air Unit, sized between a typical 5-inch and 6-inch quad for extra lift without losing agility.
Key features
- True-X geometry on a 255mm wheelbase for balanced, symmetrical handling on all axes.
- 5mm-thick T700 carbon fibre arms with CNC aluminium camera plates for crash protection and rigidity.
- Silicone shock-absorbers isolate the O4 Air Unit from frame vibration to keep HD video jello-free.
- Camera plate spacing fits both 19mm and 20mm FPV cameras.
- Runs 5-inch or 5.5-inch propellers, trading a little agility for extra lift as needed.
- 12.9-grade hardware with Loctite thread-locker pre-applied, plus the full accessory set for an analogue or HD build.
Specifications
- Geometry: True-X
- Wheelbase: 255mm
- Arm thickness: 5mm
- Plate thickness: 2mm top, 2.5mm middle, 2.5mm bottom
- CNC camera plate thickness: 6mm
- Weight: 127.7g (with TPU parts)
- Dimensions: 180.3 x 180.3 x 33mm
- Motor mounting: 16x16mm (M3)
- Stack mounting: 20x20mm or 30.5x30.5mm (M3)
- VTX mounting: 20x20mm or 25.5x25.5mm (M2)
The dual stack and VTX mounting hole patterns fit both mini and standard-size FC/ESC stacks and video transmitters.
| Prop Size | 5", 5.5" |
|---|---|
| Wheelbase | 255 mm |
| Camera Size | 19mm, 20mm |
| Made in India | No |
| Brand | FlyFishRC |
| Weight | 127.7 g |
| Material | Carbon Fiber |
| Arm Thickness | 5 mm |
| Mounting Size | 20x20, 30.5x30.5 |
| Motor Mount | 16x16mm |
