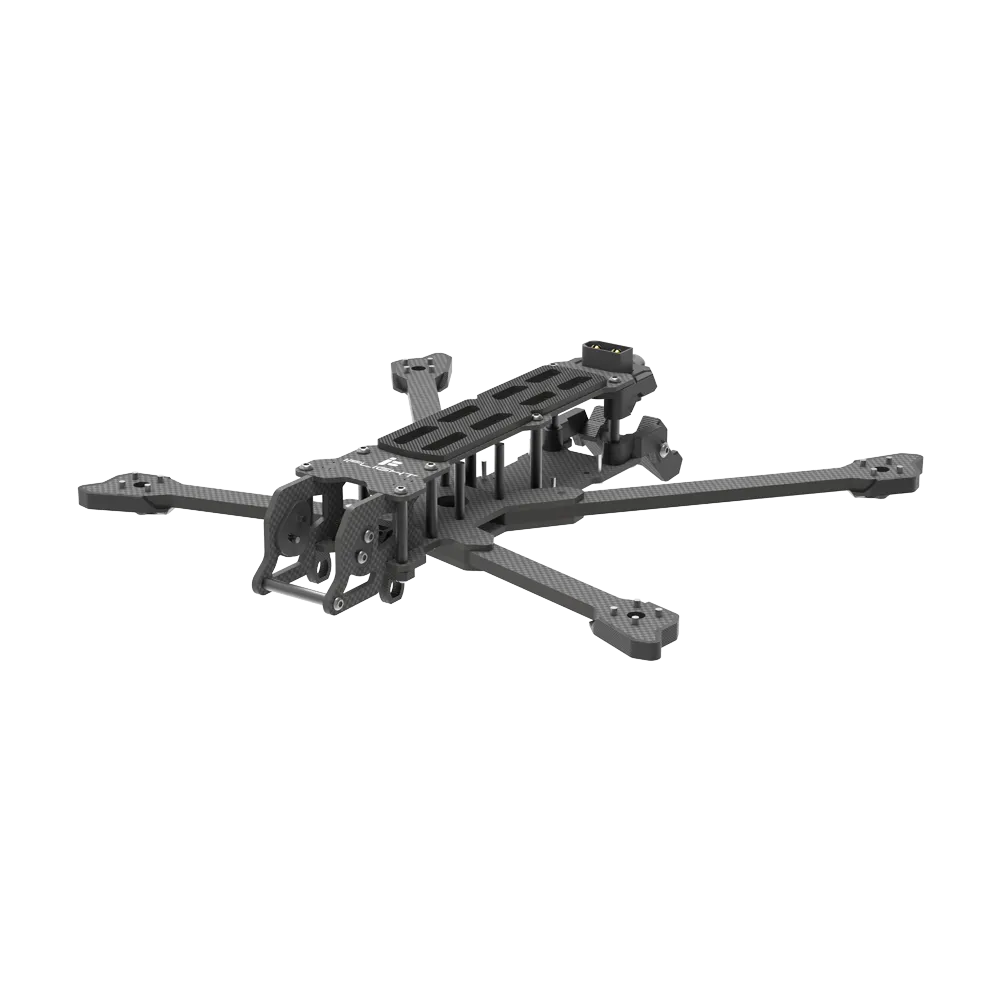

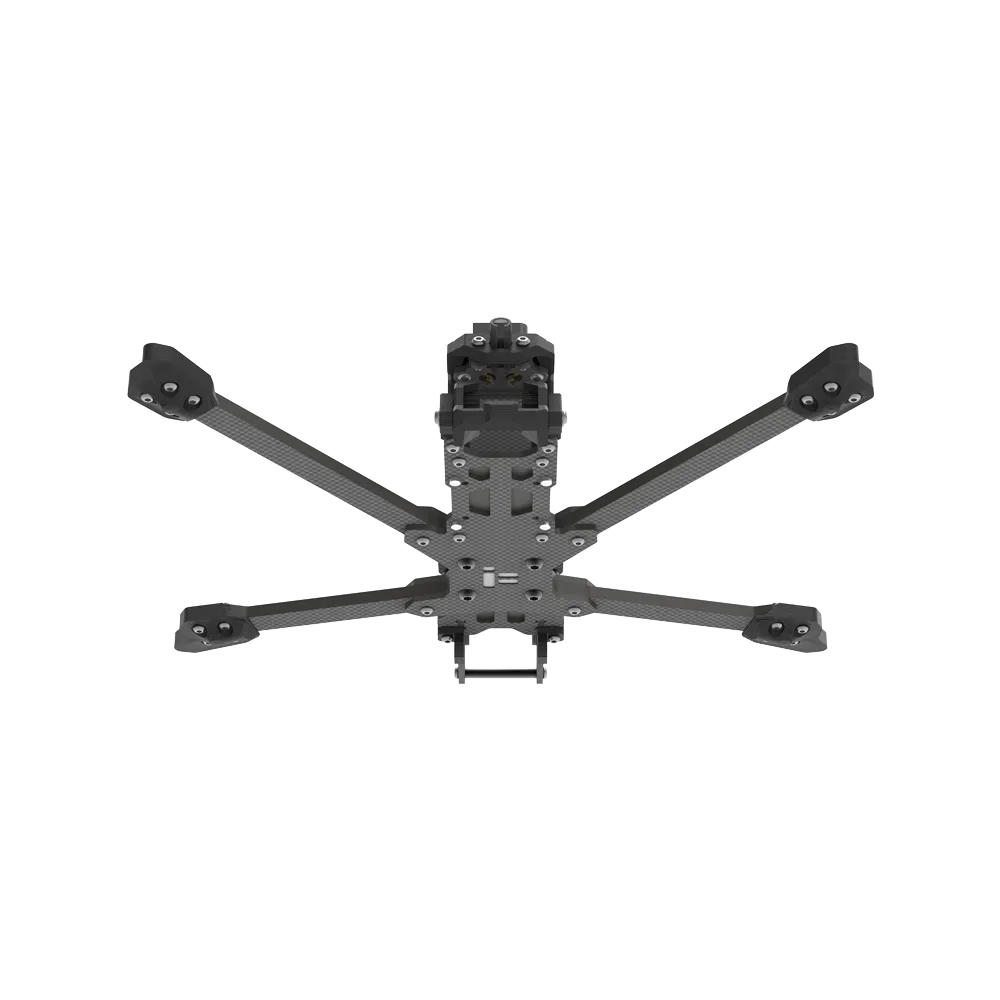

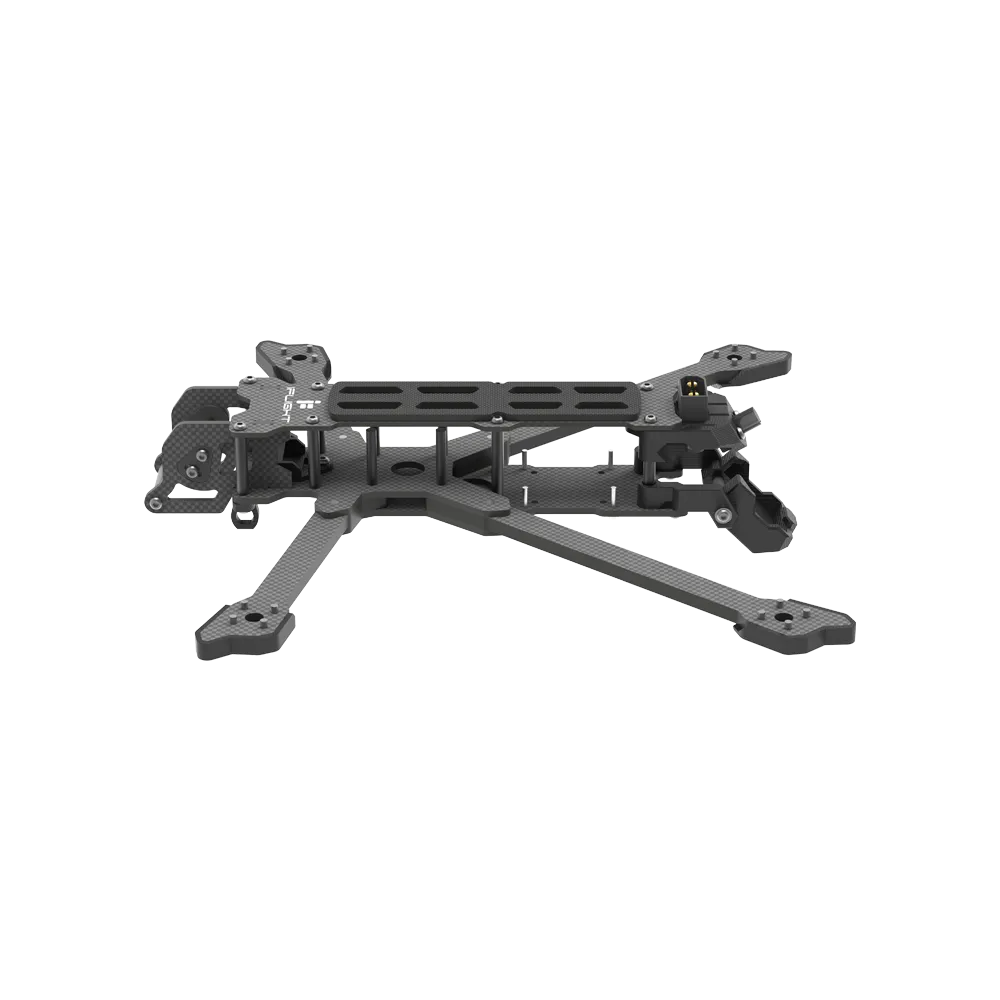

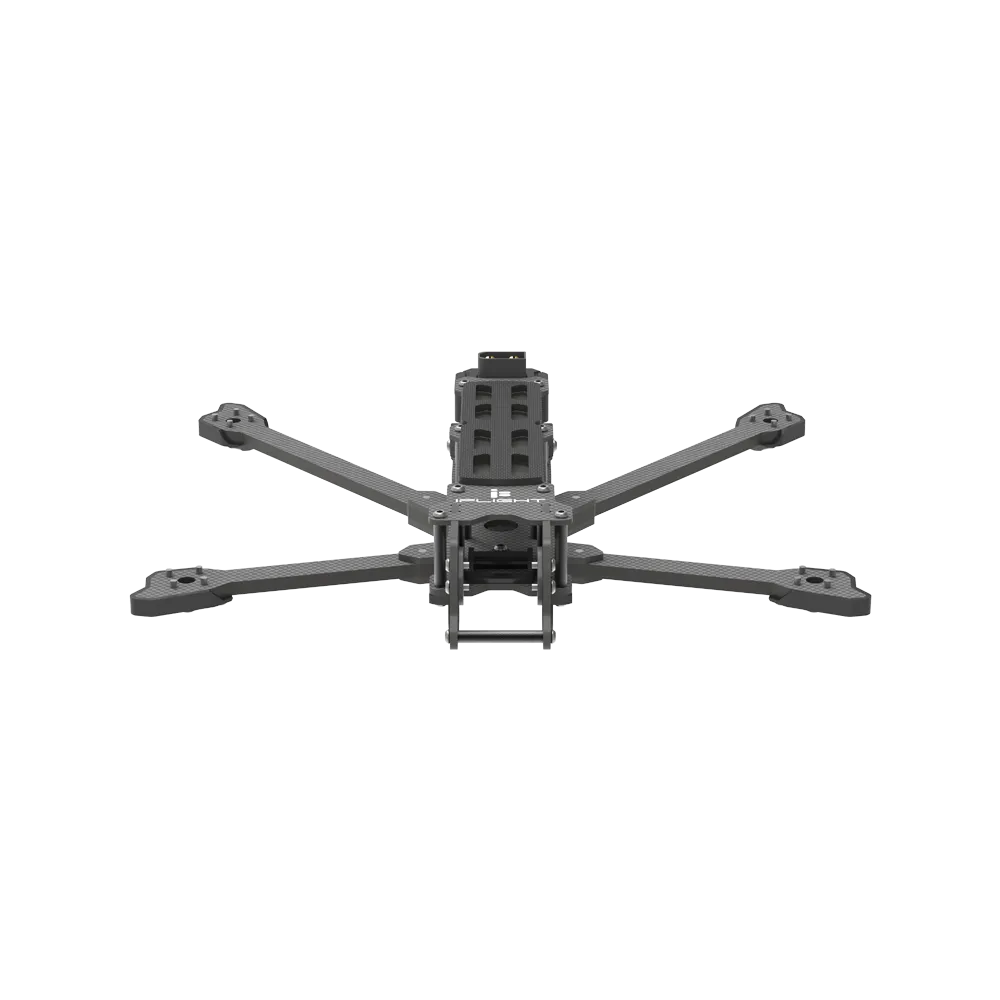

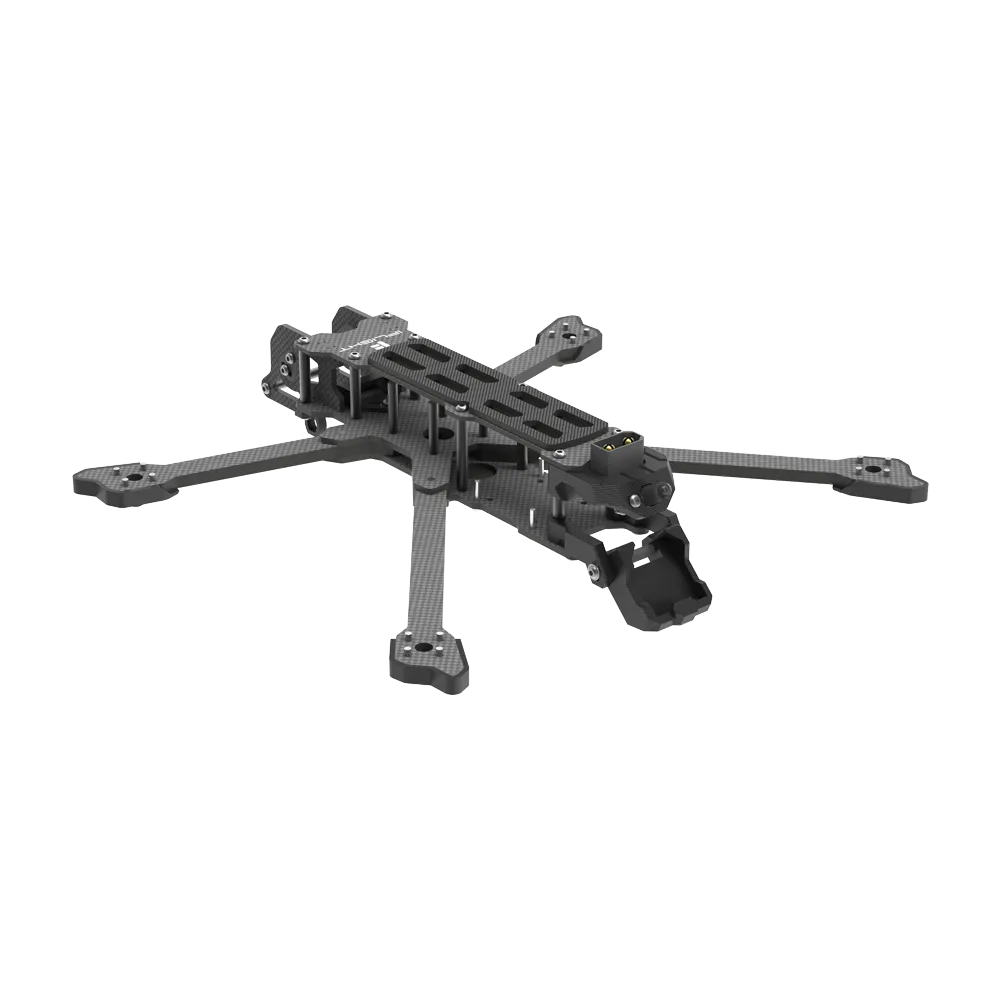

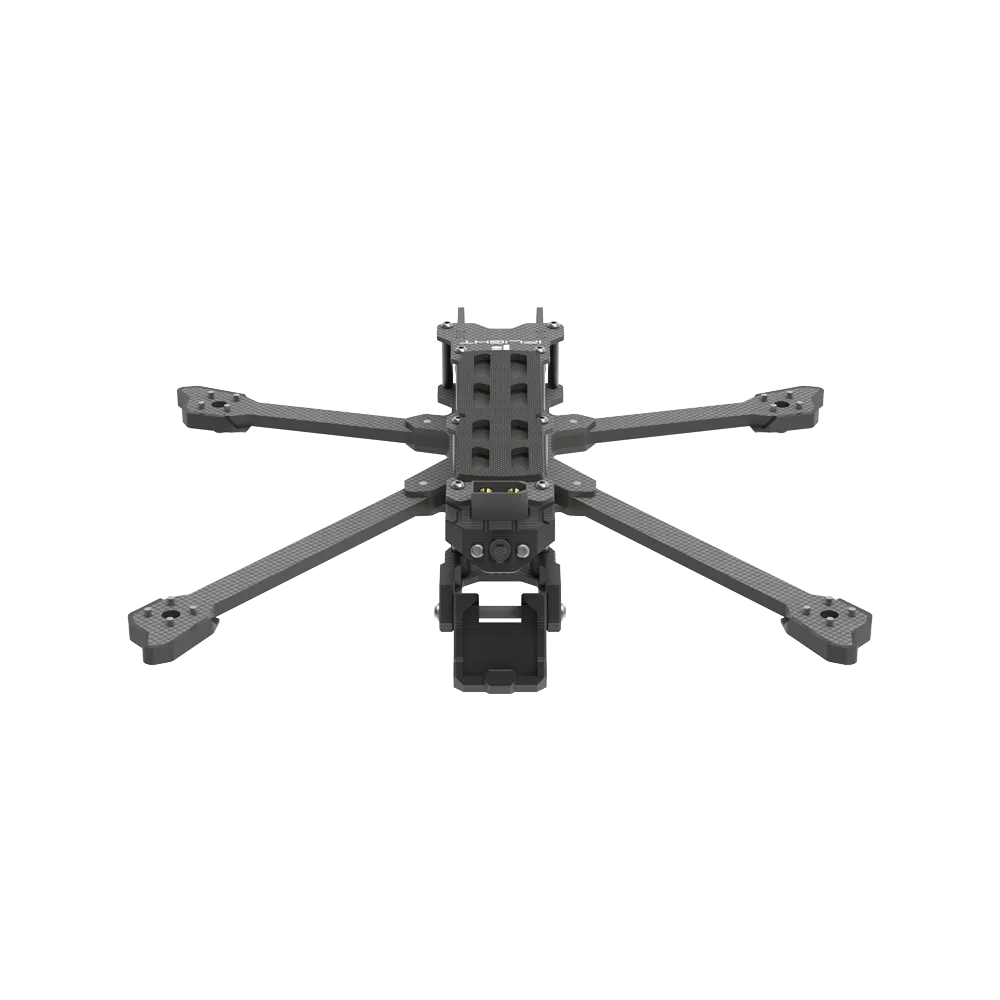

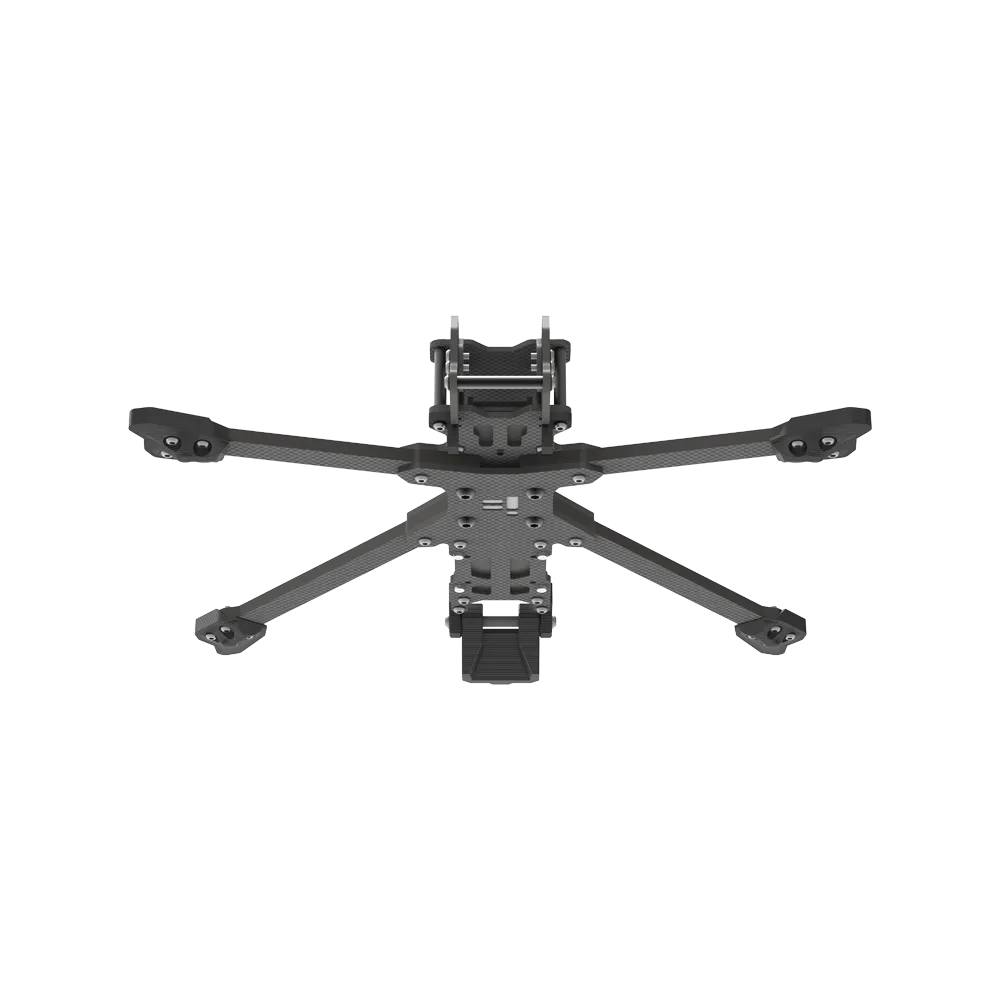

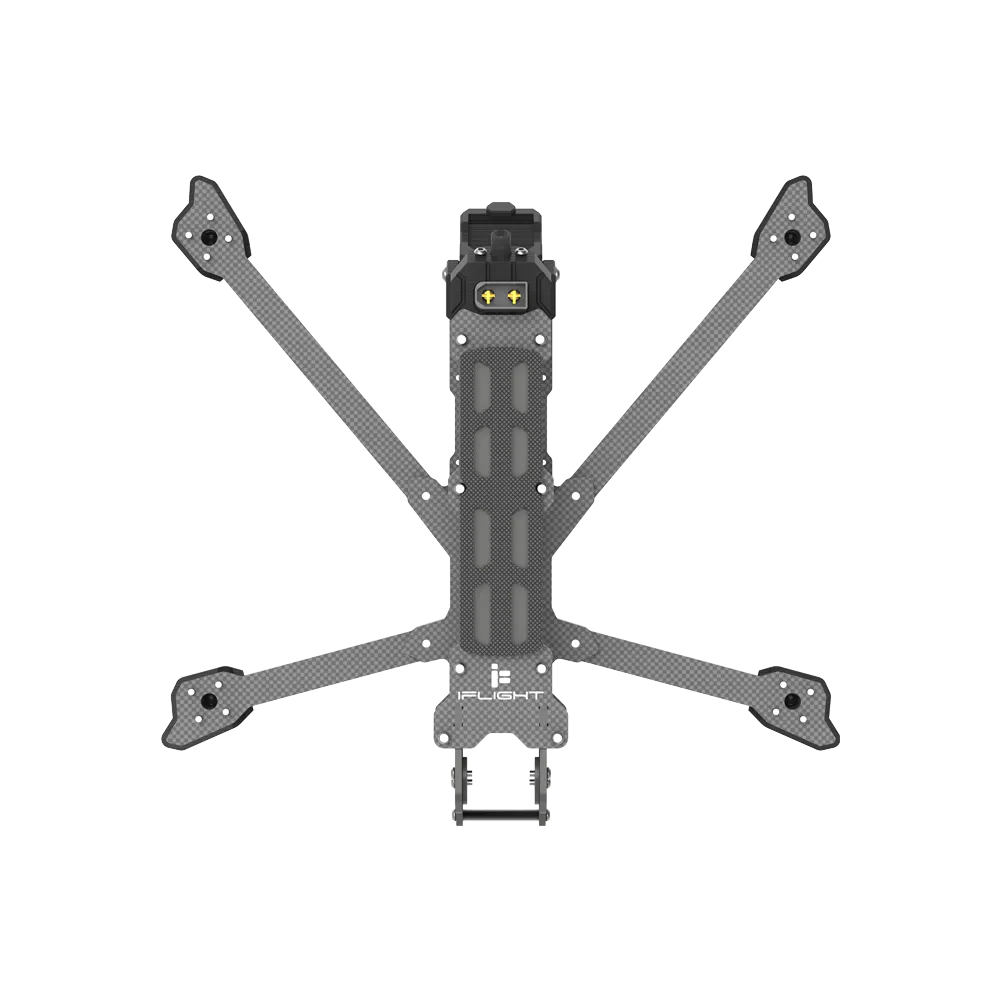

iFlight Chimera5 Pro V2 5" Freestyle Frame Kit

The iFlight Chimera5 Pro V2 is a versatile 5-inch frame kit designed for freestyle and mid-range pilots who demand a rigid, lightweight platform for modern HD video systems. Upgraded with Pro V2 geometry, this iteration refines the true-X layout to balance aggressive flight characteristics with ample component space. It is specifically tailored to house digital ecosystems like the DJI O3 Air Unit safely within its protective camera mounts.

Key features

• Optimised true-X geometry for balanced freestyle handling and 5-inch prop clearance.
• Rigid 4mm carbon fibre arms engineered to minimise mid-throttle resonance and simplify PID tuning.
• Upgraded camera side plates with silicone dampeners to protect digital HD camera modules from crash impacts.
• Dual mounting patterns on the rear to accommodate varied VTX and receiver placements.

Specifications

• Wheelbase: 227mm
• Frame dimensions: 175 x 135 mm
• Arm thickness: 4mm
• Plate thickness: 2mm (top, bottom and upper plates)
• FC mounting: 25.5x25.5, 20x20
• VTX mounting: 25.5x25.5, 20x20
• Camera mounting width: 20mm
• Weight: Approx. 116g

This frame provides an excellent foundation for builders constructing a robust daily-flyer, offering plenty of internal build space for high-power AIOs or stacks, a GPS module, and standalone receivers.
