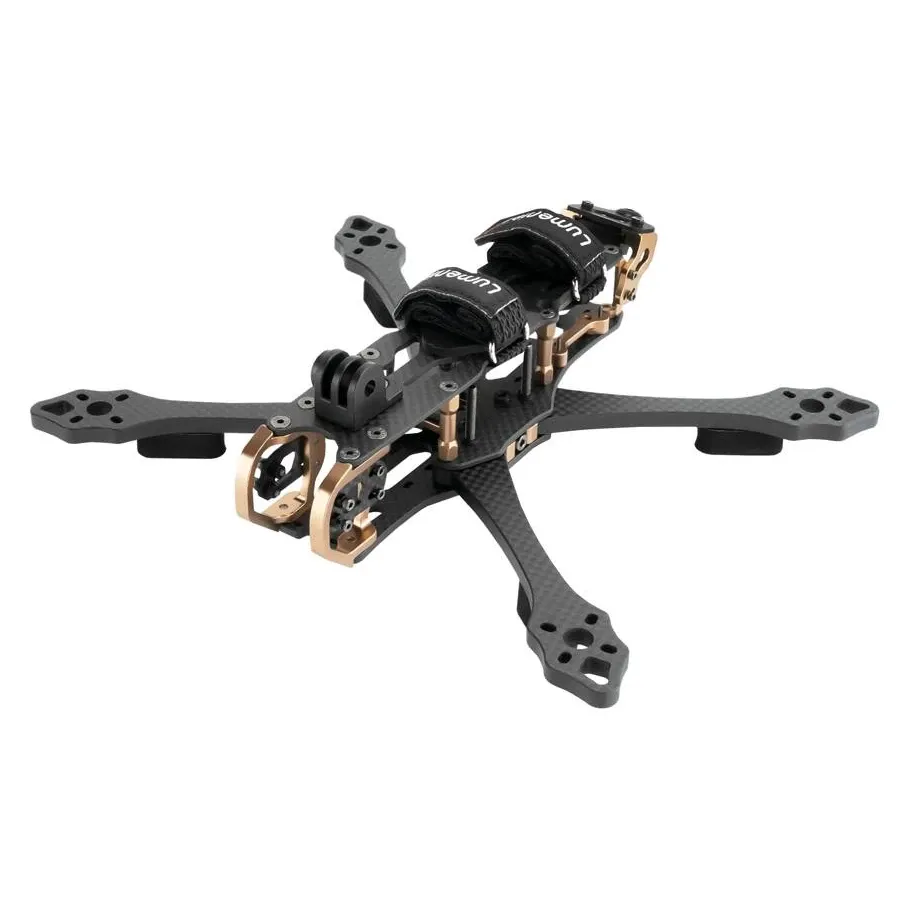

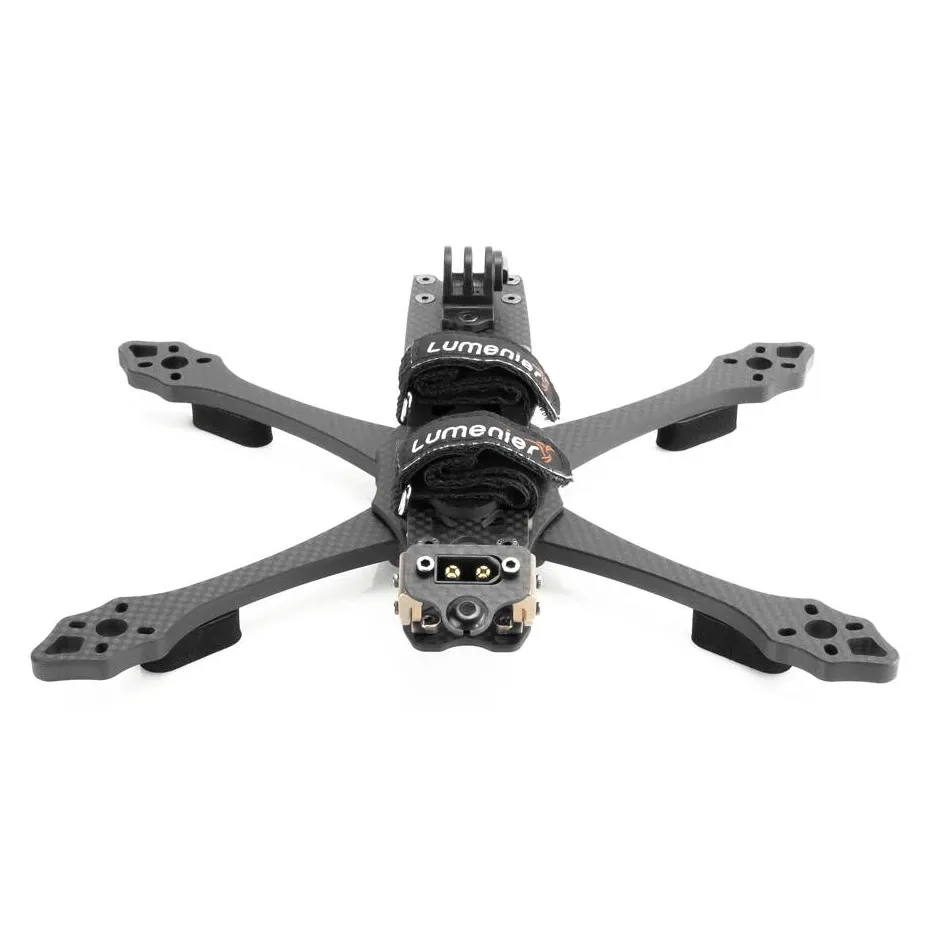

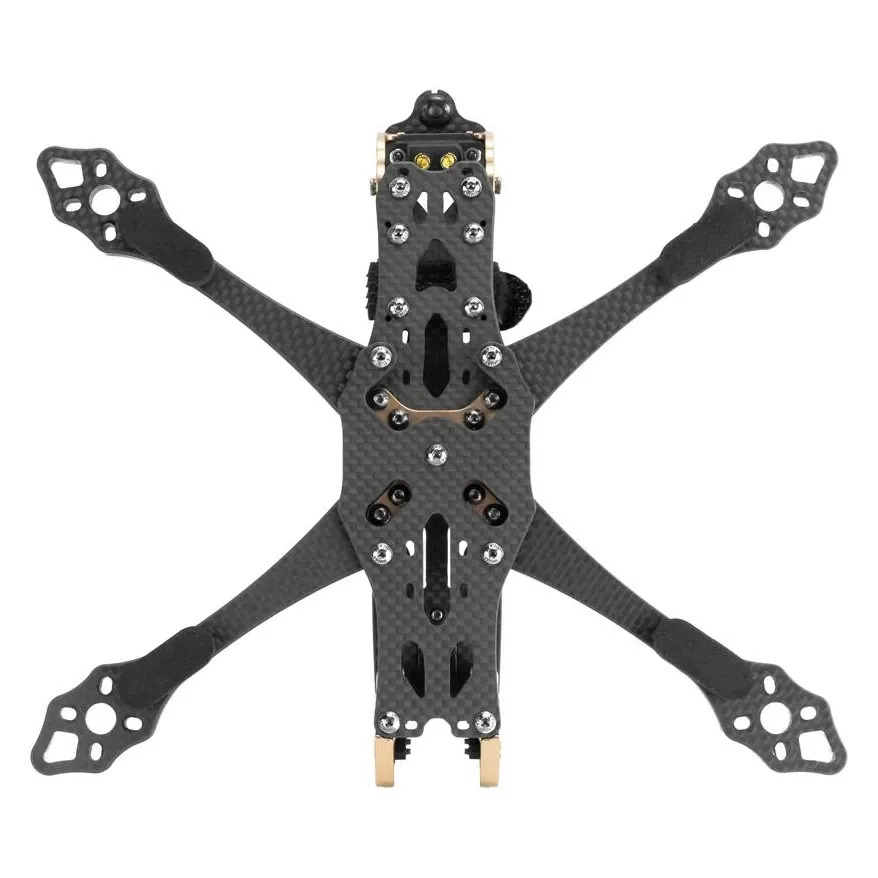

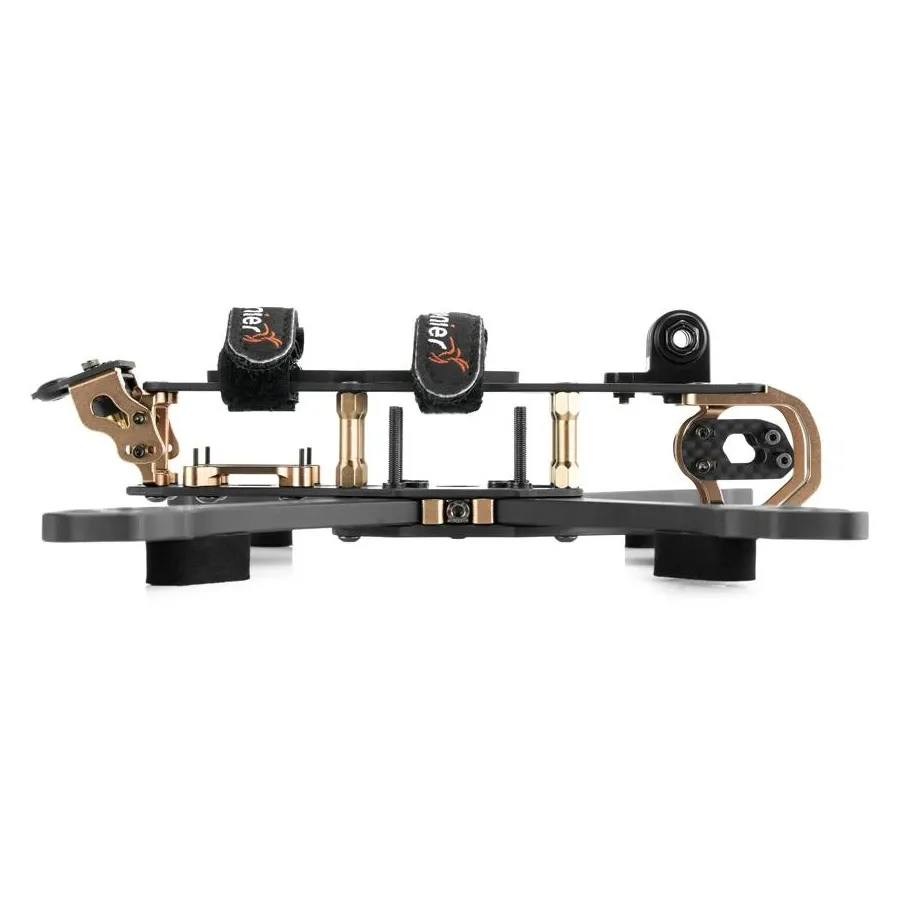

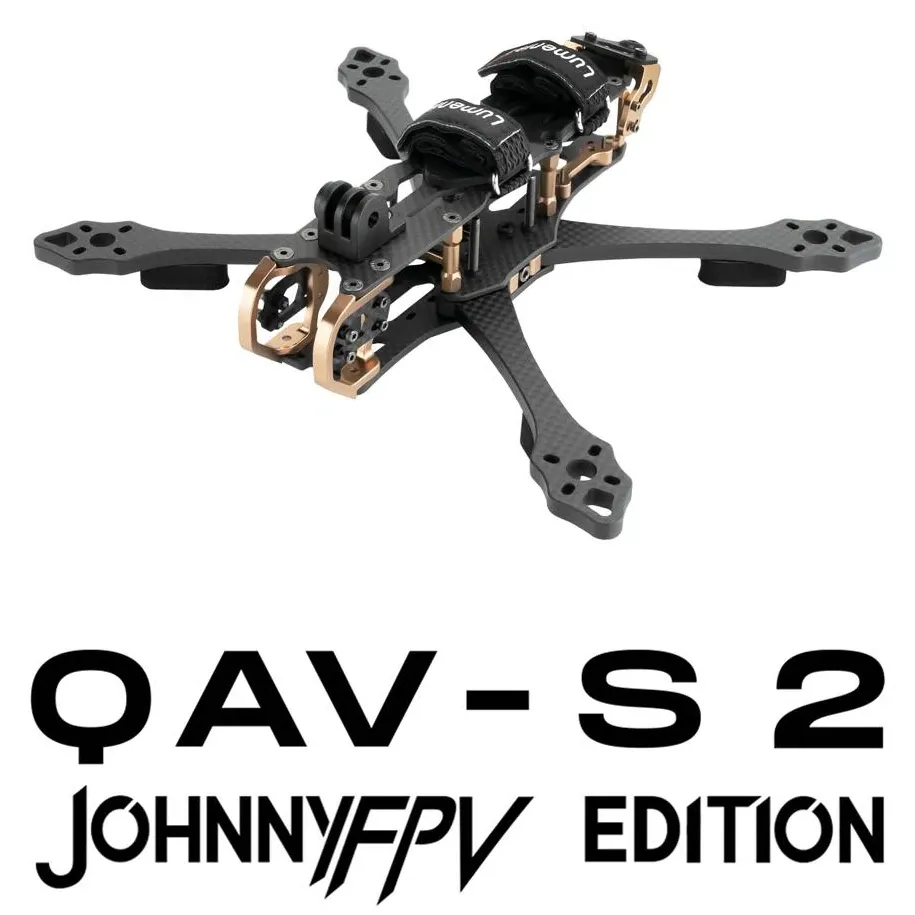

Lumenier QAV-S 2 JohnnyFPV SE 5" Frame Kit

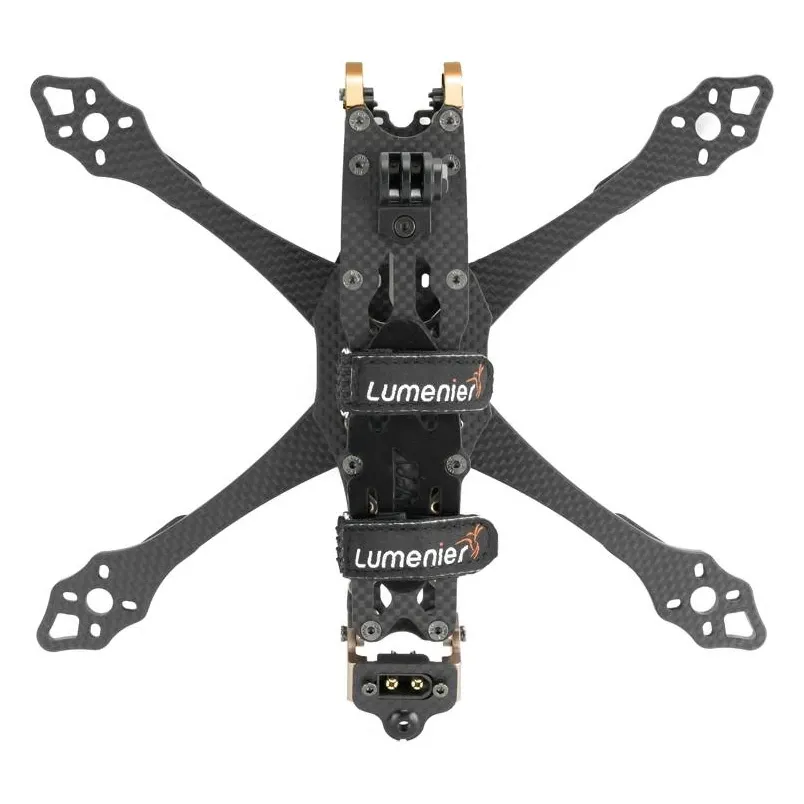

The Lumenier QAV-S 2 JohnnyFPV Special Edition 5-inch frame is a premium freestyle platform engineered in collaboration with Johnny Schaer. Built around a refined X-frame layout, it combines quick-swap arm technology with specialised vibration isolation, making it an exceptional choice for cinematic freestyle pilots running high-end digital HD video systems.

Key features

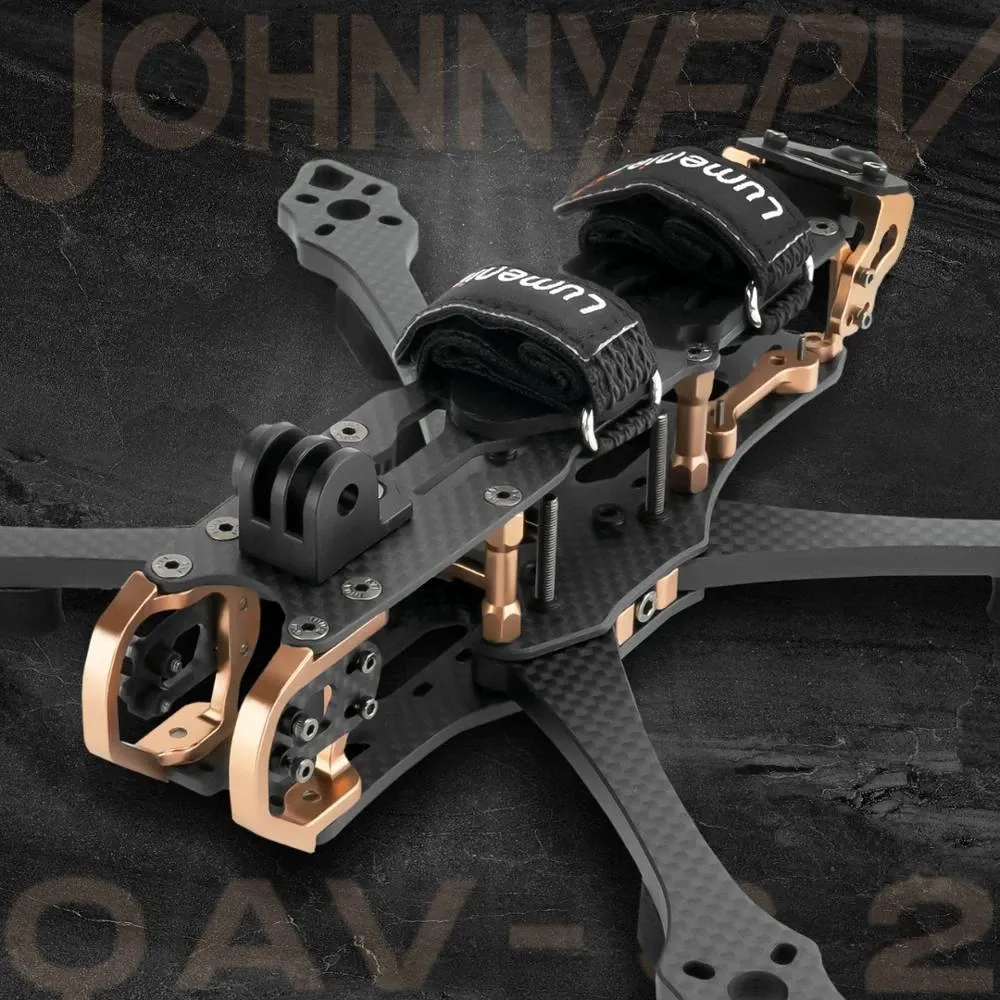

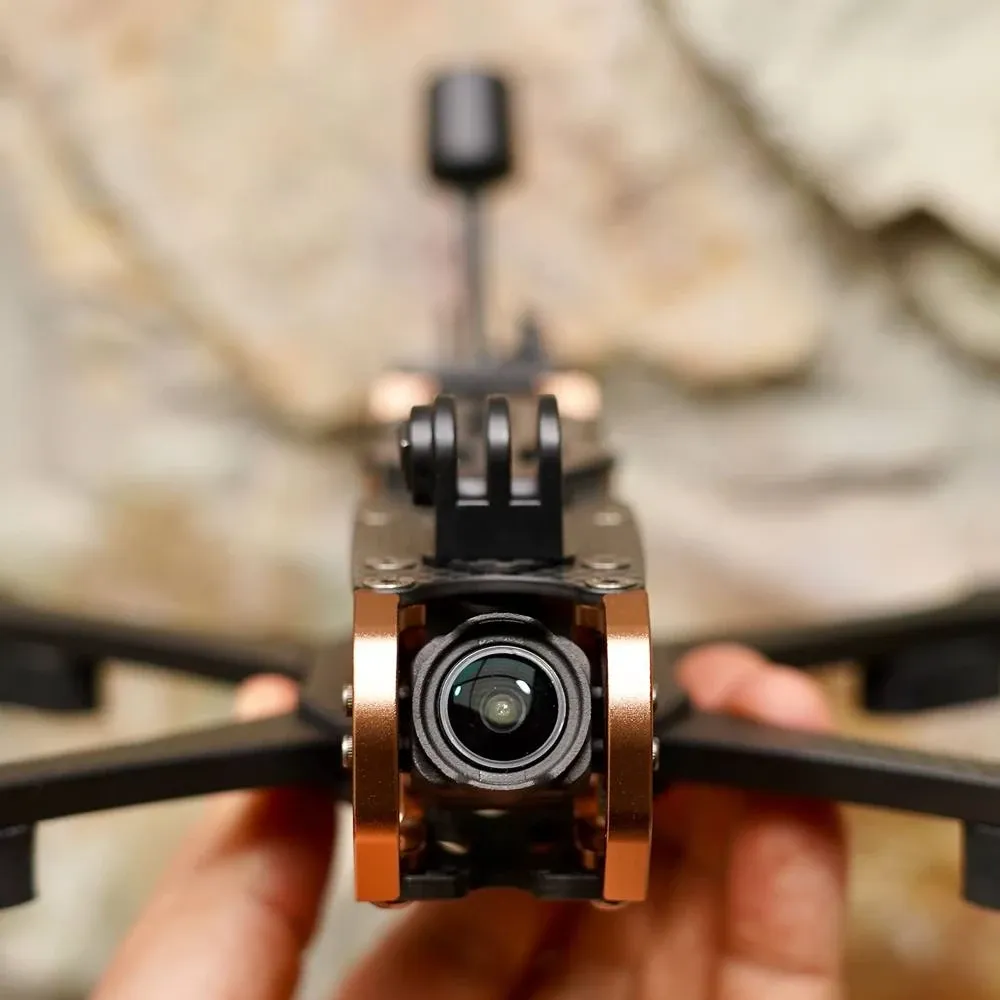

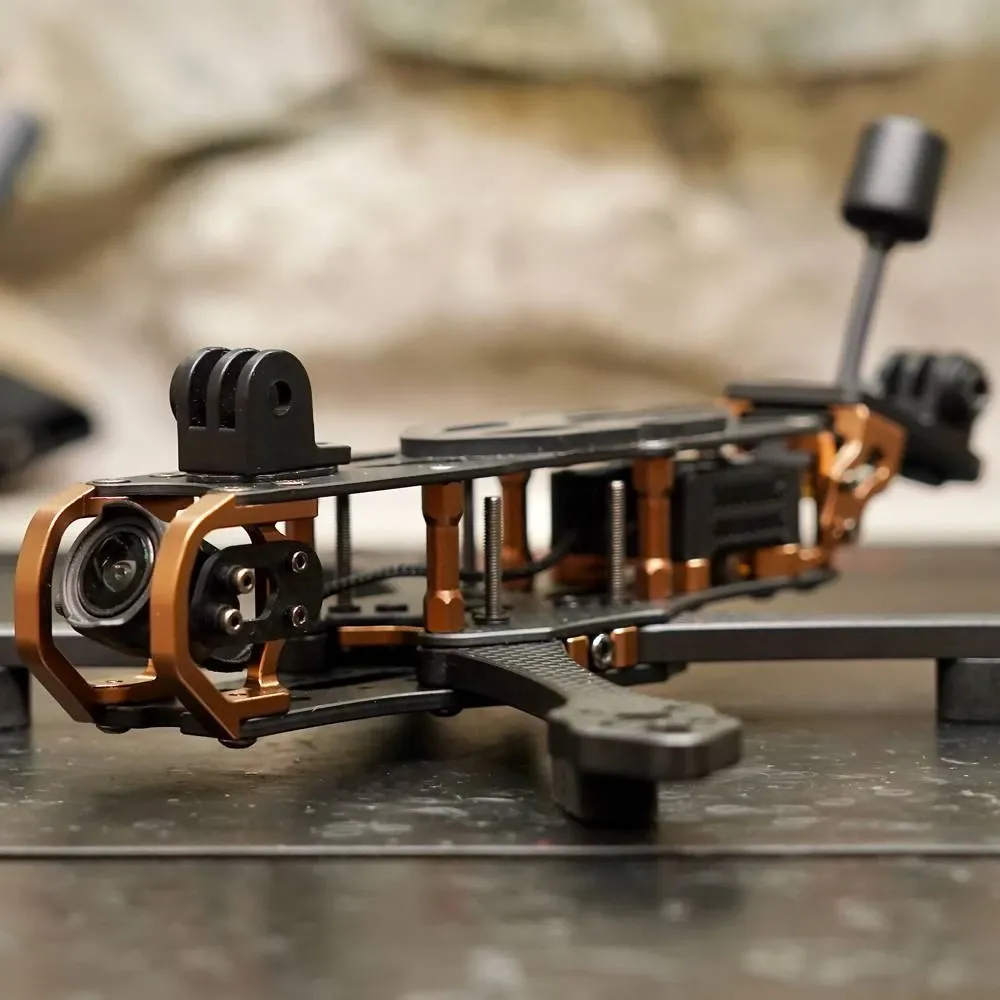

• Custom CNC aluminium camera side plates designed for rigid mounting, wide-angle field of view, and enhanced lens protection.
• All-aluminium X-Lock arm retention clamps the 6mm carbon fibre arms on two axes, isolated from the main plates and flight stack, and lets the arms fold with one screw per side.
• Isolated VTX mounting layout drastically reduces high-frequency vibration and jello in digital HD footage.

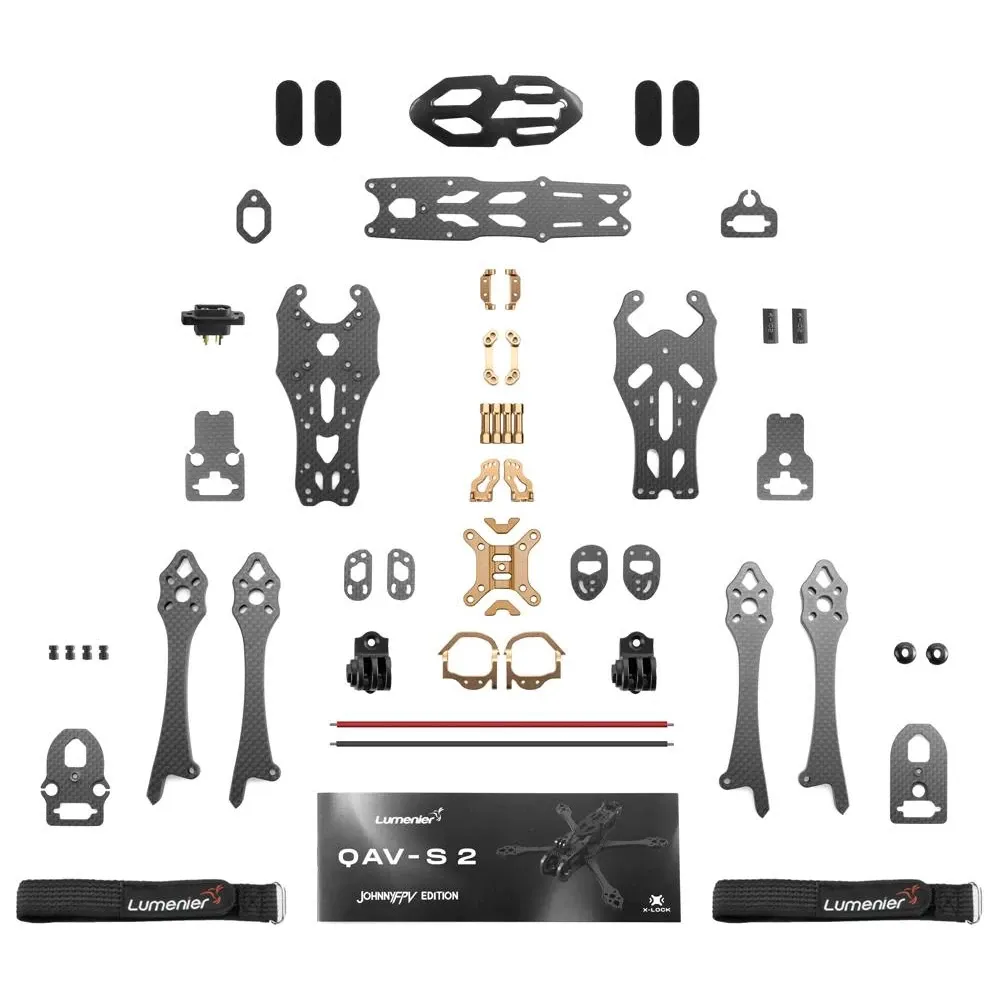

• Includes heavy-duty injection-moulded arm skids and a front bumper to absorb impacts on harsh concrete surfaces.

Specifications

• Wheelbase: 225mm
• Carbon thickness: 6mm arms, 2.5mm bottom plate, 2mm top plate
• Stack mounting (Centre): 20x20mm, 30.5x30.5mm
• VTX mounting (Rear): 20x20mm, 25.5x25.5mm
• Camera spacing: 19mm (Micro), 20mm (DJI O3)
• O3 mounting: direct O3 Air Unit mount with a 5 mm aluminium mounting kit and damped camera plates

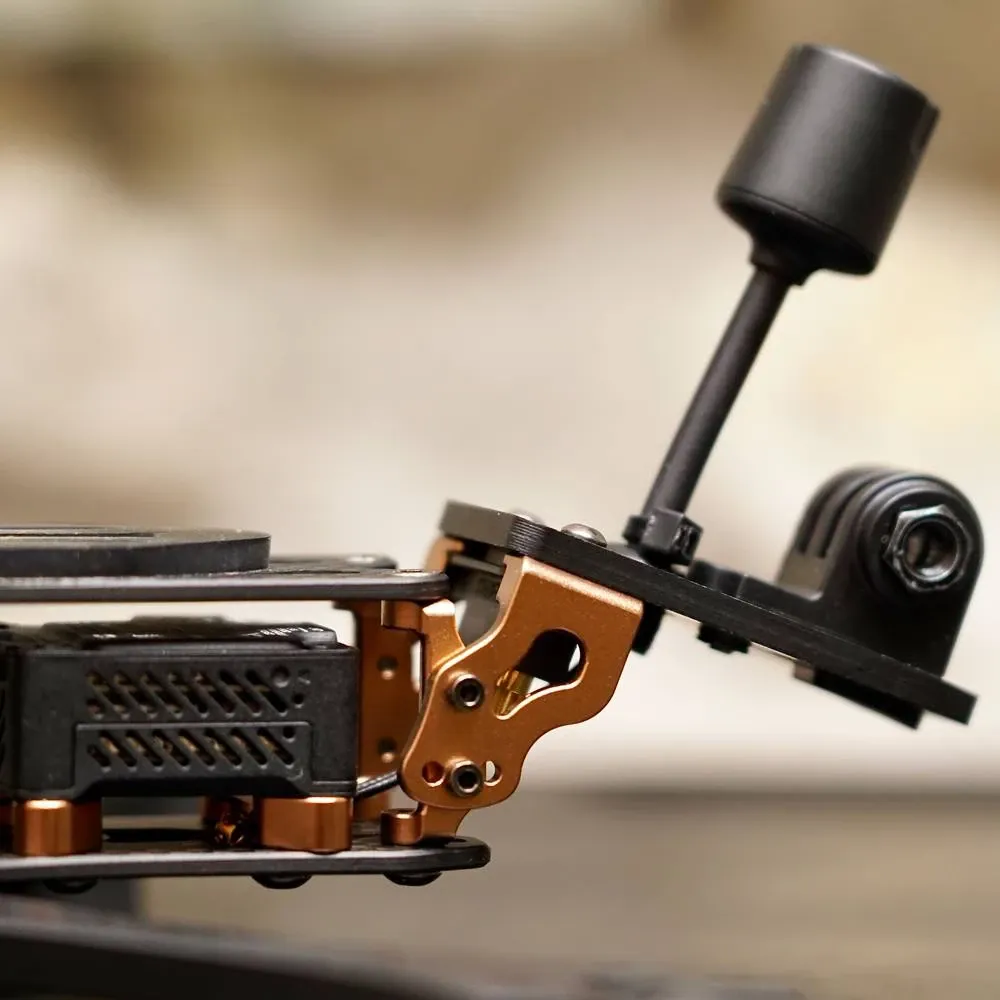

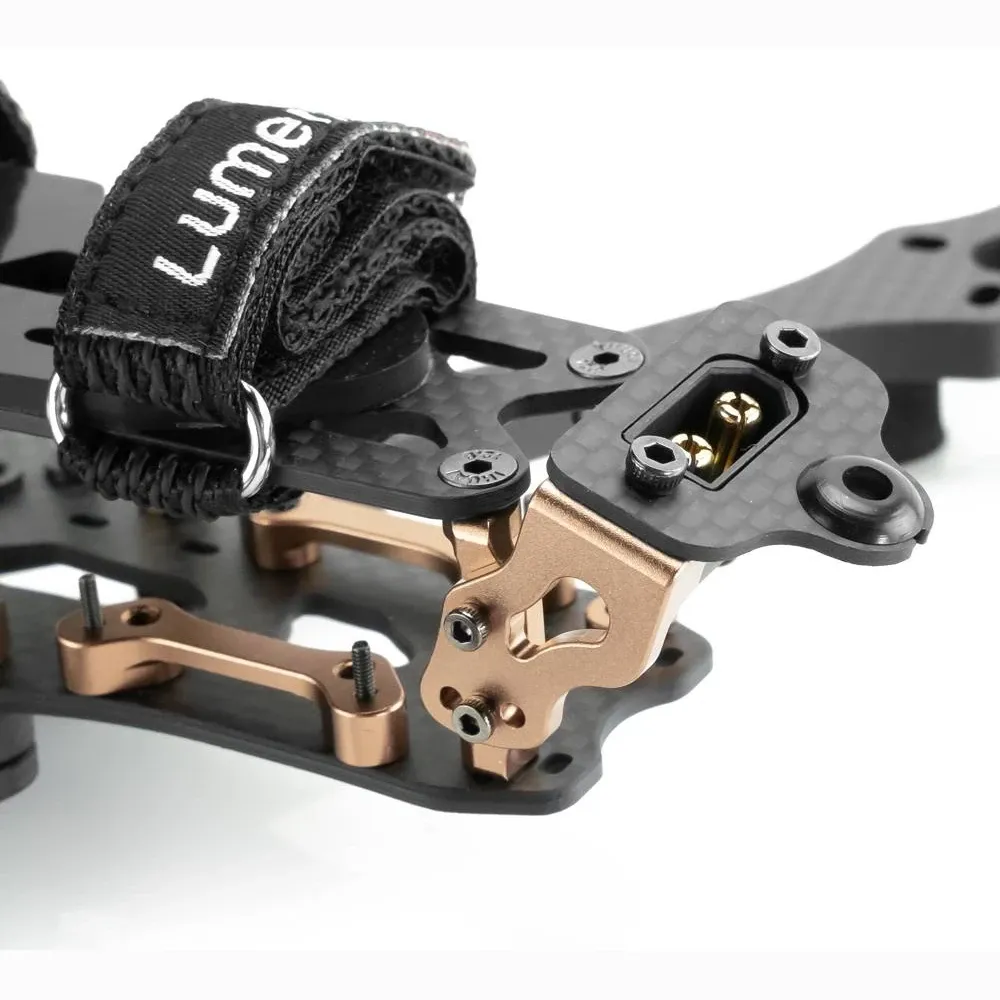

• Accessory mounts: injection-moulded GoPro mount (QAV-S pattern compatible) and an adjustable aluminium rear mount for a hard-mounted XT60, antennas, GPS or a rear camera
• Weight: 148g (including hardware and moulded plastics); 133 g frame only

With ample clearance for both 20x20mm and 30.5x30.5mm flight stacks and a dedicated 25.5x25.5mm rear bay, this frame seamlessly accommodates modern digital transmitters like the DJI O3, Walksnail Avatar, or Caddx Vista while keeping the propellers completely out of your HD camera feed.
