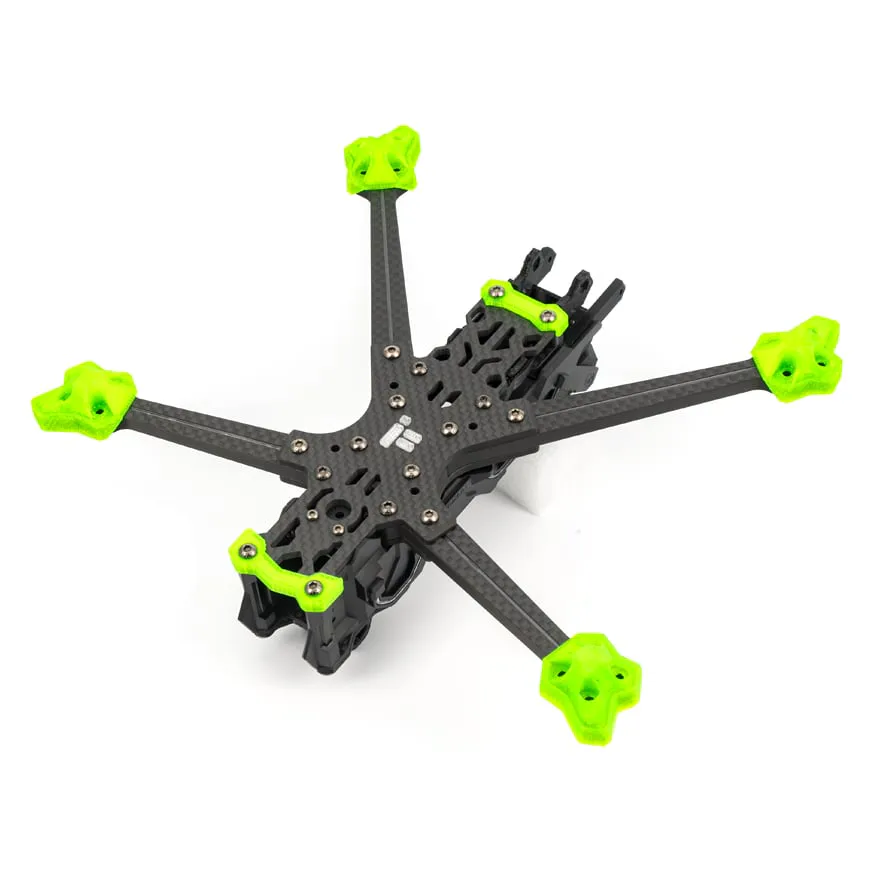

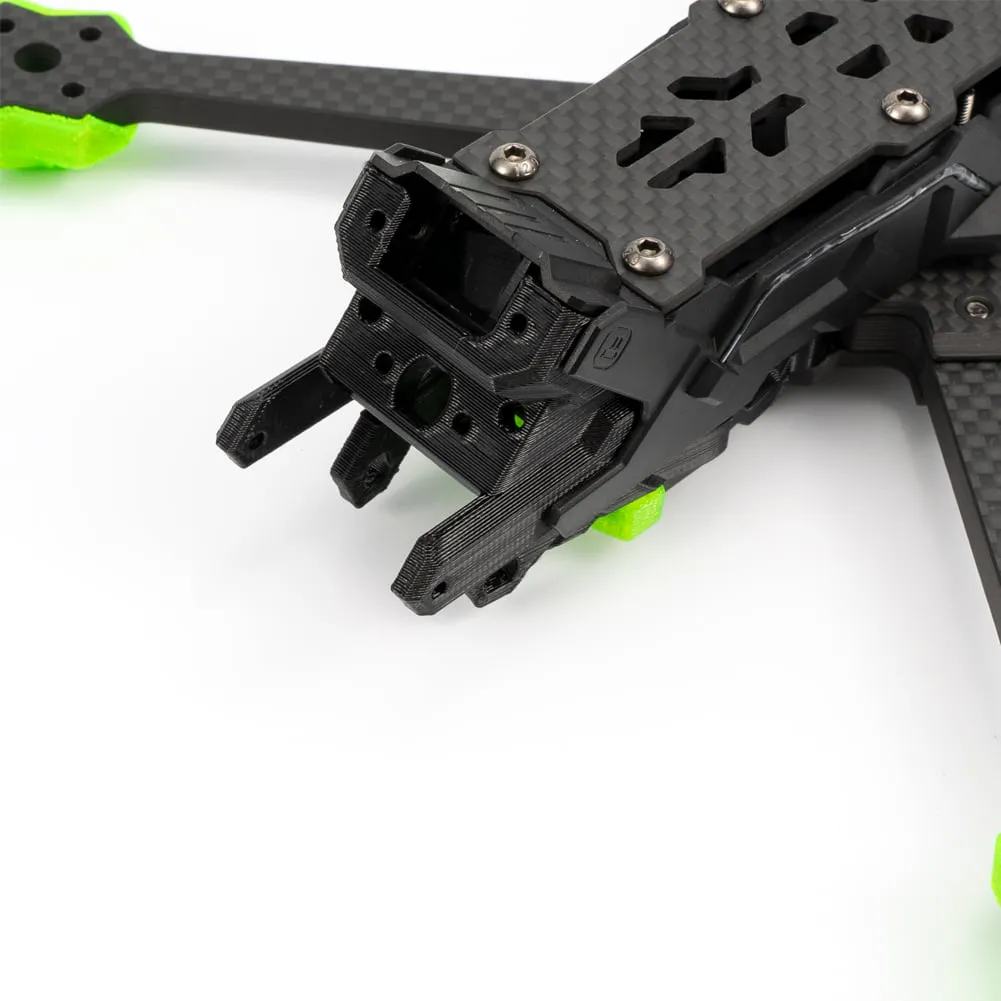

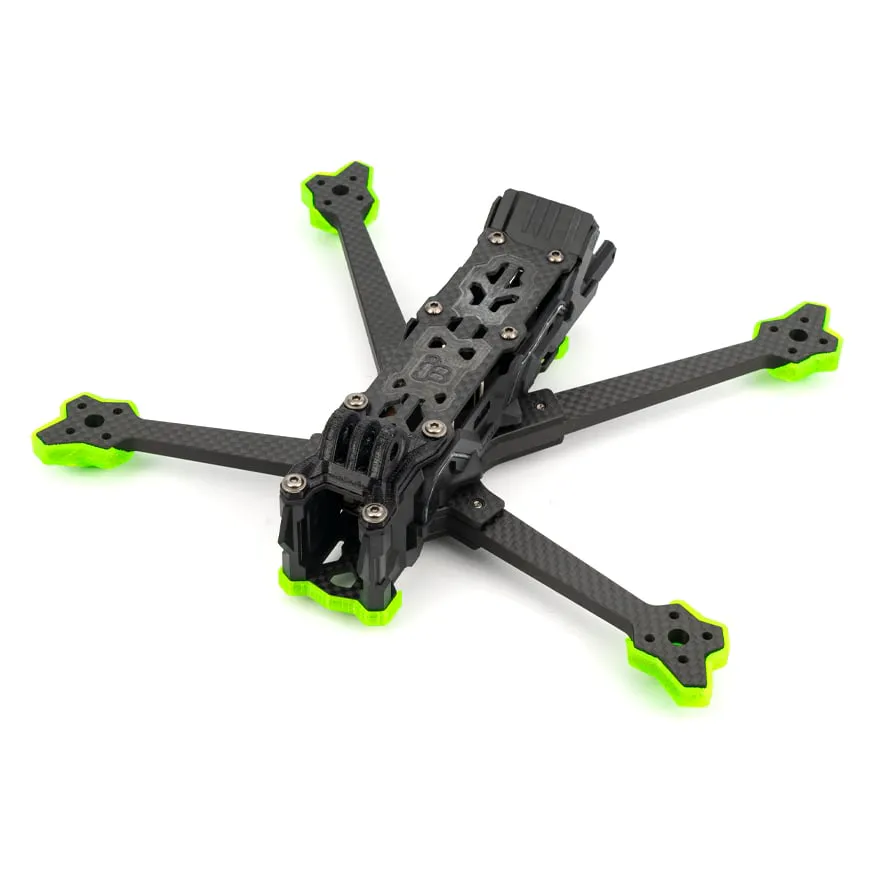

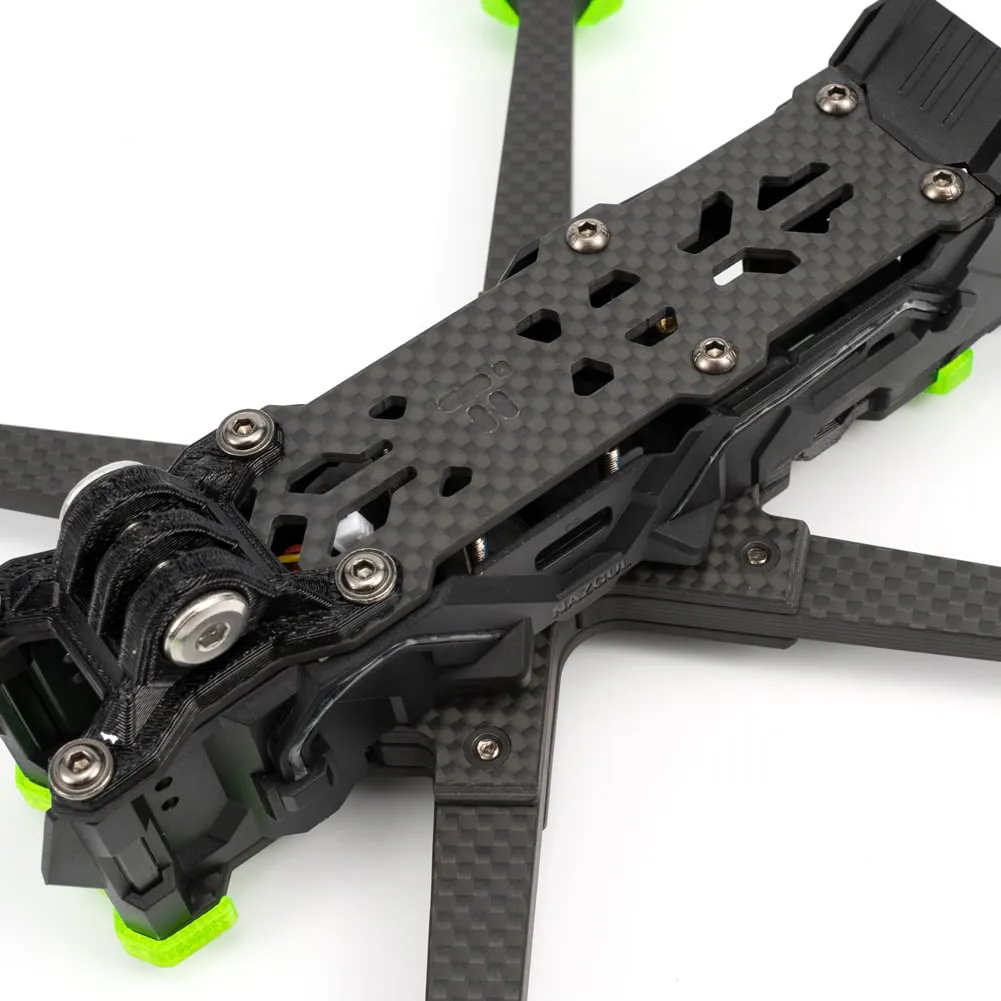

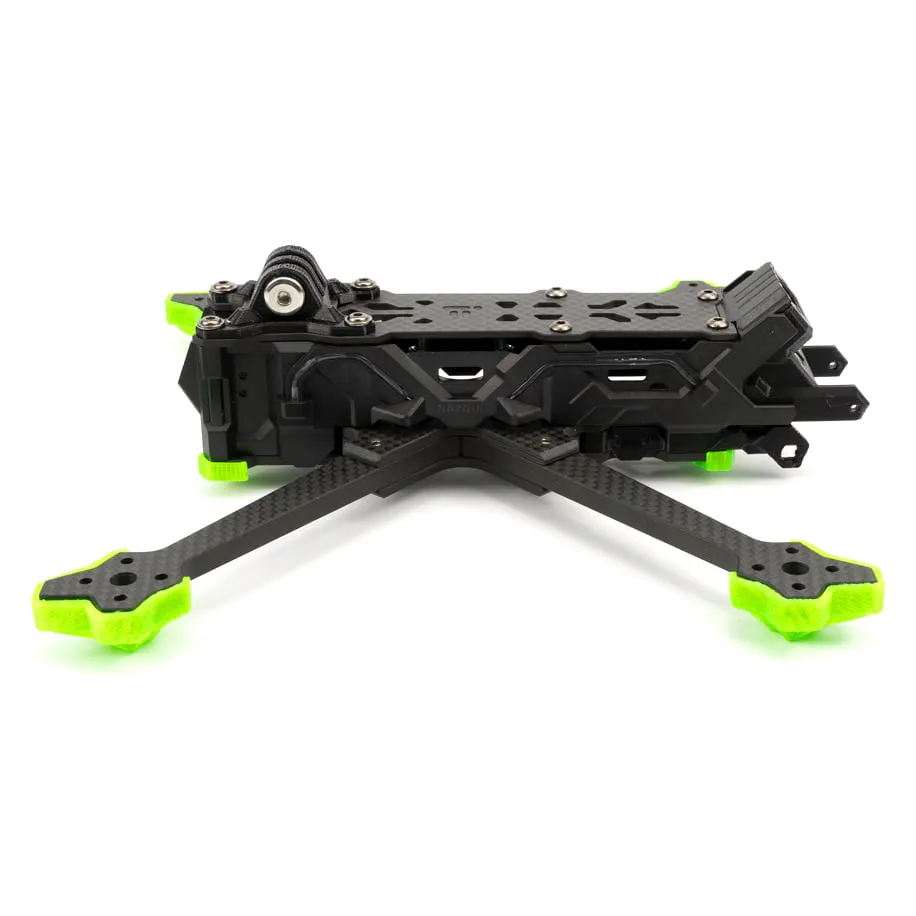

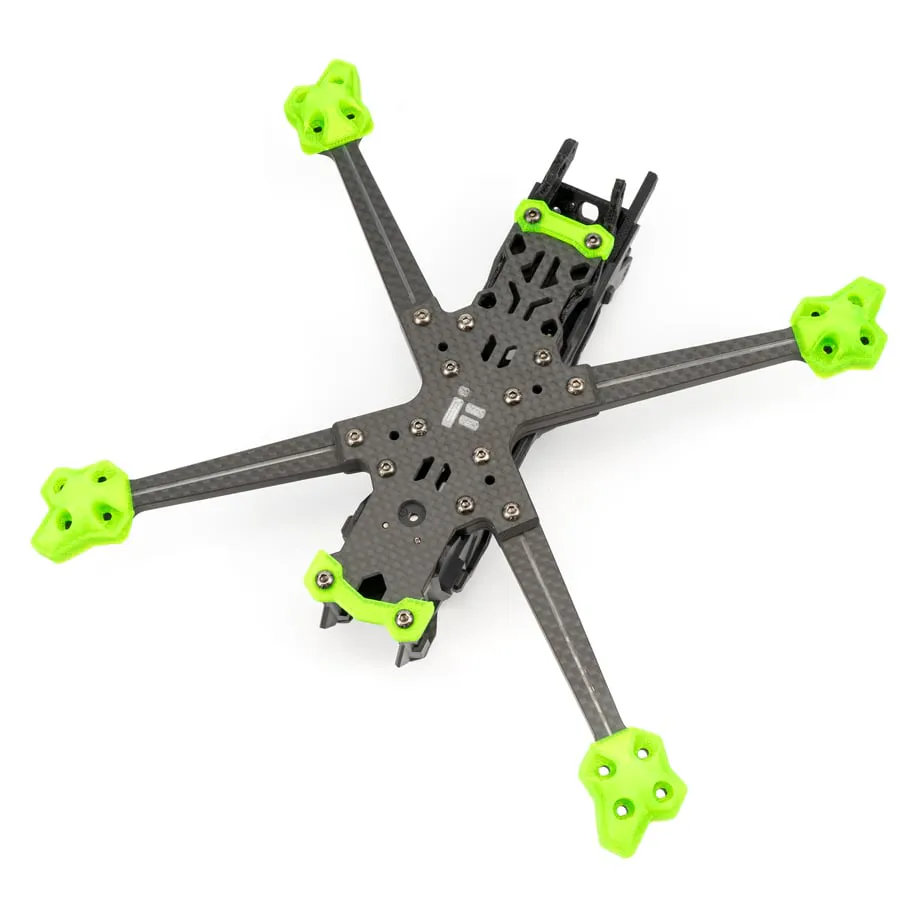

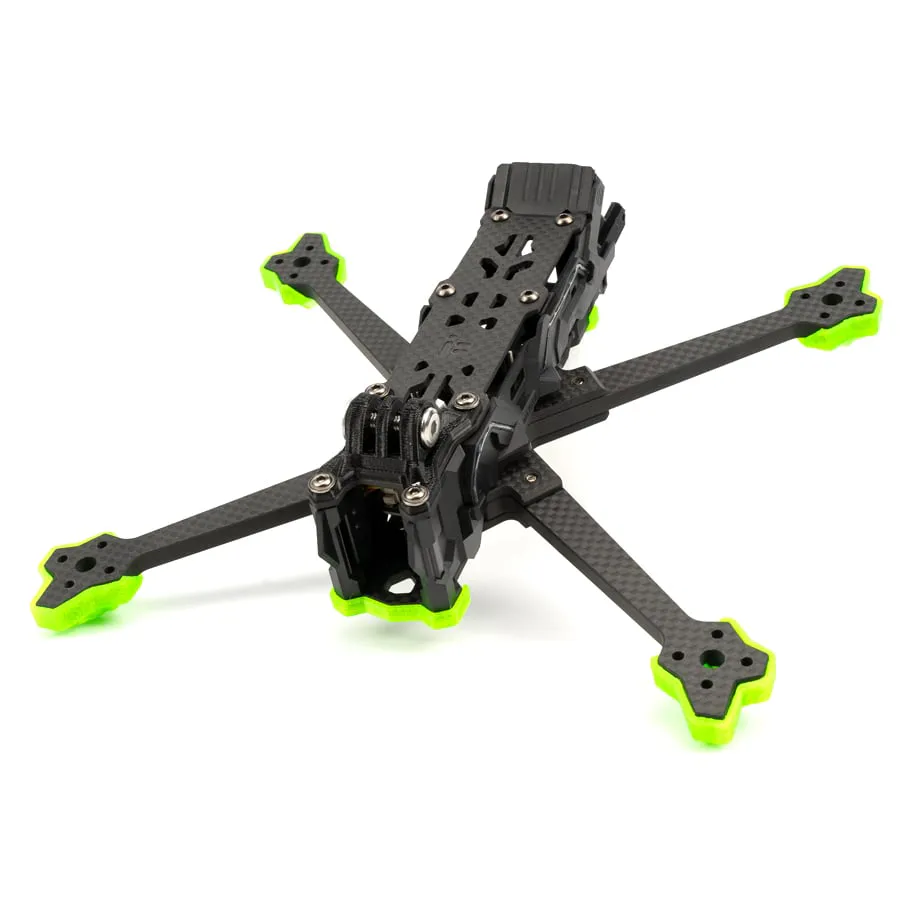

iFlight Nazgul Evoque F5 HD/Analog Frame Kit

The iFlight Nazgul Evoque F5 is a heavy-duty 5-inch freestyle frame kit engineered to keep your electronics protected and spotless. By utilising enclosed TPU side panels, it blocks grass, dirt, and moisture from reaching the flight controller and ESC during rough landings. Built from rigid 3K carbon fibre, this frame supports both analog and digital HD FPV VTX systems. Builders can choose between the Squashed X (F5X) geometry for balanced freestyle rotation or the DeadCat (F5D) layout to keep the front propellers completely out of the FPV camera's view.

Key features

• Enclosed chassis design with custom TPU side panels to protect internal components from debris.
• 6mm thick carbon fibre arms with 3mm top and bottom plates for high crash survivability.
• Built-in XT60 tail connector mount routes the battery lead safely away from spinning props.
• Dual stack support accommodates both 20x20 and 30.5x30.5 flight controllers and ESCs.

Specifications

• Wheelbase: 225mm (F5X Squashed X) / 223mm (F5D DeadCat)
• Arm thickness: 6mm
• Top and bottom plate thickness: 3mm
• FC stack mounting: 20x20, 30.5x30.5
• VTX mounting: 20x20, 25.5x25.5
• Camera spacing: 19mm
• Weight: Approx. 150g (including TPU hardware)

Select the F5D DeadCat configuration if you are capturing cinematic HD footage and need a clear, prop-free field of view, or opt for the F5X Squashed X for the symmetrical pitch and roll response demanded by technical freestyle flying.
