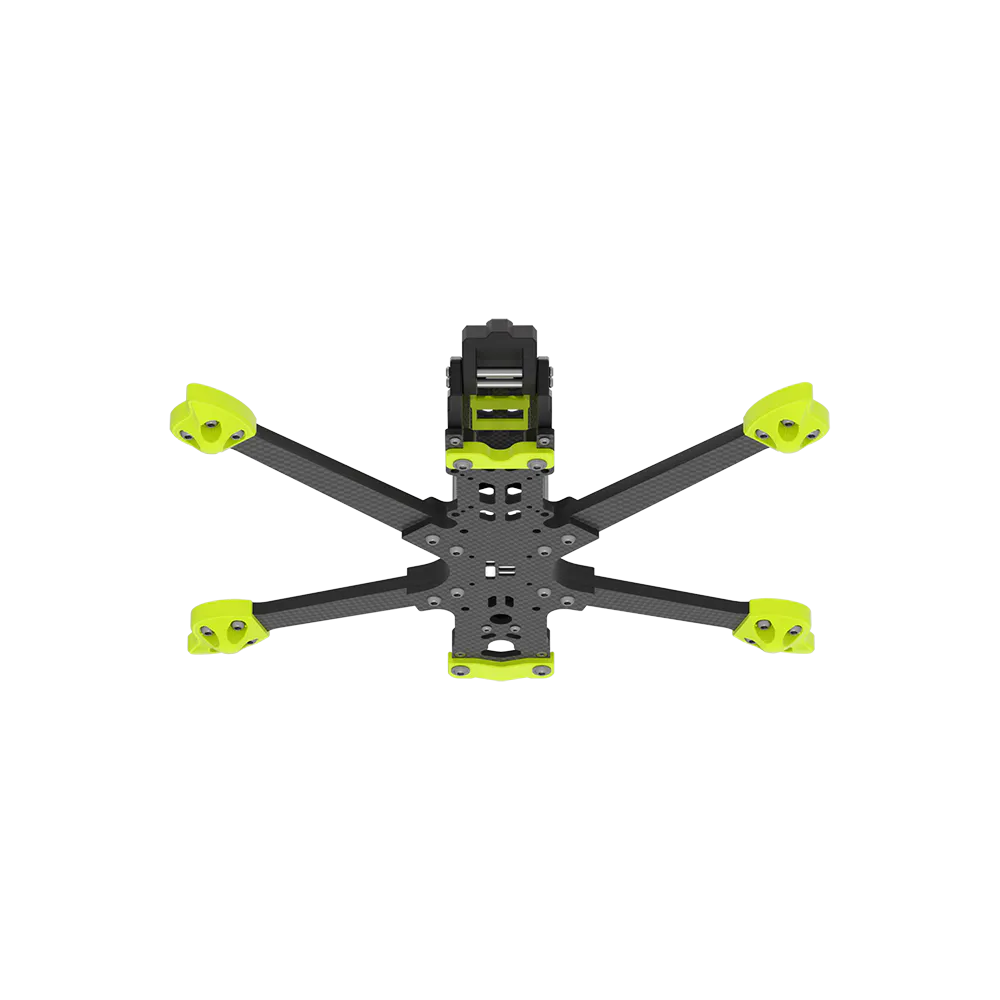

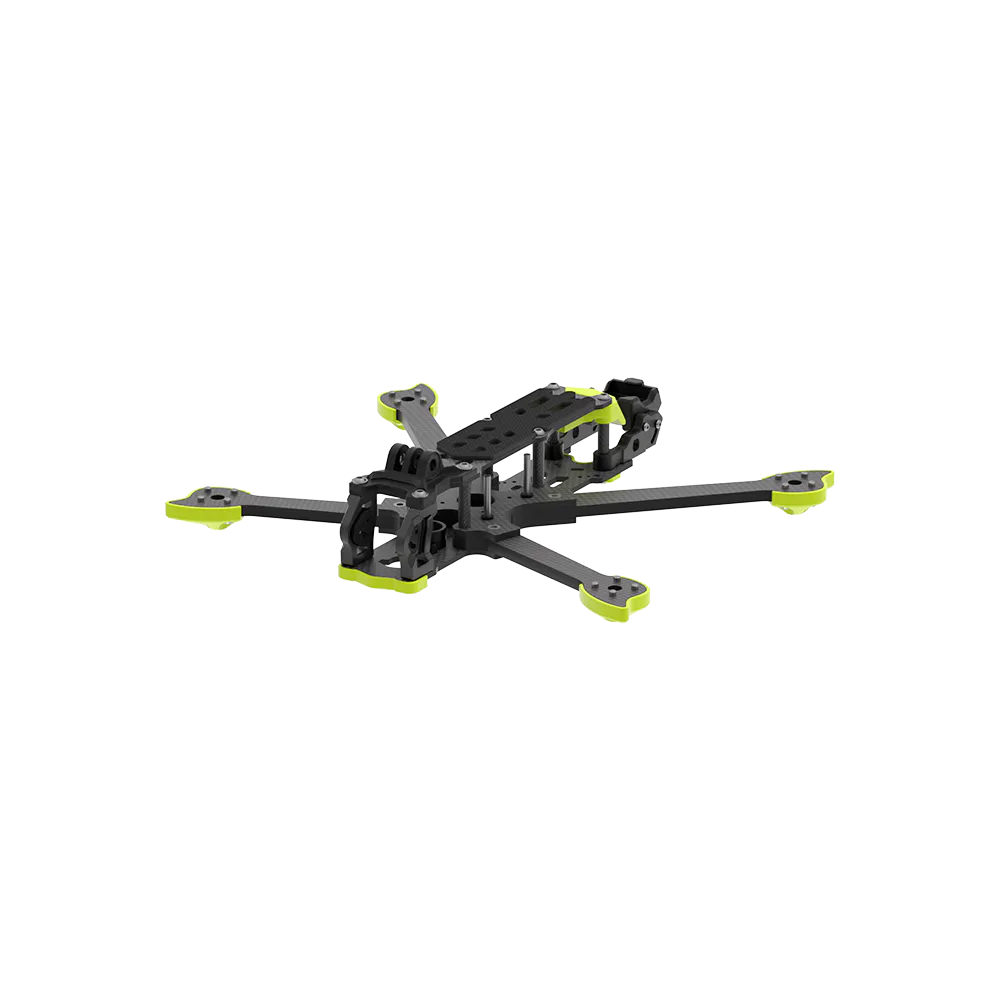

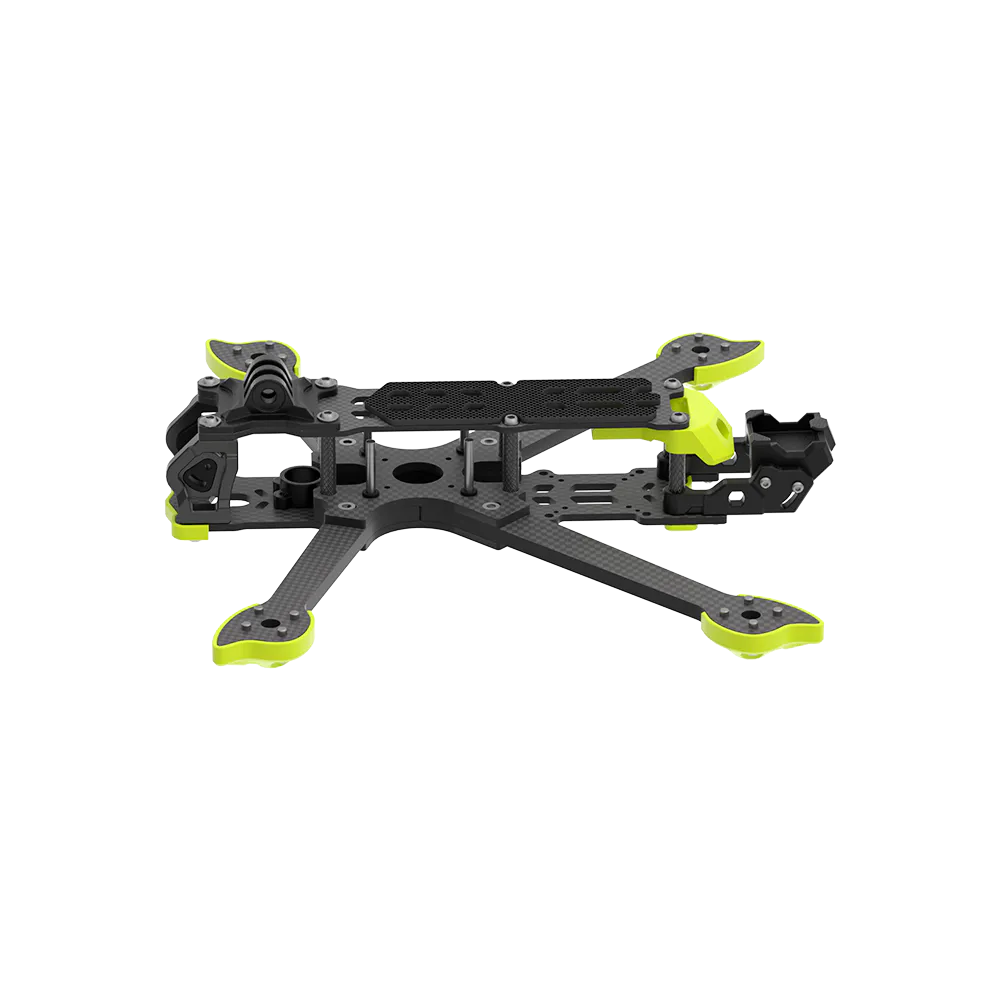

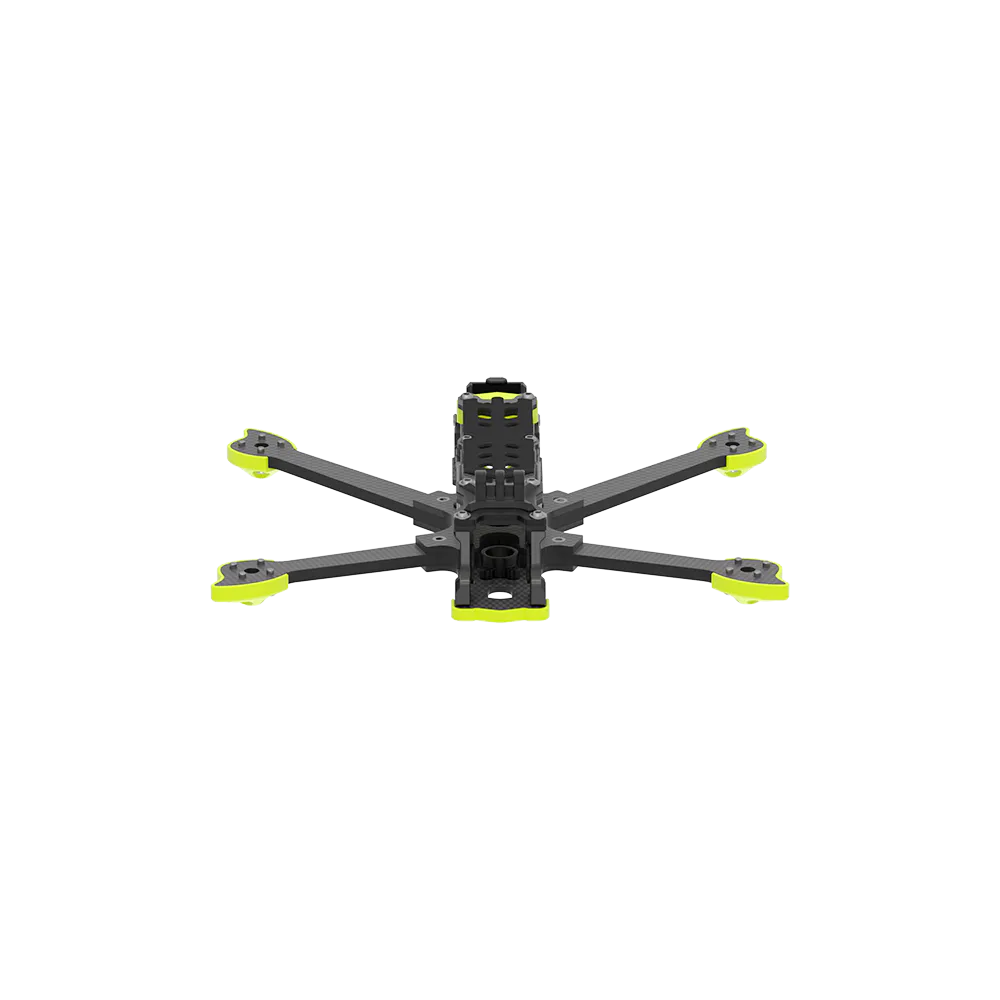

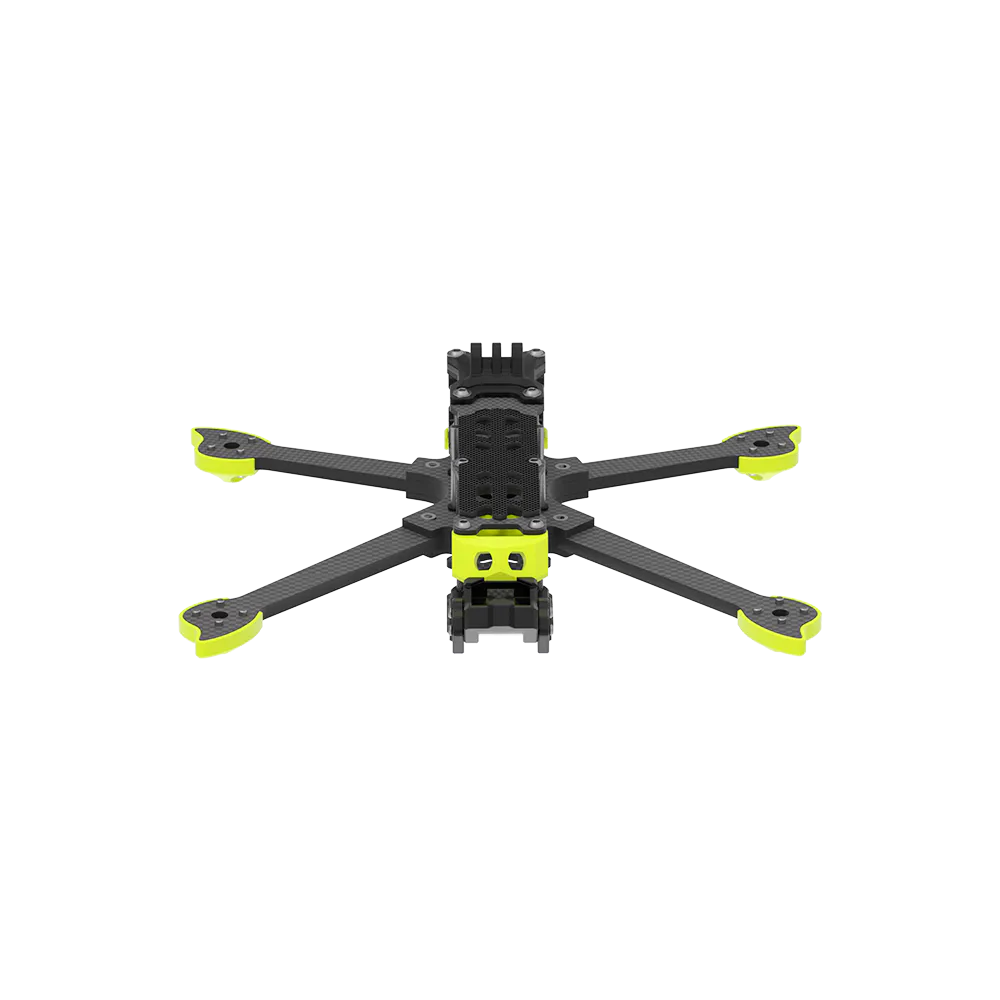

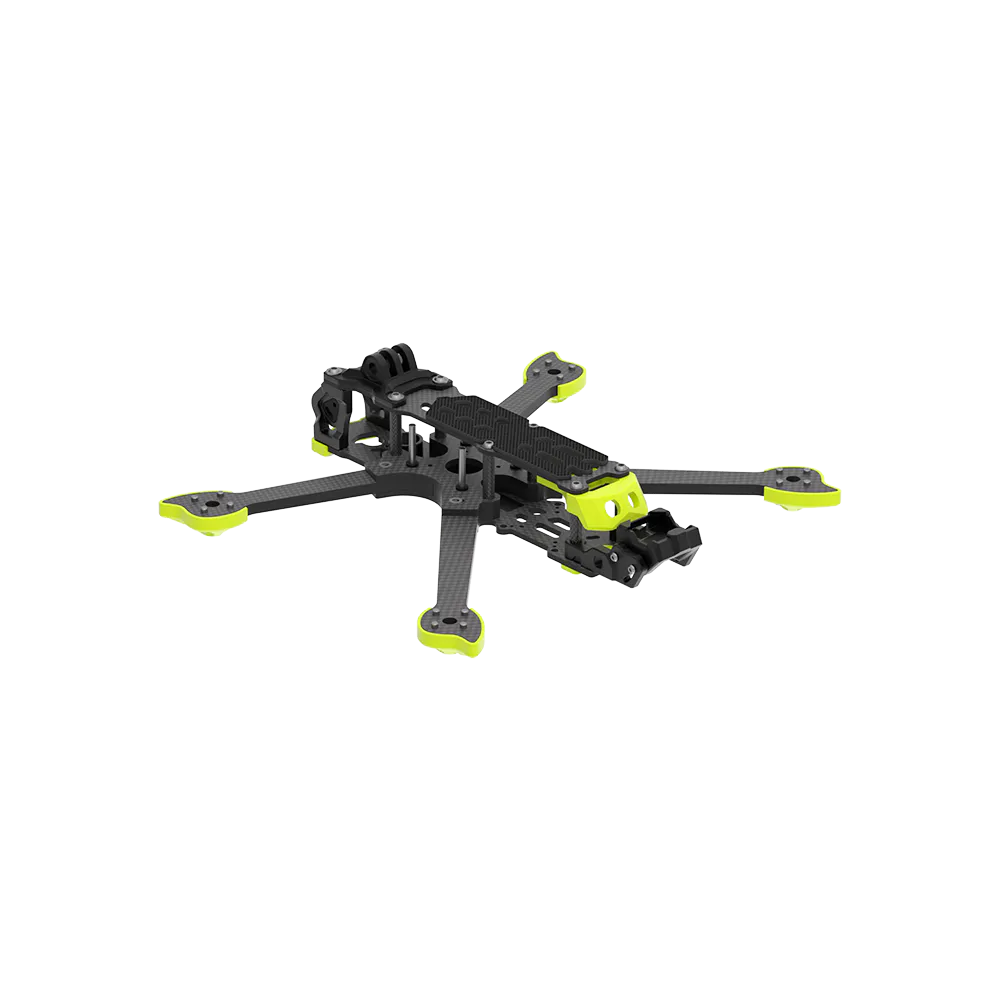

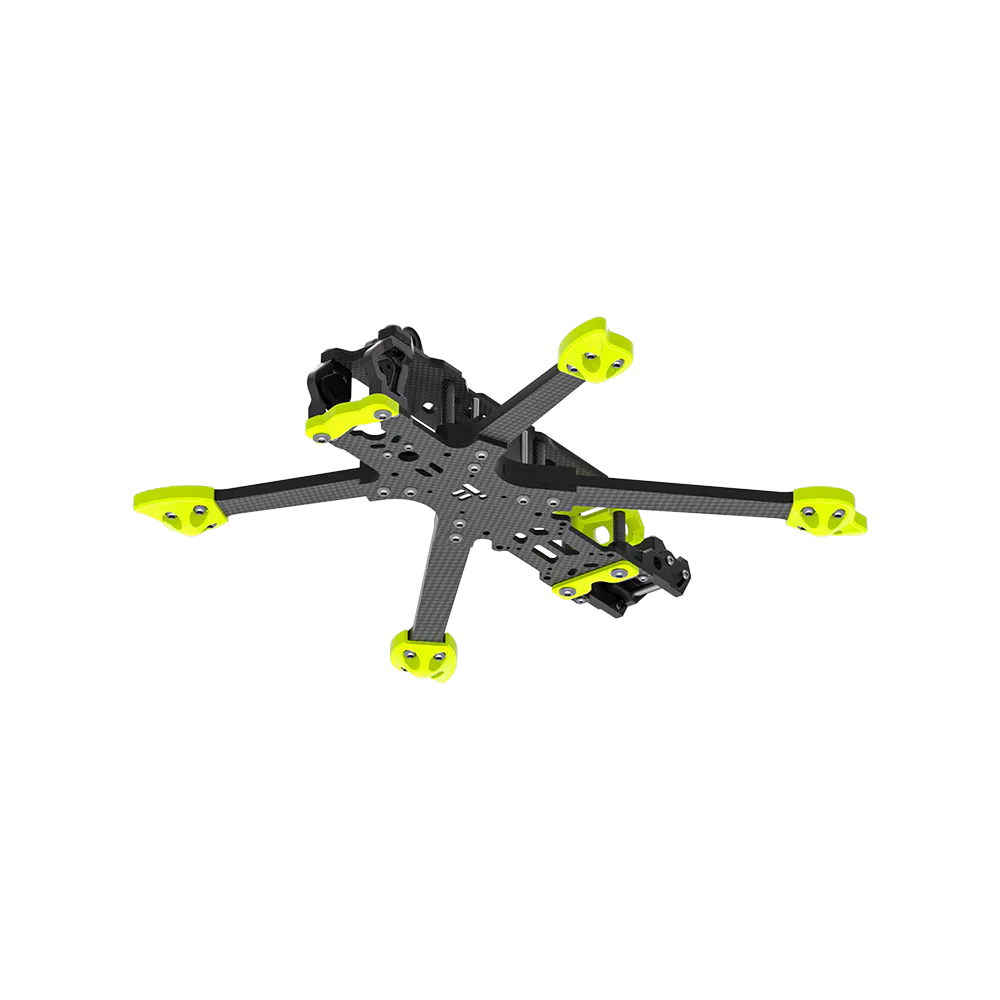

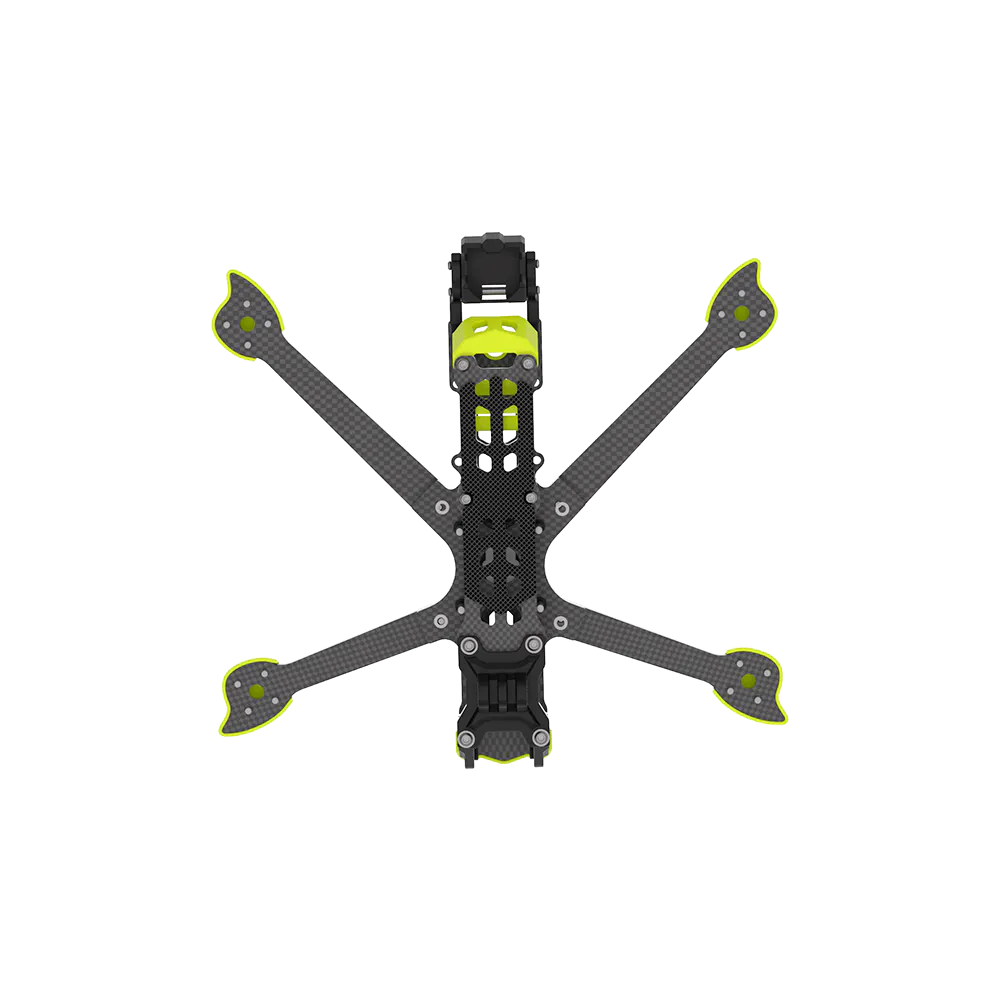

iFlight Nazgul DC5 V1.1 O4 Frame Kit

The iFlight Nazgul DC5 V1.1 O4 Frame Kit is a 5-inch DeadCat geometry freestyle frame engineered specifically for clean cinematic recording with no propellers in view. Designed around the DJI O4 Air Unit and Pro camera footprint, it pairs 5 mm thick 3K carbon fibre arms with dual 30.5x30.5 mm and 20x20 mm stack mounting holes, making it suitable for modern HD freestyle and cinematic cruising builds.

Key features

• DeadCat layout: Offset front arms keep 5-inch propellers out of the FPV and recording camera field of view.
• Native DJI O4 integration: Specifically tailored camera TPU mounts and rear air unit accommodation for the DJI O4 system.
• Rigid 3K carbon build: Heavy-duty 5 mm arms resist crash deflections and high-frequency vibrations during aggressive freestyle flight.
• Dual stack compatibility: Accommodates 30.5x30.5 mm and 20x20 mm flight controllers and ESCs, plus 30.5x30.5 mm, 25.5x25.5 mm and 20x20 mm VTX mounting.

Specifications

• Frame geometry: DeadCat (DC)
• Wheelbase: 240 mm
• Frame dimensions: 193 x 144 x 34 mm
• Arm thickness: 5 mm
• Bottom plate thickness: 2.5 mm
• Upper plate thickness: 3 mm
• Max flight stack height: 22 mm
• Max VTX height: 29 mm
• FC / ESC mounting: 30.5x30.5 mm / 20x20 mm
• VTX mounting: 30.5x30.5 mm / 25.5x25.5 mm / 20x20 mm
• Motor mounting: 16x16 mm
• Supported prop size: 5 inch / 5.1 inch
• Weight: 239 g ±5 g
• Compatibility: DJI O4 Air Unit Pro, DJI O3 Air Unit

Pair this frame with 2207 or 2306 brushless motors on 16x16 mm mounts and standard 5-inch freestyle propellers for a balanced cinematic or freestyle HD setup.
