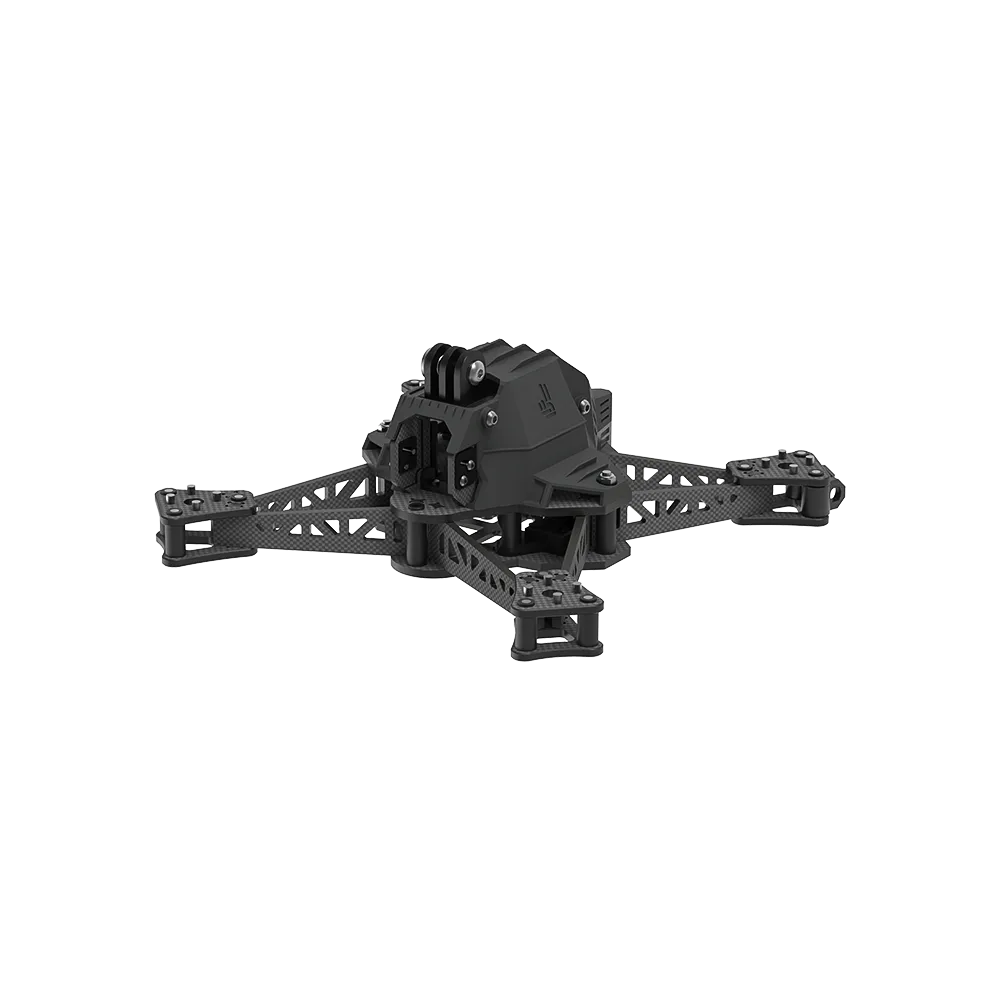

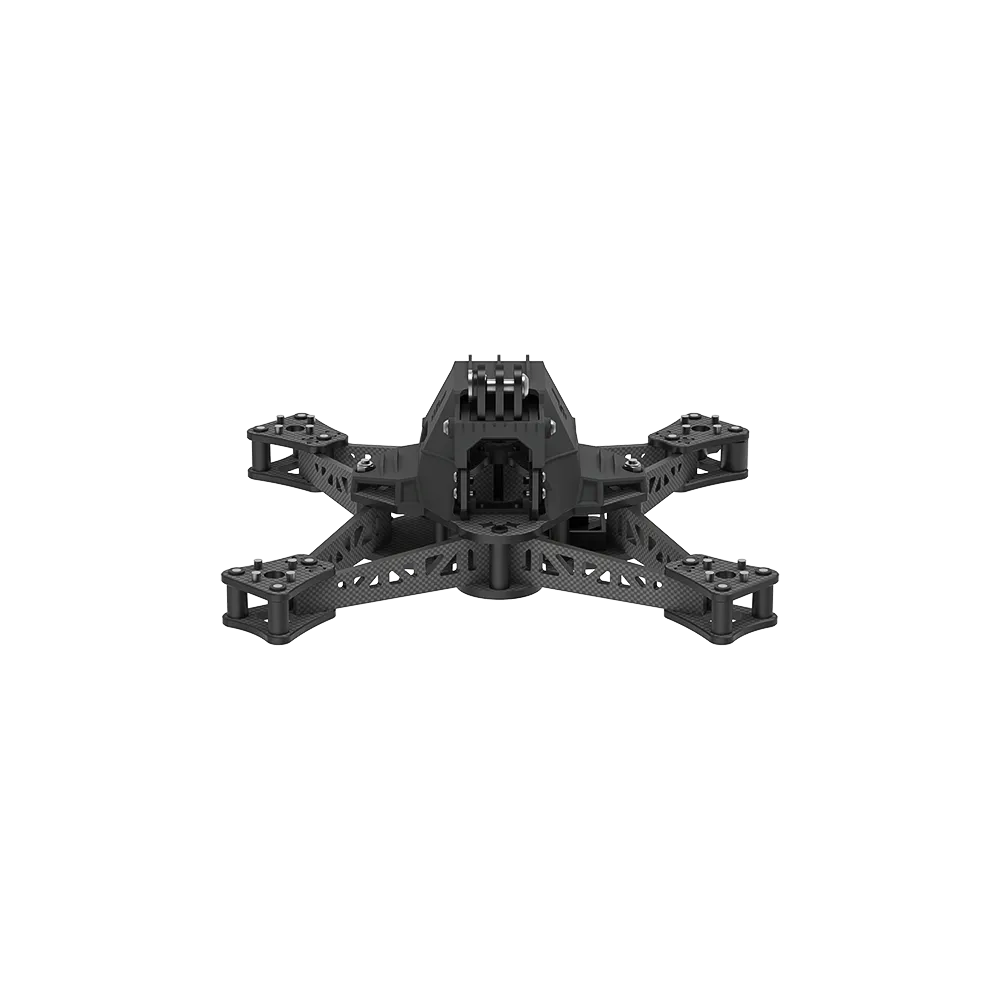

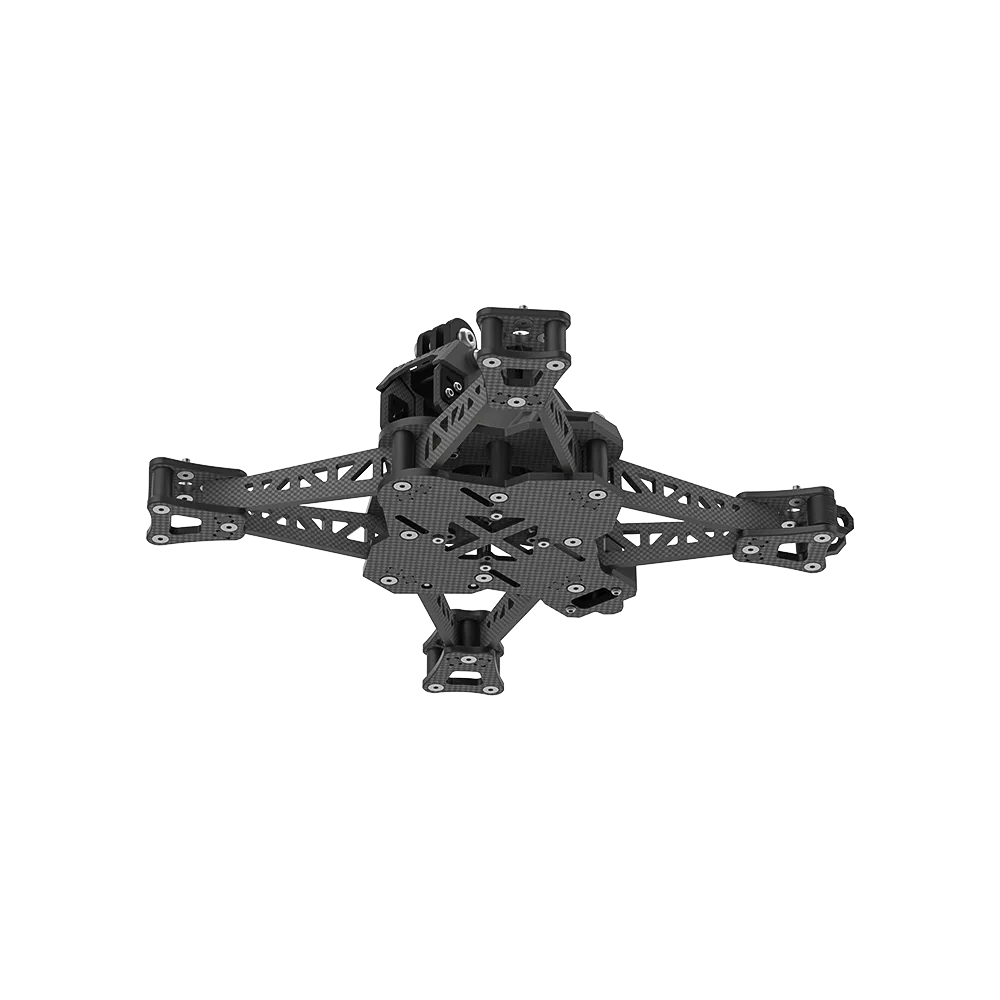

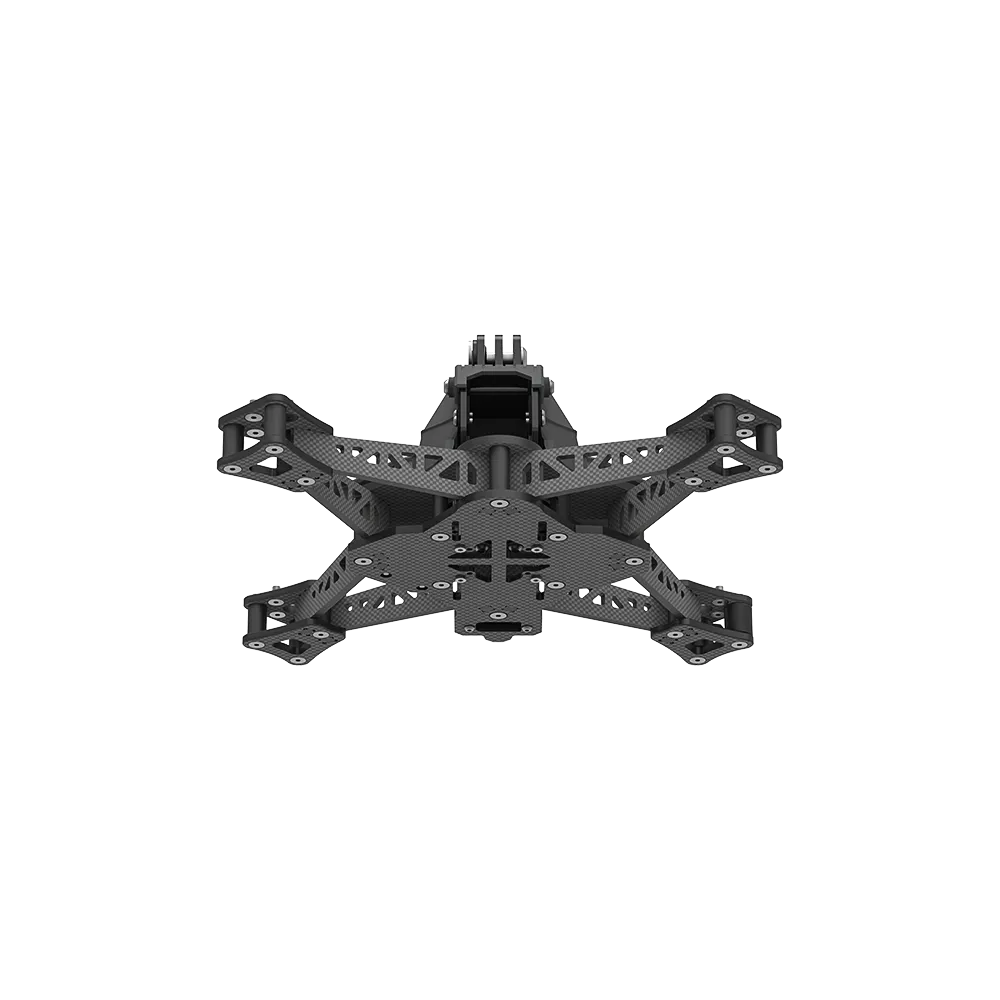

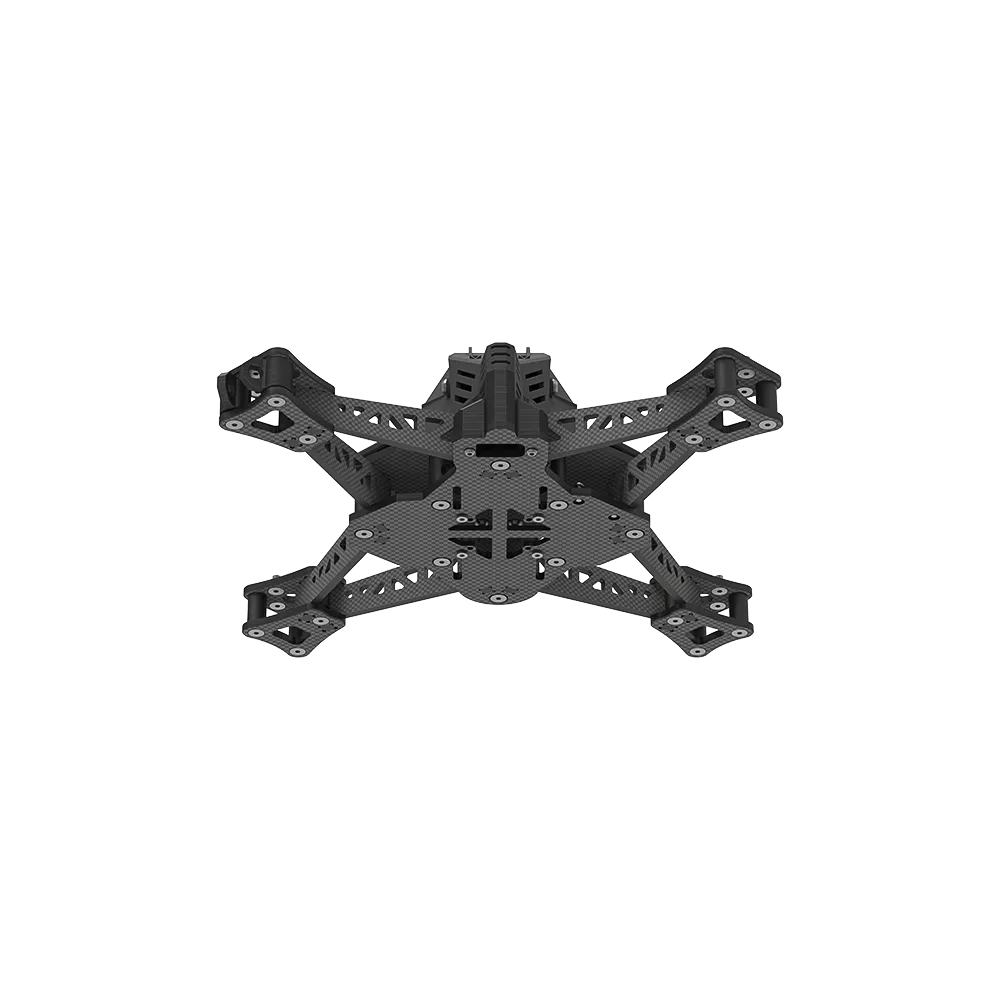

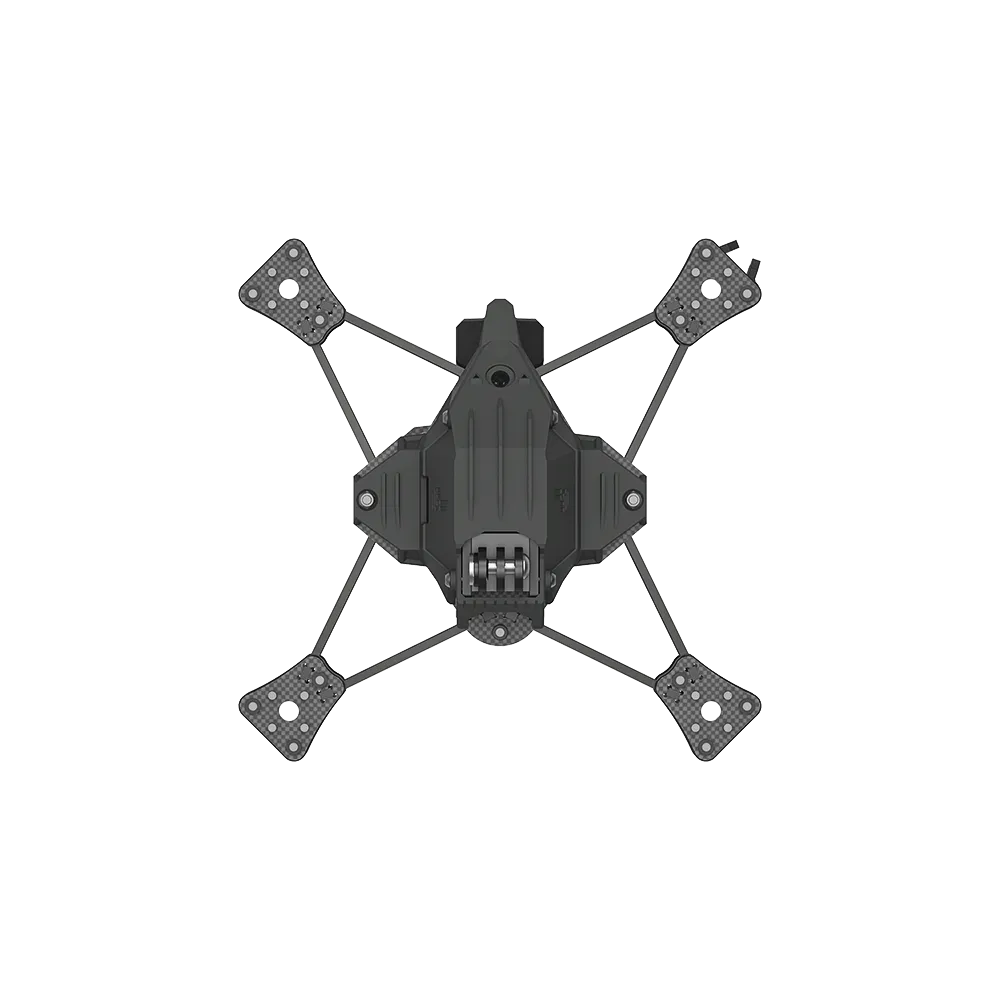

iFlight Afterburner 5 Frame Kit 2RAW

The iFlight Afterburner 5 is a 5-inch frame developed by iFlight with FPV pilot 2RAW for cinematic flying. Rather than being built to survive repeated concrete crashes, it is designed around aerodynamics and balance, with a footprint roughly 20% smaller than a typical 5-inch freestyle frame for easier transport, extra agility and less drag.

Key features

• Aero shell diverts airflow away from the flat top plate at speed and shields the electronics from dirt and moisture.
• Star-layout arms with trusses keep the frame stiff and light for smooth, well-balanced footage.
• Bottom-mounted battery keeps drag low, centres the weight and leaves the top clear for a GoPro and a GPS with a clear view of the sky.
• With a GoPro at 16:9, no props are in view anywhere from 5 to 60 degrees of camera tilt.

Specifications

• Brand: iFlight
• Geometry: True-X
• Wheelbase: 210 mm
• Frame dimensions: 148 x 148 x 64 mm
• Plate thickness: 3 mm arms, top and bottom plates
• Flight stack mounting: 30.5 x 30.5 mm (M3), max stack height 13.5 mm
• VTX mounting: 25.5 x 25.5 mm (1.6 mm holes), max VTX height 17 mm
• Motor mounting: 16 x 16 mm (M3)
• Weight: 273 g
• Supported prop size: 5-inch
• In the box: frame kit, TPU set, 4 motor wire shield tubes, 2 battery anti-slip pads, 2 battery straps (15 x 250 mm), screw bag

Pair this frame with robust 2207 or 2306 brushless motors and a high-discharge 6S LiPo for an optimal balance of torque and top-end speed in your next cinematic build.
