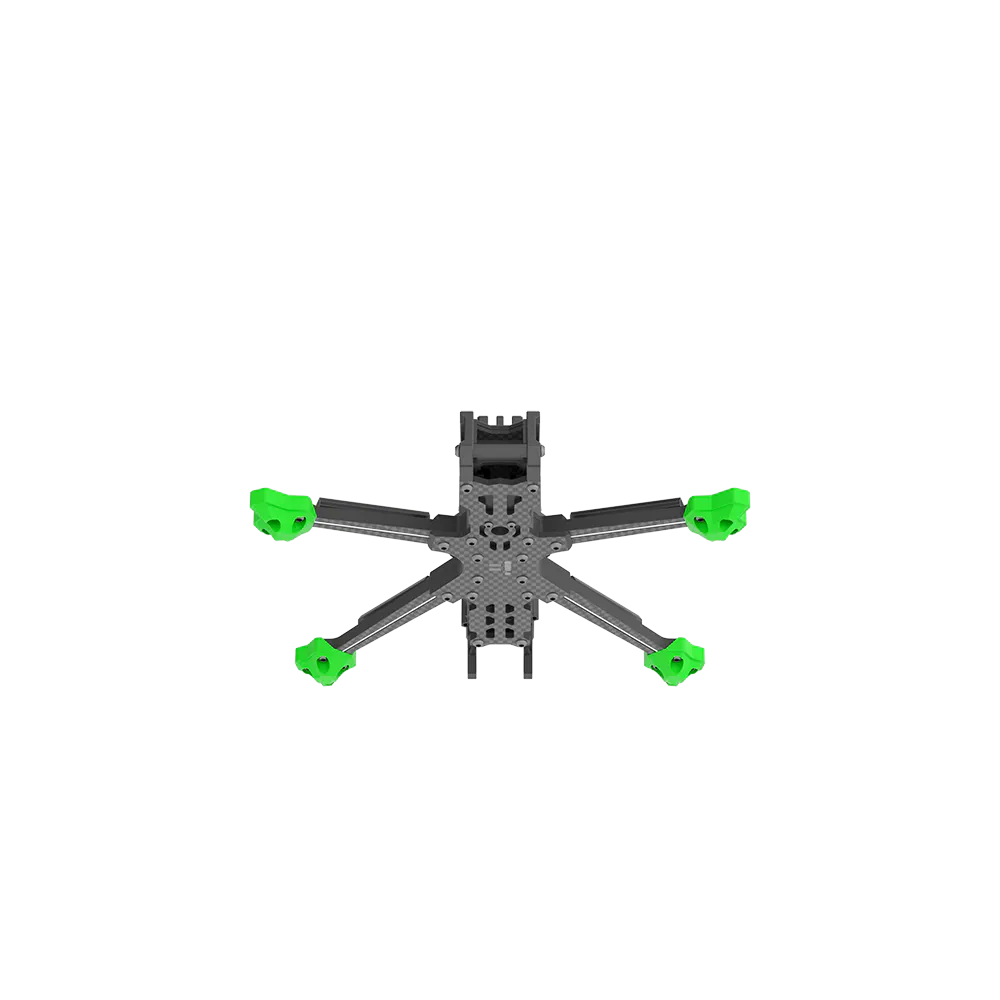

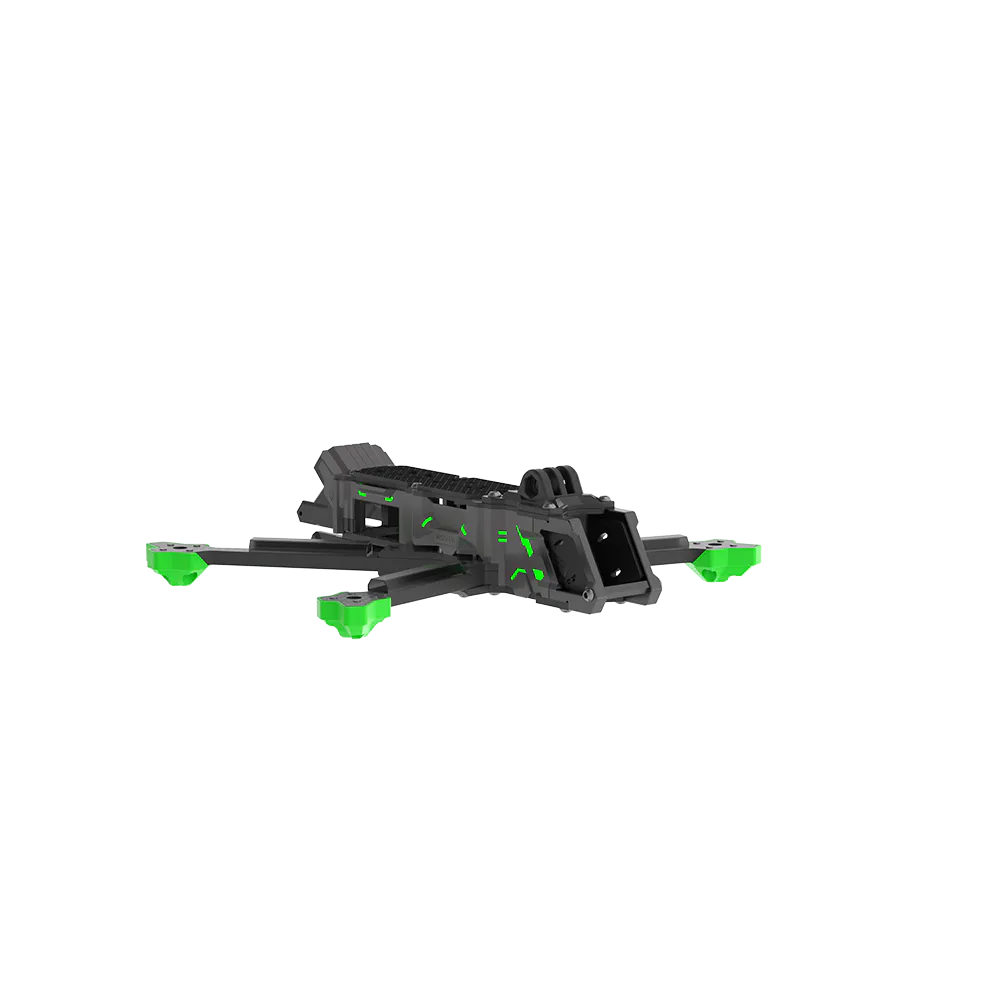

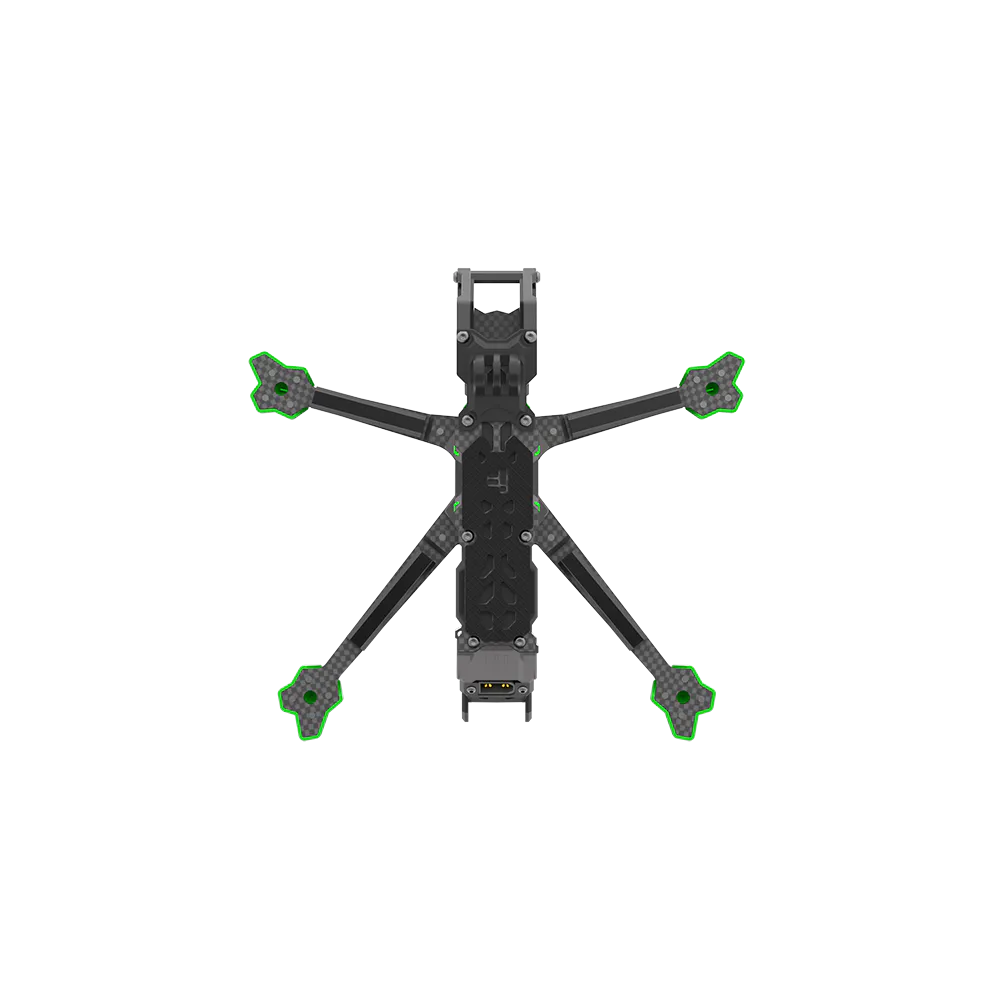

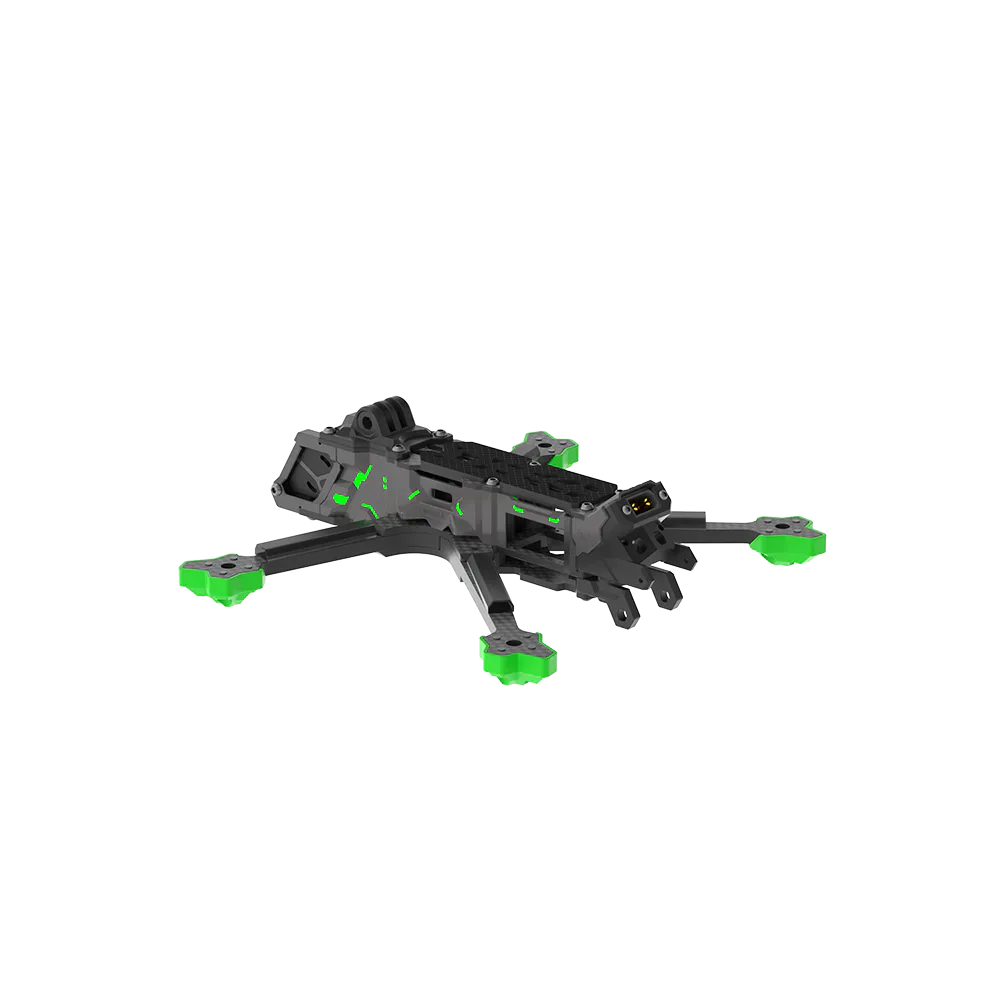

iFlight Nazgul Evoque F5 V2 O4 5-Inch Frame Kit (DeadCat)

The Nazgul Evoque F5 V2 O4 is iFlight's 5-inch DeadCat freestyle frame revised for the DJI O4 Air Unit Pro, with a new camera mount, new silicone side panels and different screws. Its enclosed body keeps dirt and grass off the flight controller and ESC after crashes, cutting the risk of shorts, while vented airflow keeps the electronics cool. The DeadCat geometry spreads the front arms wide so props stay out of the camera view.

Key features

• DJI digital ready: camera mount made for the O4 Air Unit Pro; the DJI O3 Air Unit also fits.
• 6 mm arms: paired with 3 mm bottom, upper and camera plates and a 2 mm top plate.
• Stack and VTX bays: 20 × 20 mm flight stack mount and 25.5 × 25.5 mm VTX mount, each with up to 22 mm of height.
• 360-degree TPU protection: TPU arm guards, a dual antenna mount and a GoPro base are in the box, along with battery straps and anti-slip pads.

Specifications

• Wheelbase: 223 mm (DeadCat)
• Dimensions: 190 × 136 × 36 mm
• Arm thickness: 6 mm
• Bottom plate: 3 mm
• Top plate: 2 mm
• Upper plate: 3 mm
• Camera plate: 3 mm
• Flight stack mount: 20 × 20 mm, Φ3 mm holes
• VTX mount: 25.5 × 25.5 mm, Φ2 mm holes
• Max stack / VTX height: 22 mm
• Motor mount: 16 × 16 mm
• Frame weight: 249 ± 5 g
• Compatibility: DJI O4 Air Unit Pro, DJI O3 Air Unit
• In the box: frame kit, 2 × IPEX to RP-SMA antenna pigtails, dual antenna TPU mount, GoPro TPU base mount, screw bag, 4 × TPU arm guards, 2 × anti-slip battery pads, 2 × battery straps

Plan the electronics around a 20 × 20 mm stack, since 30.5 × 30.5 mm boards will not fit, and choose 5-inch motors with a 16 × 16 mm mounting pattern.
