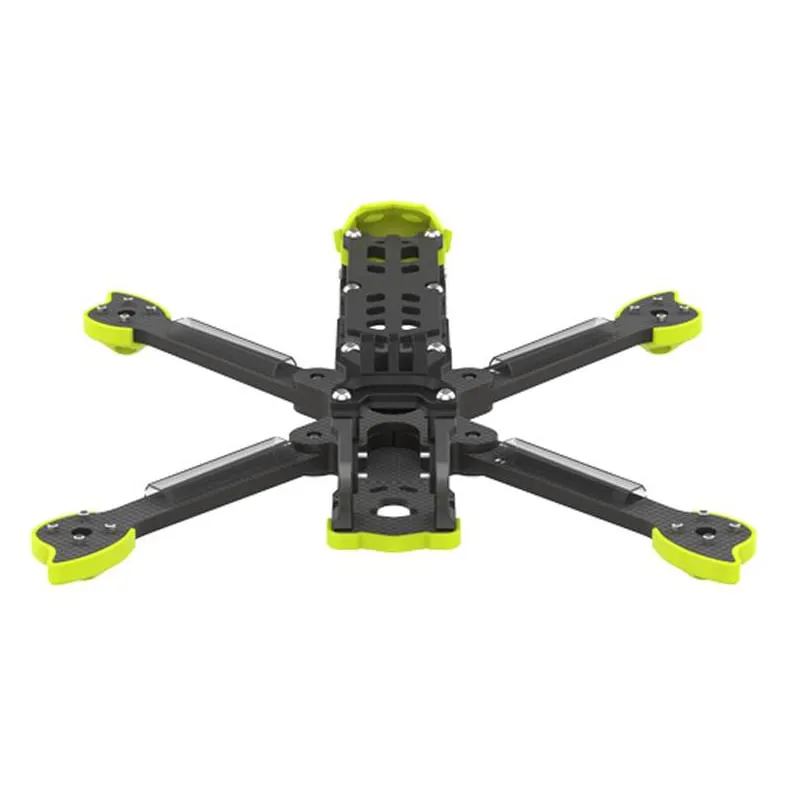

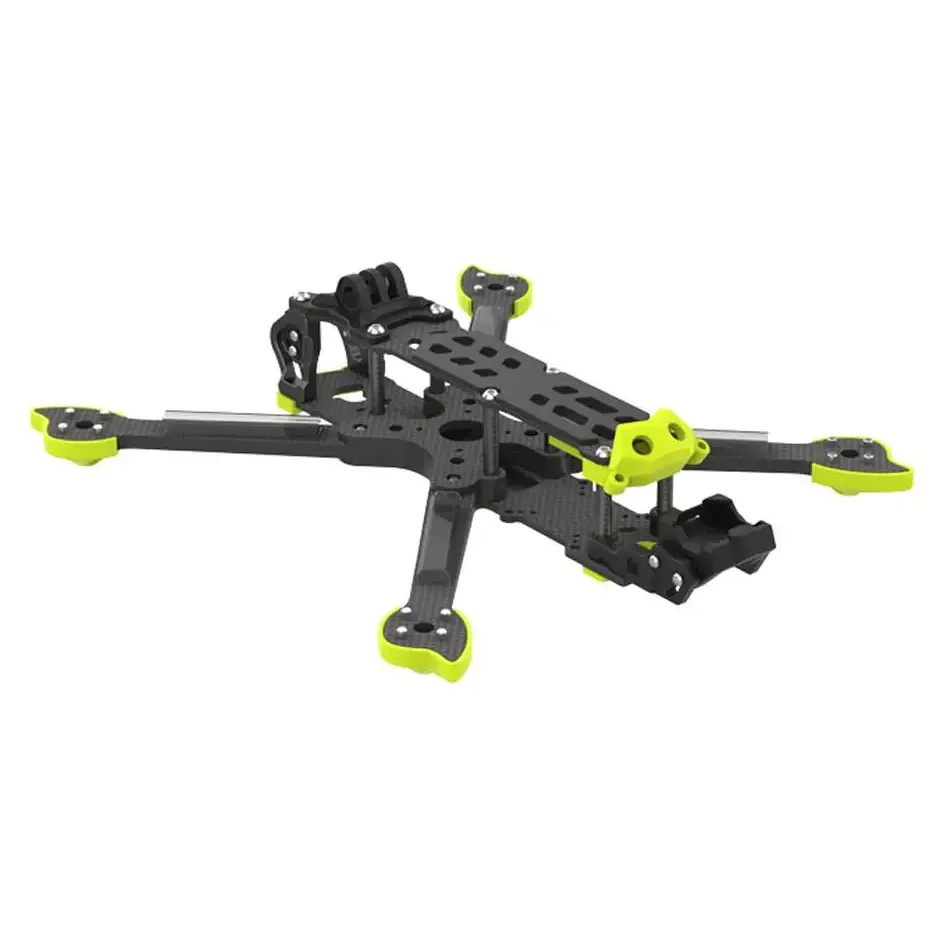

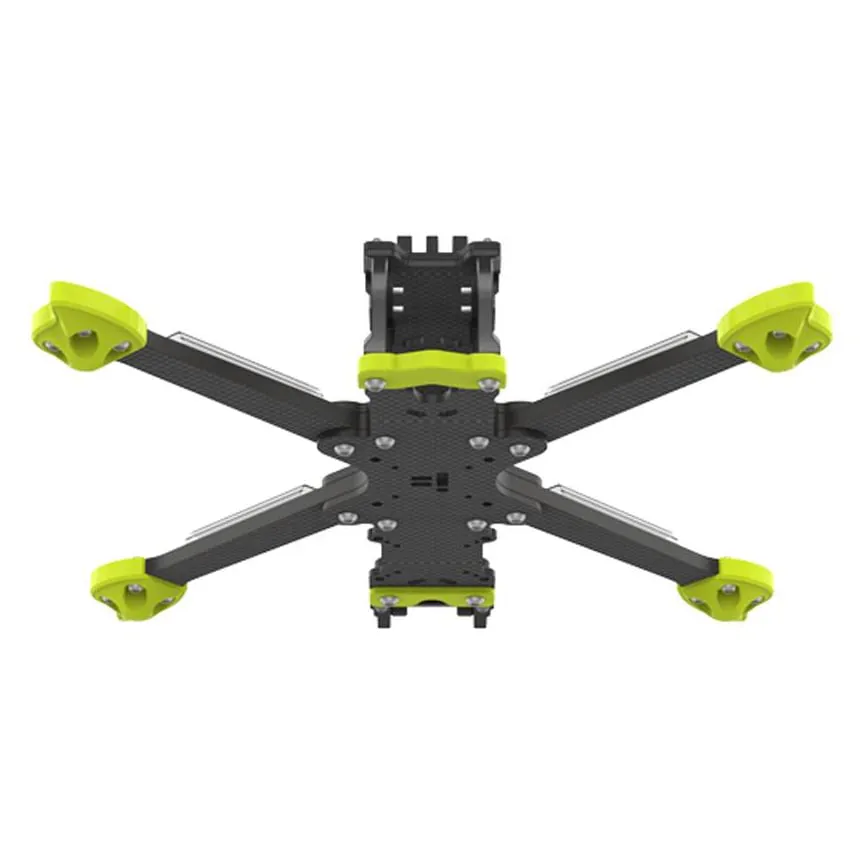

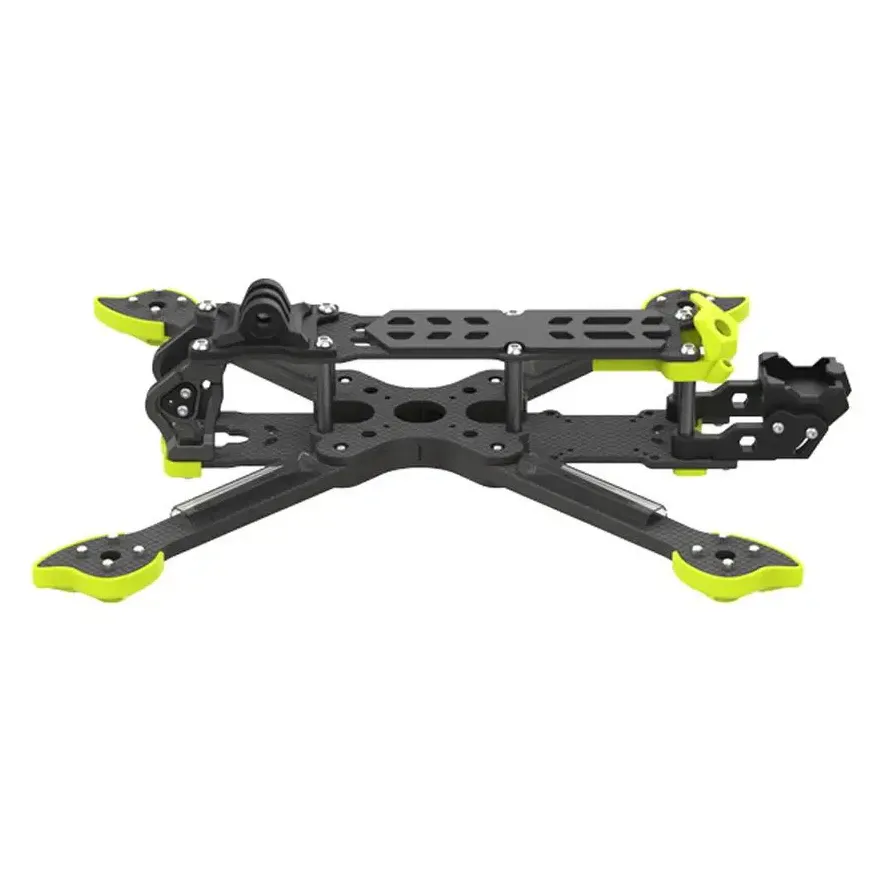

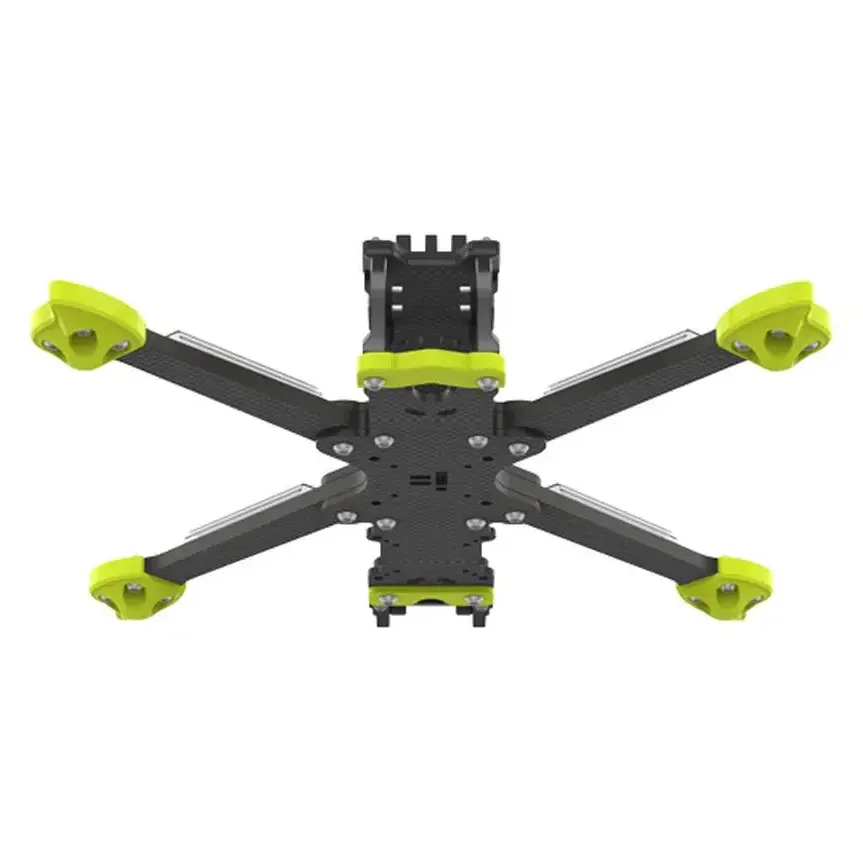

iFlight Nazgul5 V3 Frame Kit

The iFlight Nazgul5 V3 is a 5-inch carbon fibre freestyle frame with 5 mm swappable arms and a 245 mm wheelbase, the airframe behind iFlight's Nazgul5 V3 quads. It takes 30.5x30.5 or 20x20 stacks and carries a DJI O3 air unit, so it works for both analog and HD freestyle builds.

Key features

• 5 mm carbon arms on an easy-swap design: a broken arm can be replaced on its own
• Fits 5-inch and 5.1-inch propellers; 16x16 mm motor mounts, with 2207 motors recommended
• Stack mounting for 30.5x30.5 and 20x20 boards, plus 25x25 mm holes for a VTX
• Compatible with the DJI O3 HD system
• LED-illuminated logo
• TPU arm guards, front and rear bottom-plate protectors and a GoPro TPU base mount included

Specifications

• Wheelbase: 245 mm
• Frame dimensions: 173 x 173 x 36.5 mm
• Arm thickness: 5 mm
• Bottom plate: 3 mm
• Top plate: 2.5 mm
• Upper plate: 3 mm
• Camera plate: 3 mm
• Motor mounting: 16 x 16 mm
• Stack and VTX mounting: 30.5 x 30.5 mm (3 mm holes), 25 x 25 mm (1.6 mm holes), 20 x 20 mm (2 mm holes)
• Maximum propeller: 5.1 inch
• Weight: 130 g without TPU parts
• In the box: frame kit, screw bag, GoPro TPU base mount, 4 TPU arm guards, front and rear bottom-plate TPU protectors, anti-slip battery pad, 4 motor wire shield tubes, 2 battery straps (20 x 250 mm)

Build it with 2207-class motors and 5-inch props; a 30.5x30.5 stack leaves the most room for wiring, while a 20x20 stack saves weight on a lighter build.
