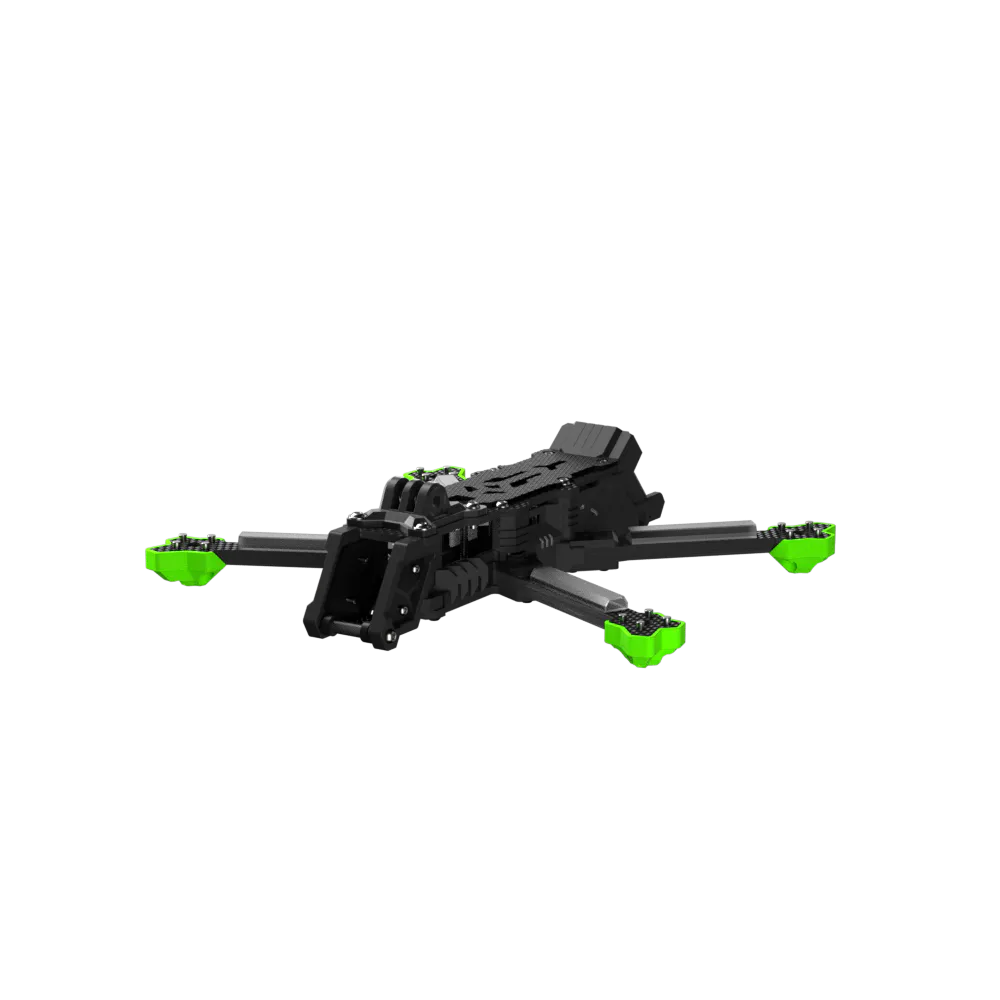

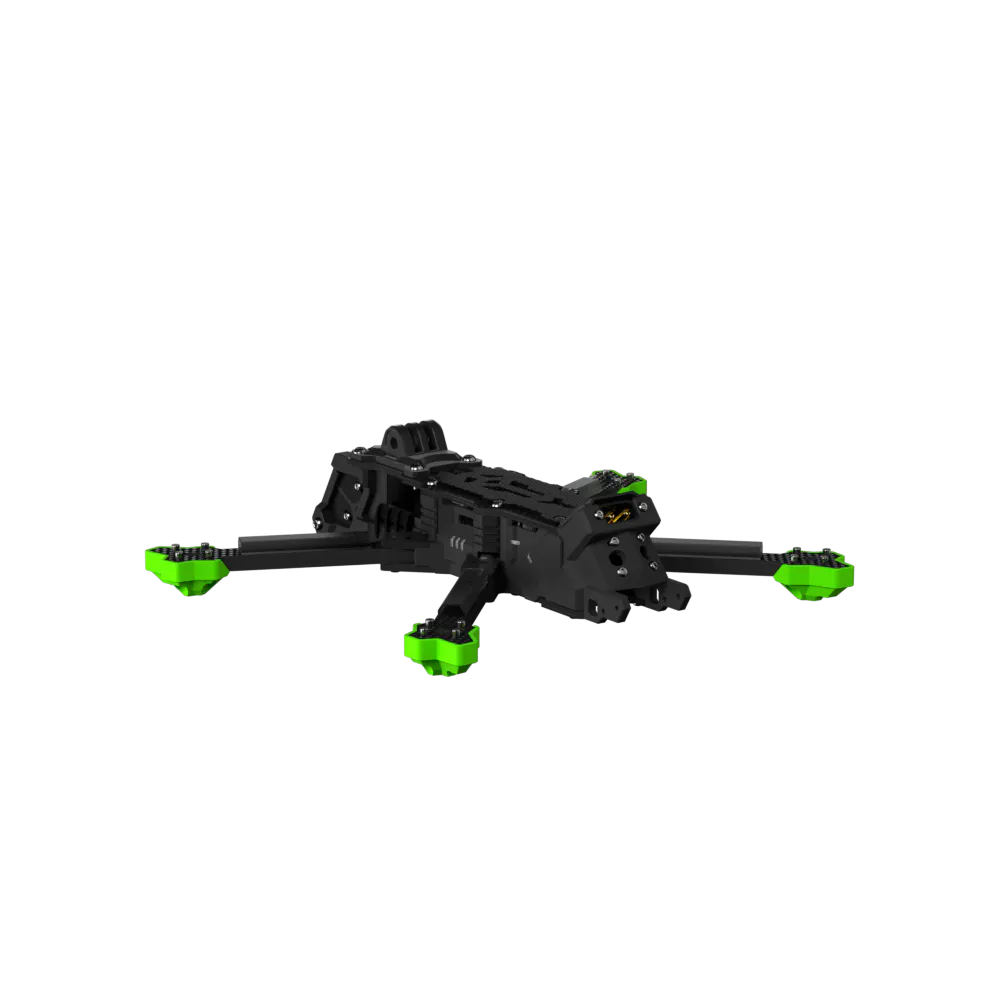

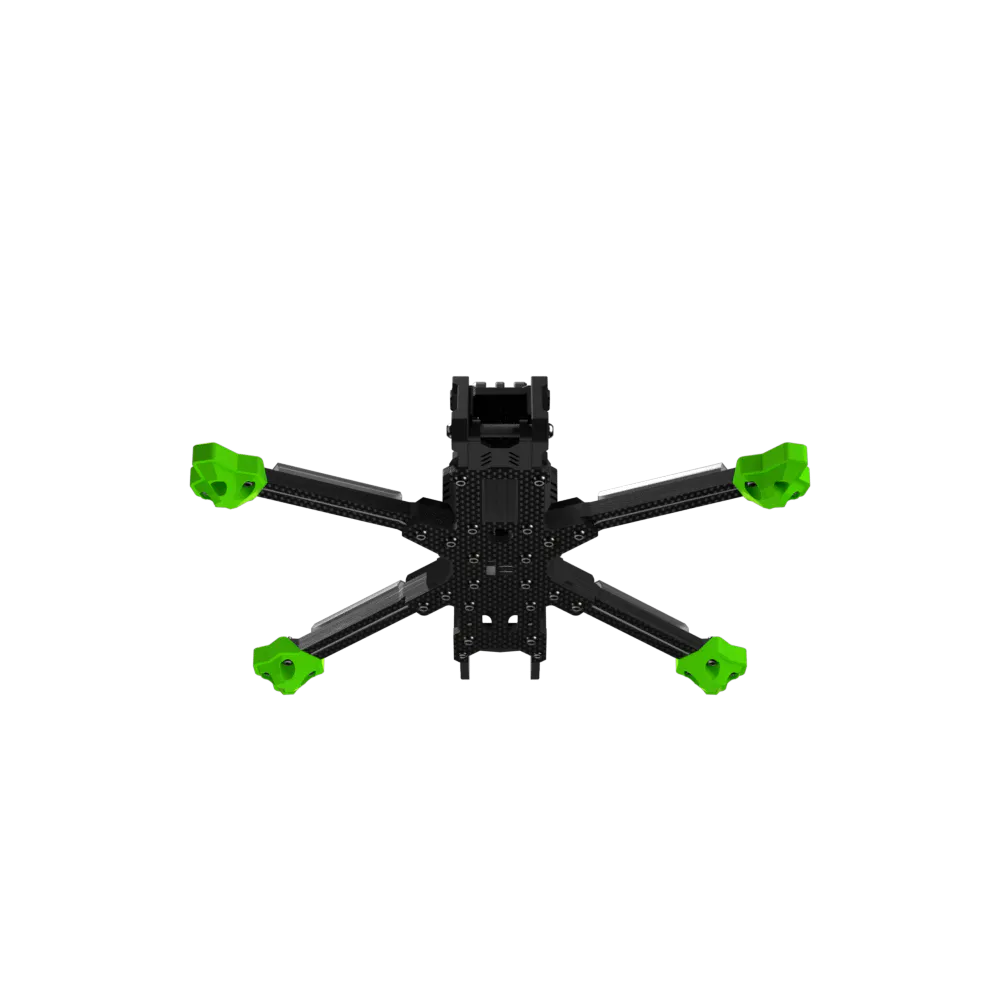

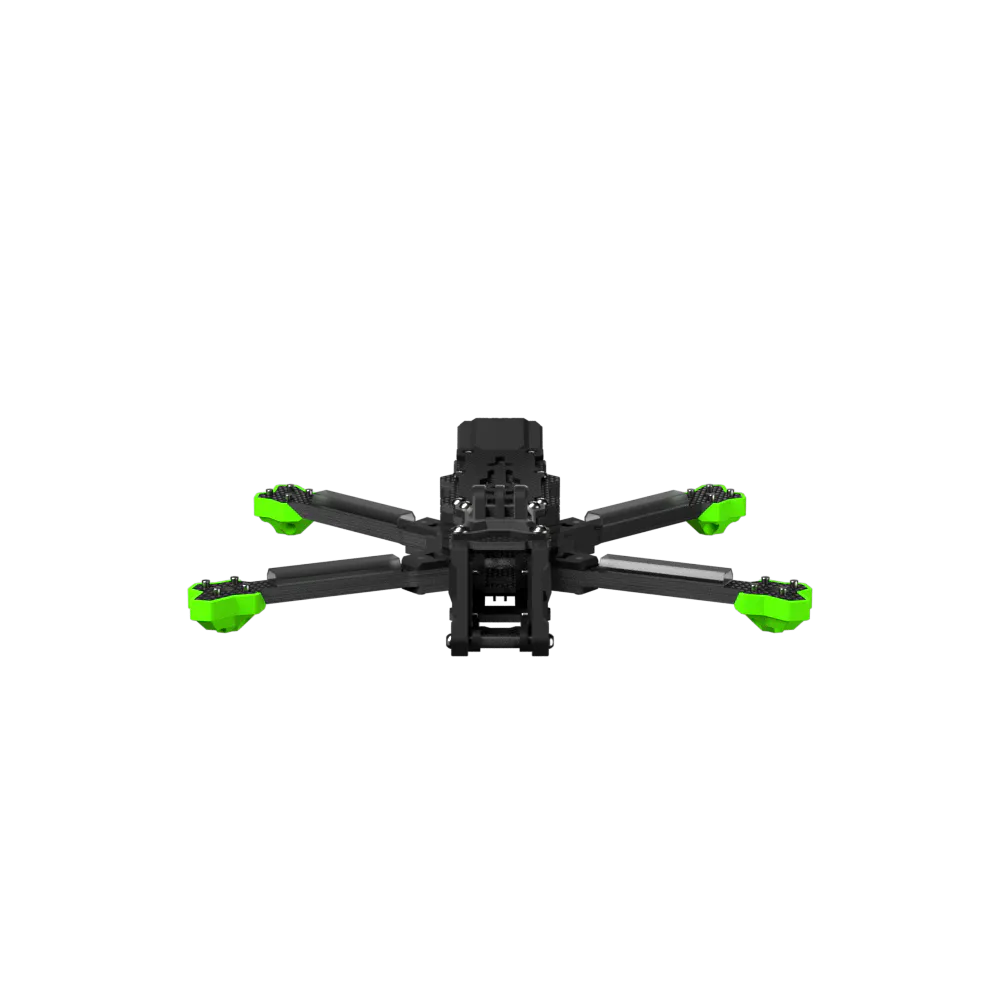

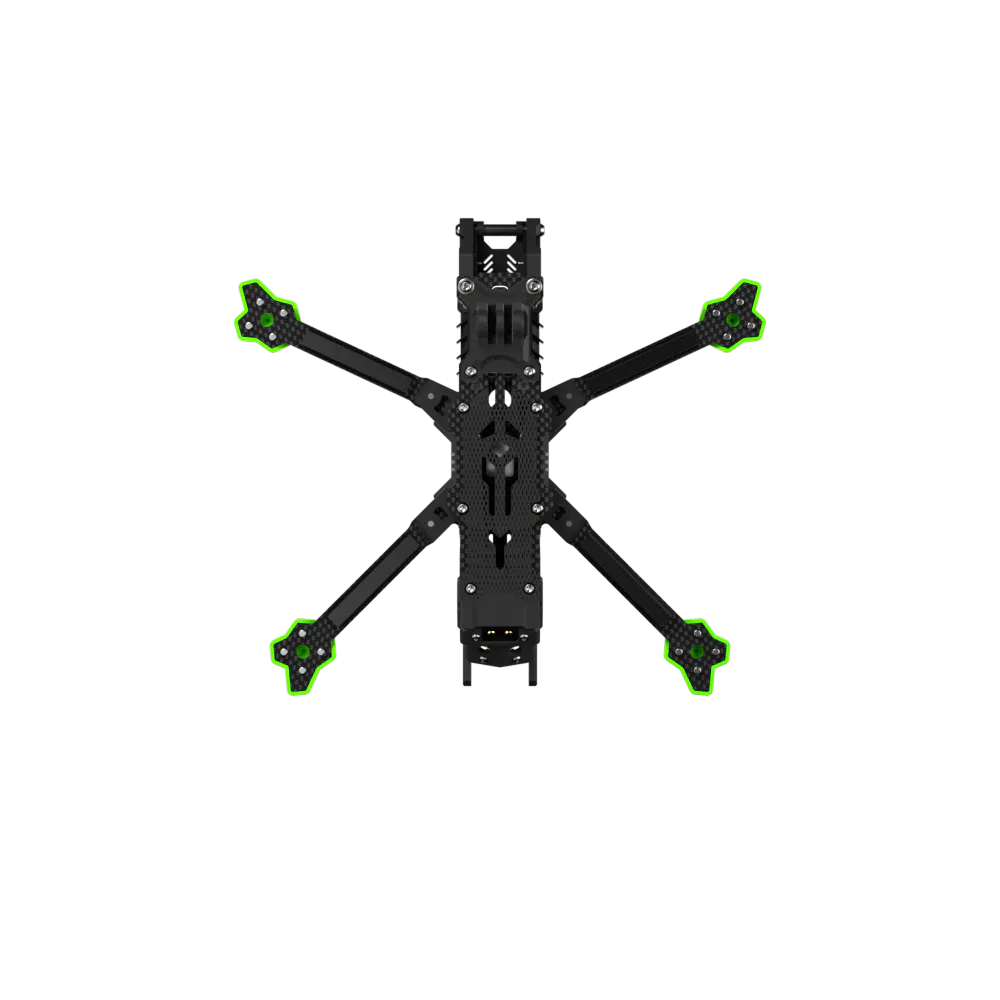

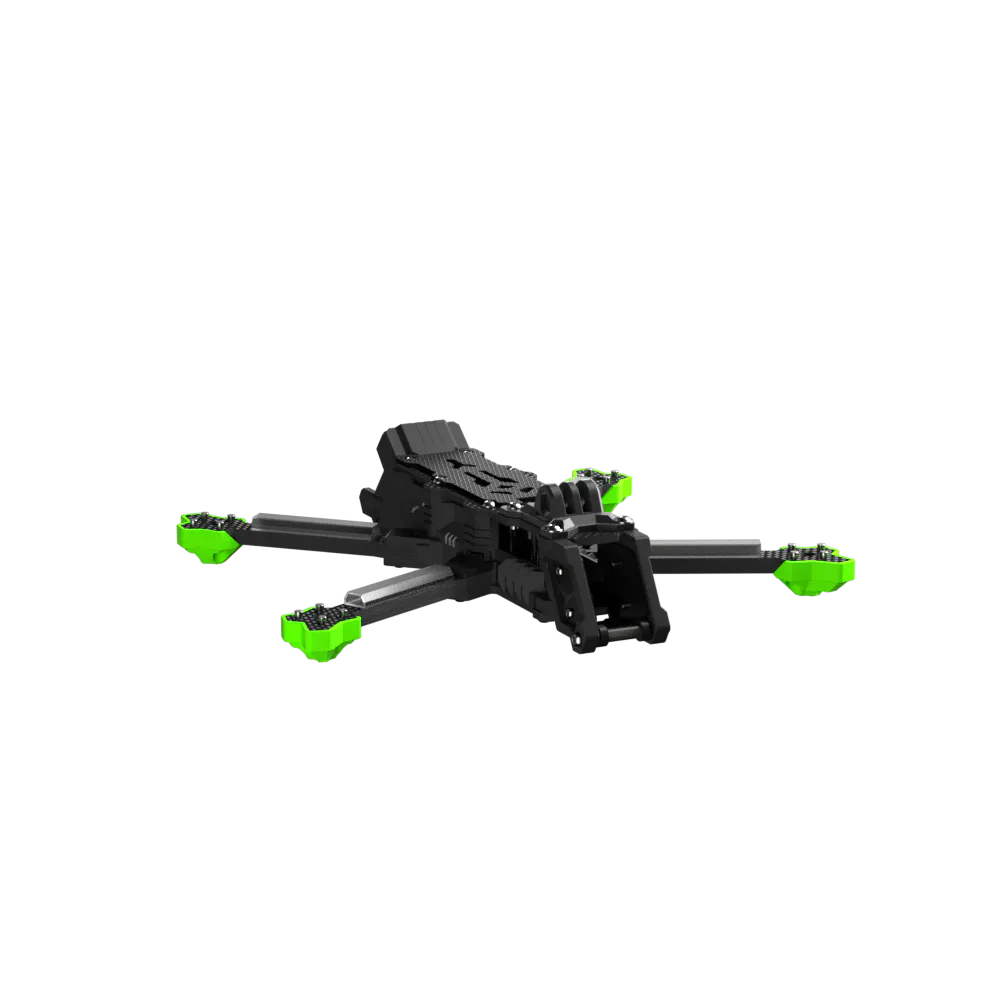

iFlight Nazgul Evoque F5 V3 Frame Kit

The iFlight Nazgul Evoque F5 V3 Frame Kit is a premium 5-inch freestyle chassis engineered for maximum durability and aggressive flight dynamics. Featuring a Stretched-X geometry with upgraded 3K carbon fibre construction, it provides optimal mass distribution and clear camera sightlines while safeguarding critical electronics within signature injection-moulded side panels.

Key features

• Stretched-X geometry with rigid 6 mm carbon arms designed to minimise frame resonances and absorb severe freestyle impacts.
• Enclosed structural design with durable injection-moulded side plates keeps dirt, moisture, and foliage out of the flight controller and ESC stack.
• Dual electronics mounting patterns accommodate both standard 30.5x30.5 and compact 20x20 flight stacks.
• Integrated rear XT60 connector bracket secures the power lead to prevent prop strikes during crashes.
• Versatile front camera mount compatible with standard 19 mm and 20 mm FPV cameras as well as the DJI O3 Air Unit.

Specifications

• Geometry: Stretched-X
• Wheelbase: 225 mm
• Arm thickness: 6 mm
• Bottom plate thickness: 3 mm
• Top plate thickness: 2 mm
• FC mounting: 30.5x30.5, 20x20
• VTX mounting: 25.5x25.5, 20x20
• Motor mounting: 16x16
• Supported prop size: 5 inch, 5.1 inch

Suited for demanding 6S freestyle and cinematic builds, the F5 V3 frame pairs seamlessly with 2207 or 2306 brushless motors. The comprehensive kit includes all essential TPU camera guards, antenna mounts, and battery straps required for a clean, professional assembly.
