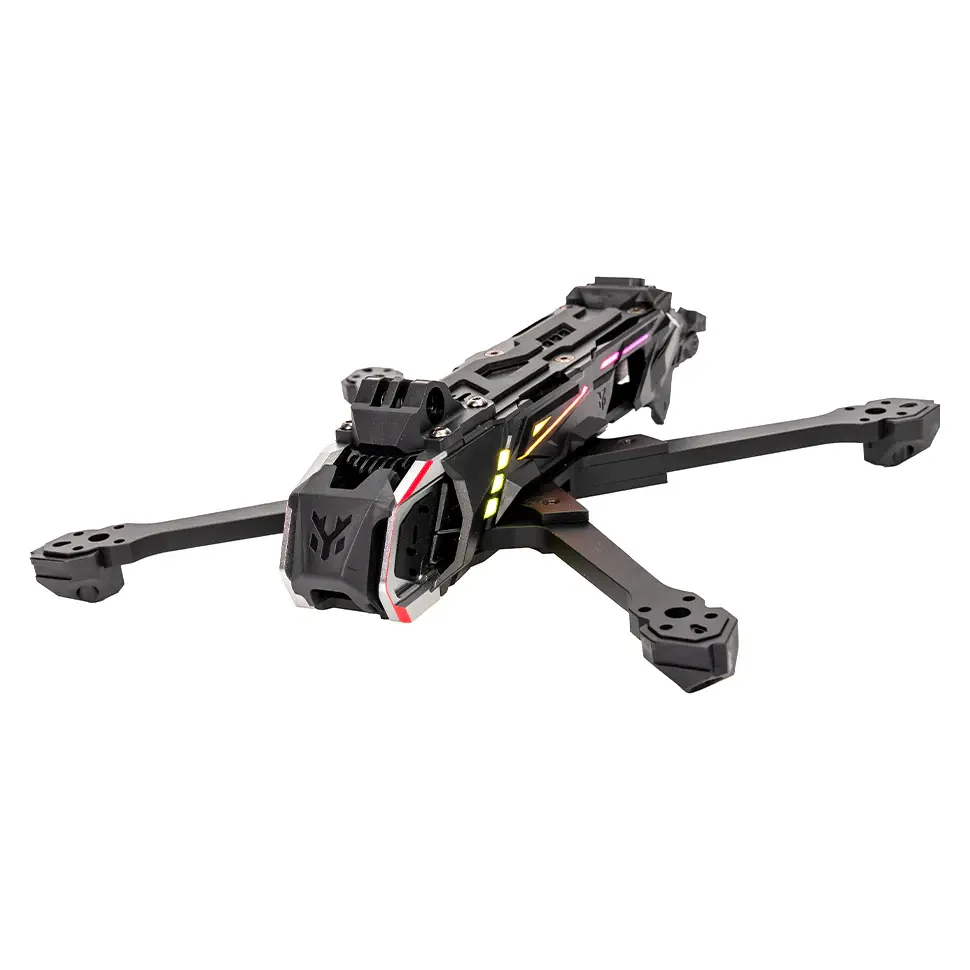

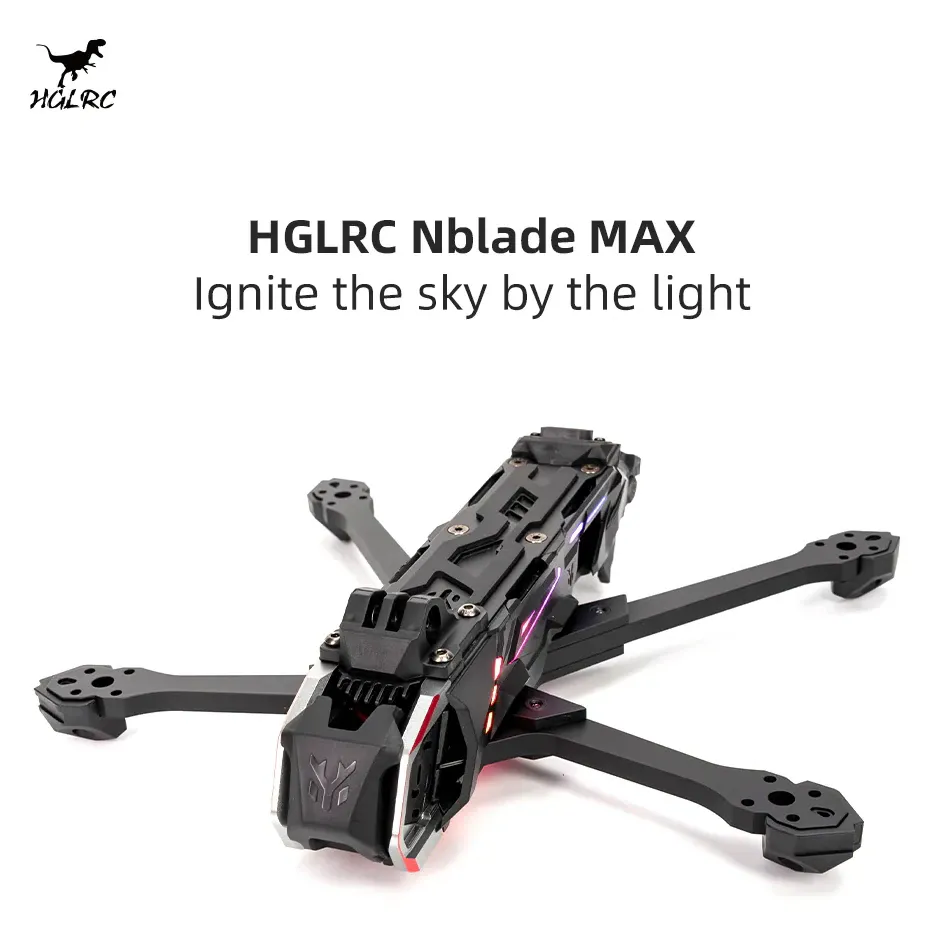

HGLRC Nblade MAX 5-Inch True X / DC FPV Frame

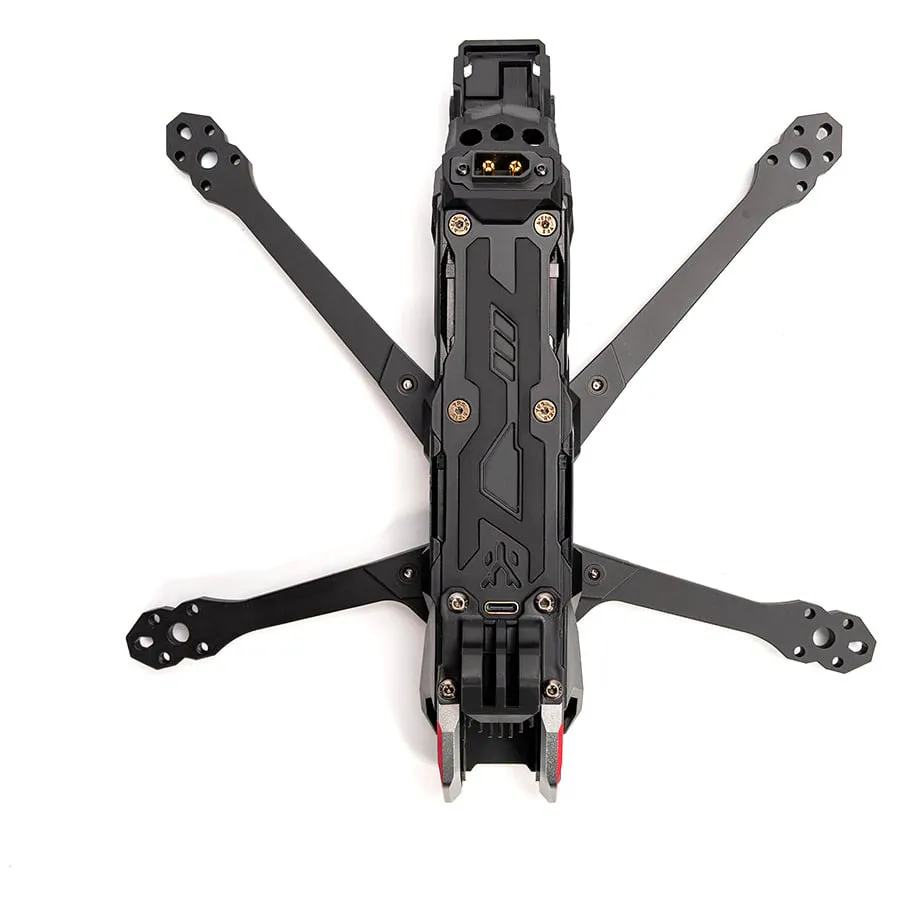

The HGLRC Nblade MAX DC is a 5-inch cinematic FPV frame built around a Dead Cat (DC) arm layout that sweeps the front arms back to keep propellers out of the camera's field of view. It carries a full-size action camera or digital HD air unit alongside a standard 5-inch propulsion set.

Key features

• Dead Cat geometry clears propellers from the frame of GoPro and HD camera footage.
• Injection-moulded ABS+PP side plates and covers replace fragile 3D-printed parts, improving impact resistance and shielding electronics from debris.
• Independent, quick-release receiver bay keeps the RX separate from the main stack for easier access.
• Camera mount accepts both 19mm and 20mm hole spacings, with mounting points for a DJI O4 Pro Air Unit, DJI O3 Air Unit or an analogue VTX.

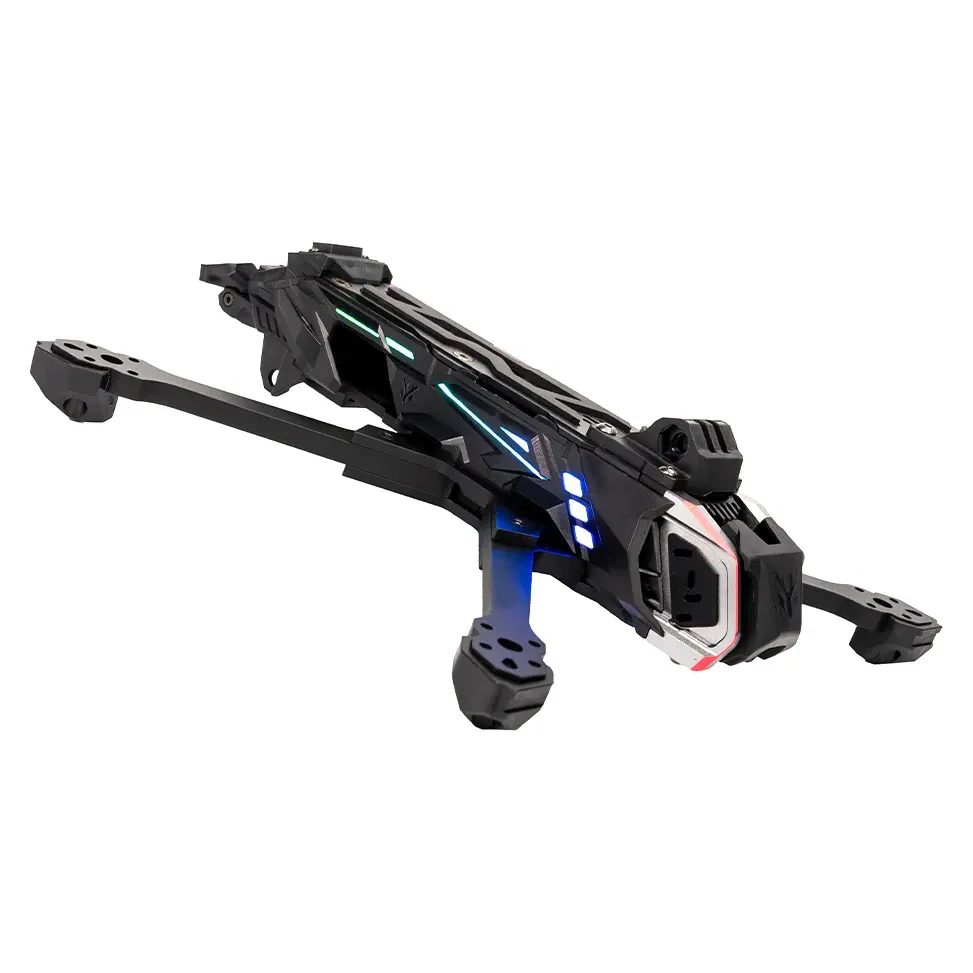

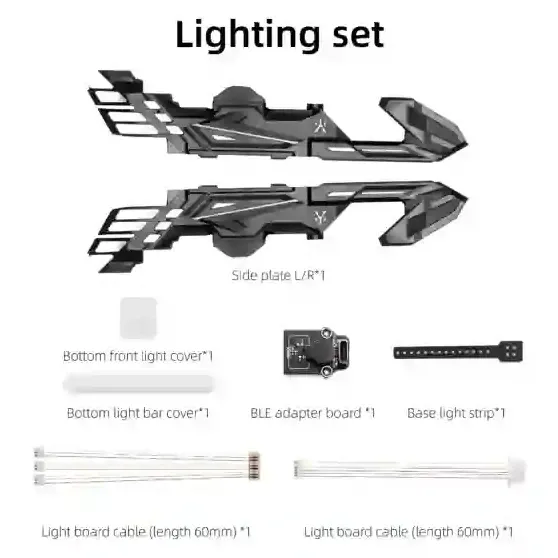

• Bottom-mounted RGB LED strip supports app-controlled lighting effects.

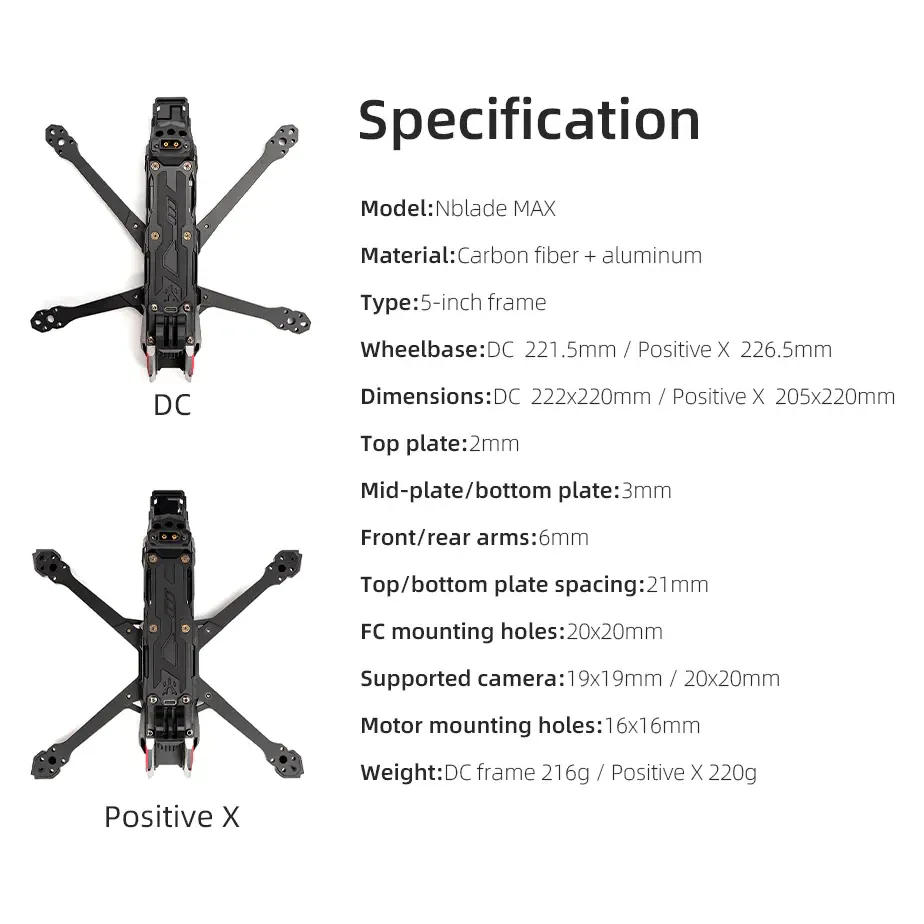

Specifications

• Brand: HGLRC
• Model: Nblade MAX (DC)
• Arm layout: Dead Cat (DC)
• Supported propeller size: 5 in (5.1 in max)

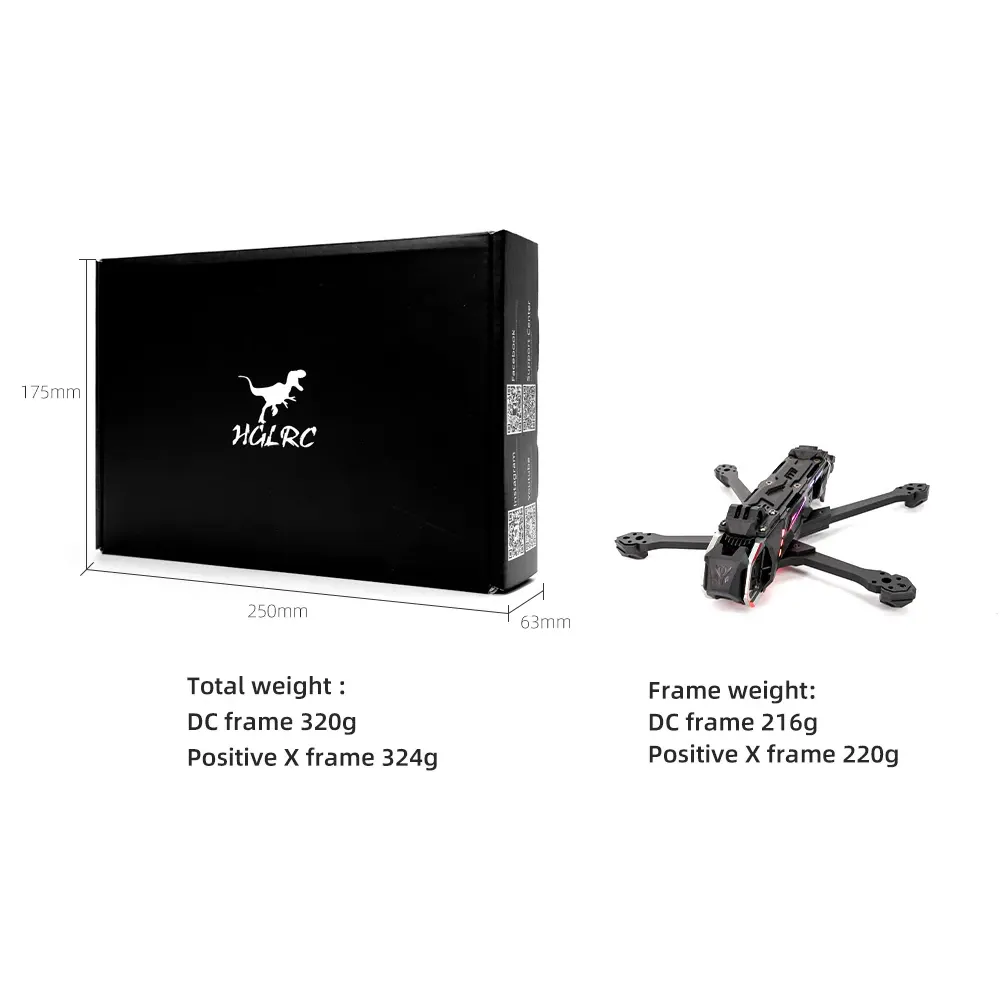

• Frame weight: 216 g
• Camera mount: 19 mm / 20 mm hole spacing
• FC mounting: 20 x 20 / 30.5 x 30.5 mm (M3)
• Stack height: 21 mm
• VTX mounting: 20 x 20 / 25 x 25 mm (M2)
• Motor mounting: 19 mm (M3)
• Plate thickness: 2 mm top, 3 mm middle, 3 mm bottom
• Arm thickness: 7 mm
• Head: aluminium alloy
• Receiver bay: 20 x 11.7 x 5 mm
• GPS mount: 21 x 21 mm
• Capacitor space: 10 x 45 mm
• Antenna mounts: 3 x SMA

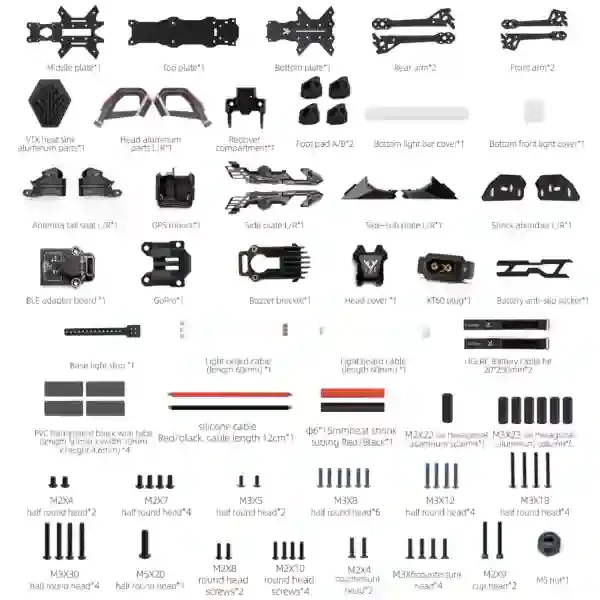

• Included: XT60 male connector, battery straps, GoPro, GPS and buzzer mounts

Pair this frame with 2207-2306 class motors and a top-mounted digital air unit or GoPro for a dedicated cinematic freestyle build.
