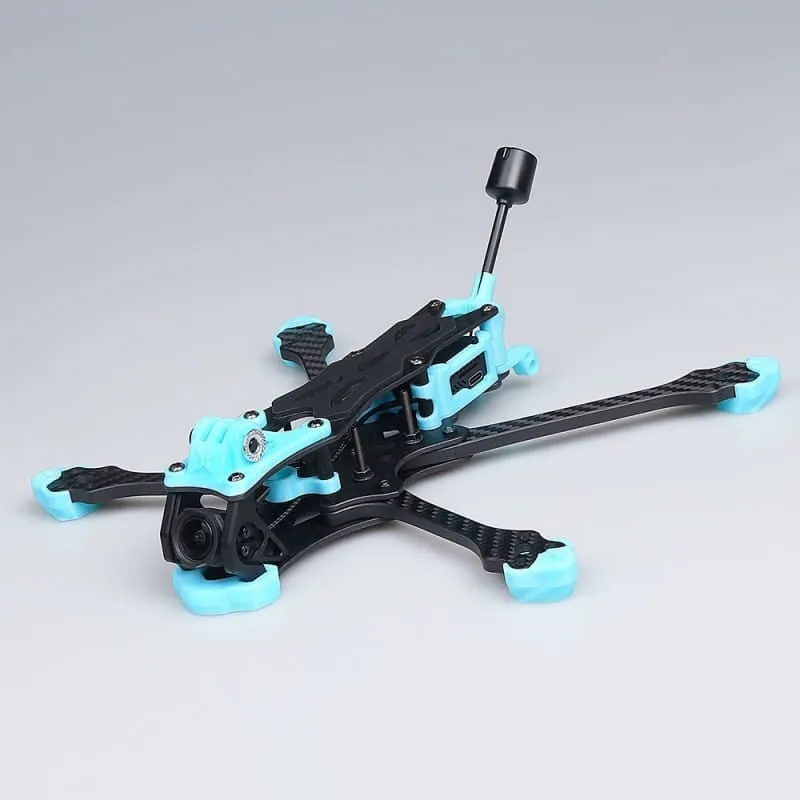

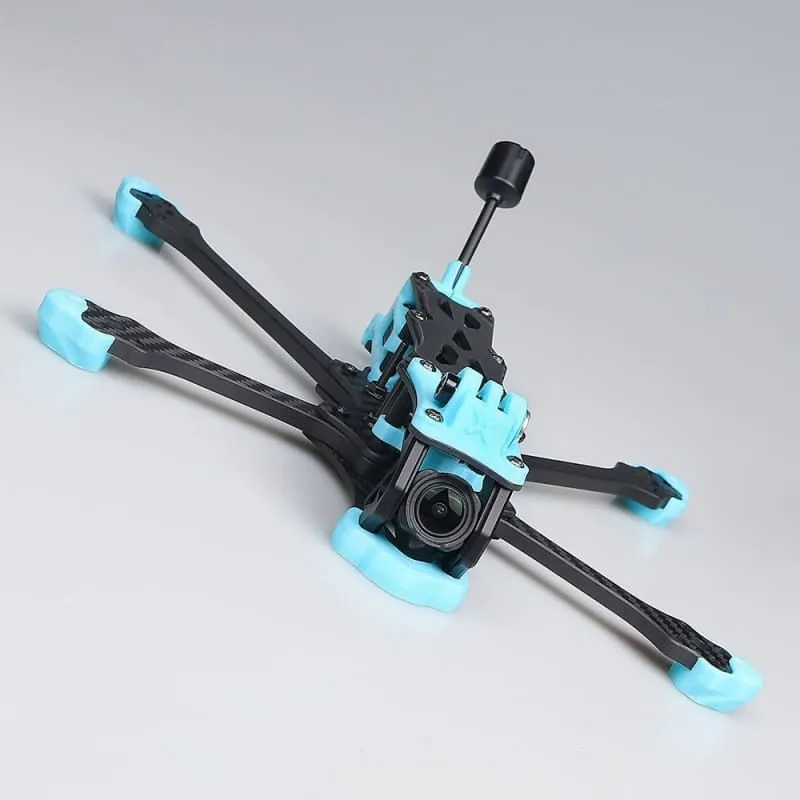

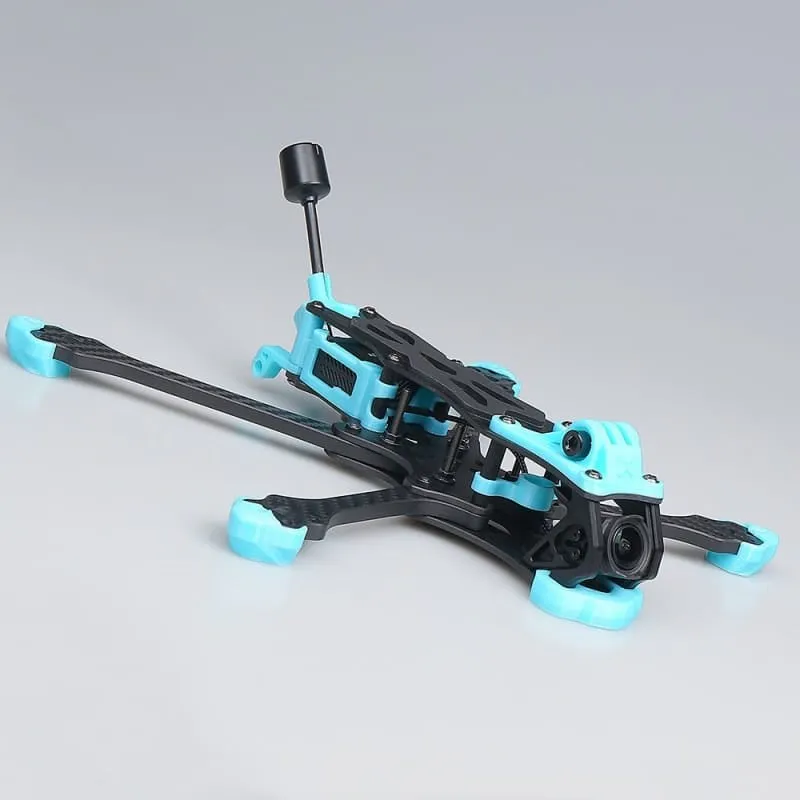

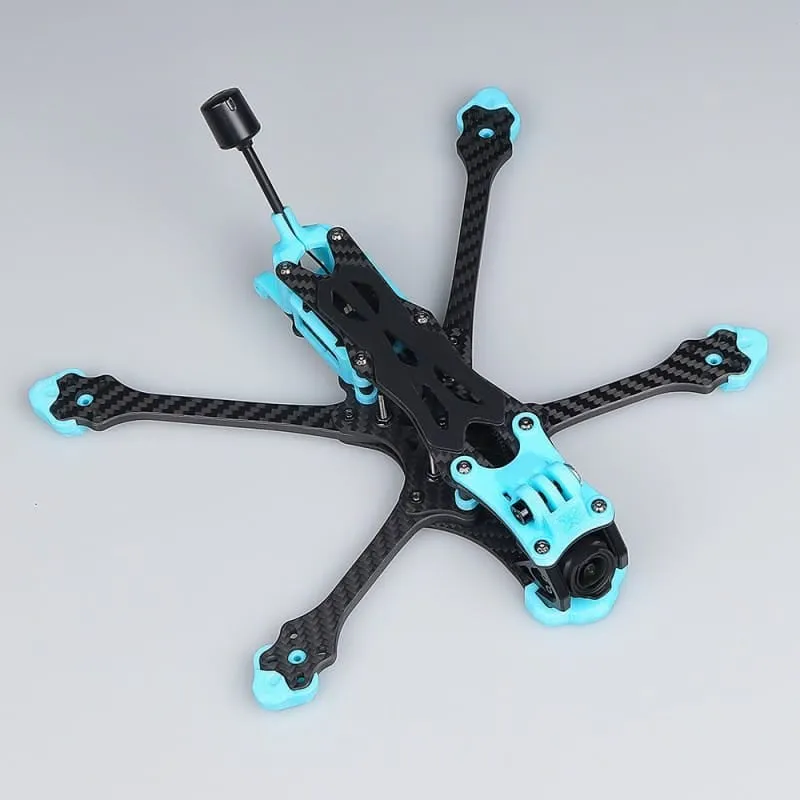

Foxeer MEGA 5" DC Frame

The Foxeer MEGA 5" DC is a robust freestyle and cinematic frame built around a Deadcat layout to guarantee prop-free high-definition footage. Crafted from Toray T700 carbon fiber and featuring a CNC-machined 7075 aluminium camera cage, this frame offers high impact protection for delicate DJI O3 Air Unit lenses alongside traditional analog setups.

Key features

• Deadcat (DC) arm geometry keeps propellers entirely out of the HD camera's field of view.

• CNC 7075 aluminium front cage provides rigid camera protection and acts as a structural heat sink for HD transmitters.

• Silky-coated Toray T700 carbon fiber construction with chamfered 5mm arms minimizes delamination during hard crashes.

• Versatile rear layout supports multiple modern flight controller and video transmitter mounting standards.

Specifications

• Material: Toray T700 Carbon Fiber, 7075 CNC Aluminium

• Layout: Deadcat (DC)

• Wheelbase: 238mm

• Arm Thickness: 5mm

• Top / Bottom Plate Thickness: 2mm / 2.5mm

• FC Mounting: 20x20mm, 30.5x30.5mm (M3)

• VTX Mounting: 20x20mm, 25.5x25.5mm, 30.5x30.5mm (M2)

• Supported Camera Size: 19x19mm, 20x20mm (O3 compatible)

• Weight: 129g (excluding TPU parts)

Compatible with standard micro analog FPV cameras and HD systems like the DJI O3, this frame is an ideal platform for builders seeking freestyle agility combined with clean, unobstructed video recording.
