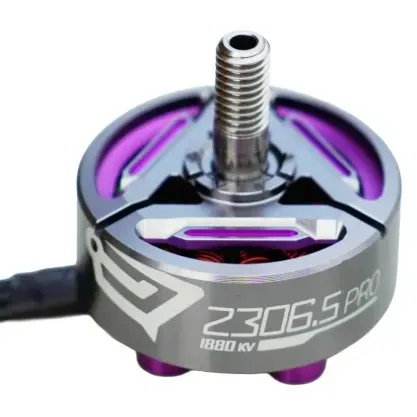

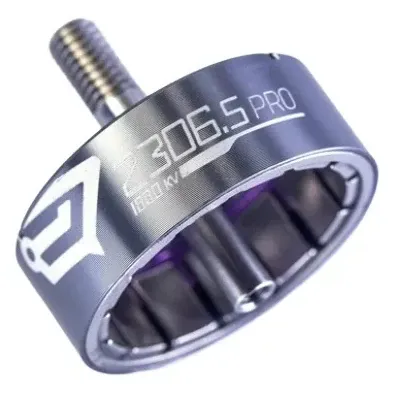

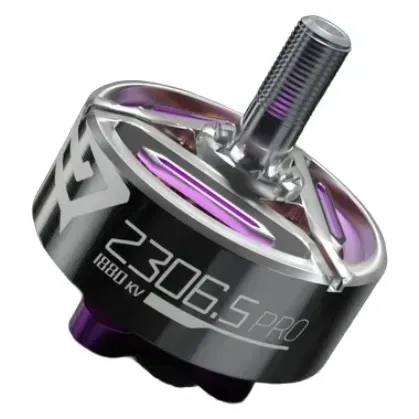

SpeedyBee BeeStorm 2306.5 Pro 1880KV 6S Motor
₹2,899Incl. GST
SKU SPEEDYBEE-BEESTORM-23065-1880KV
Stator Size: 2306.5KV: 1880 KVPack Size: 1Prop Mount: M5
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The SpeedyBee BeeStorm 2306.5 Pro 1880KV is the motor fitted to the SpeedyBee Mario5 and suits any 5-inch freestyle or racing quad on 6S. At 1880KV it sits a step above the common 1700–1800KV 6S range, for more punch and top speed at the cost of higher current draw.
Key features
- Up to 1.59kg thrust and 775.7W per motor on 6S
- 12N14P configuration on a 23 x 6.5mm stator
- 5mm shaft for standard M5-nut 5-inch props
- 16 x 16mm M3 mounting pattern, standard on 5-inch arms
- 34.6g including 20AWG, 150mm silicone leads
- Sold singly, so order four for a quad
Specifications
- Stator: 2306.5
- KV: 1880KV
- Configuration: 12N14P
- Operating voltage: 6S LiPo (22.2V nominal)
- Shaft: 5mm
- Motor mounting: 16 x 16mm, M3
- Lead wires: 20AWG, 150mm
- No-load current: 1.26A at 10V
- Maximum current: 33.8A
- Maximum power: 775.7W
- Maximum thrust: 1.59kg
- Weight: 34.6g including wires
With a 33.8A peak draw per motor, pair it with a 6S 4-in-1 ESC rated 40A or more per channel.
| Stator Size | 2306.5 |
|---|---|
| Stator Diameter | 23mm |
| Stator Height | 6.5mm |
| KV | 1880 KV |
| Pack Size | 1 |
| Prop Mount | M5 |
| Shaft | 5mm |
| Motor Mount | 16x16mm |
| Input Voltage | 6S |
| Weight | 34.6 g |
| Brand | SpeedyBee |
| Made in India | No |
