GEPRC GEP-MK5 O4 Pro DC Frame
₹8,499Incl. GST
SKU GEPRC-MK5-O4-DC-GREEN
Box: With Box
Color: Green
Prop Size: 5"Wheelbase: 230 mmCamera Size: 20mmMade in India: No
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

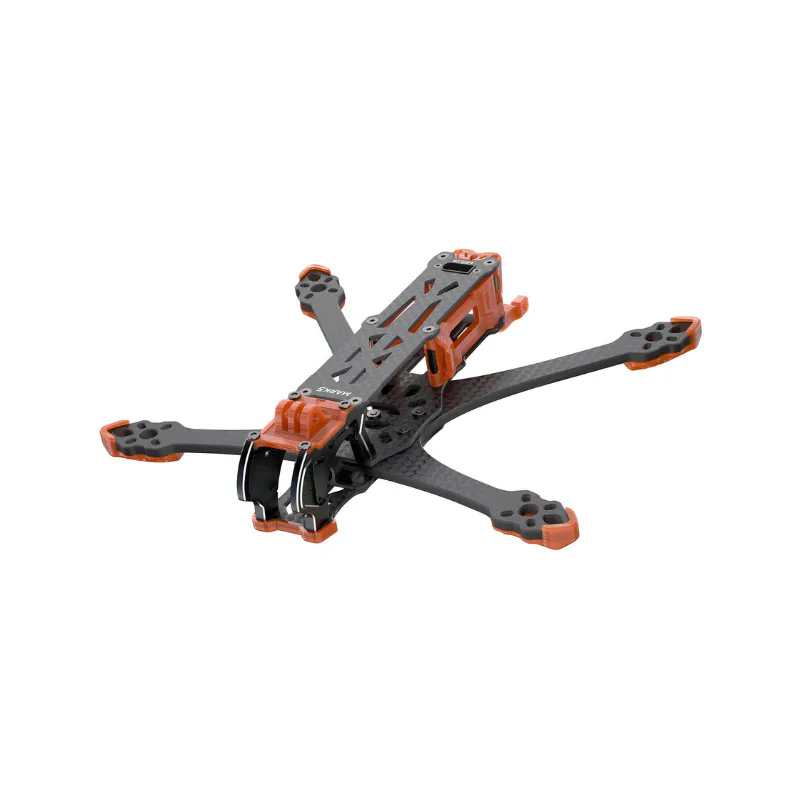

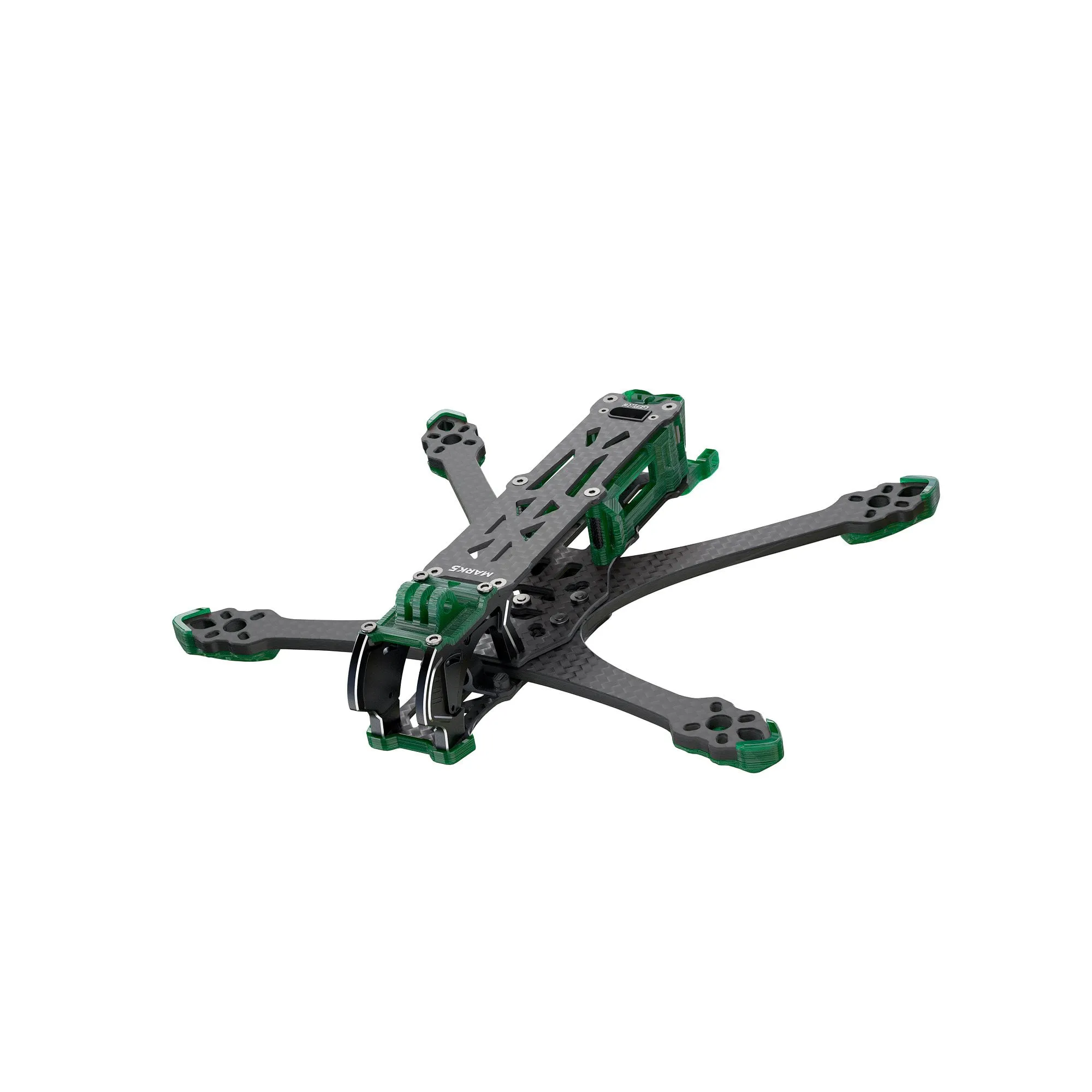

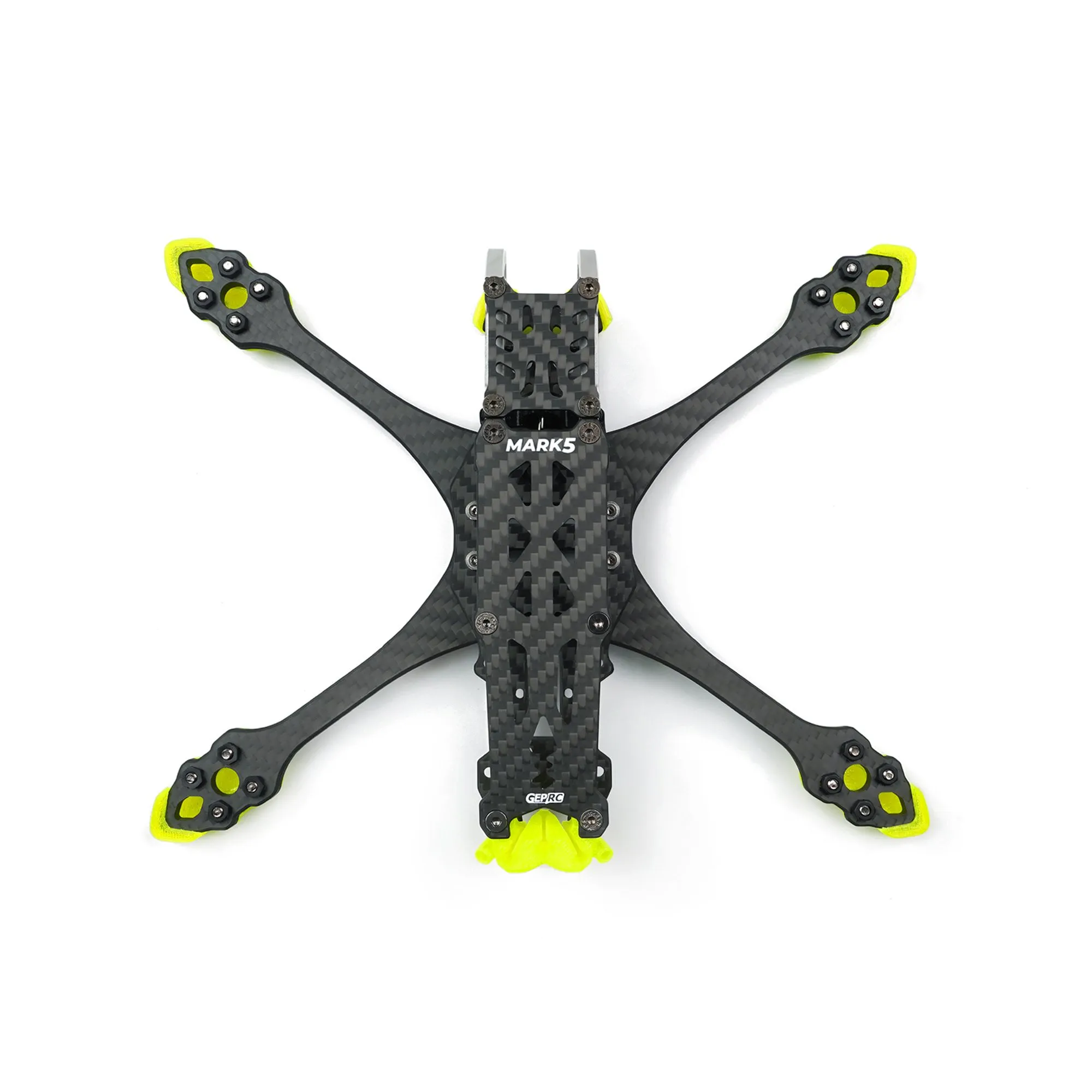

The GEPRC GEP-MK5 O4 Pro DC is a 5-inch freestyle frame built around the DJI O4 Air Unit Pro, using a Dead Cat (DC) arm layout that pushes the front arms wide and back to keep propellers out of the camera's field of view. It suits cinematic freestyle and mid-range cruising builds.
Key features
- Dead Cat geometry keeps 5-inch propellers clear of the HD camera and O4 air unit for a clean, obstruction-free feed.
- Redesigned camera mount with shock-absorbing silicone improves vibration isolation and footage stability.
- 3K carbon fibre construction: 5.0mm arms and 2.5mm top/bottom plates for impact resistance.
- Quick-release arms secured by just two screws each for fast field repairs.
- Wide mounting support: 30.5x30.5mm FC stack, 20x20/25.5x25.5/30.5x30.5mm VTX, and 16x16/19x19mm motor patterns.

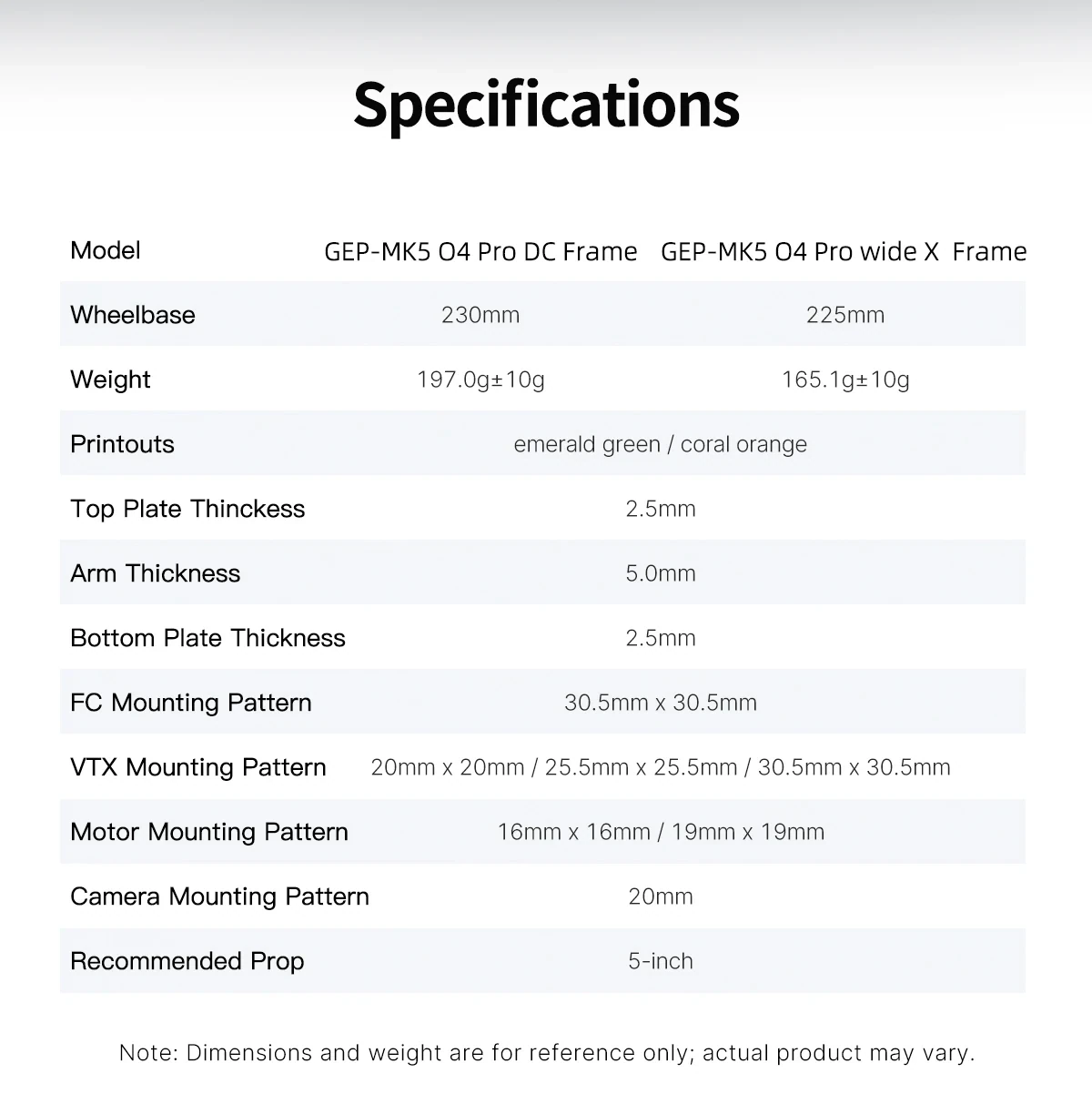

Specifications
- Wheelbase: 230 mm
- Weight: approx. 197 g
- Recommended propeller: 5 inch
- Arm thickness: 5.0 mm
- Top/bottom plate thickness: 2.5 mm
- FC mounting: 30.5x30.5 mm
- VTX mounting: 20x20 / 25.5x25.5 / 30.5x30.5 mm
- Motor mounting: 16x16 / 19x19 mm
- Camera mounting: 20 mm

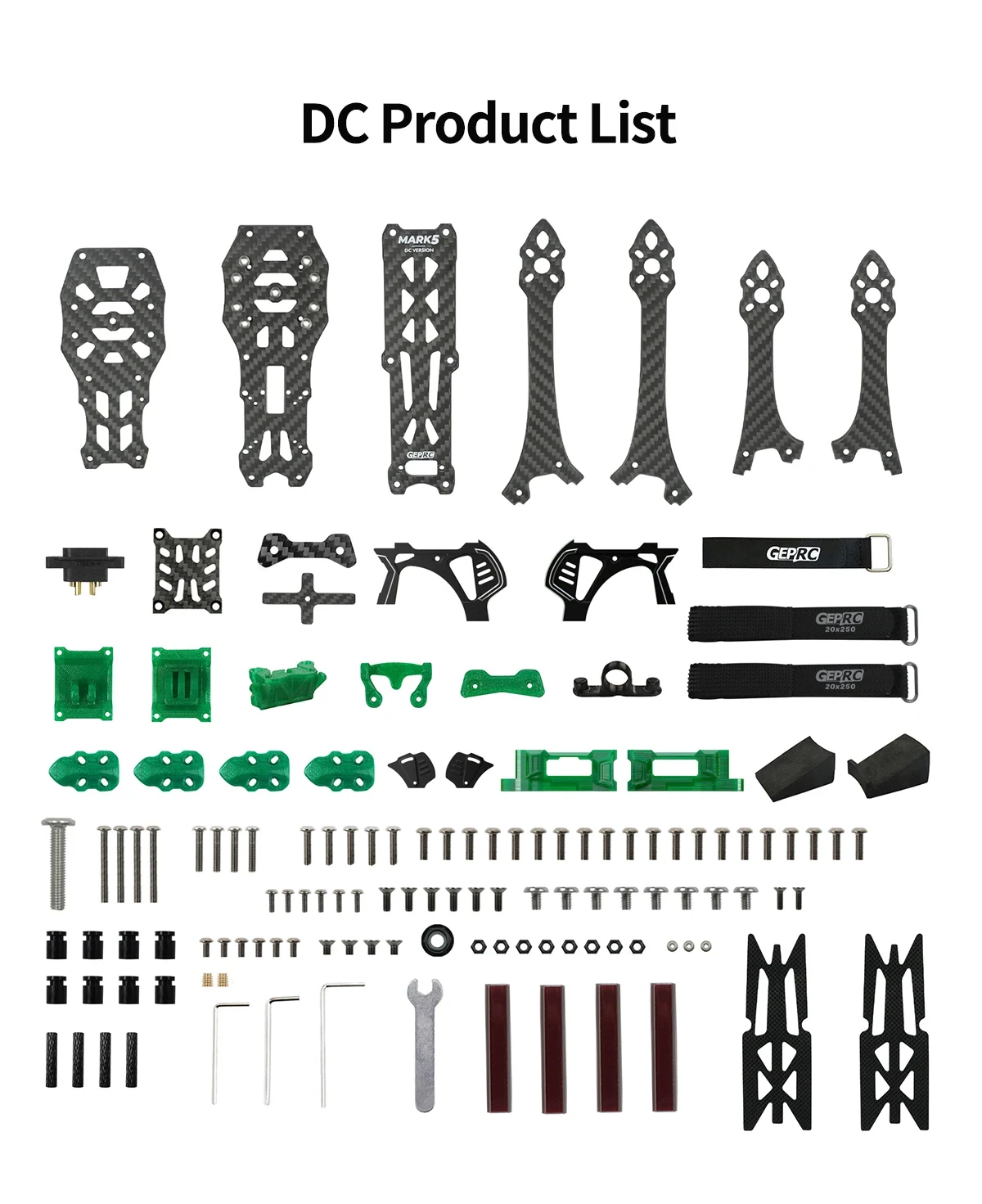

The kit ships with anti-slip battery pads, Velcro straps, a 3D-printed accessory pack and the screwdrivers needed for assembly, so it is ready to build straight out of the box.
| Prop Size | 5" |
|---|---|
| Wheelbase | 230 mm |
| Camera Size | 20mm |
| Made in India | No |
| Brand | GEPRC |
| Weight | 197 g |
| Material | Carbon Fiber |
| Arm Thickness | 5 mm |
| Mounting Size | 30.5x30.5 |
| Motor Mount | 19x19mm, 16x16mm |
