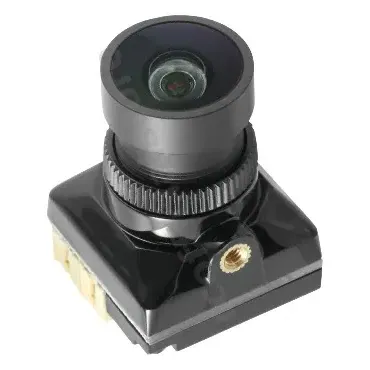

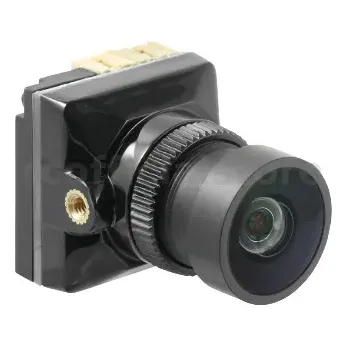

JINJIEAN B19 Pro MAX Mini 1800TVL Starlight FPV Camera
SKU JJA-B19-PRO-MAX-1800TVL
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The JINJIEAN B19 Pro MAX is a 1800TVL analog FPV camera for night and low-light flying, pairing a 1/2.8-inch starlight sensor with a 2.1 mm wide-angle lens in the 19 x 19 mm micro form factor. It drops into racing, freestyle and long-range quads, and into ground robots and RC cars that need a clear analog feed after sunset.
Key features
- Starlight sensor rated down to 0.00001 lux for usable video in near-darkness
- Switchable CVBS or AHD video output, in PAL or NTSC
- Digital WDR evens out bright sky and dark ground; 3DNR cleans up low-light noise
- Wide DC 5-30 V input, so it runs from a 5 V BEC or directly from packs up to 6S
- About 6 g, with an OSD menu for brightness, contrast, WDR and other image settings
Specifications
- Sensor: 1/2.8" starlight
- Resolution: 1800TVL
- Lens: 2.1 mm
- Video output: CVBS / AHD
- Video standard: PAL / NTSC switchable
- Minimum illumination: 0.00001 lux
- Power input: DC 5-30 V
- Size: 19 x 19 mm
- Weight: approx. 6 g
Use CVBS output when the camera feeds a normal analog VTX and goggles; AHD only helps when it is wired to an AHD-capable recorder or monitor. The B19 Pro MAX-2 is the updated revision with an enhanced sensor and the same 19 mm mounting.
| Camera Size | 19mm |
|---|---|
| FPV System | Analog |
| Made in India | No |
| Brand | JINJIEAN |
| Sensor Size | 1/2.8" |
| Weight | 6 g |
