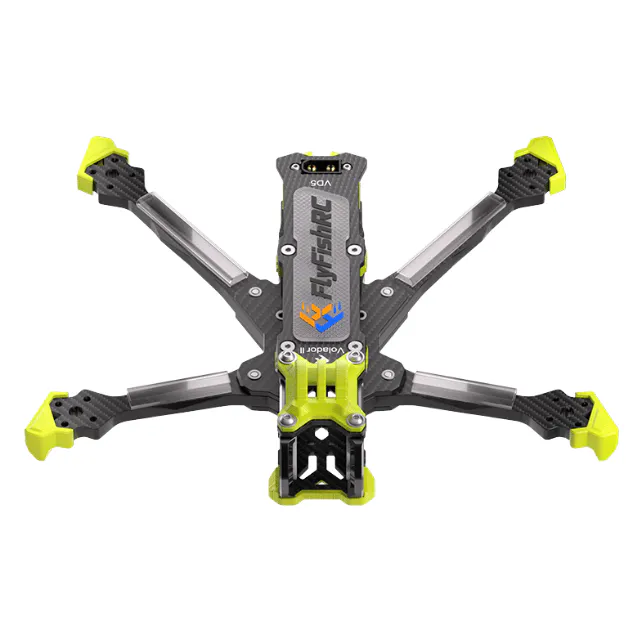

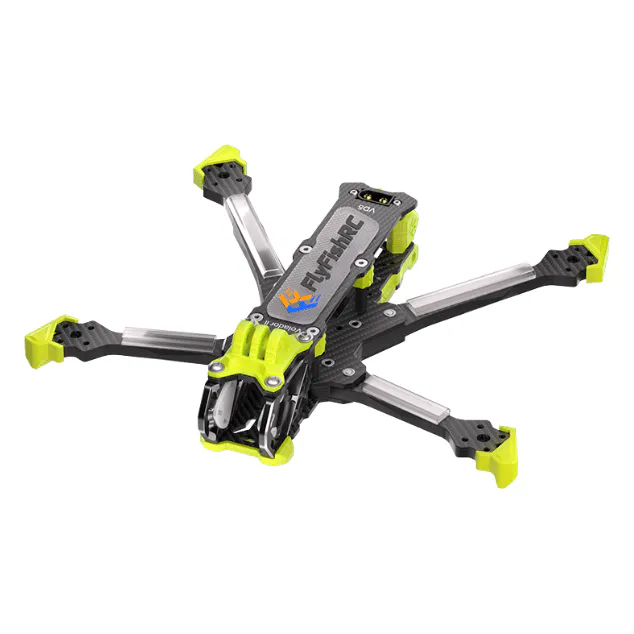

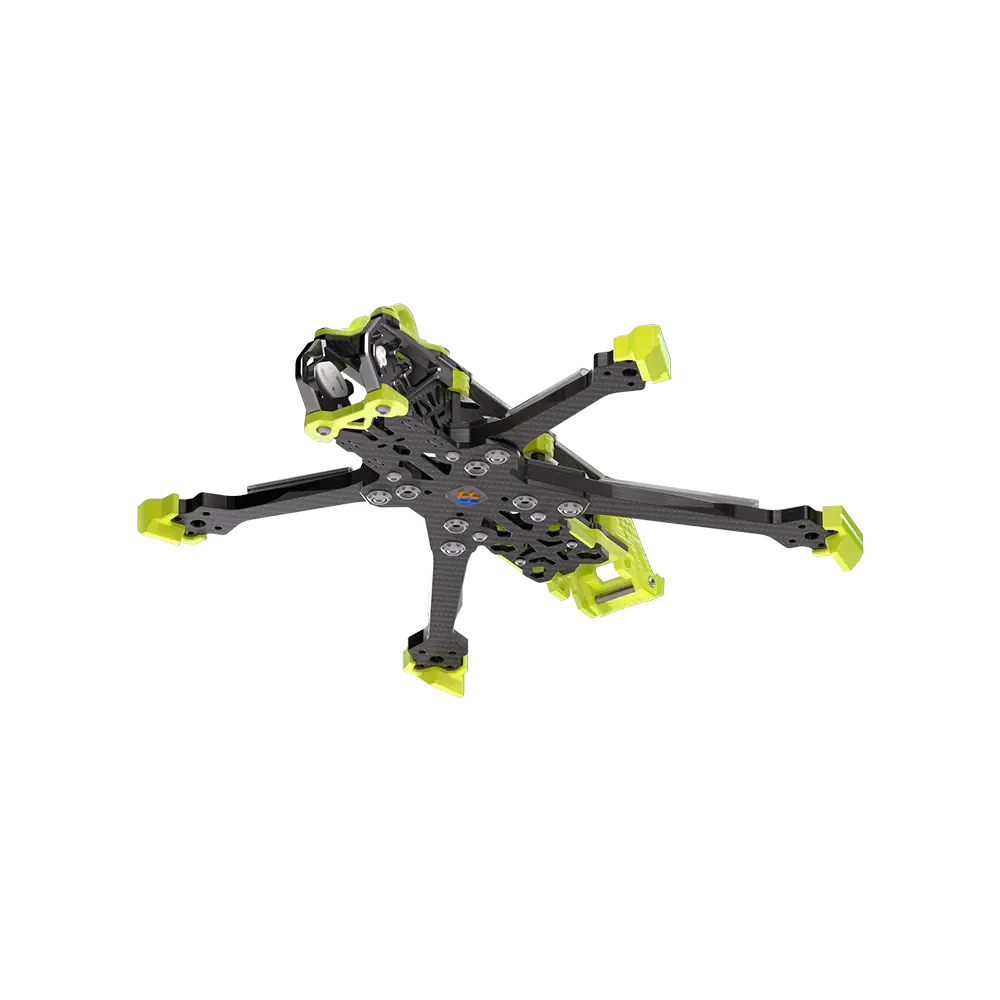

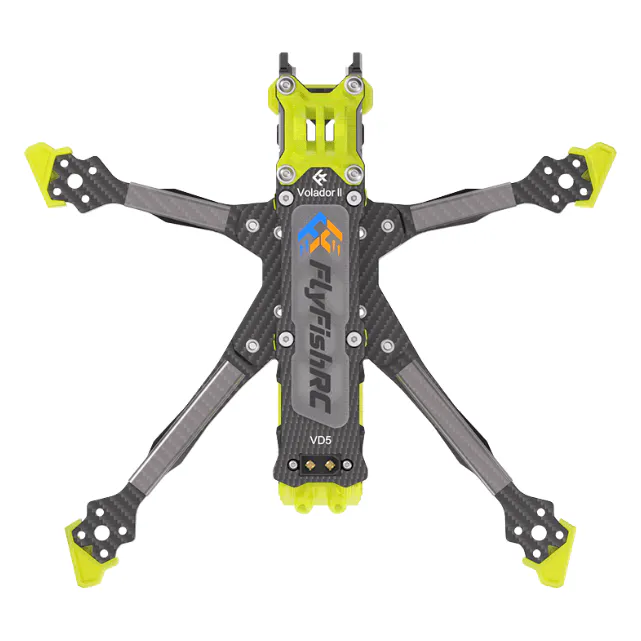

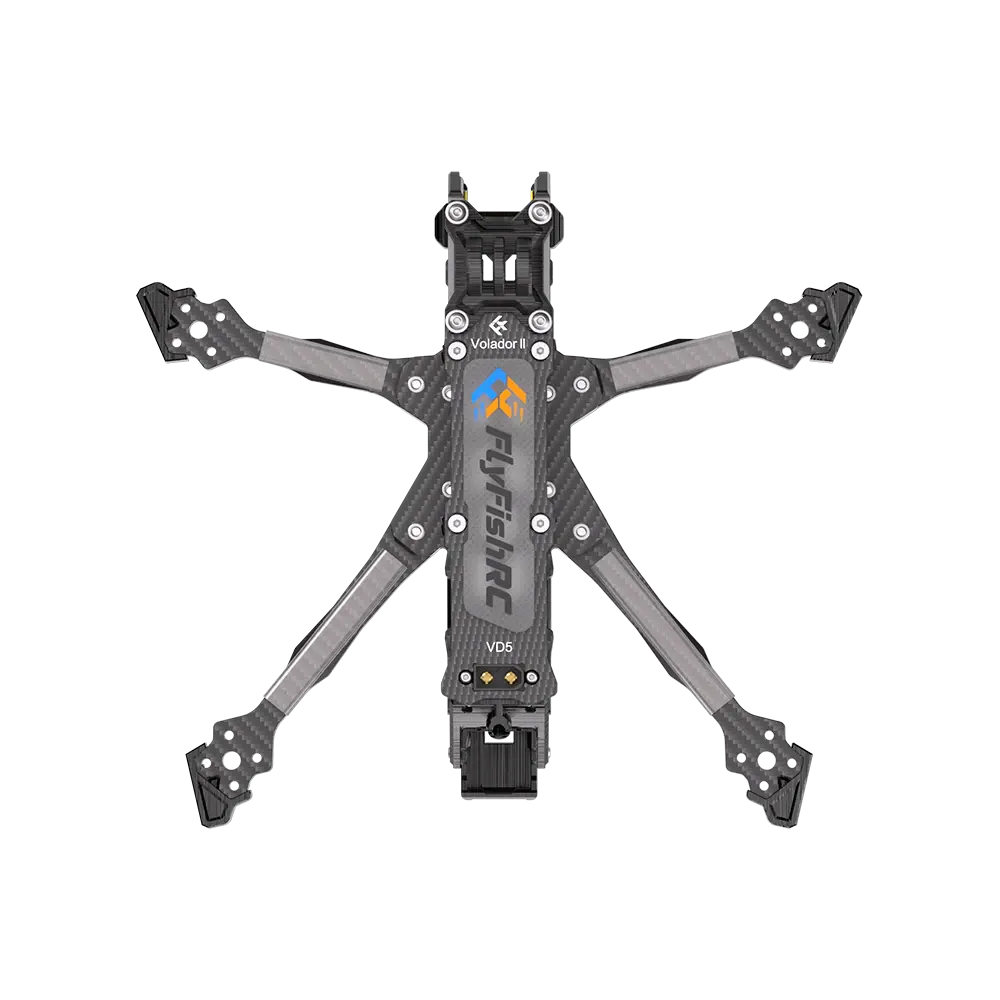

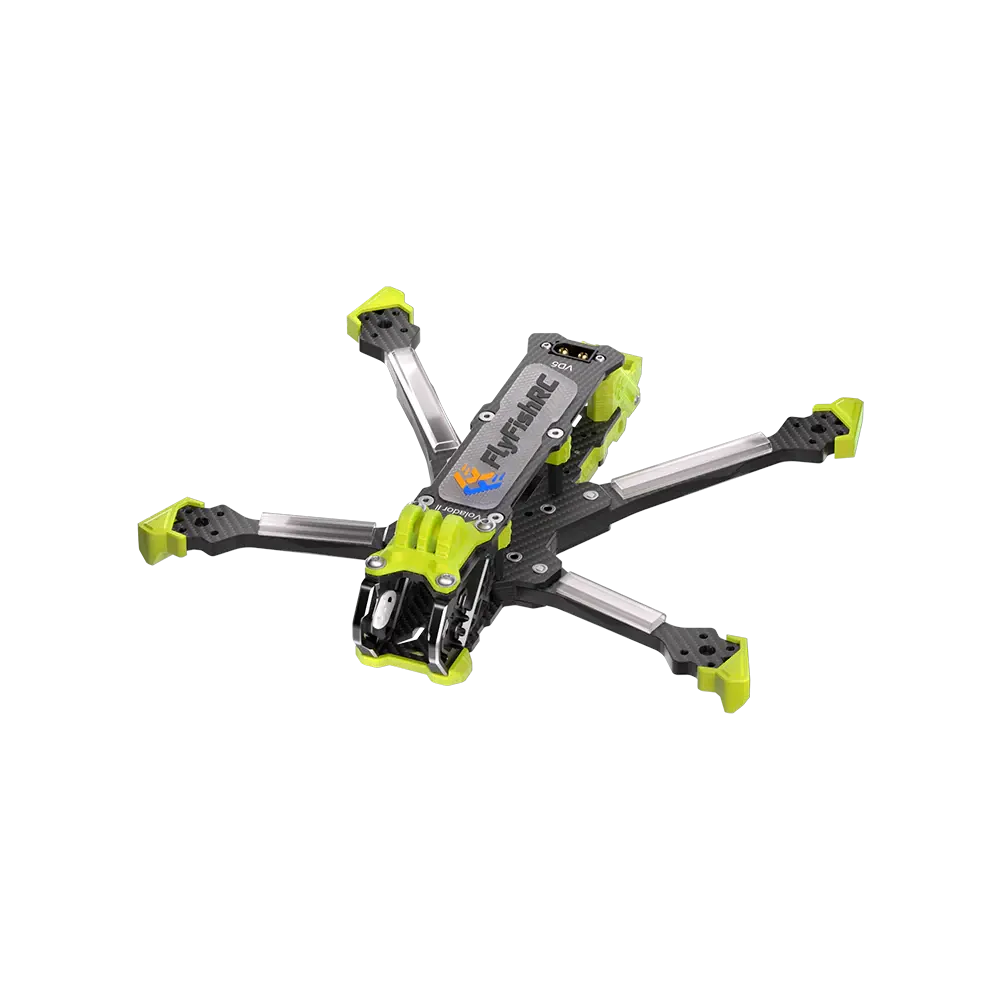

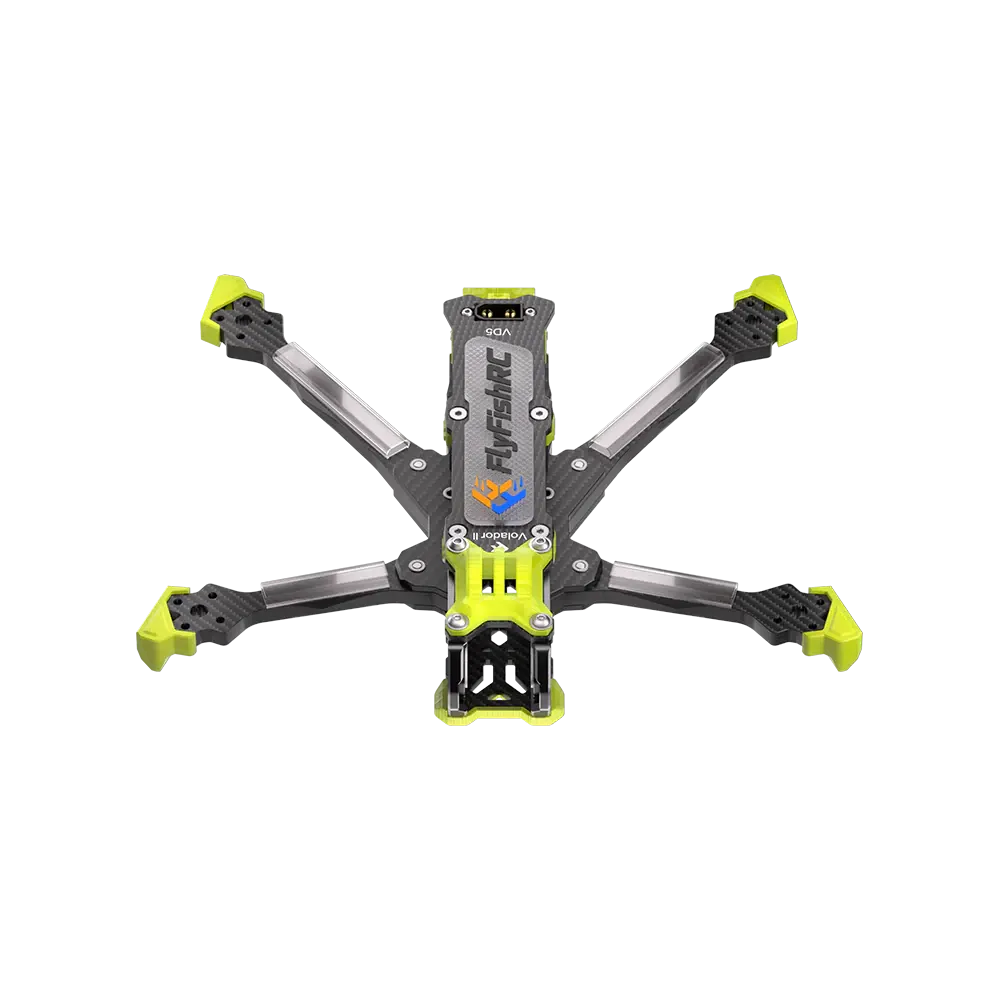

FlyFishRC Volador II VD5 O4 Deadcat FPV T700 Frame Kit

The FlyFishRC Volador II VD5 O4 is a dedicated 5-inch freestyle frame engineered for modern digital FPV setups. Utilising a deadcat geometry, it pushes the front arms backwards to keep propellers completely out of your HD camera feed. This specific O4 variant features CNC aluminium camera plates with a silicone shock-absorbing insert tailored for the DJI O4 Air Unit camera, alongside high-strength T700 carbon fibre plates for superior crash resilience. It is an excellent platform for cinematic freestyle pilots and content creators demanding a rigid, vibration-free chassis.

Key features

• Deadcat layout ensures zero propellers in the HD recording field of view.
• CNC aluminium camera plates with a silicone insert sized for the DJI O4 Air Unit camera, also fitting 19mm and 20mm cameras.
• Cut from T700 carbon fibre with robust 6mm arms for maximum durability.
• Integrated XT60 connector block at the rear keeps battery leads safely away from spinning props.
• Secured with 12.9-grade steel hardware featuring pre-applied threadlocker.

Specifications

• Frame geometry: Deadcat (DC)
• Wheelbase: 225mm
• Total dimensions: 190 x 136mm
• Carbon material: T700
• Arm thickness: 6mm
• Top, middle and bottom plate thickness: 2.5mm
• Stack mounting: 20x20, 30.5x30.5 (M3)
• VTX mounting: 20x20, 25.5x25.5 (M2)
• Camera fitment: 19mm / 20mm, including the DJI O4 Air Unit camera
• Propeller size: 5-5.1 inch
• Weight: 186.4g (with TPU parts)
• Available colours: Black, Yellow

The frame kit provides generous internal clearance for dual-stack configurations, making it straightforward to build and maintain when housing large digital FPV components.
