5" Freestyle Frames

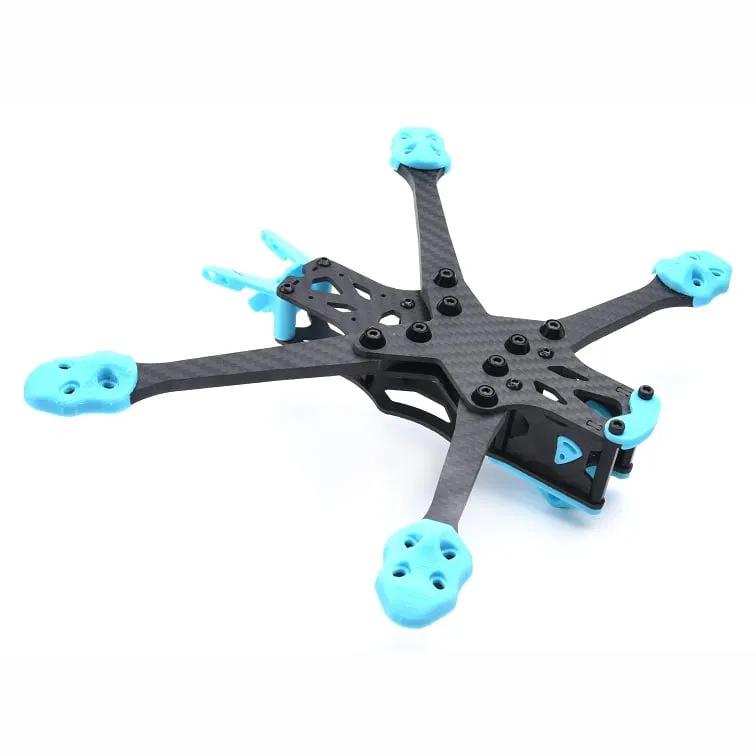

MARK5 5" 225mm Carbon Fiber FPV Frame
₹6,599Incl. GST
SKU MARK5-5IN-225MM-CF
Prop Size: 5"Wheelbase: 225 mmCamera Size: 20mm, 19mmBrand: Generic
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The MARK5 is a 5-inch carbon-fibre FPV frame for freestyle and racing builds, with a 225mm wheelbase sized for standard 5-inch propeller setups. Blue-anodised 7075 aluminium alloy side plates protect the carbon arms and give the frame a distinct look.
Key features
- Wide X-arm geometry for stable, locked-in flight characteristics.
- Stack mounting supports 30.5x30.5mm flight controllers and 30.5x30.5mm or 20x20mm digital VTX units, covering both analogue and digital video setups.
- Camera bay fits 19–20mm FPV cameras, including DJI-style digital air units.
- TPU camera base also accepts action cameras such as a GoPro for dedicated HD capture.
Specifications
- Prop size: 5 inch
- Wheelbase: 225mm
- Material: Carbon fibre with 7075 aluminium alloy side plates
- Arm thickness: 5mm
- Plate thickness: 2.5mm / 2mm
- FC mounting: 30.5 x 30.5mm
- VTX mounting: 30.5 x 30.5mm / 20 x 20mm
- Motor mounting: 16 x 16mm / 19 x 19mm
- Camera mount: 19–20mm
Plan the flight controller, ESC, VTX and camera choice around the frame's stack and camera-bay dimensions before ordering the rest of the build.
| Prop Size | 5" |
|---|---|
| Wheelbase | 225 mm |
| Camera Size | 20mm, 19mm |
| Brand | Generic |
| Material | Carbon Fiber |
| Arm Thickness | 5 mm |
| Mounting Size | 30.5x30.5 |
| Motor Mount | 16x16mm, 19x19mm |
