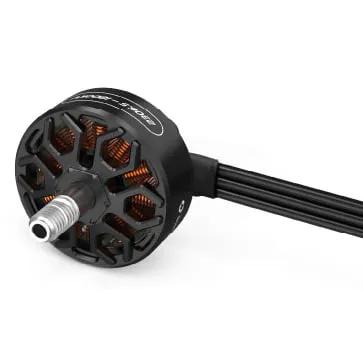

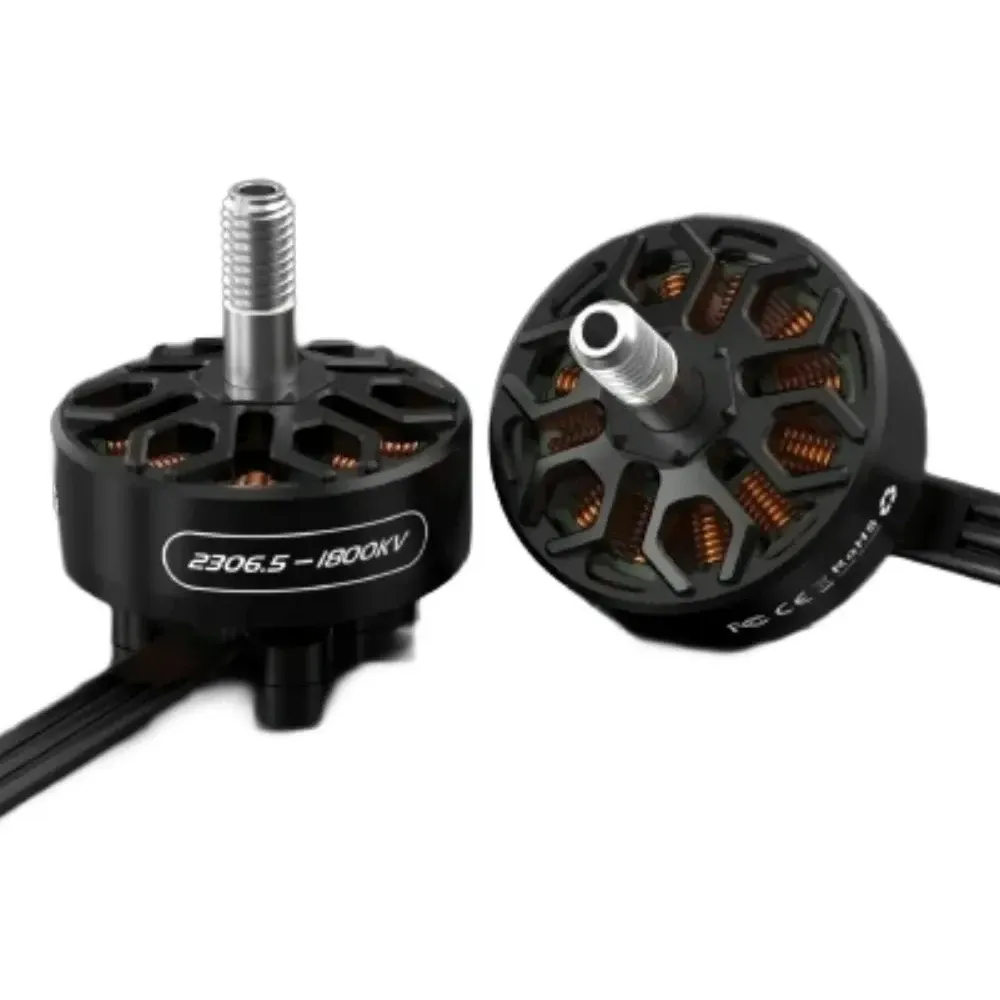

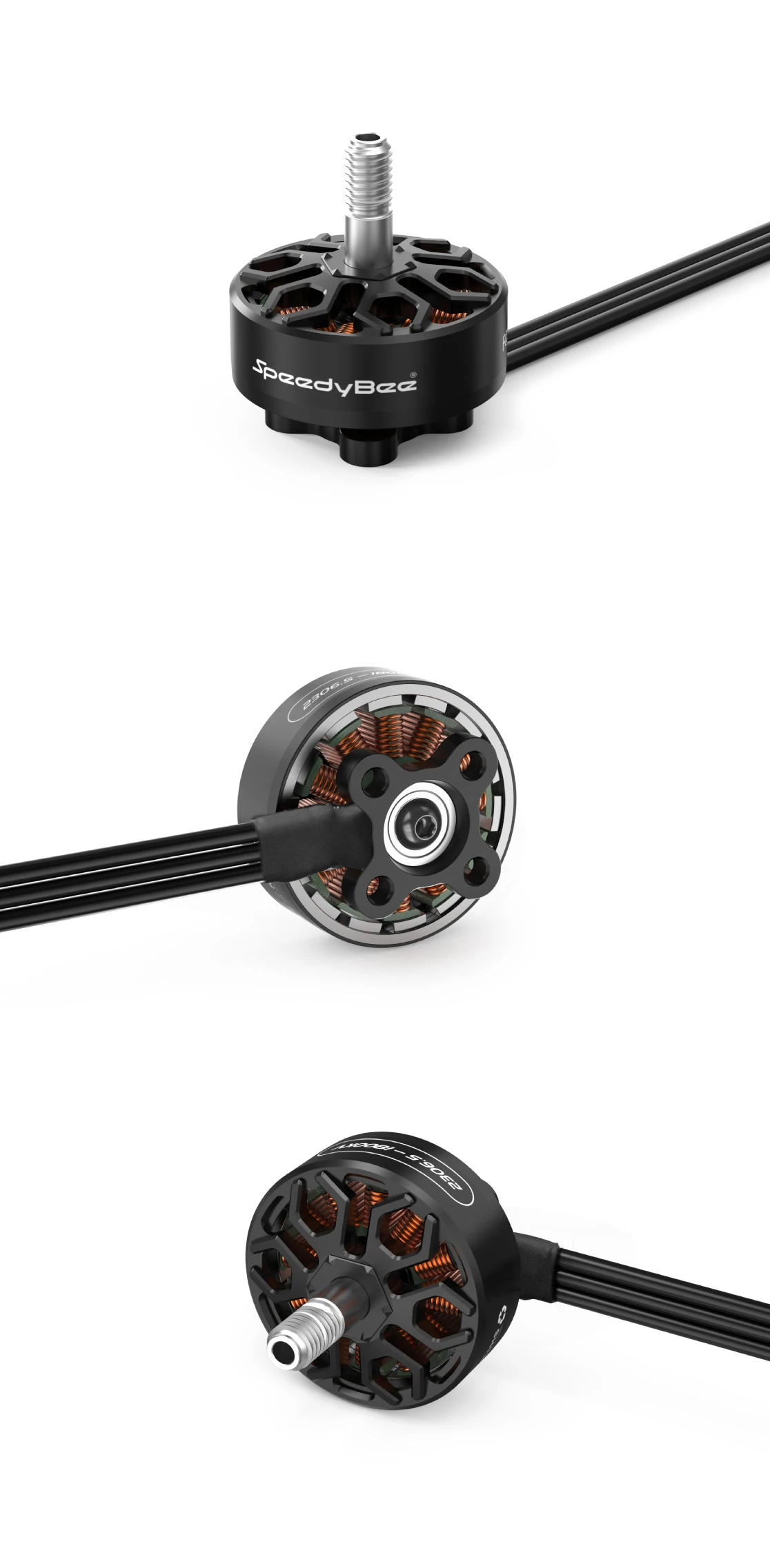

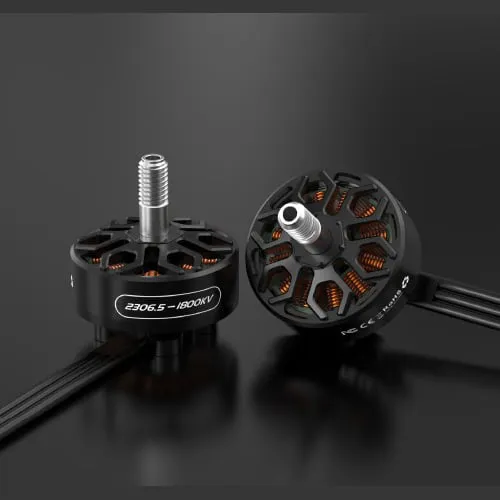

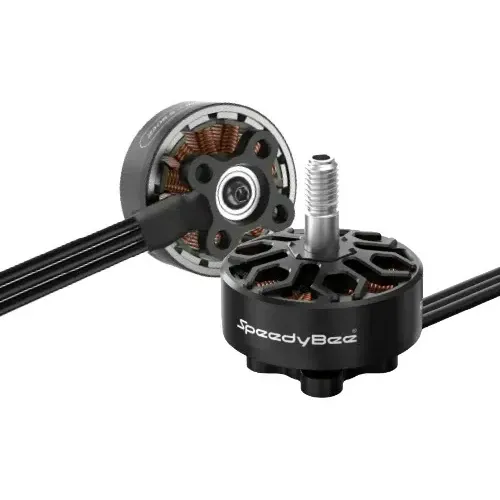

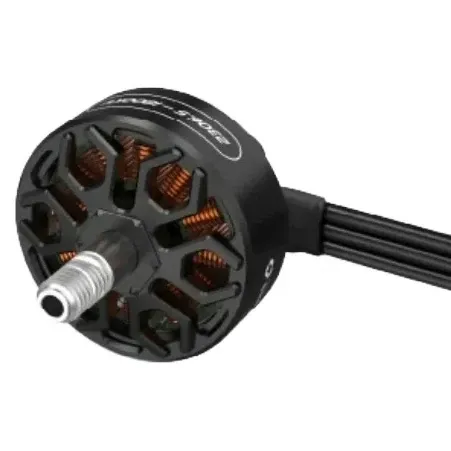

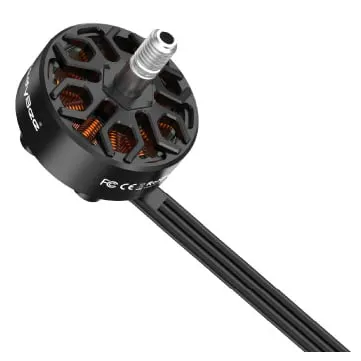

SpeedyBee 2306.5 1800KV 6S Motor

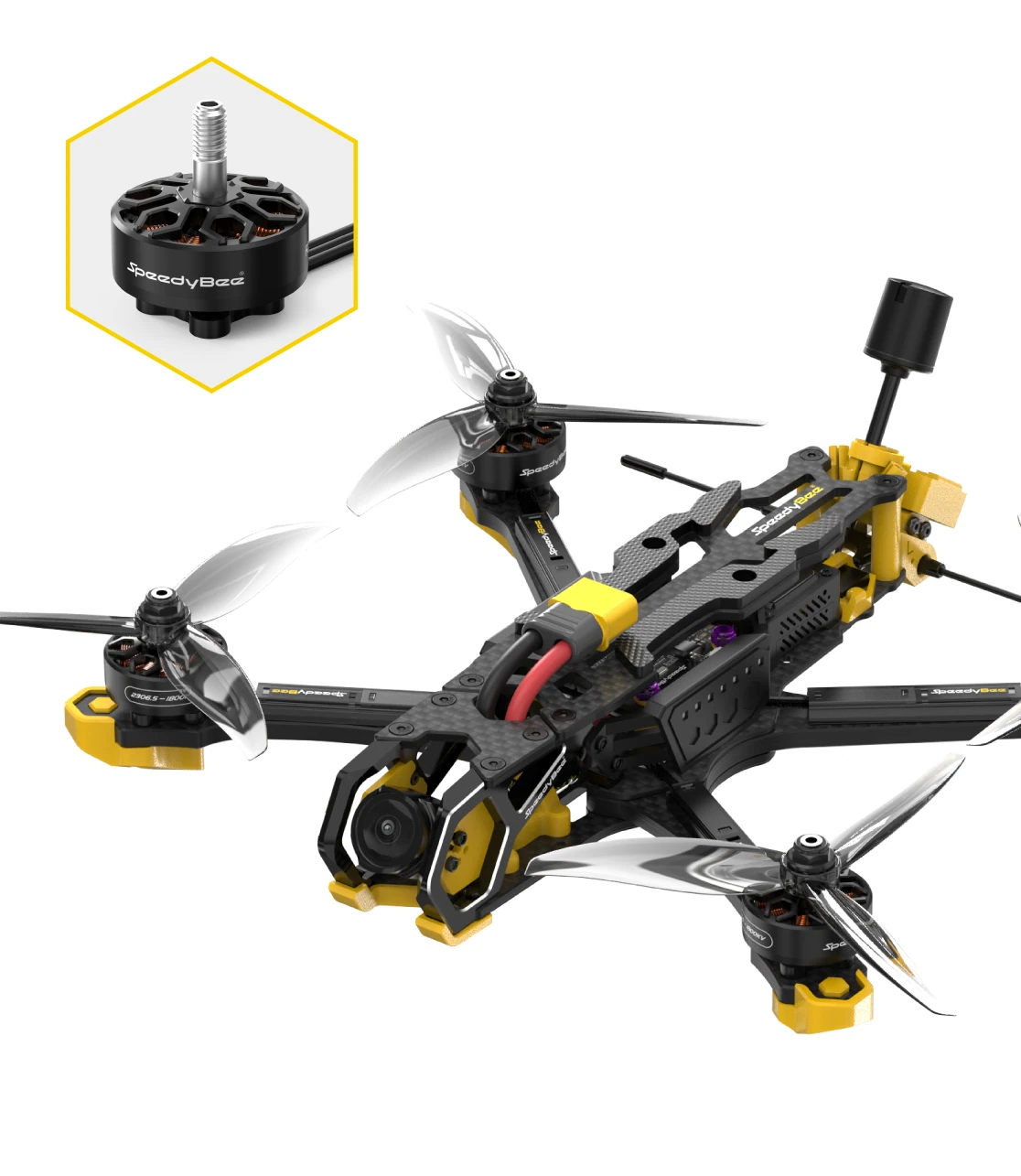

The SpeedyBee 2306.5 1800KV is the motor supplied with the Master5 V2 frame kit and a dependable pick for any 5-inch 6S freestyle, cinematic or racing quad. Buy a single motor as a crash spare or a set of four for a complete build.

Key features

• 1800KV wound for 6S, the usual low-KV choice for 5-inch freestyle and long cruising lines

• 12N14P configuration on a 23 x 6.5mm stator

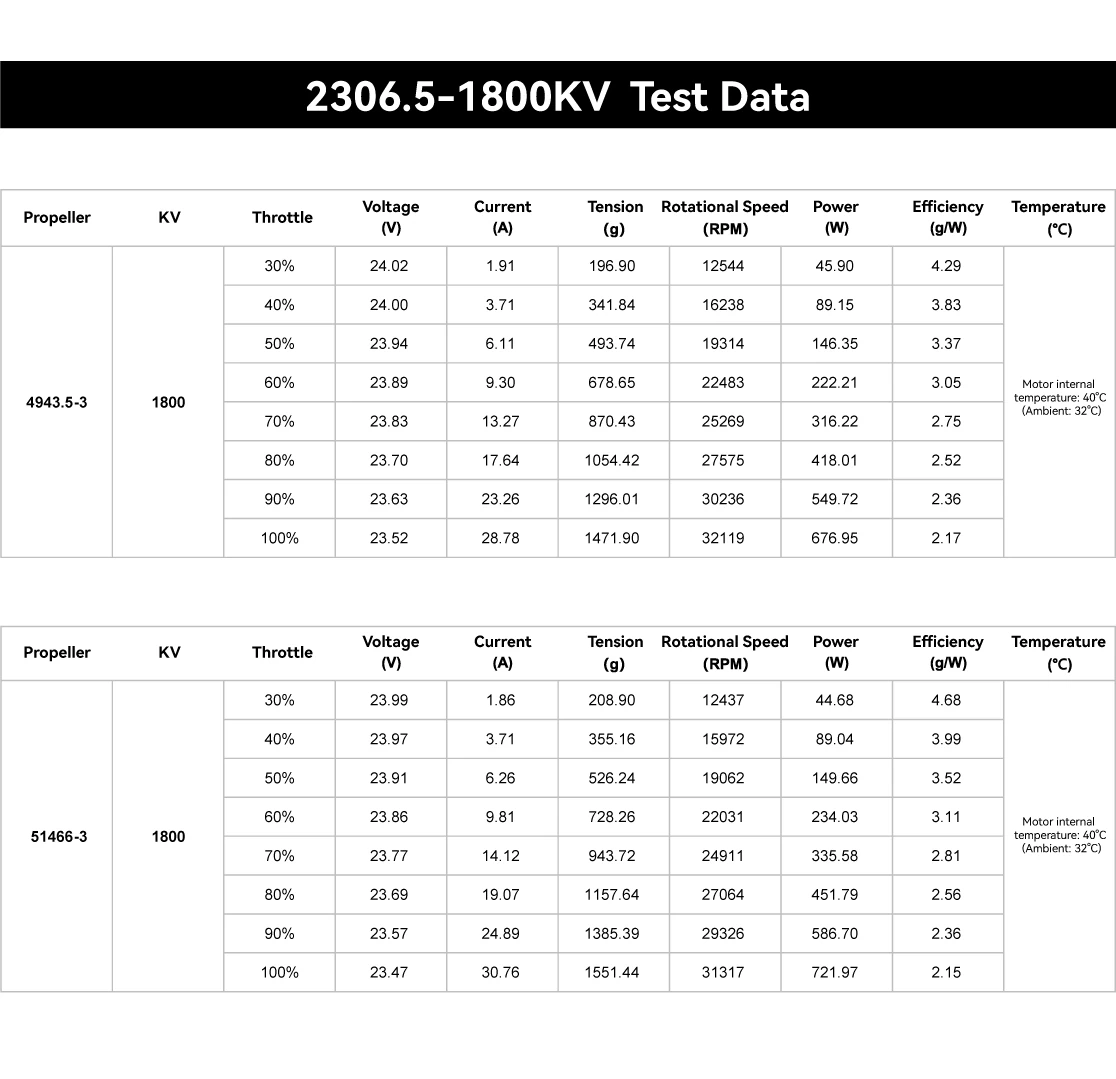

• Up to 721.97W and 30.76A per motor, with 77.55mΩ phase resistance

• 4mm shaft with an M5 prop thread for standard 5-inch props

• 34.34g including 20AWG, 150mm silicone leads

• Available as Single or Set of 4

Specifications

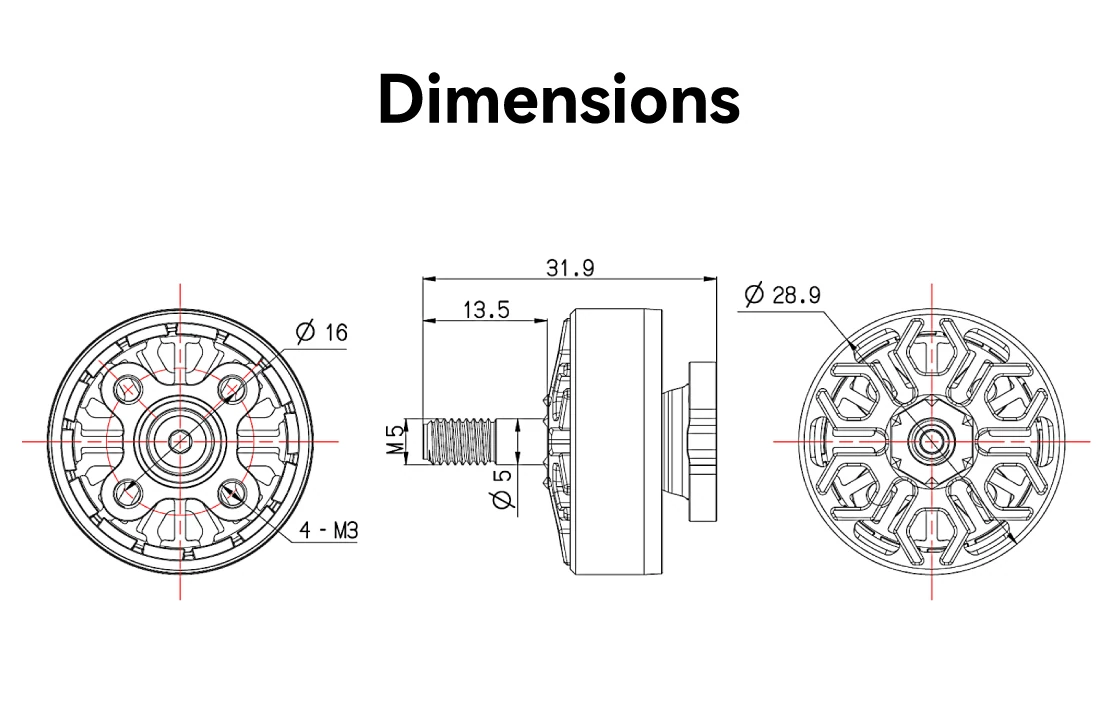

• Stator: 2306.5

• KV: 1800KV

• Configuration: 12N14P

• Operating voltage: 6S LiPo (22.2V nominal)

• Shaft: 4mm, M5 prop thread

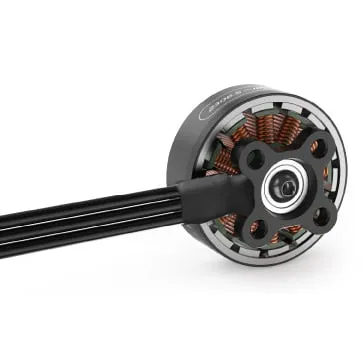

• Motor mounting: 16 x 16mm, M3

• Lead wires: 20AWG, 150mm

• Phase resistance: 77.55mΩ including wires

• No-load current: 0.71A at 10V

• Maximum current: 30.76A

• Maximum power: 721.97W

• Weight: 34.34g including wires

With a 30.76A peak draw per motor, run it on a 6S 4-in-1 ESC rated comfortably above that figure, such as a 40A-class unit.
