HGLRC Sector X5 FR 5-Inch Freestyle FPV Frame

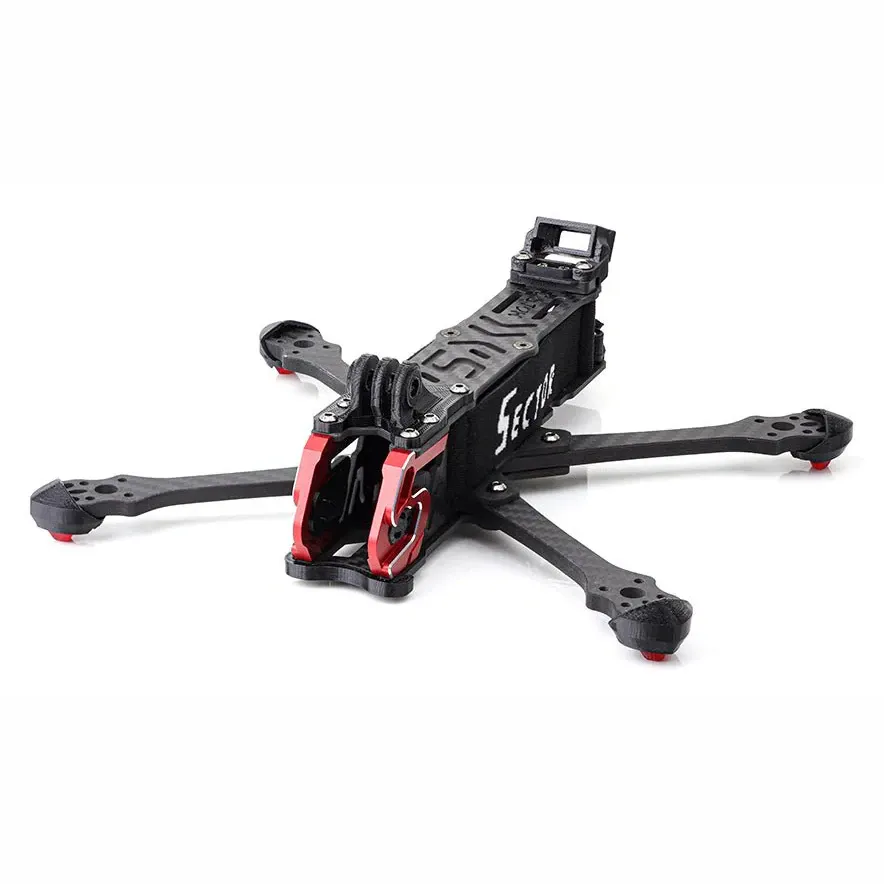

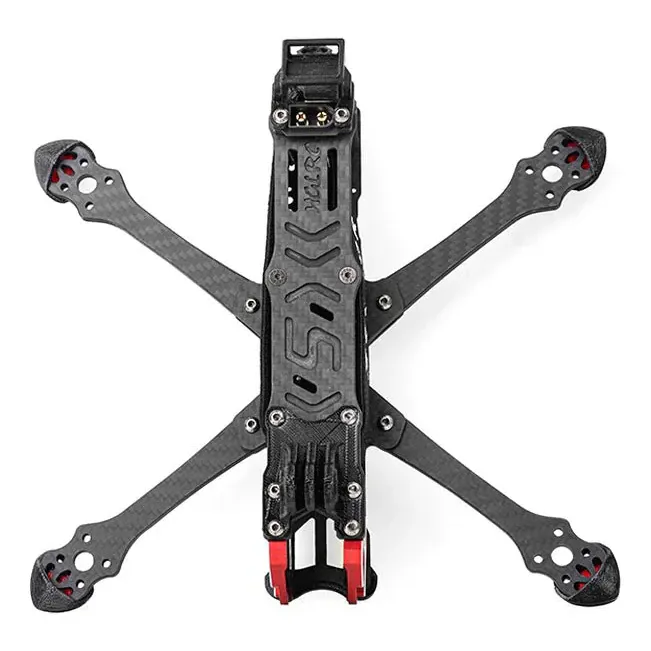

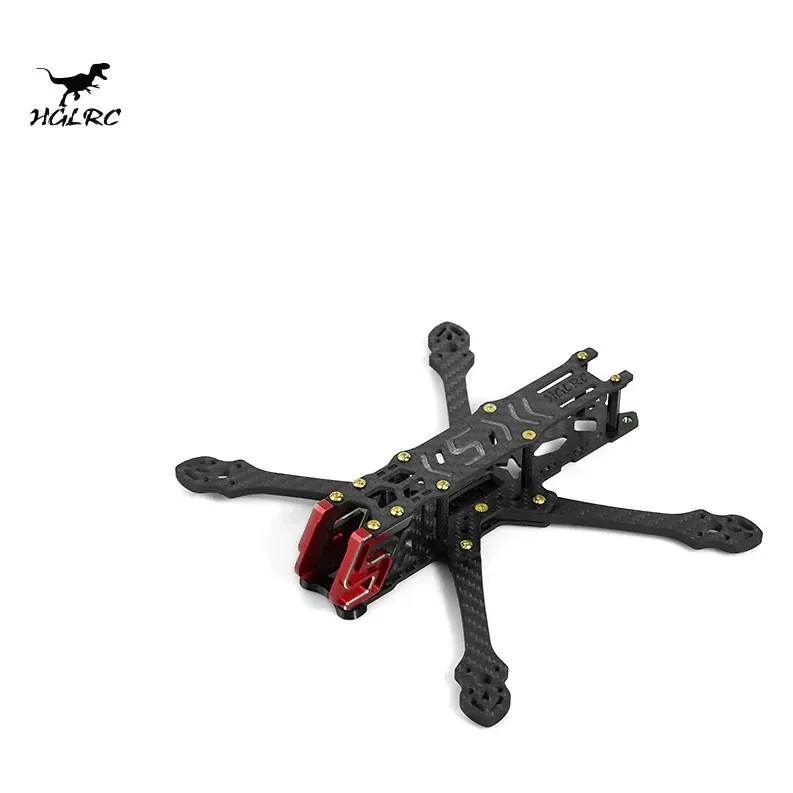

The HGLRC Sector X5 FR is a 5-inch freestyle frame built for hard-hitting bando and proximity flying, with a rigid 3K carbon fibre core and CNC-machined aluminium side plates that lock in and shield the FPV camera.

Key features

• 5mm carbon fibre arms in a quick-release layout for fast field repairs

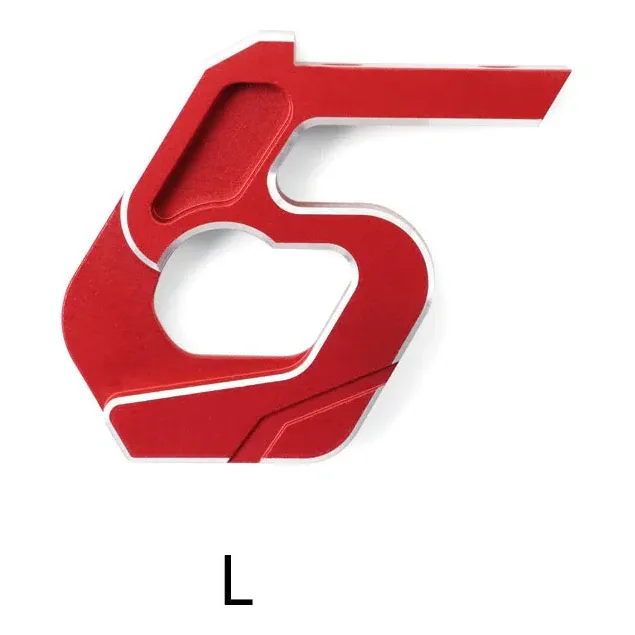

• CNC-milled aluminium side plates protect the 19 x 19 mm FPV camera
• Dual FC/VTX mounting patterns (20x20mm and 30.5x30.5mm) fit most modern stacks

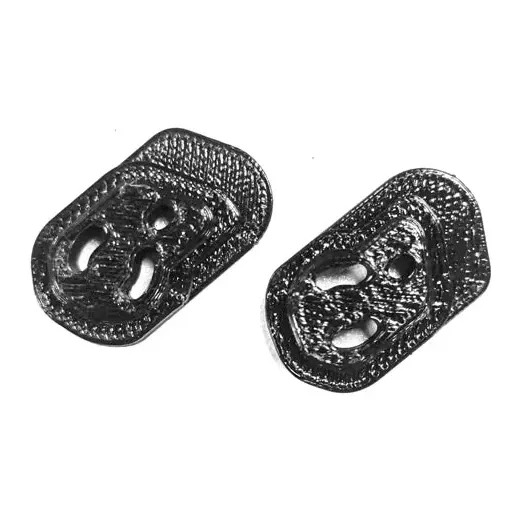

• TPU mounts included for antennas, GPS and an action camera
• Fixed power outlet keeps the battery lead clear of the propellers, and dust-proof straps cover both sides of the frame

Specifications

• Wheelbase: 210 mm
• Arm thickness: 5 mm
• Top/bottom plate thickness: 2.5 mm
• Middle plate thickness: 2 mm
• Top-to-middle plate spacing: 25 mm
• FC mounting: 30.5x30.5 mm / 20x20 mm (M3)
• Camera mount: 19 x 19 mm
• Motor mount: 16x16 mm
• Recommended motors: 22xx / 23xx
• Weight: 120 g (frame only)

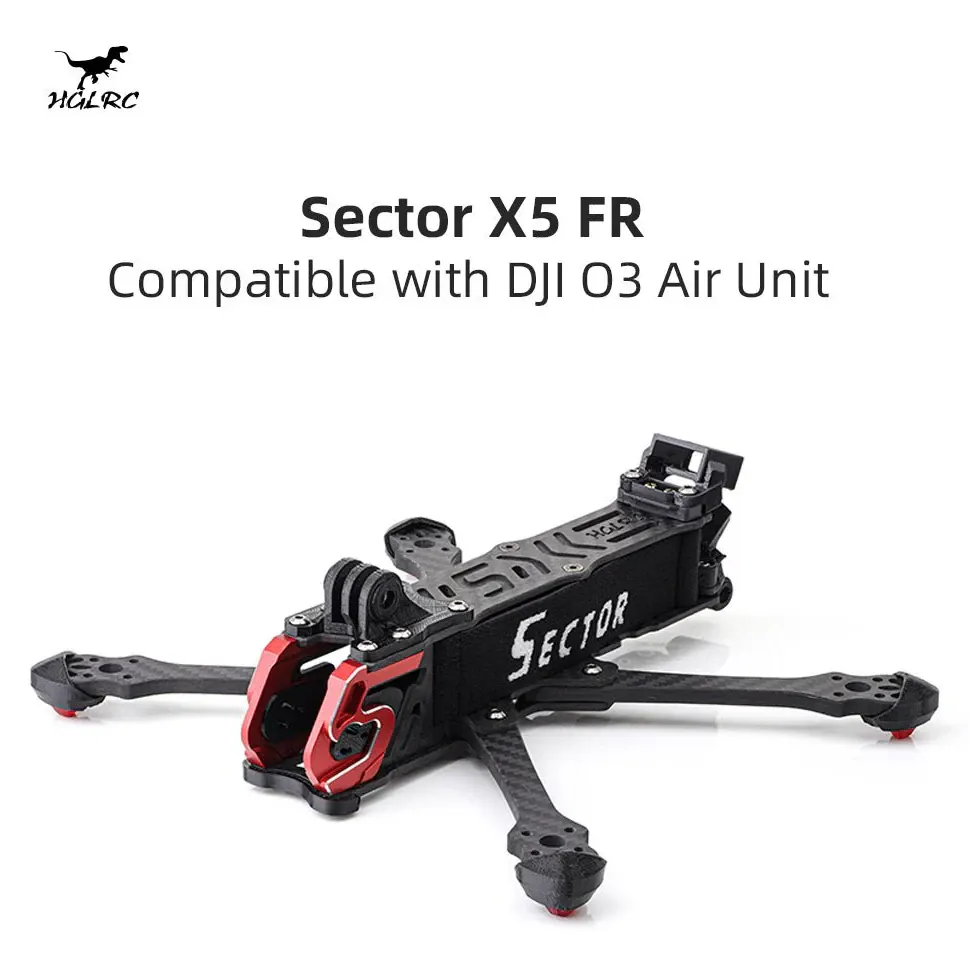

The rear deck and mounting layout suit modern digital air units such as the DJI O3 or Walksnail Avatar, making this a solid base for a 6S freestyle build. The quick-release arms also mean a cracked arm can be swapped out in the field without stripping the whole frame down.
