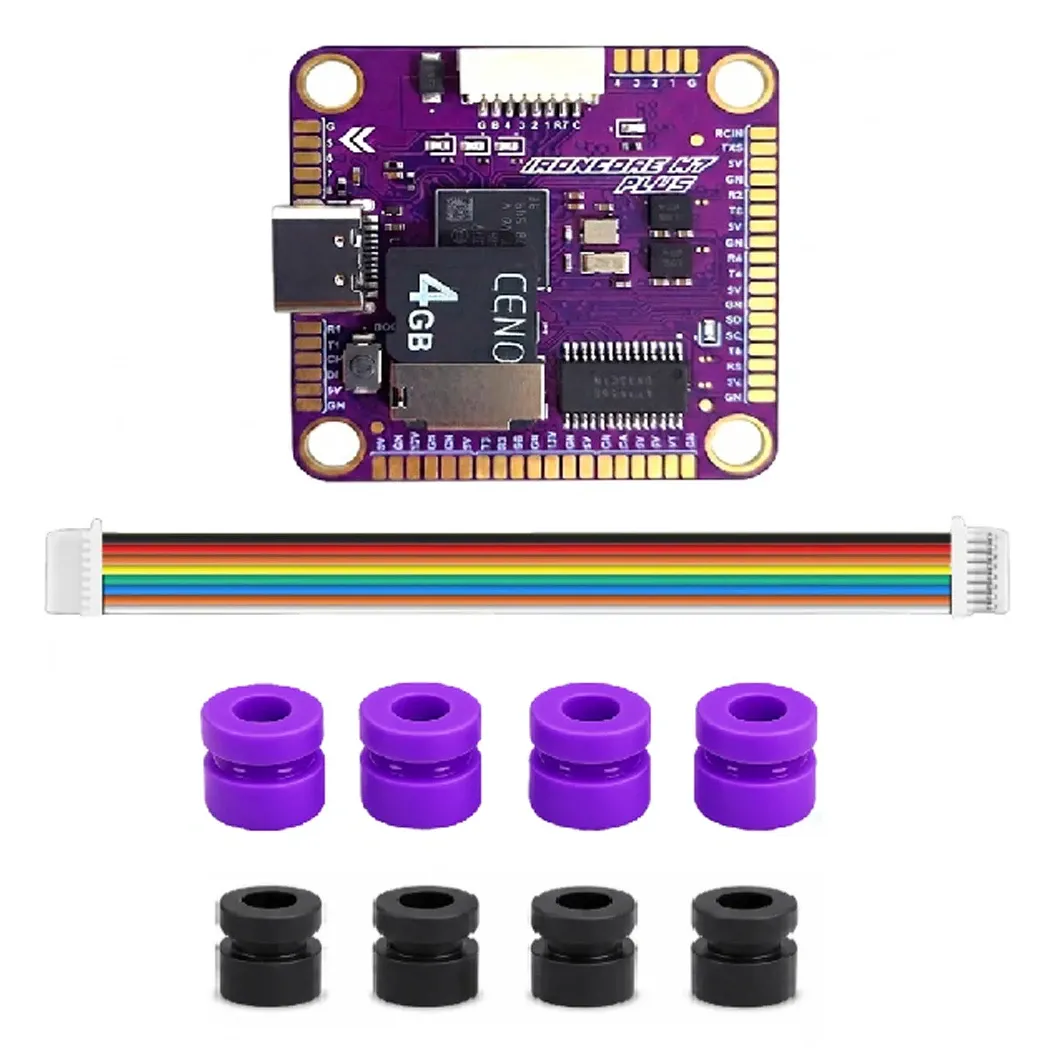

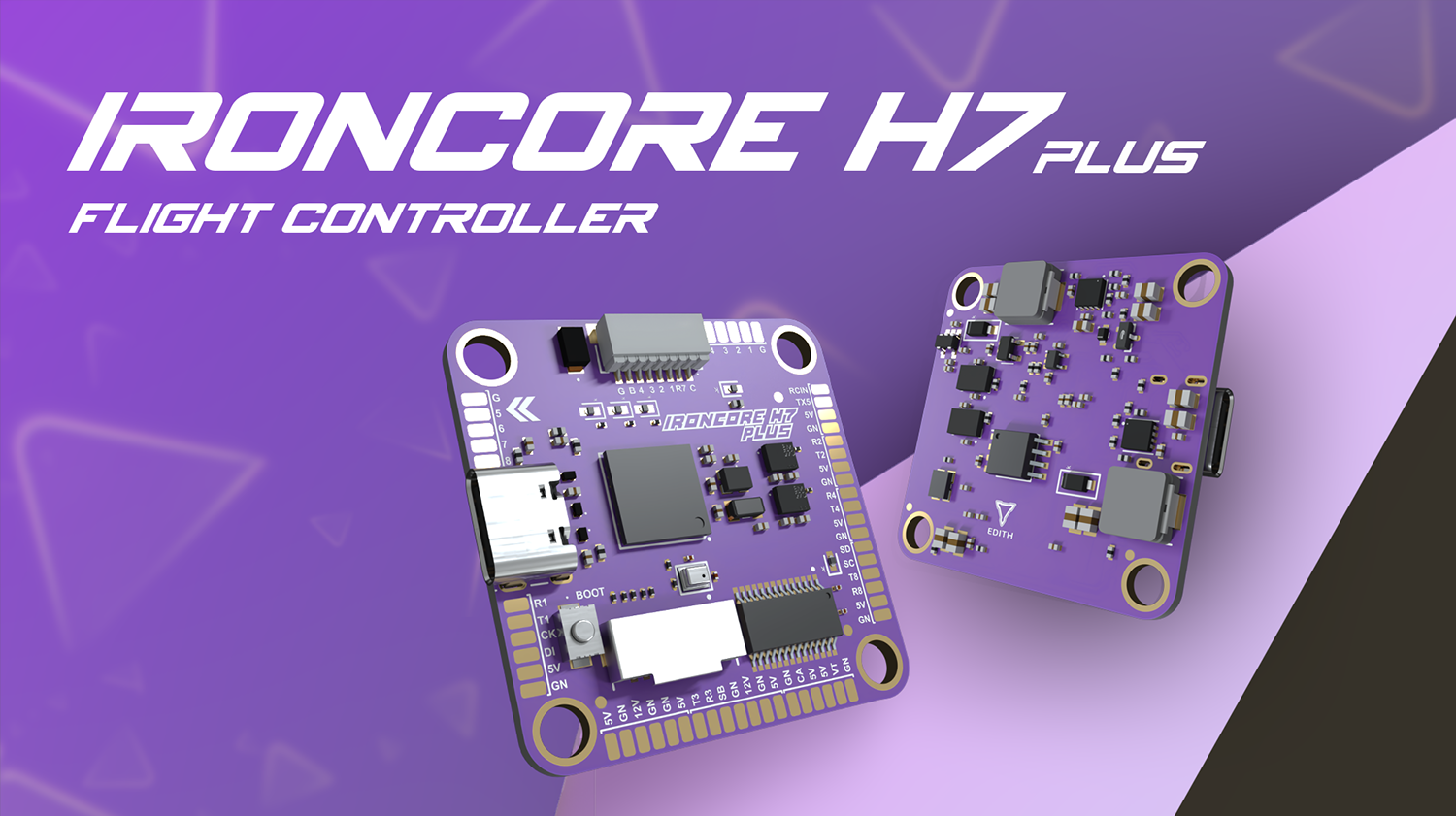

EDITHFPV Ironcore H7 Plus H743 Flight Controller
SKU EDITH-IRONCORE-H7-PLUS
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The EDITHFPV Ironcore H7 Plus is an H743-based flight controller for custom high-performance FPV builds, with a BMI270 gyro and onboard OSD on a 30.5x30.5mm mounting pattern.
Key features
STM32H743 processor gives fast, high-headroom flight-control computation.
BMI270 gyro (IMU) for accurate motion sensing, paired with a BMP280 barometer for altitude data.
Runs ArduPilot firmware, suiting long-range and autonomous-capable builds.
Onboard OSD is built into this "Plus" version — the plain H7 version is the option without it.
Accepts a 3S-6S LiPo power input.
Specifications
MCU: STM32H743
Gyro: BMI270
Barometer: BMP280
Mounting: 30.5 x 30.5mm
Weight: 9g
OSD: AT7456E
UARTs: 7
Motor outputs: 8
Board component only — pair it with a compatible ESC/VTX stack and check firmware target support before flashing. The 30.5x30.5mm mounting pattern lines up with most full-size 5-inch and larger frames.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 30.5x30.5 |
| Integrated VTX | No |
| FC Processor | H7, H743 |
| Gyro | BMI270 |
| Input Voltage | 3–6S |
| Made in India | Yes |
| Brand | EDITHFPV |
| Supported Firmware | ArduPilot |
| Barometer | Yes |
| UARTs | 7 |
| Compass Included | No |
| Motor Outputs | 8 |
