TBS Lucid H7 Flight Controller
₹8,899Incl. GST
SKU TBS-LUCID-H7
Integrated Receiver: NoMounting Size: 30.5x30.5Integrated VTX: NoFC Processor: H7
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

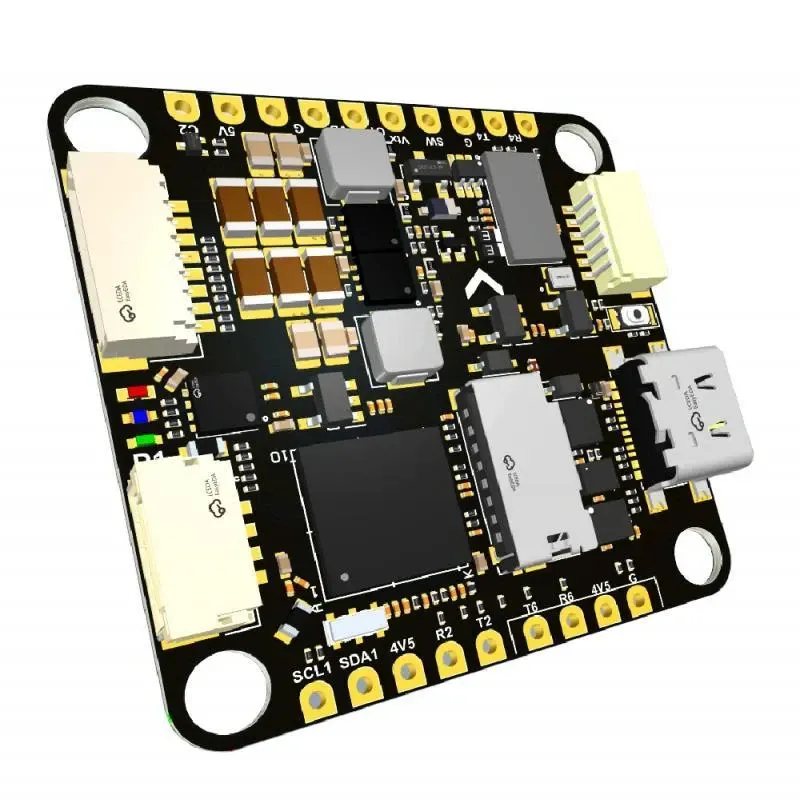

The TBS Lucid H7 FC is a 30x30 flight controller built around an STM32H743 processor for pilots who want plenty of processing headroom in a full-size FPV stack. It runs Betaflight, ArduPilot and INAV, and is built for 5-inch and larger freestyle and racing builds, especially within the TBS ecosystem.
Key features
- STM32H743 processor gives higher compute headroom than older F4/F7 boards for demanding filtering and features.
- Dual ICM42688P gyros and an onboard DPS310 barometer for accurate flight data and altitude hold.
- 13-channel PWM output, a CAN bus and DJI FPV OSD compatibility via a spare UART, plus dual switchable camera inputs.
- USB-C connector and MicroSD blackbox logging for straightforward setup and tuning.

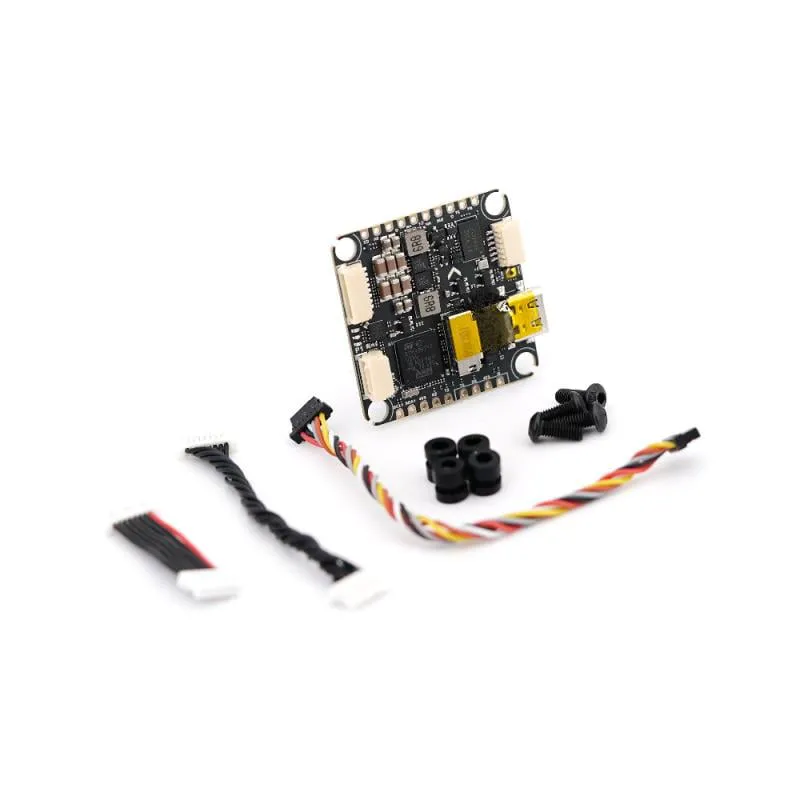

- Ships with an FC-to-ESC cable, a DJI O3 cable, rubber dampers and mounting screws.
Specifications
- Processor: STM32H743
- Gyro: ICM42688P (x2)
- Barometer: Infineon DPS310
- Mounting: 30.5 x 30.5mm
- Input voltage: 2S-8S LiPo (6-36 V)
- Firmware: Betaflight, ArduPilot, INAV
- BEC: 5 V 2 A and 9 V 2 A continuous (3 A max each)
- UARTs: 7
- OSD: AT7456E
| Integrated Receiver | No |
|---|---|
| Mounting Size | 30.5x30.5 |
| Integrated VTX | No |
| FC Processor | H7 |
| Gyro | ICM42688P |
| Input Voltage | 2–8S |
| Made in India | No |
| Brand | TBS |
| Supported Firmware | ArduPilot, INAV, Betaflight |
| Barometer | Yes |
| UARTs | 7 |
| Compass Included | No |
| Motor Outputs | 12 |
