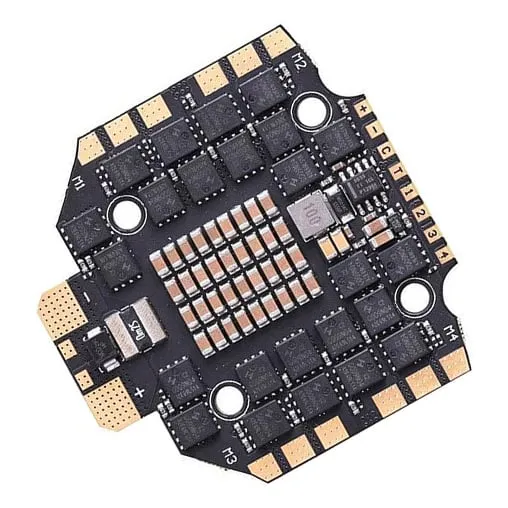

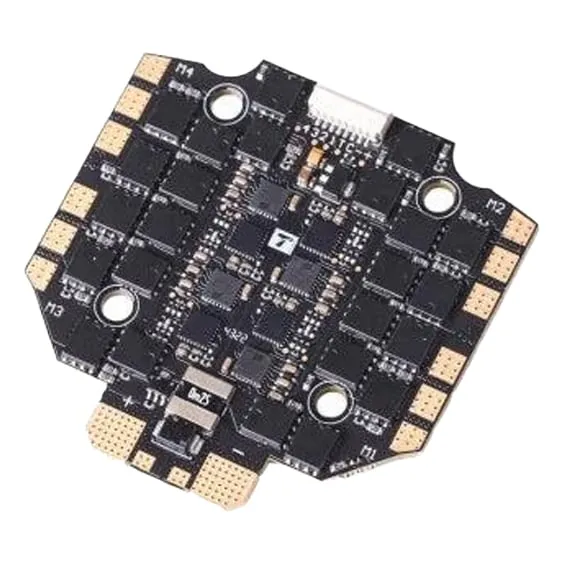

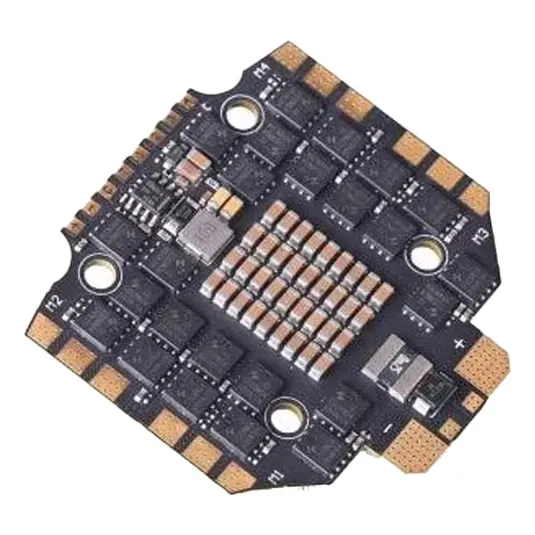

T-Motor C80A-4IN1-8S Dual MOSFET G0 MCU FPV ESC
SKU TMOTOR-C80A-4IN1-8S
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor C80A is a 4-in-1 ESC rated for 80 A continuous on 4-8S, built for cinelifters, heavy freestyle rigs and long-range quads that pull high current. It mounts on the standard 30.5 x 30.5 mm stack pattern.
Key features
Dual MOSFETs in parallel to cut heat and keep the board stable under high current

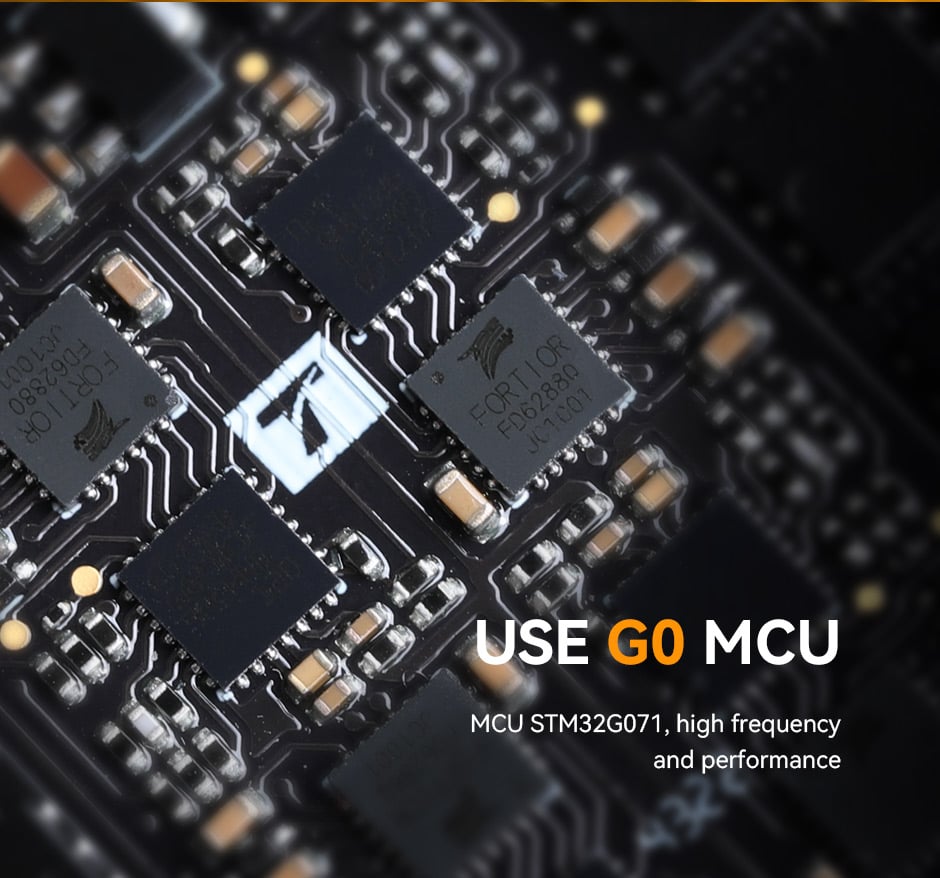

STM32G071 (G0) MCU running BLHeli_32 firmware for precise motor control

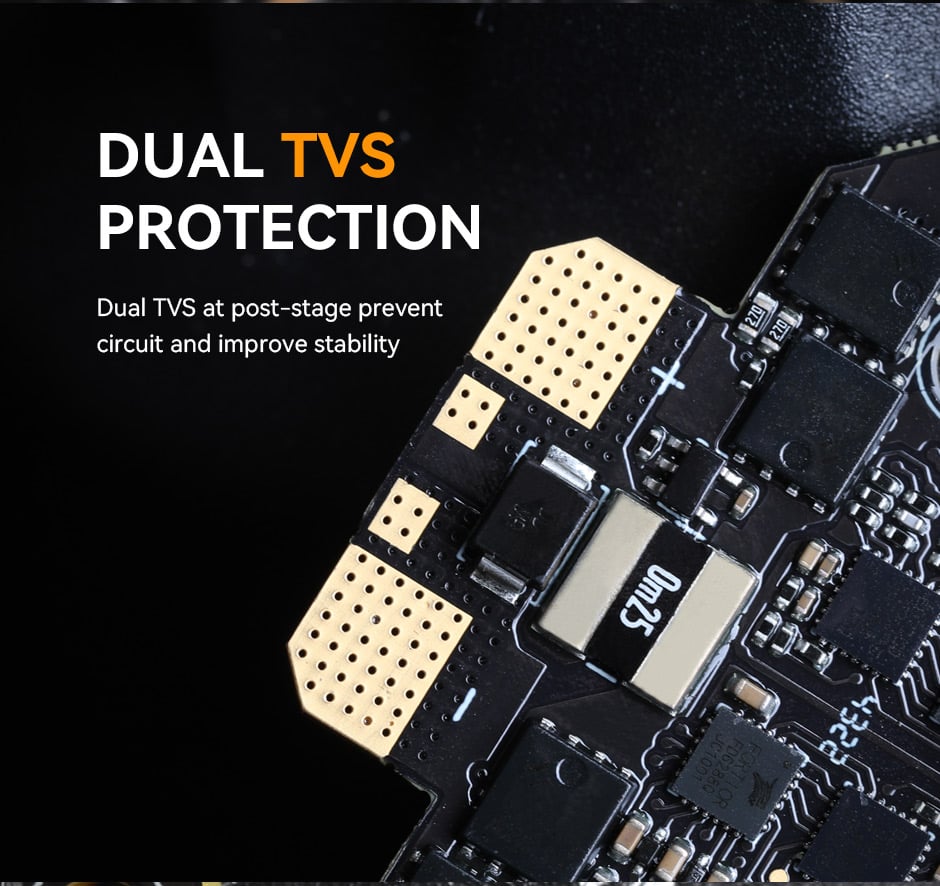

Dual TVS protection guards the circuit against voltage spikes
Anti-loose connector socket keeps the flight controller harness secure in flight
Peak rating of 90 A for punch-outs and heavy lifts
Specifications
Input voltage: 4-8S LiPo
Continuous current: 80 A
Peak current: 90 A
Firmware: BLHeli_32
MCU: STM32G071
Mounting: 30.5 x 30.5 mm
Board size: 52.5 x 52.5 mm
Weight: 29.4 g
Check that the 52.5 mm board clears your frame's stack area, and fit a low-ESR capacitor across the battery pads when running 8S.
| Mounting Size | 30.5x30.5 |
|---|---|
| ESC Current | 80 A |
| Input Voltage | 4–8S |
| ESC Firmware | BLHeli_32 |
| Made in India | No |
| Brand | T-Motor |
| Weight | 29.4 g |
