EDITHFPV Ironcore F4 Flight Controller
SKU EDITHFPV-IRONCORE-F4
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

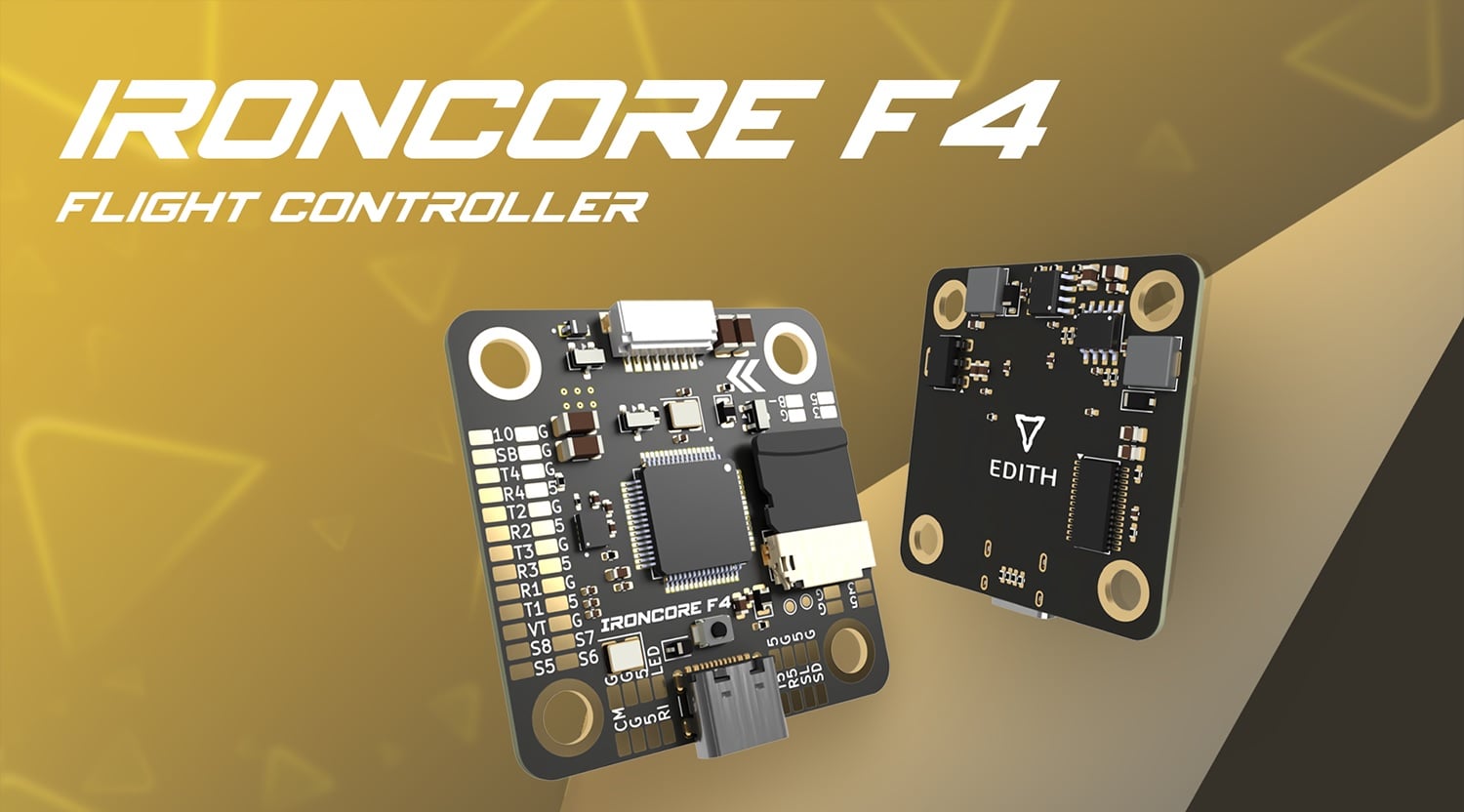

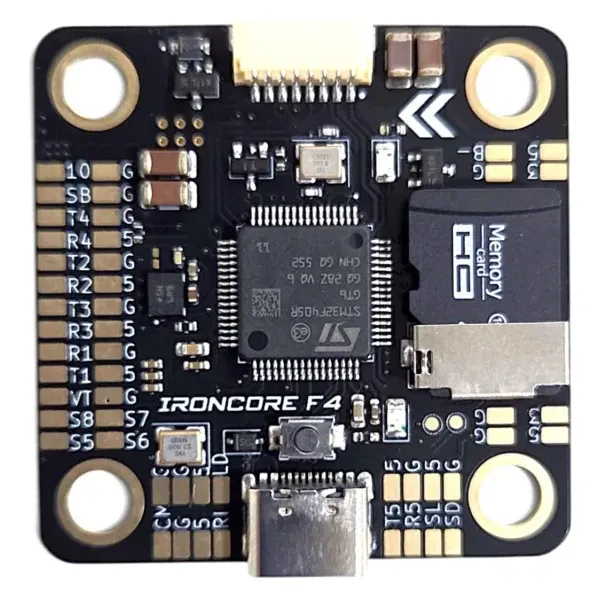

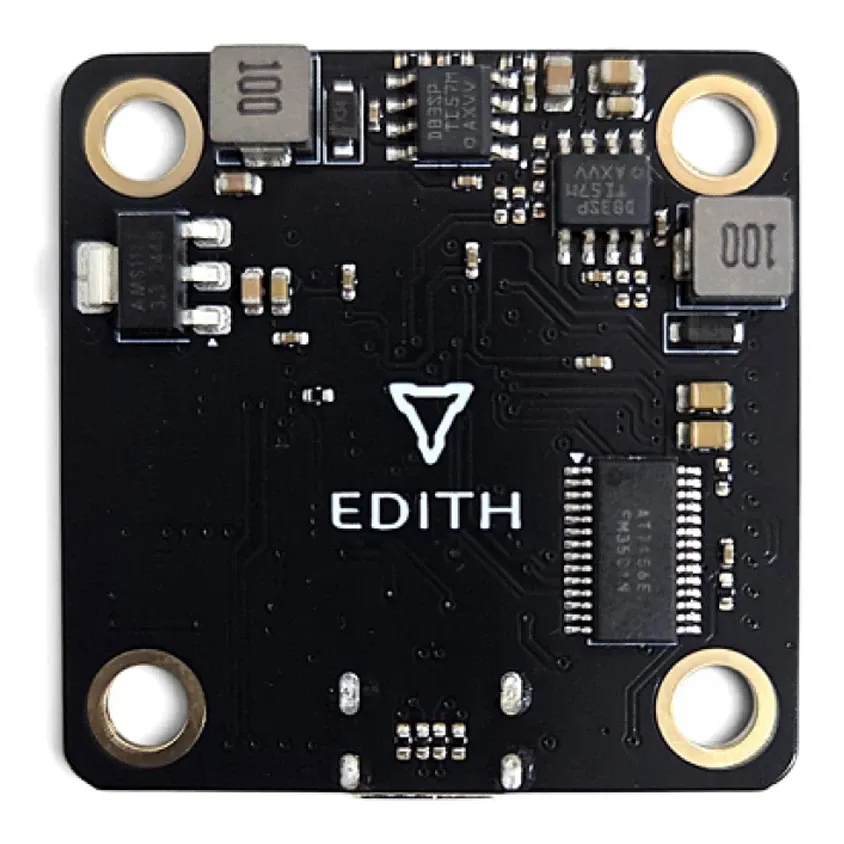

The EDITHFPV Ironcore F4 is an F405 flight controller for custom FPV drones and multirotors using a 30 x 30 mounting class. It is suited to builders selecting the flight controller separately from the ESC, receiver and video system.
Key features
F405 processor handles the core flight-control workload.
30 x 30 mounting class suits many full-size FPV frame layouts.
Standalone flight controller format allows the remaining electronics to be selected for the build.
Specifications
Processor: F405
Mounting class: 30 x 30 mm
MCU: STM32F405
Gyro: BMI270
Barometer: BMP280
OSD: AT7456E
UARTs: 6
Motor outputs: Up to 8
Blackbox: microSD logging (4 GB card included)
Input voltage: 3-6S LiPo
Firmware: ArduPilot, Betaflight
Mounting holes: 30.5 x 30.5 mm (M4)
Board dimensions: 40 x 40 mm
Weight: 9 g
In the box: flight controller, 4 GB microSD card, grommets and a 40 mm cable
Confirm the firmware target, board pinout, gyro, input-voltage range and connector layout before installation or replacement.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 30.5x30.5 |
| Integrated VTX | No |
| FC Processor | F405 |
| Gyro | BMI270 |
| Input Voltage | 3–6S |
| Made in India | Yes |
| Brand | EDITHFPV |
| Supported Firmware | ArduPilot, Betaflight |
| Barometer | Yes |
| UARTs | 6 |
| Weight | 9 g |
| Compass Included | No |
| Motor Outputs | 8 |
