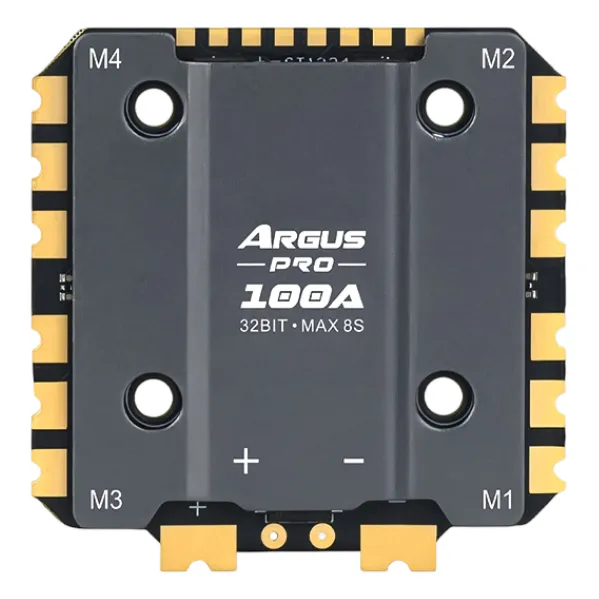

Axisflying Argus Pro 100A 4-8S 32-Bit 4-in-1 ESC

The Axisflying Argus Pro ECO 100A is a 4-in-1 ESC for 13-15 inch long-range, cinematic and heavy-load FPV drones on 4-8S LiPo. This is the 32-bit version: it runs BLHeli_32 with ESC telemetry and a built-in current meter, inside a CNC-machined aluminium shell that spreads heat and shields the board.

Key features

• 100 A continuous and 110 A burst current rating for big props and heavy all-up weights

• BLHeli_32 firmware with ESC telemetry and a current meter reading up to 200 A

• Over-current, over-temperature and over/under-voltage protection

• Standard 30.5 × 30.5 mm mounting holes to stack with full-size flight controllers

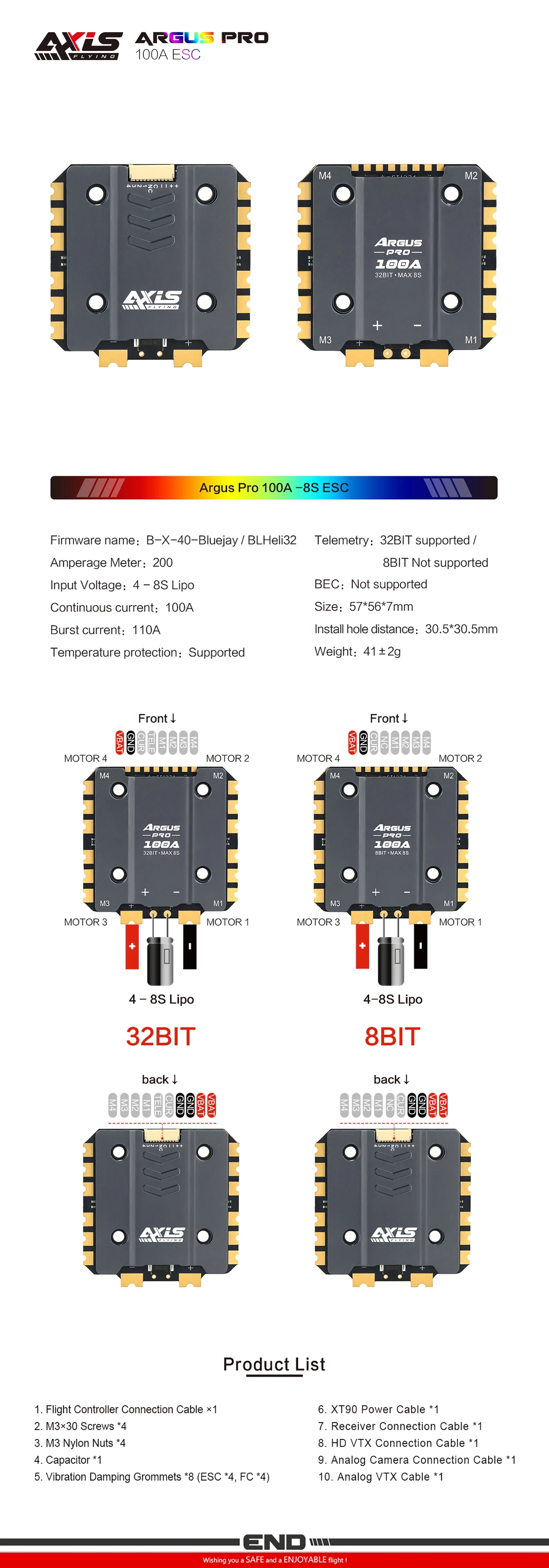

Specifications

• Continuous current: 100 A

• Burst current: 110 A

• Input voltage: 4-8S LiPo

• Firmware: BLHeli_32 (32-bit version)

• Telemetry: Yes

• Current meter: Up to 200 A

• BEC: None

• Mounting: 30.5 × 30.5 mm

• Dimensions: 57 × 56 × 7 mm

• Weight: 41 ± 2 g

The same ECO board is also made as an 8-bit Bluejay version without telemetry; choose this 32-bit one if you want current, consumption and ESC data in your OSD. There is no BEC, so the flight controller must regulate its own supply, and on 8S fit a low-ESR capacitor across the battery leads to absorb voltage spikes.
