iFlight Thunder H7 Flight Controller
₹15,499Incl. GST
SKU IFLT-THUNDER-H7-FC
Integrated Receiver: NoMounting Size: 30.5x30.5Integrated VTX: NoFC Processor: H7
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

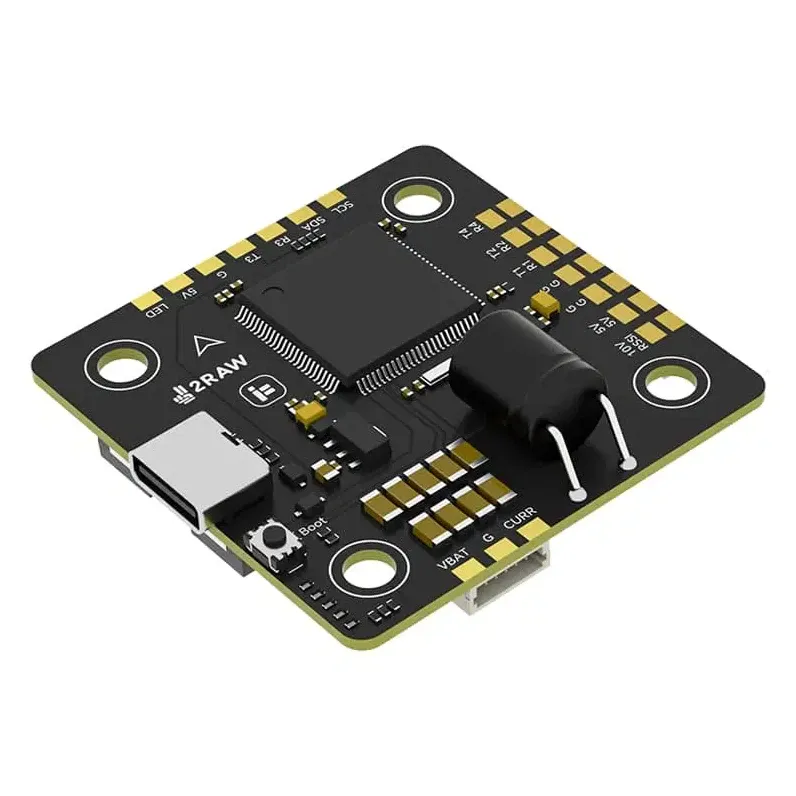

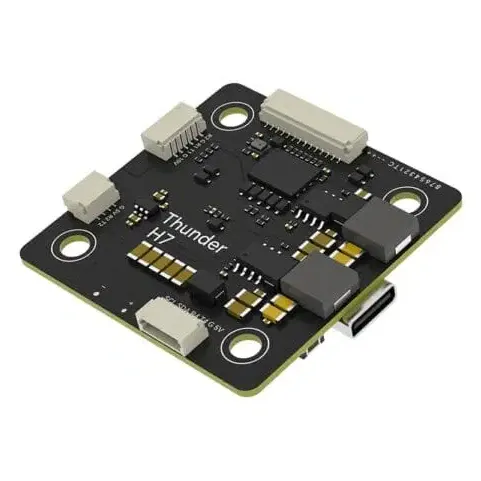

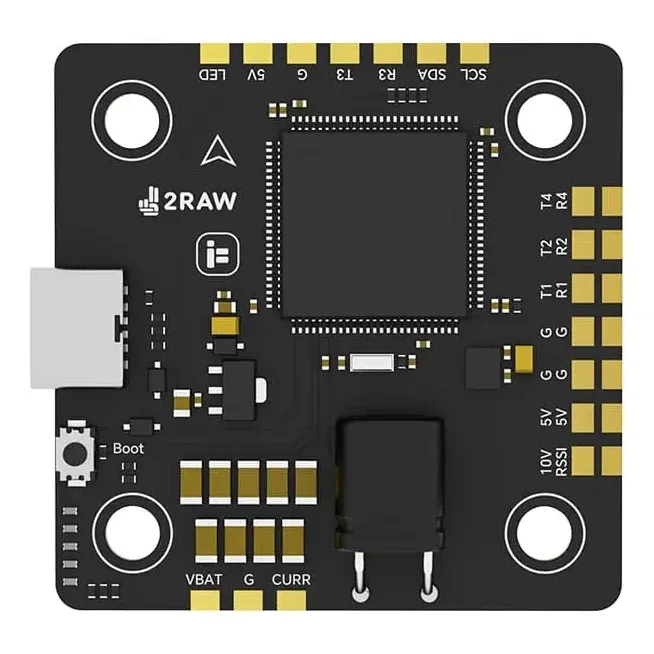

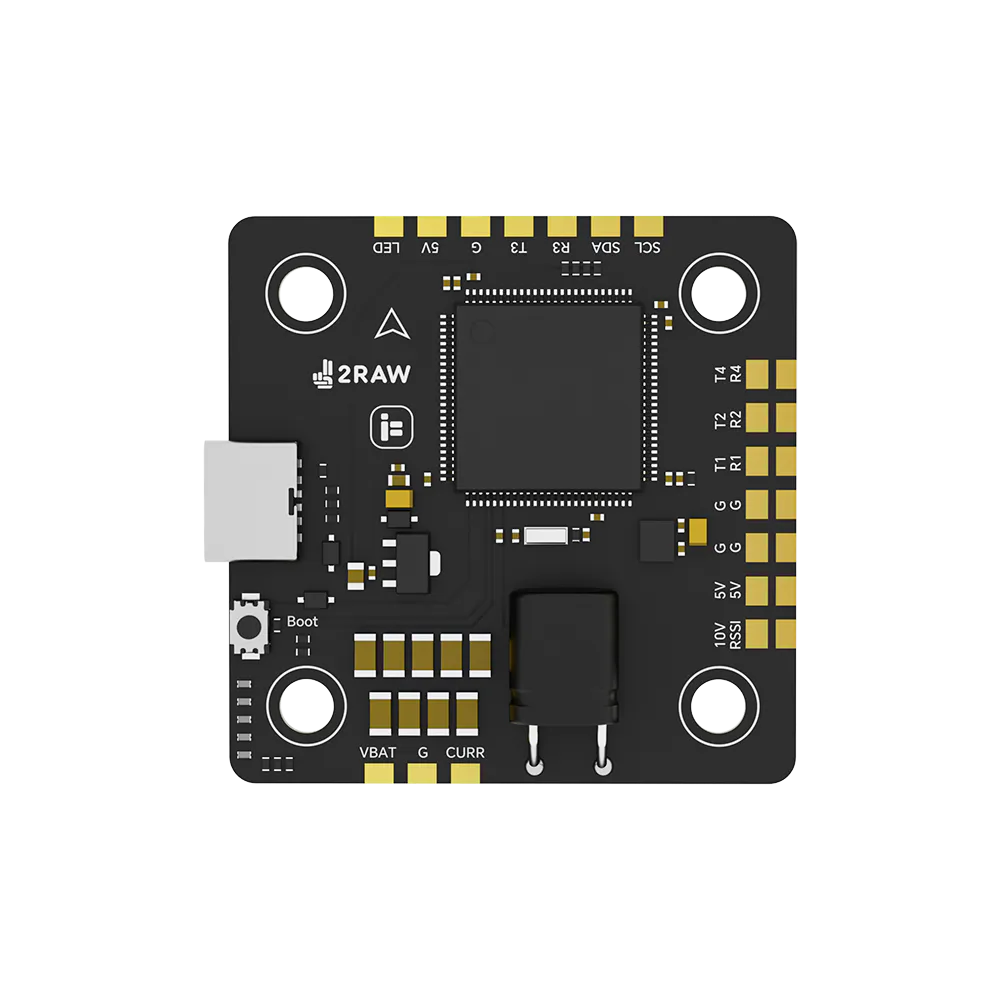

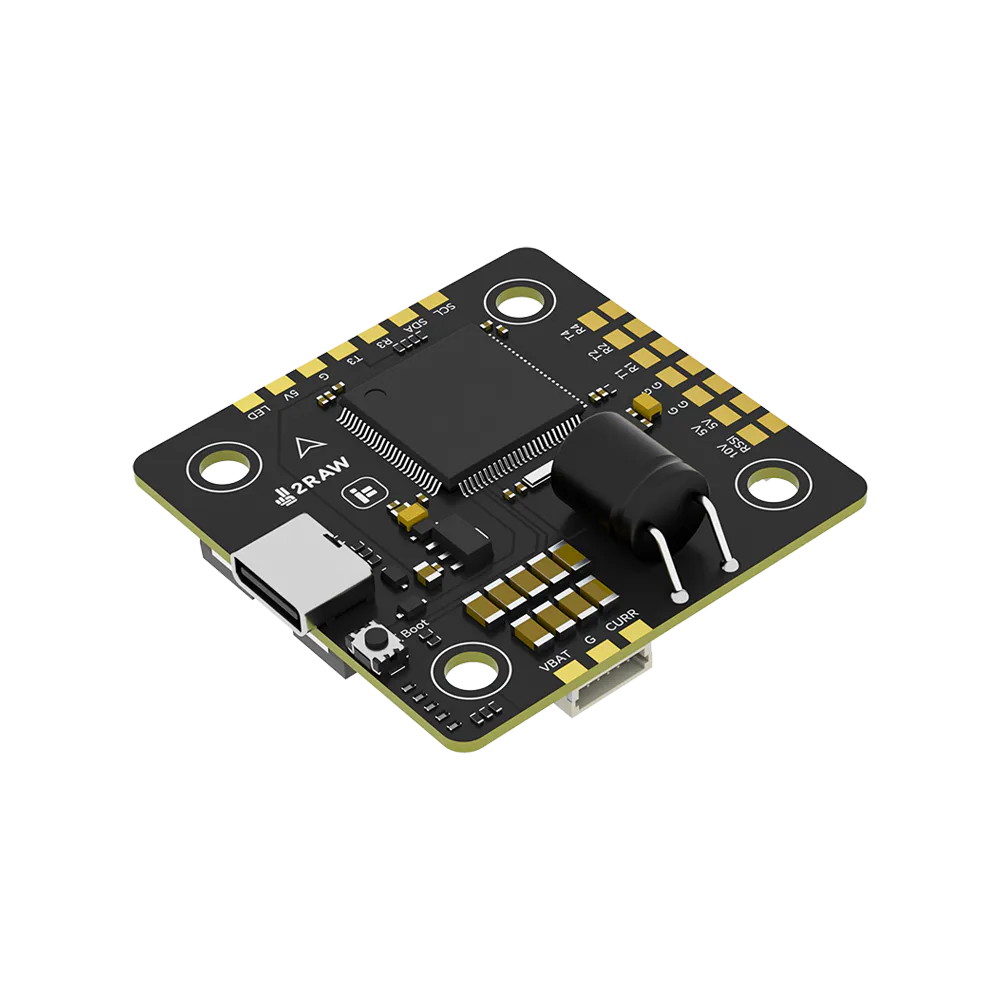

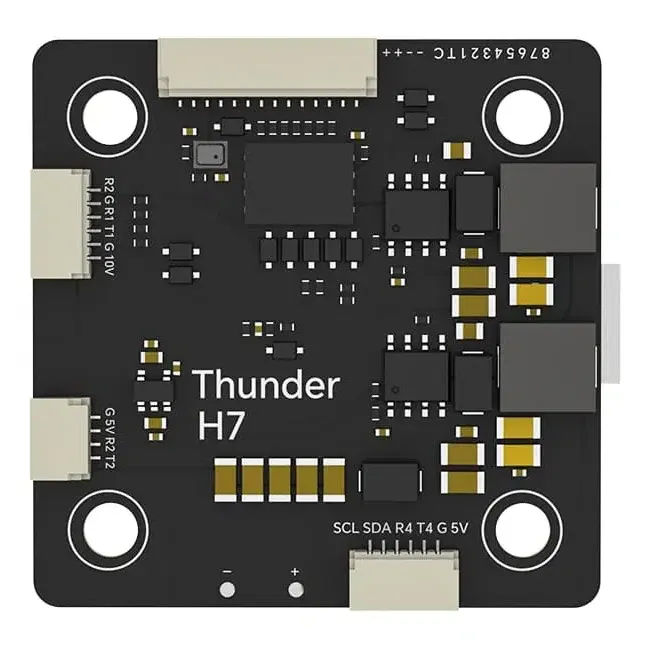

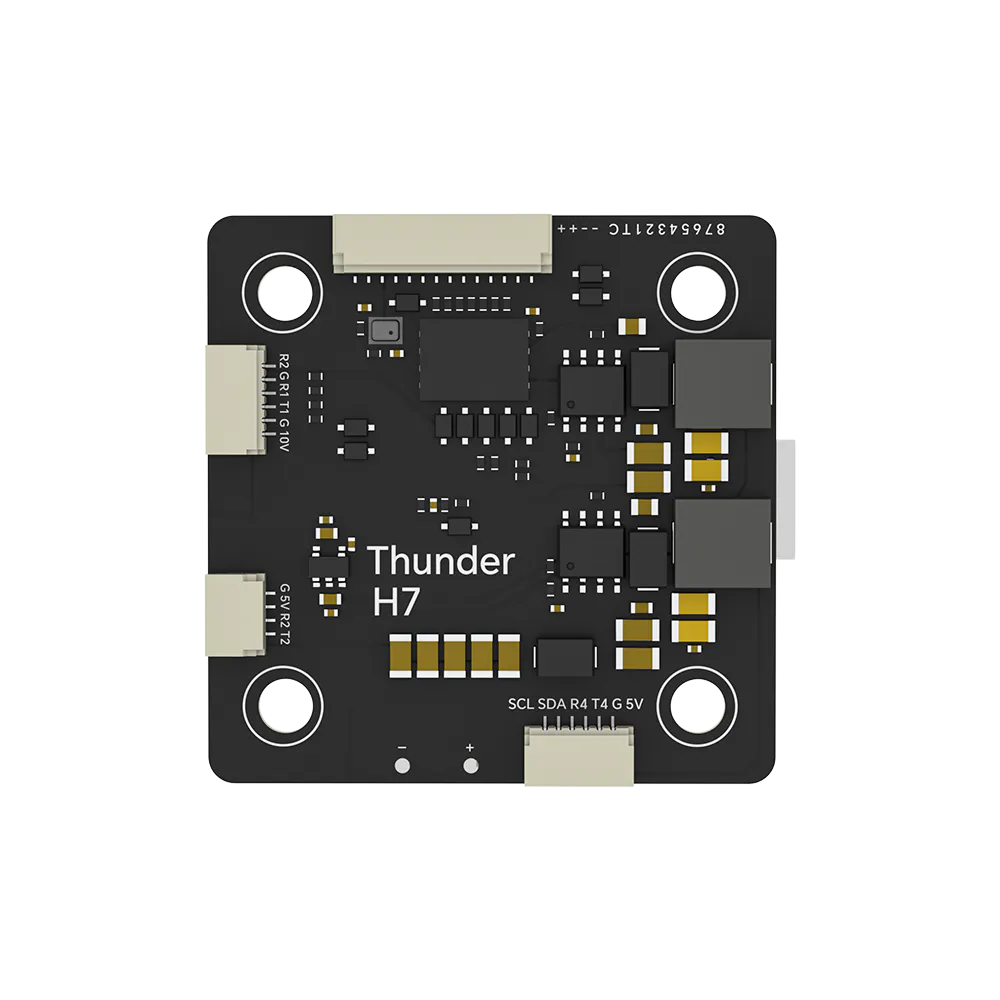

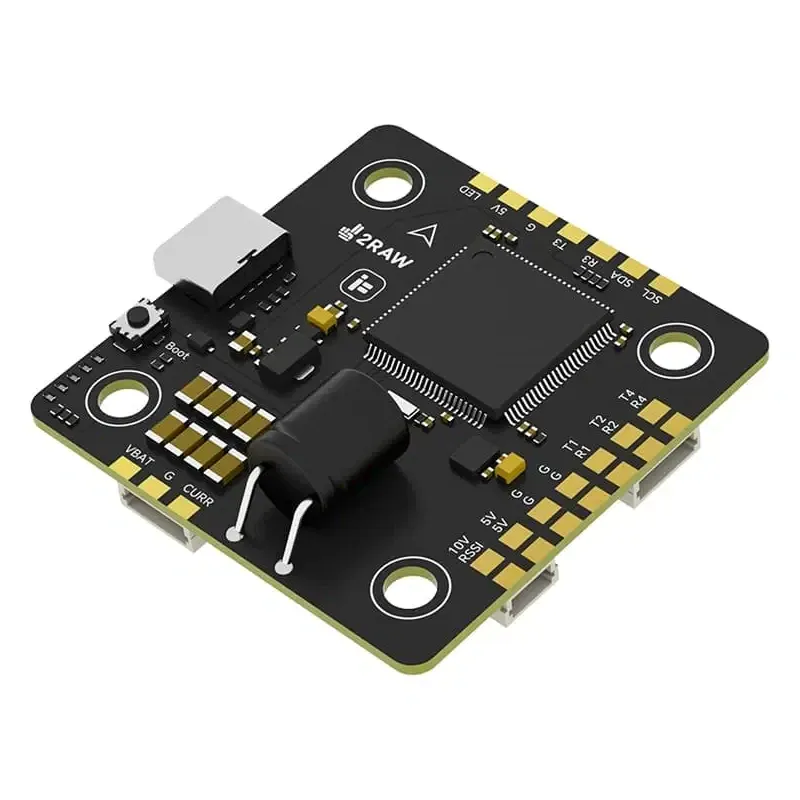

The iFlight Thunder H7 is a 30.5x30.5mm STM32H743 flight controller that iFlight engineered to take a 12S battery directly, without a step-down board in front of it, which makes it a fit for big cinelifters and heavy-lift frames as well as high-voltage freestyle builds. It carries an ICM42688P gyro and an SPL06-001 barometer, and has no analog OSD chip, so pair it with a digital HD video system.
Key features
- Direct 12S input for high-voltage builds, with a dedicated 63V 100uF filtration capacitor slot for a cleaner power signal
- STM32H743 processor with headroom for high loop rates and complex filtering
- Barometer on board for altitude hold in INAV and ArduPilot
- Four motor outputs on SH1.0 connectors, plus plug-and-play pads for the rest of the build
- Supported by all three major firmwares
Specifications
- MCU: STM32H743
- Gyro: ICM42688P
- Barometer: SPL06-001
- OSD: none (digital HD systems)
- Input voltage: up to 12S
- BEC output: 5V 1.5A and 10V 1.5A (2A burst for 120s)
- Blackbox: 512MB flash
- UARTs: 6
- Mounting: 30.5x30.5mm
- Dimensions: 42 x 42 mm
- Weight: 14g
- Firmware: Betaflight, INAV and ArduPilot
| Integrated Receiver | No |
|---|---|
| Mounting Size | 30.5x30.5 |
| Integrated VTX | No |
| FC Processor | H7 |
| Gyro | ICM42688P |
| Input Voltage | 2–12S |
| Made in India | No |
| Brand | iFlight |
| Supported Firmware | Betaflight, ArduPilot, INAV |
| Barometer | Yes |
| UARTs | 6 |
| Weight | 14 g |
| Compass Included | No |
| Motor Outputs | 4 |
