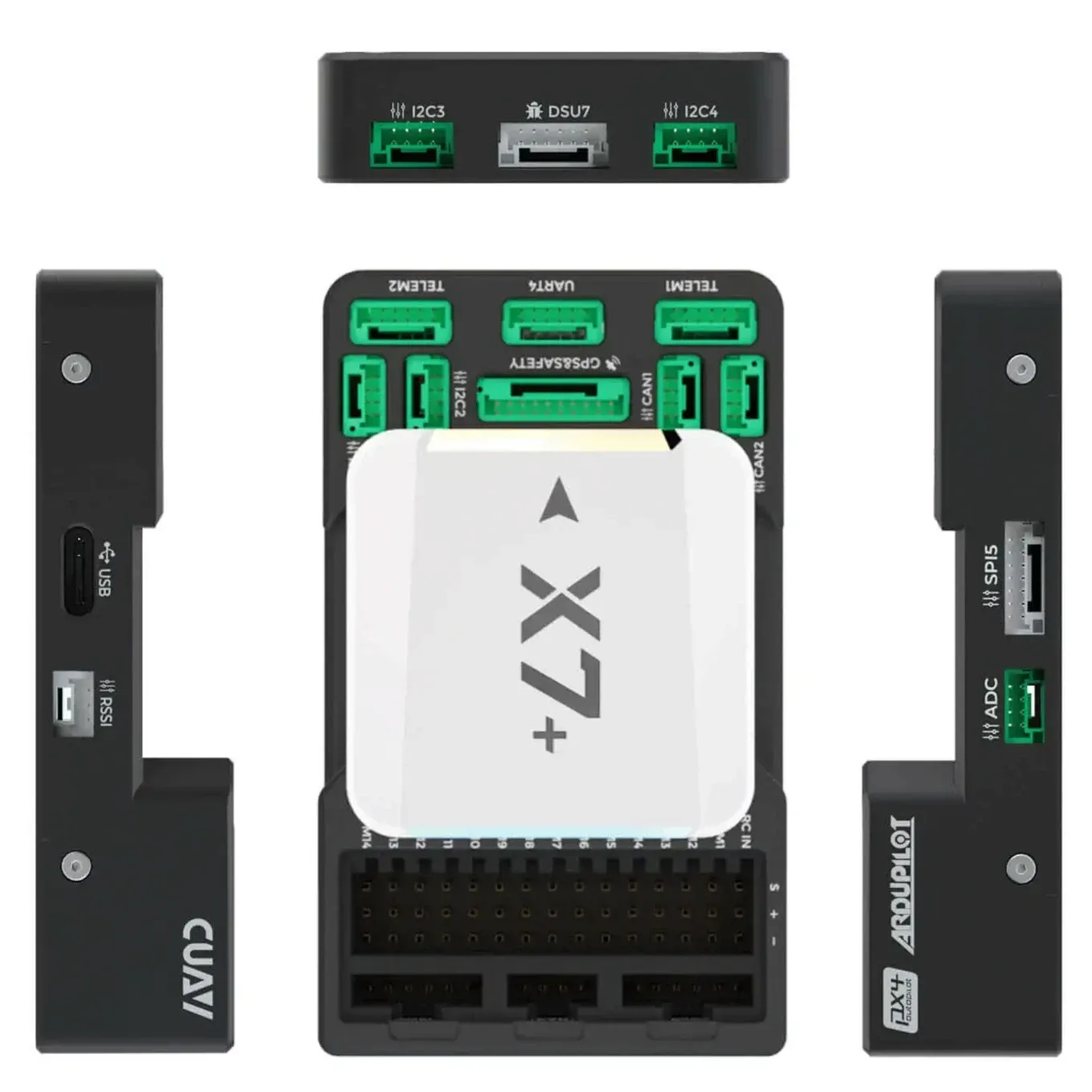

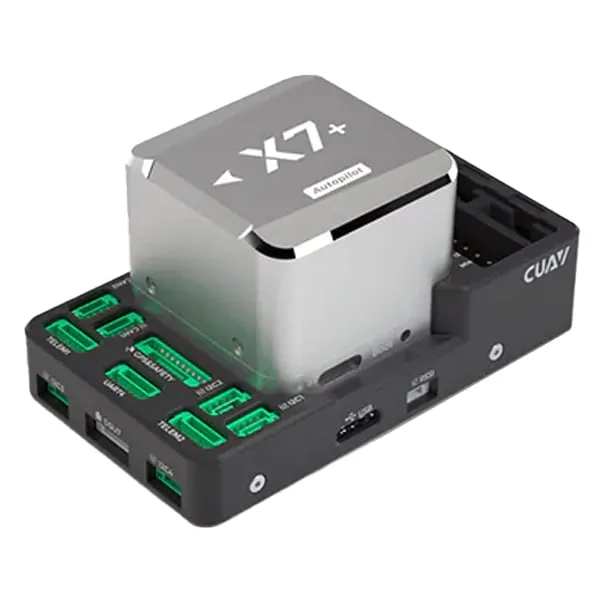

CUAV X7+ Flight Controller | Autopilot For PX4 and APM Drone Hardware

The CUAV X7+ is an enterprise-class autopilot designed for commercial, agricultural, and heavy-lift platforms like VTOL fixed-wings and octocopters. Powered by a high-speed STM32H753 processor, it provides the computational bandwidth and hardware reliability required for complex ArduPilot and PX4 builds.

Key features

• High-speed STM32H753 main processor alongside a dedicated STM32F100 failsafe coprocessor.

• Triple-redundant IMU array equipped with built-in vibration isolation and intelligent temperature compensation.

• Extensive droneCAN support via dual CAN bus ports for seamless integration of RTK GPS modules and smart batteries.

• 14 PWM outputs for managing custom rovers, complex multirotors, and specialised airframes.

Specifications

• Main processor: STM32H753 (480MHz, 2MB Flash, 1MB RAM)

• Coprocessor: STM32F100

• Supported firmware: ArduPilot, PX4

• PWM outputs: 14

• Interfaces: 5x UART, 2x CAN, 2x I2C, 1x SPI

• Operating voltage: 4.3V to 5.4V (requires external power module)

• Operating temperature: -20°C to 85°C

Whether integrating autonomous agricultural platforms or high-endurance mapping multirotors, the X7+ delivers deep system redundancy and flexible payload management for professional integrators.
