MATEKSYS H743-WING V3 Flight Controller

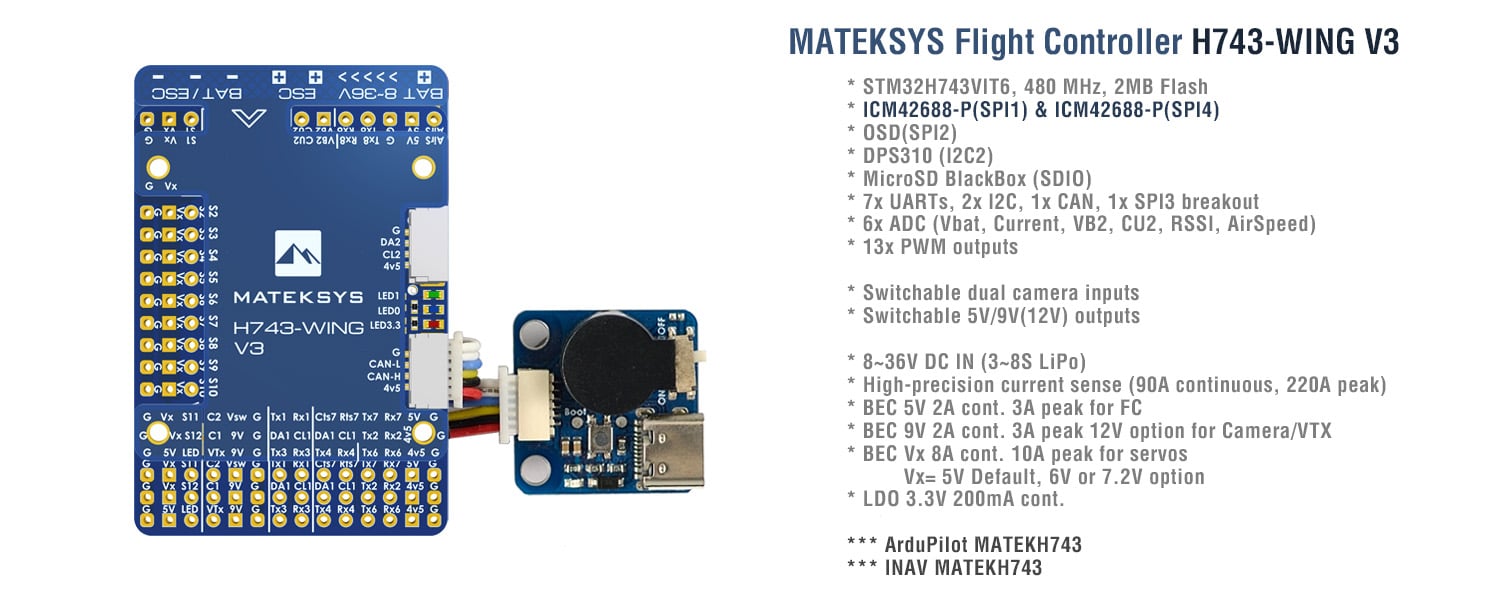

Designed for fixed-wing UAVs, VTOLs, and complex long-range builds, the Mateksys H743-WING V3 flight controller provides advanced processing capabilities via its 480MHz STM32H743VIT6 MCU. This V3 revision updates the sensor array to a dual-IMU configuration, with two ICM42688-P gyros for superior flight stability and redundancy. It retains the extensive I/O layout that makes it a standard for ArduPilot and INAV builders who require numerous servos, sensors, and peripherals.

Key features

• Dual IMU system: Two ICM42688-P gyros for reliable vibration handling and sensor redundancy.

• High-current servo BEC: Dedicated Vx step-down regulator adjustable to 5V, 6V, or 7.2V at 8A continuous for driving multiple servos.

• Extensive connectivity: Outfitted with 7 UARTs, 13 PWM outputs, dual I2C ports, and CAN bus support for complex peripheral setups.

• Integrated Blackbox: Onboard MicroSD card slot ensures you have virtually unlimited storage for flight logging.

• Video system flexibility: Built-in dual camera switcher and selectable 9V/12V 2A regulator for powering VTX and camera gear.

Specifications

• MCU: STM32H743VIT6 (480MHz, 2MB Flash, 1MB RAM)

• IMU (Gyro): 2× ICM42688-P

• Barometer: DPS310 (I2C2)

• OSD chip: AT7456E

• Input Voltage: 3-8S LiPo (9-36V DC)

• Current sensor: 90 A continuous, 220 A peak

• UARTs: 7 (UART1-4, UART6-8)

• PWM Outputs: 13

• Supported Firmware: ArduPilot (MatekH743, Plane 4.2.0+), INAV (MATEKH743)

• Mounting: 30.5x30.5mm

• Dimensions: 54 x 36 x 13 mm

• Weight: 30g (including USB extender)

• In the box: H743-WING V3, USB-C/buzzer extender with cable, 2x JST-GH-4P cables for CAN and I2C, 470 uF 35 V capacitor, Dupont pins (board ships unsoldered)

The controller includes a separate USB-C and buzzer extension module, allowing you to access the setup port and hear status tones easily even when the main board is buried deep inside a wing or fuselage.
