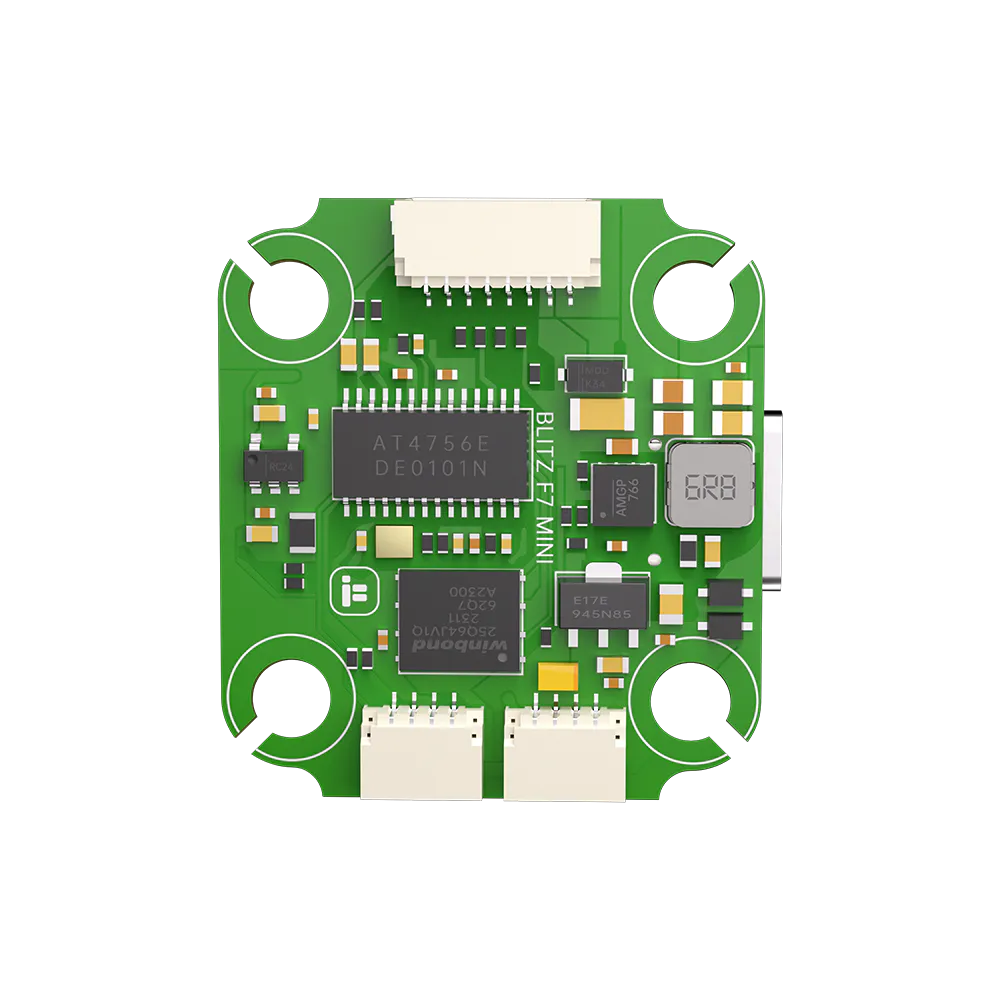

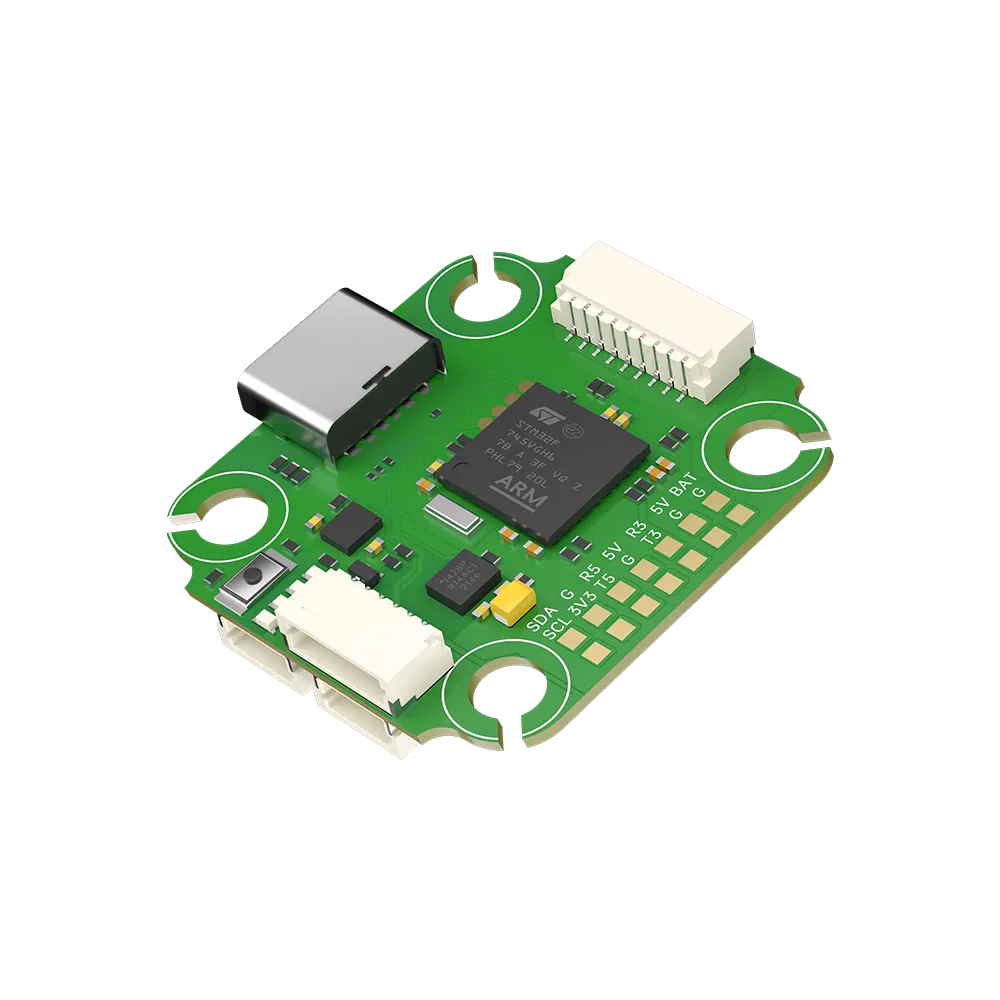

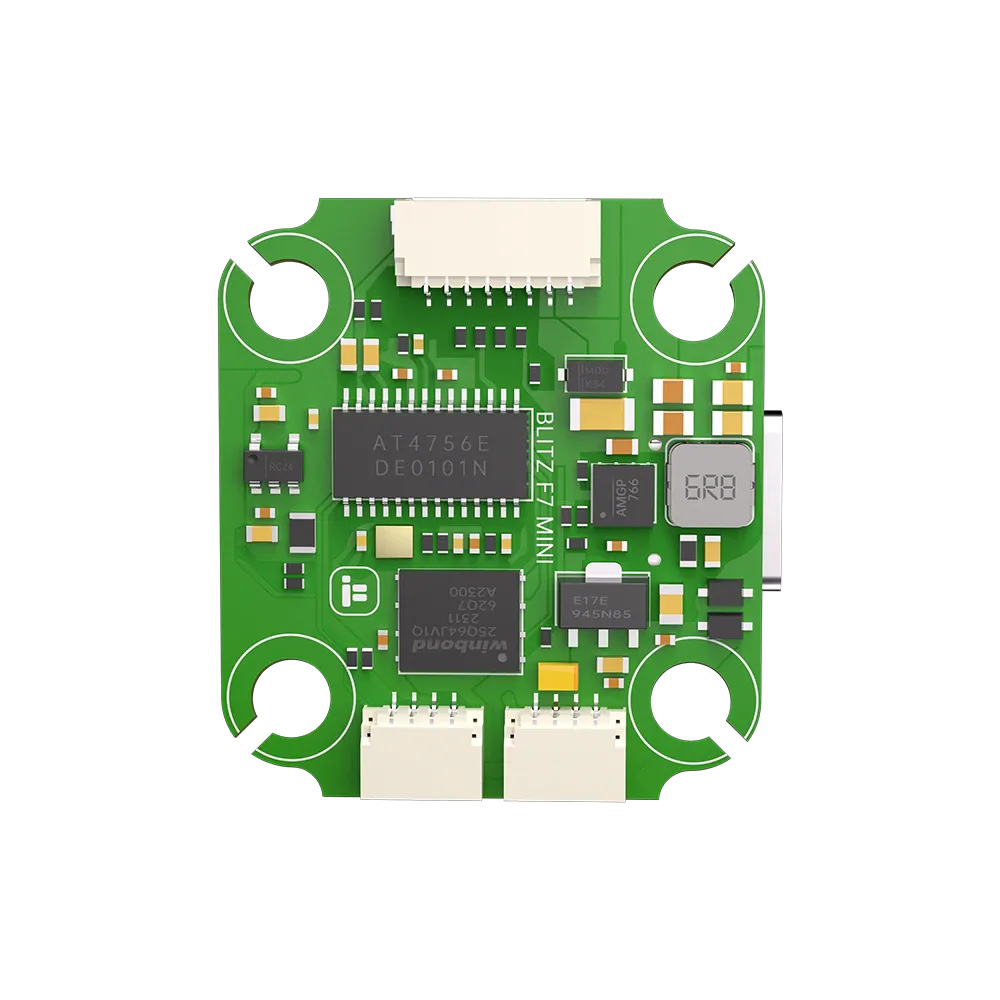

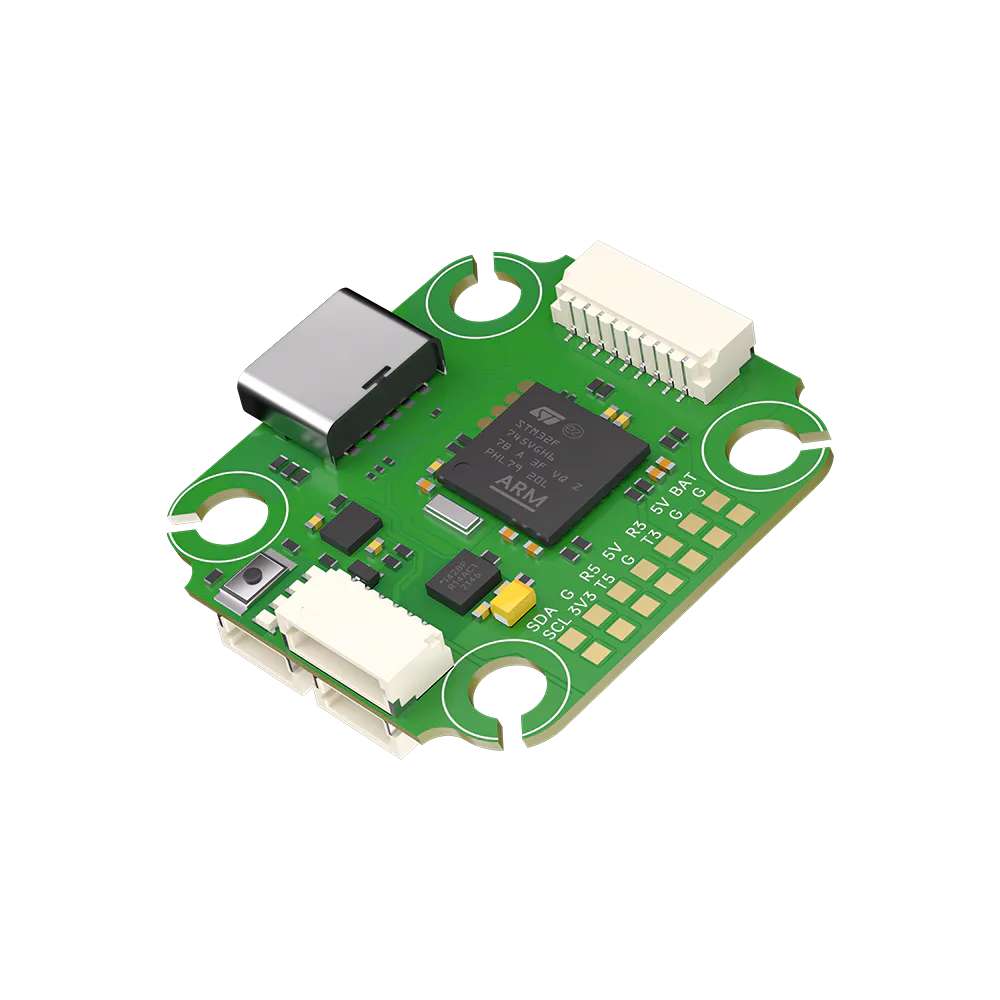

iFlight BLITZ Mini F745 Flight Controller
SKU IFL-BLITZ-MINI-F745
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The iFlight BLITZ Mini F745 is a high-performance flight controller built for compact sub-250g quads, cinewhoops, and lightweight freestyle builds. Driven by the powerful STM32F745 processor and an ICM42688P gyro, it handles complex Betaflight PID loops, high-frequency ESC communication, and dynamic filtering without CPU overload.
Key features
- STM32F745 MCU provides extensive processing headroom for bidirectional DShot and aggressive filter settings.
- ICM42688P gyro delivers low-noise, locked-in flight characteristics.
- Dedicated plug-and-play ports for rapid, solder-free integration with digital HD VTX systems and 4-in-1 ESCs.
- Onboard 5V and 9V BECs efficiently power receivers, GPS modules, and digital video transmitters.
Specifications
- MCU: STM32F745
- Gyro: ICM42688P
- Mounting Size: 20x20
- Input Voltage: 2-6S
- Supported Firmware: Betaflight, INAV, ArduPilot
- Barometer: DPS310
- OSD chip: AT7456E
- Blackbox: 16MB flash
- UARTs: 6
- BEC: 5V 2.5A / 9V 2A
- Motor outputs: 4 (SH1.0 connector)
- Dimensions: 30.5 x 27 mm
- Weight: 4.8 g
- Betaflight target: IFLIGHT_BLITZ_F7_AIO
This flight controller is an ideal brain for 3-inch to 5-inch frames lacking 30.5x30.5 mounting space, giving builders the processing power and connectivity of a full-sized board in a much smaller footprint.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 20x20 |
| Integrated VTX | No |
| FC Processor | F745 |
| Gyro | ICM42688P |
| Input Voltage | 2–6S |
| Made in India | No |
| Brand | iFlight |
| Supported Firmware | Betaflight, ArduPilot, INAV |
| Barometer | Yes |
| UARTs | 6 |
| Weight | 4.8 g |
| Compass Included | No |
| Motor Outputs | 4 |
