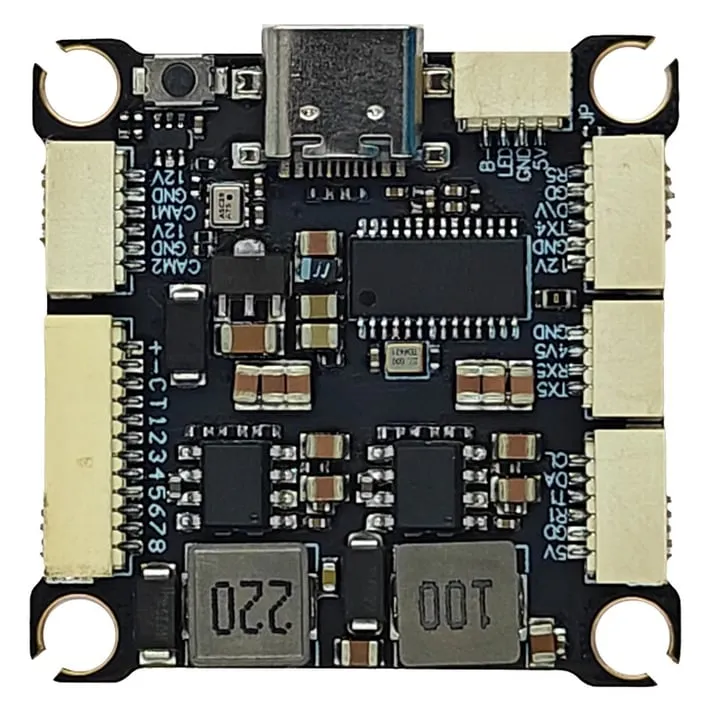

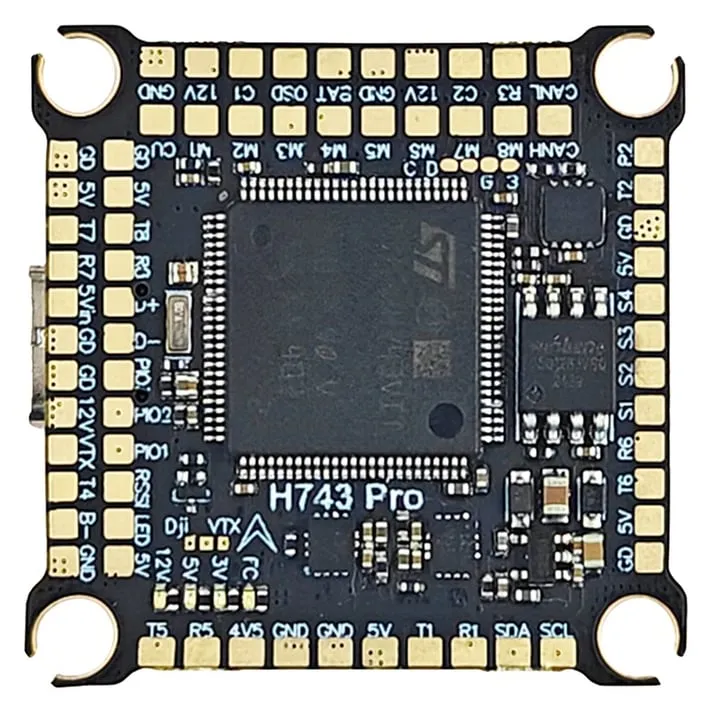

DAKEFPV H743 Pro Flight Controller

The DAKEFPV H743 Pro is a high-performance flight controller designed for demanding long-range, cinematic, and heavy-lift drone builds. Powered by an STM32H743 processor, it offers massive computing headroom for high PID loop rates, advanced filtering, and complex telemetry logic without bottlenecking.

Key features

• STM32H743 MCU delivers ARM Cortex-M7 processing power at 480MHz for intensive flight algorithms.

• Dual IMU configuration provides hardware-level gyro redundancy and superior vibration rejection.

• 8 full hardware UARTs support multiple simultaneous peripherals, including HD video systems, GPS modules, and RC receivers.

• Onboard barometer enables precise altitude tracking for autonomous navigation and rescue modes.

• Standard 30.5x30.5mm mounting pattern drops straight into conventional freestyle and macro-quad frames.

Specifications

• Processor: STM32H743

• Gyro / IMU: Dual ICM42688

• UARTs: 8

• Barometer: SPL06

• Compass: none onboard (use an external I2C compass)

• OSD chip: AT7456E, with DisplayPort OSD support

• Blackbox: 16MB onboard flash

• CAN port: 1

• PWM outputs: 13 (12 motor, 1 LED)

• Input voltage: 4-12S

• BEC: 3.3V 0.5A, 5V 3A, 12V 3A (switchable, for video)

• Camera inputs: 2, switchable

• Mounting size: 30.5x30.5 mm

• Supported firmware: Betaflight, ArduPilot

With its high UART count and flagship H7 processing capability, the H743 Pro is the ideal core for pilots wiring up a full suite of accessories on 5-inch to 7-inch frames and heavy-duty cinelifters.
