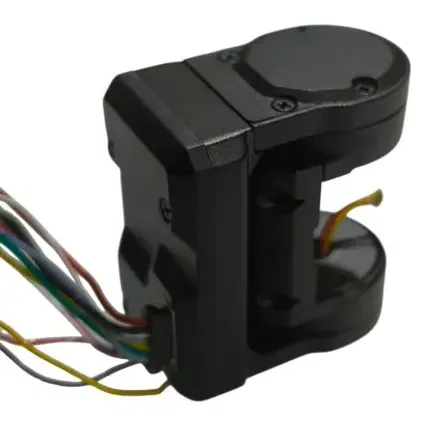

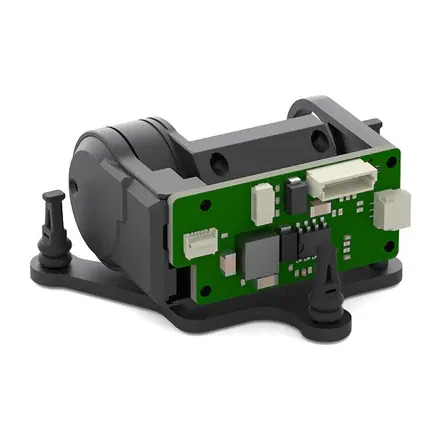

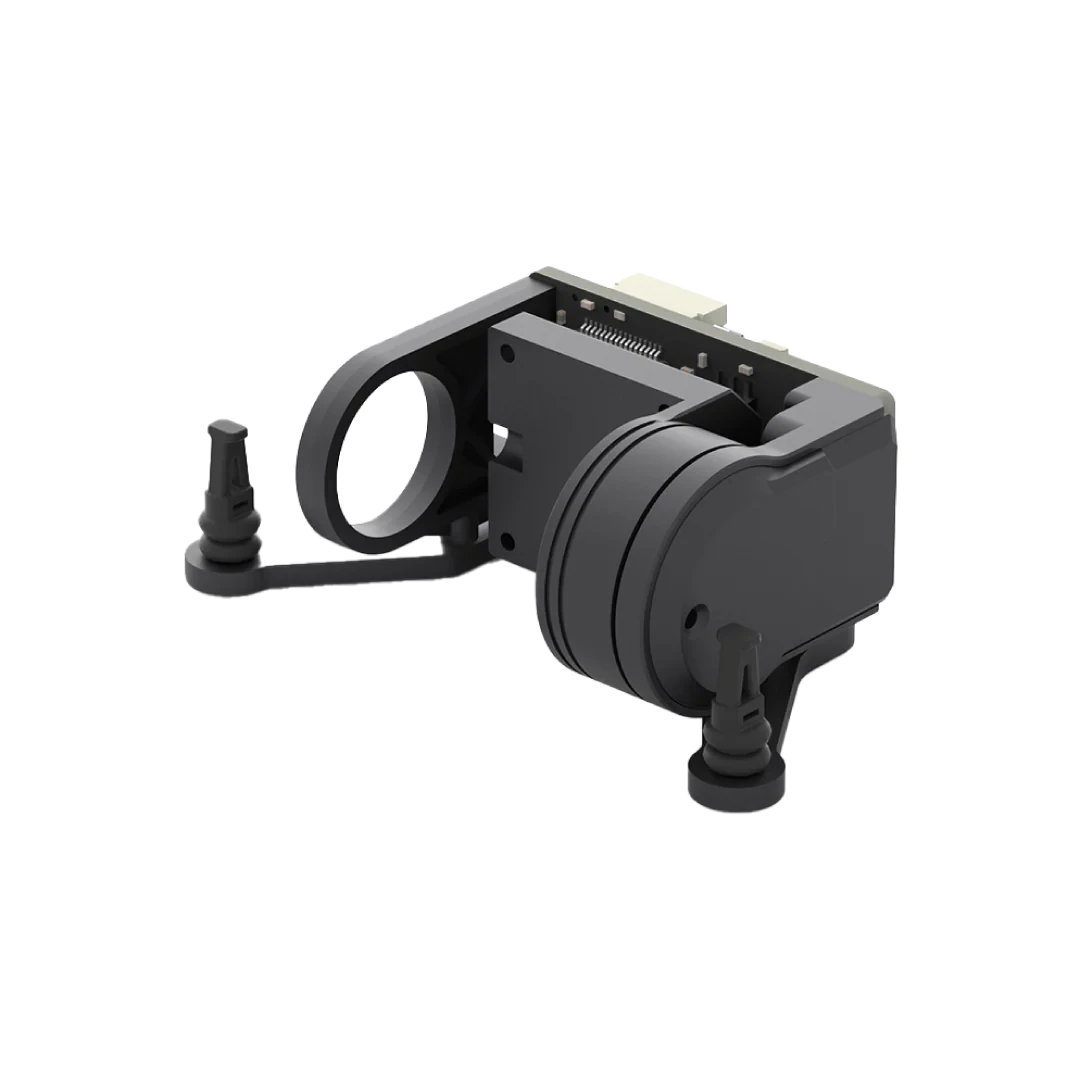

Caddx GM1 V2 1-Axis Gimbal for Walksnail Avatar 19mm Cameras

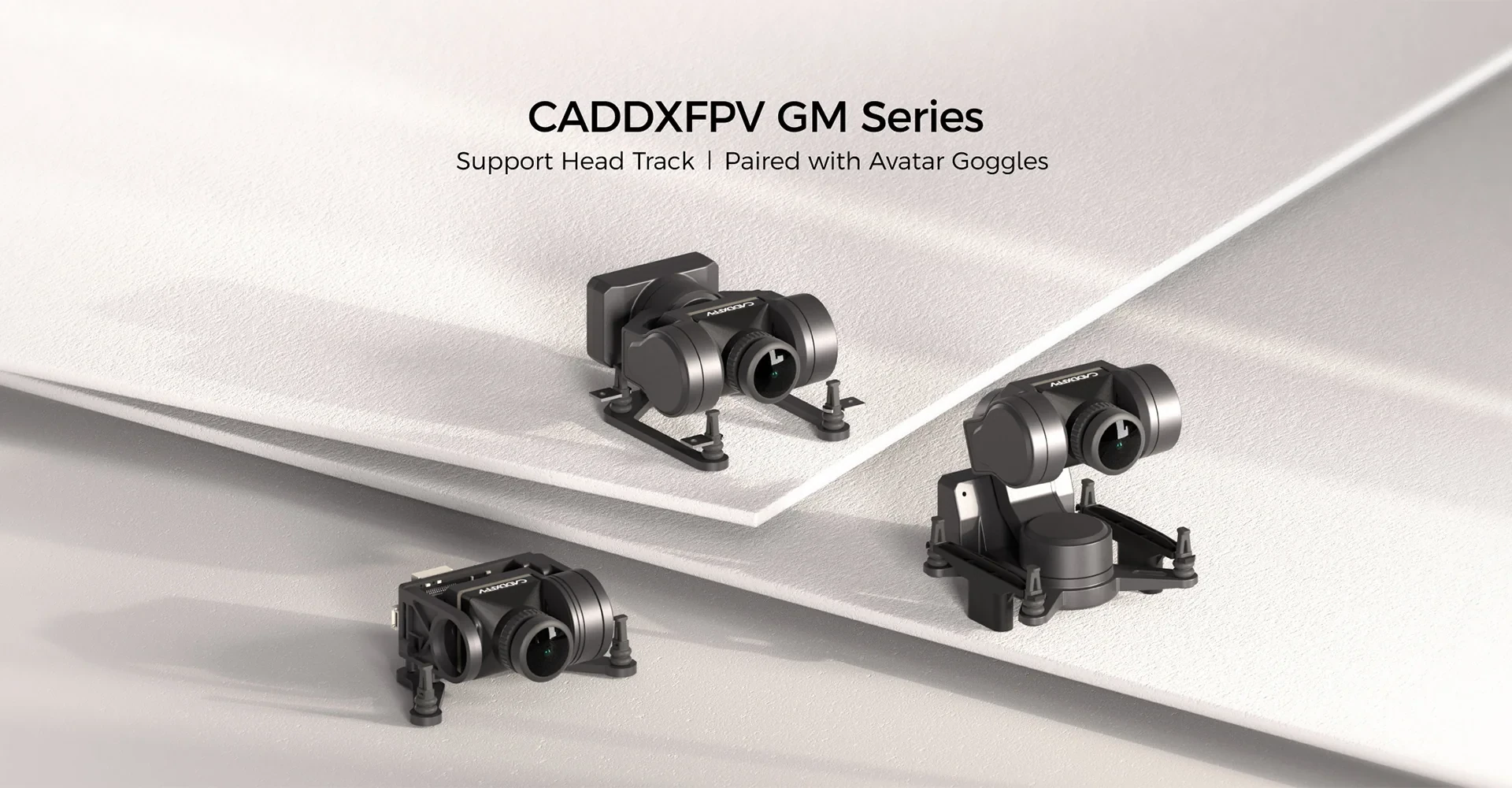

The Caddx GM1 V2-19 is a single-axis pitch gimbal for Walksnail Avatar and Ascent cameras with a 19mm mounting width. It levels the camera mechanically so the FPV feed and onboard recording stay steady through vibration and attitude changes, and with goggle head tracking it lets you look up and down during flight. The camera is not included.

Key features

• Stabilisation accuracy of ±0.005°, ±120° of pitch travel and up to ±1500°/s controllable speed

• Control over UART, SBUS, CRSF, PWM or MAVLink, with adjustable tracking sensitivity and response speed

• Detects upright or inverted mounting automatically

• Runs directly from a 3–6S LiPo, drawing about 1 W at rest and 7.5 W at stall

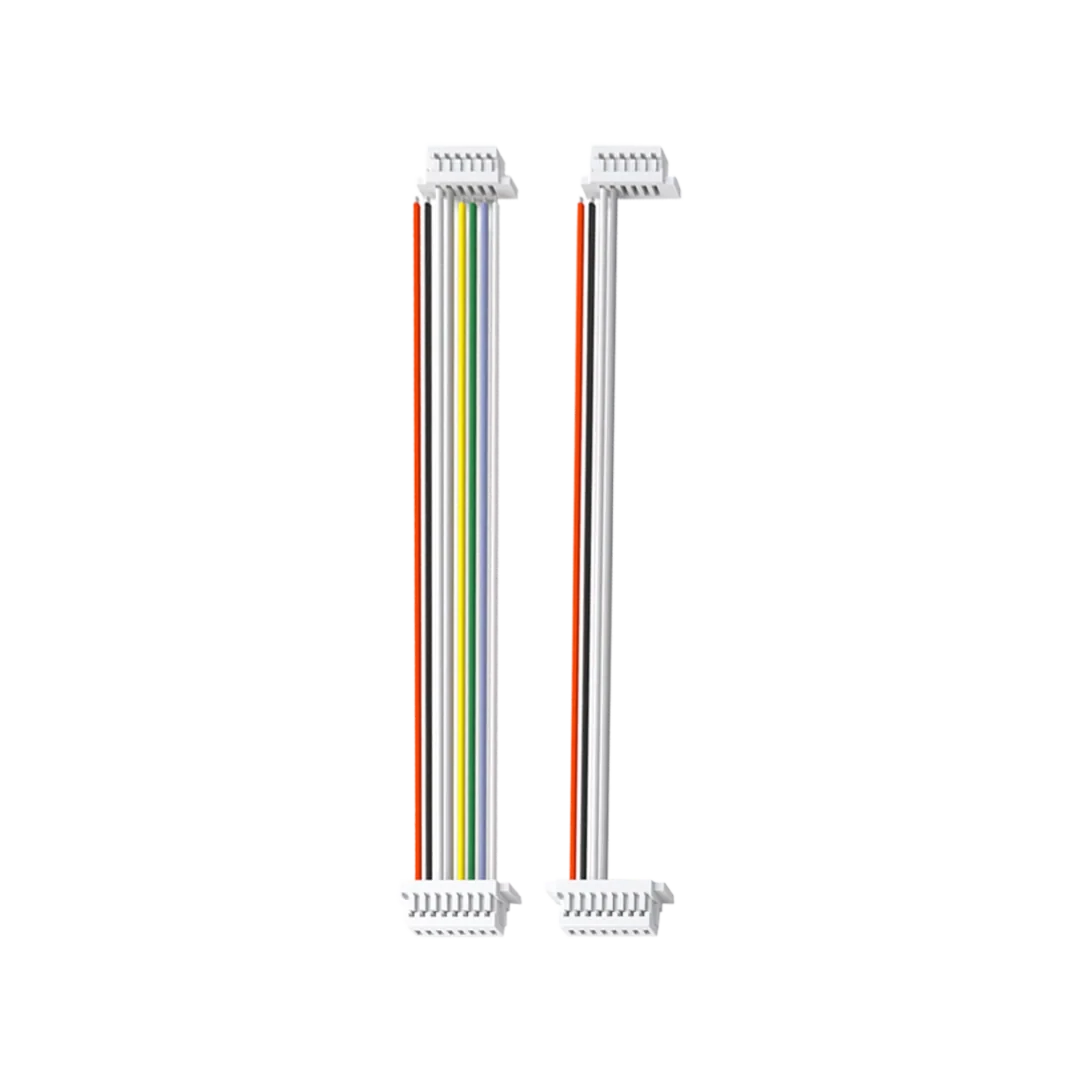

• Supplied with a cable set and vibration dampers

Specifications

• Axis: 1 (pitch)

• Compatible cameras: Walksnail Avatar / Ascent, 19mm width

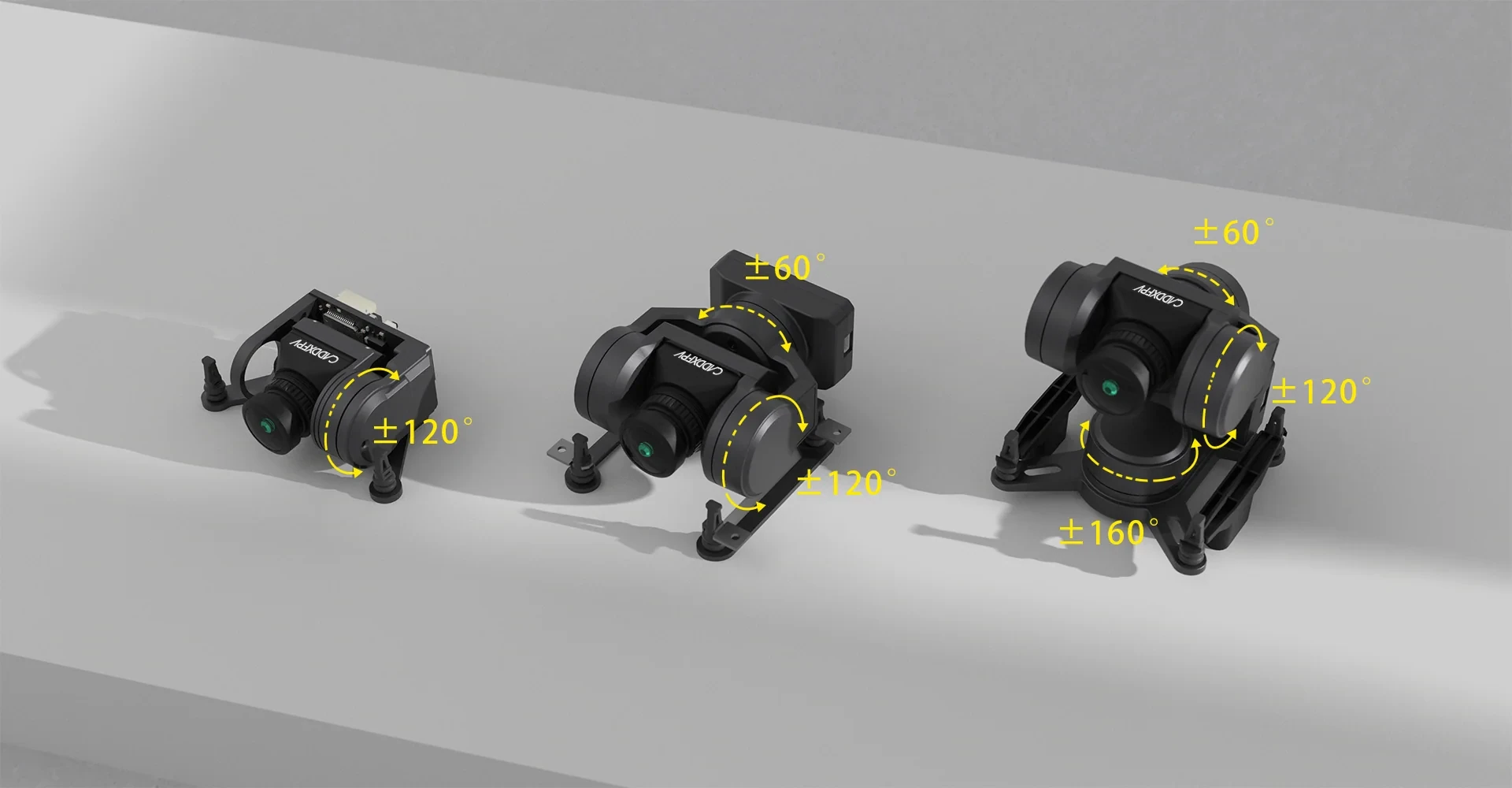

• Pitch range: ±120°

• Stabilisation accuracy: ±0.005°

• Max controllable speed: ±1500°/s

• Input: 3–6S LiPo

• Power draw: 1 W static, 7.5 W stall

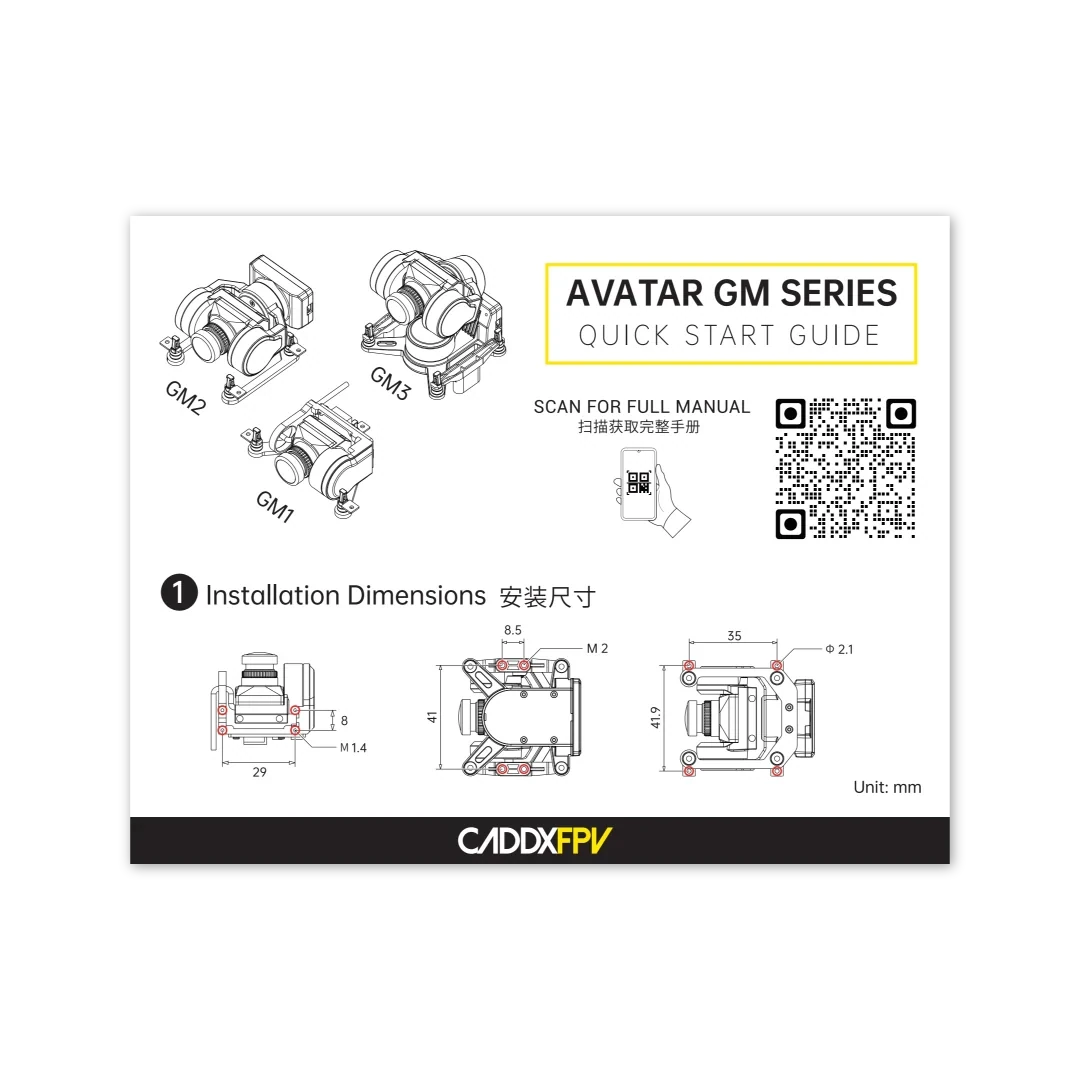

• Dimensions: 43 × 46.4 × 56.9 mm

• Weight: 32 g

• In the box: gimbal, cable set, vibration damper set

Pick the control method to suit your flight controller: UART with INAV, MAVLink with ArduPilot or PX4, or SBUS, CRSF or PWM straight from the receiver.
