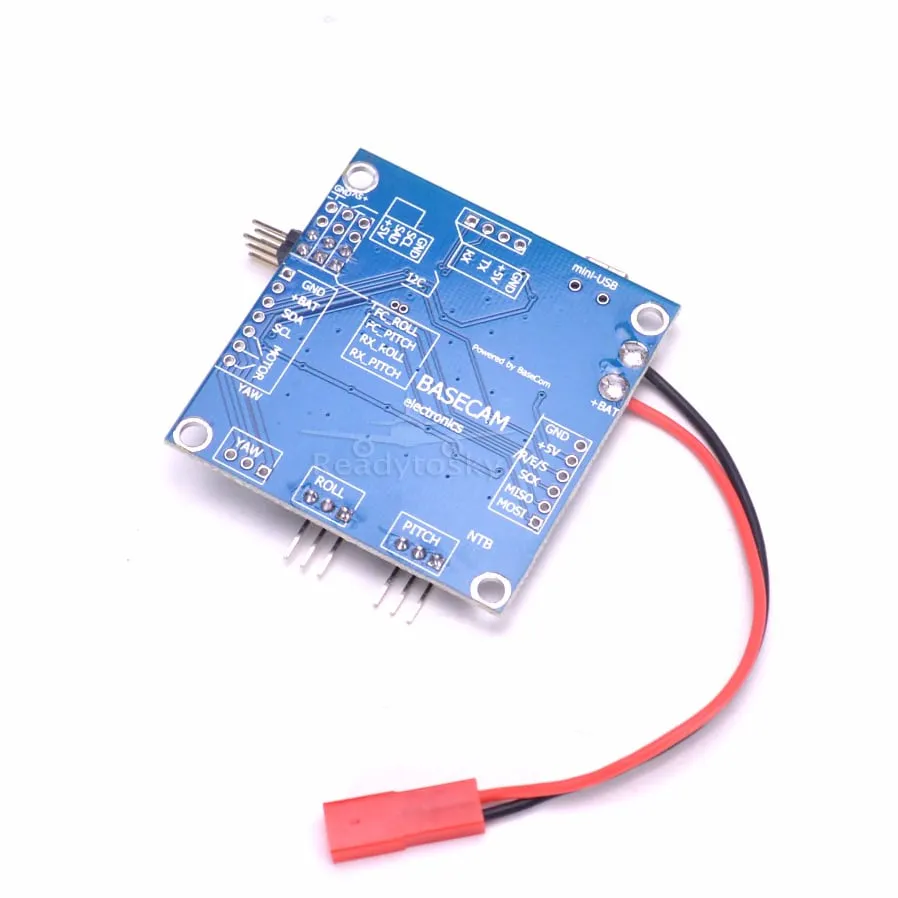

BGC V3.15 MOS 2-Axis Brushless Gimbal Controller
₹1,899Incl. GST
SKU BGC-V315-MOS-2AXIS
Brand: GenericAxis: 2Input Voltage: 3–4S
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The BGC V3.15 MOS is a large-current 2-axis brushless gimbal controller and driver for compatible drone camera gimbals, configured through the SimpleBGC GUI software.
Key features
- MOS-tube driver stage handles 10A peak current, with 2.8 A continuous and 7.1 A short-term per motor.
- Runs from an 8-18 V supply (3-4S LiPo); 12 V (3S) is recommended.
- Onboard USB port connects to a PC, Mac or Linux computer for configuration and firmware updates via the SimpleBGC GUI.
- IIC interface is available for additional sensor or accessory connections.
- Runs as a 2-axis controller on its own, or as a 3-axis system with an add-on extension board.
Specifications
- Axis: 2 (3-axis with extension board)
- Input voltage: 8-18 V (3-4S)
- Peak current: 10A
- Current per motor: 2.8 A continuous, 7.1 A short-term
- Interface: IIC, USB
- IMU sensor: MPU6050
- Protection: over-current, over-heat, under-voltage, reverse polarity
- Board size: 52 x 52 mm, M3 mounting holes
- Configuration: SimpleBGC GUI (PC/Mac/Linux/Android)

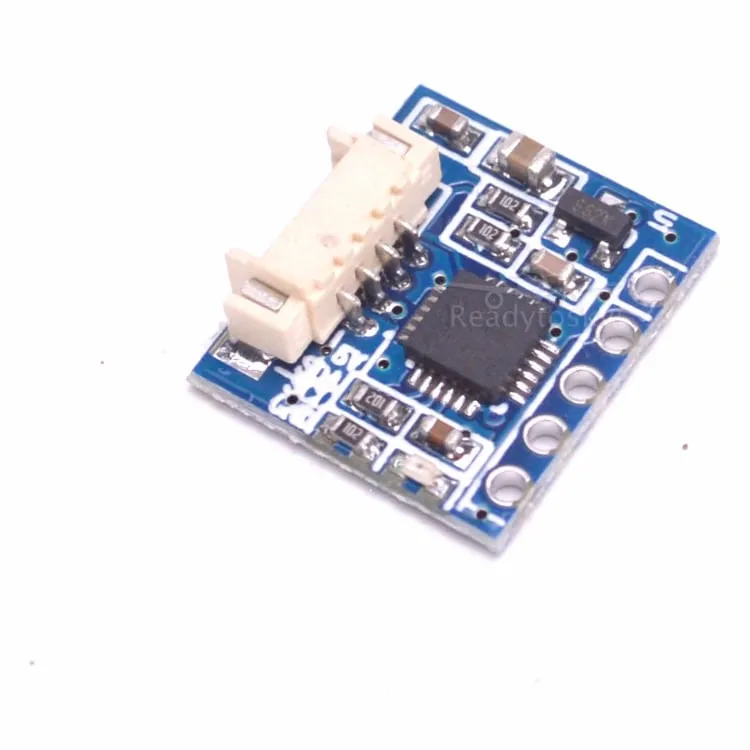

Includes a gyro sensor with a 30cm cable; confirm your gimbal motor's current and voltage requirements before wiring it to this driver.
