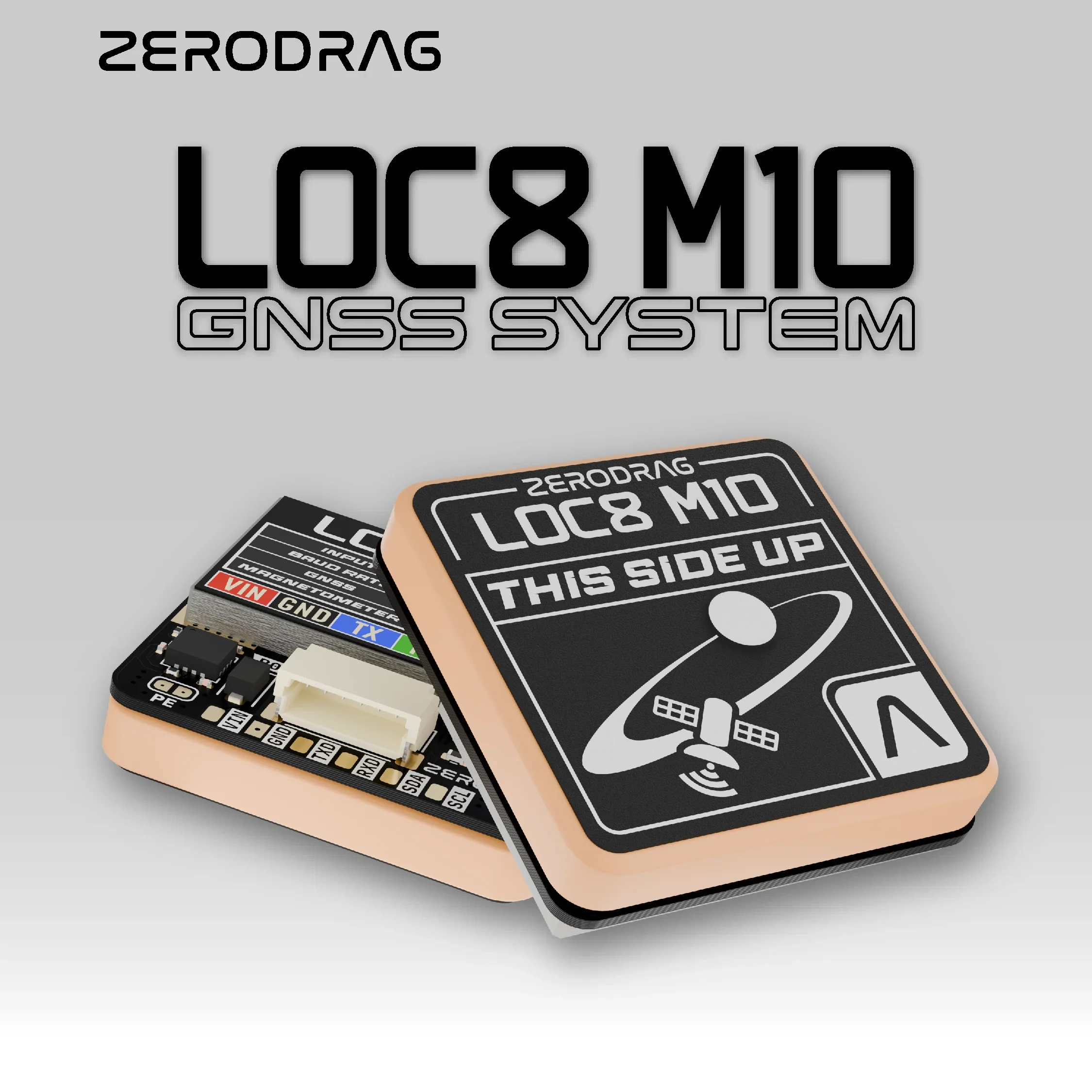

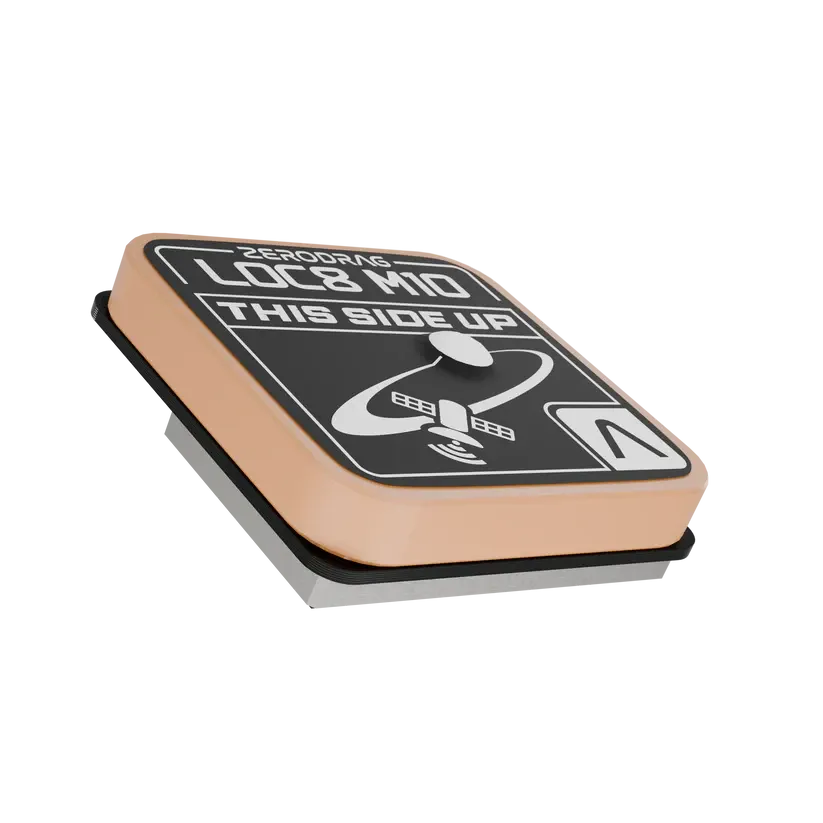

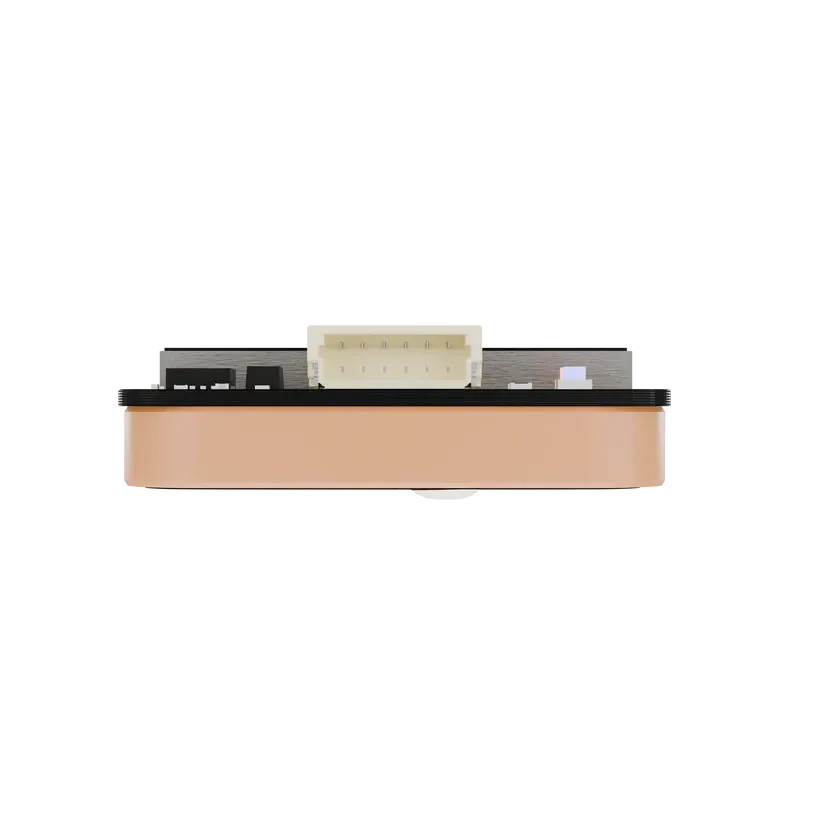

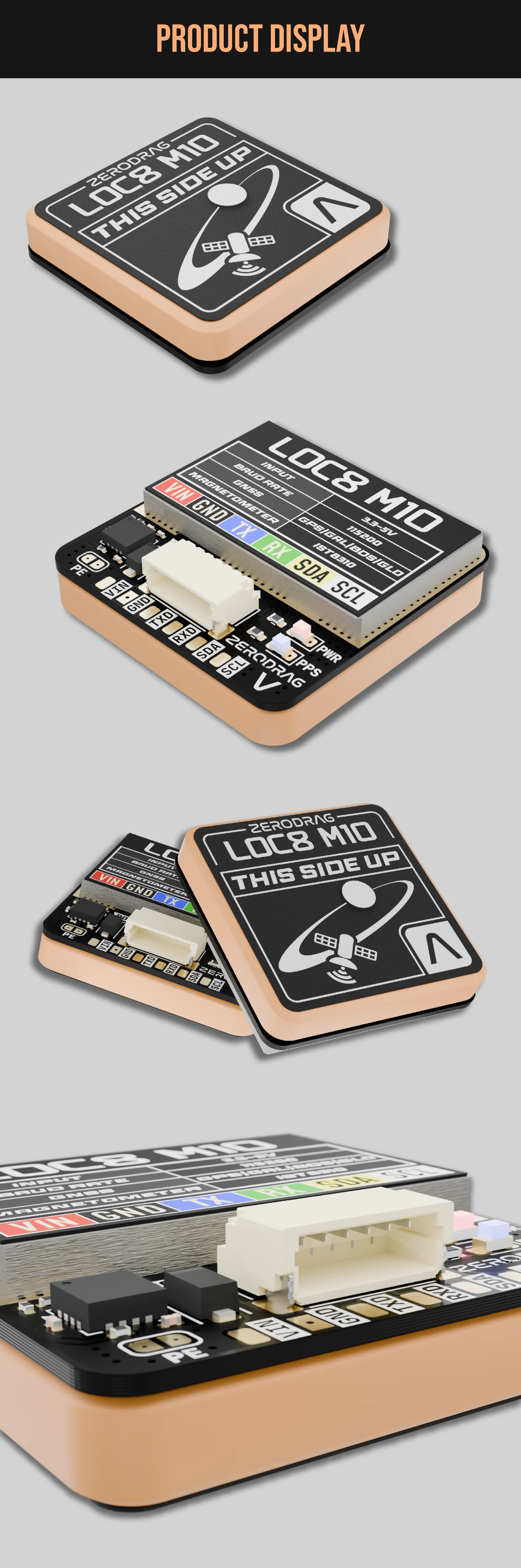

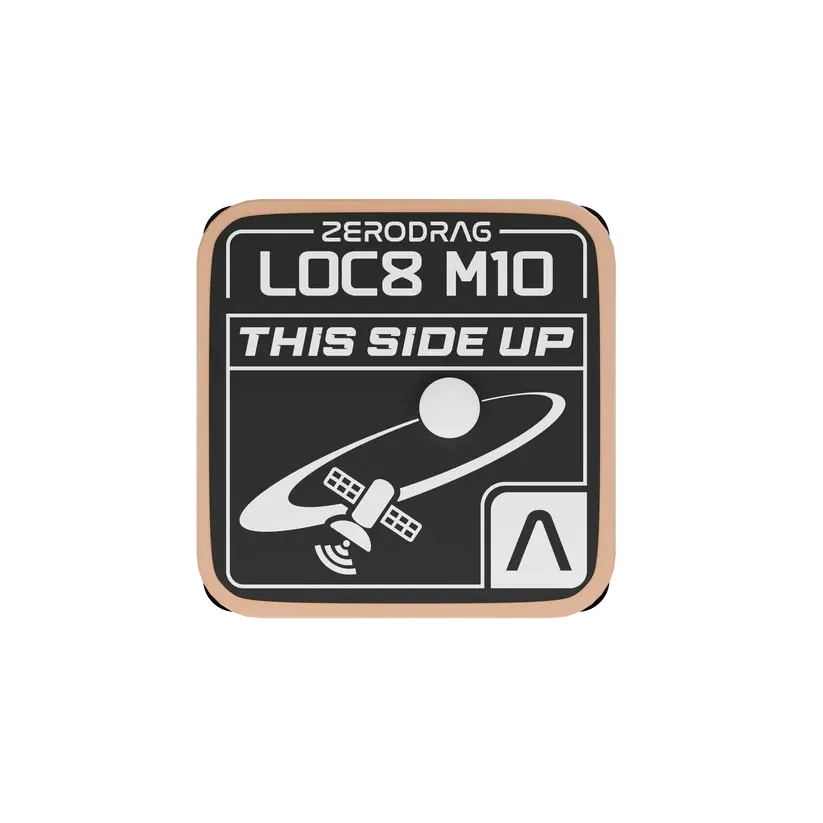

Zerodrag LOC8-M10 GPS Module with Compass

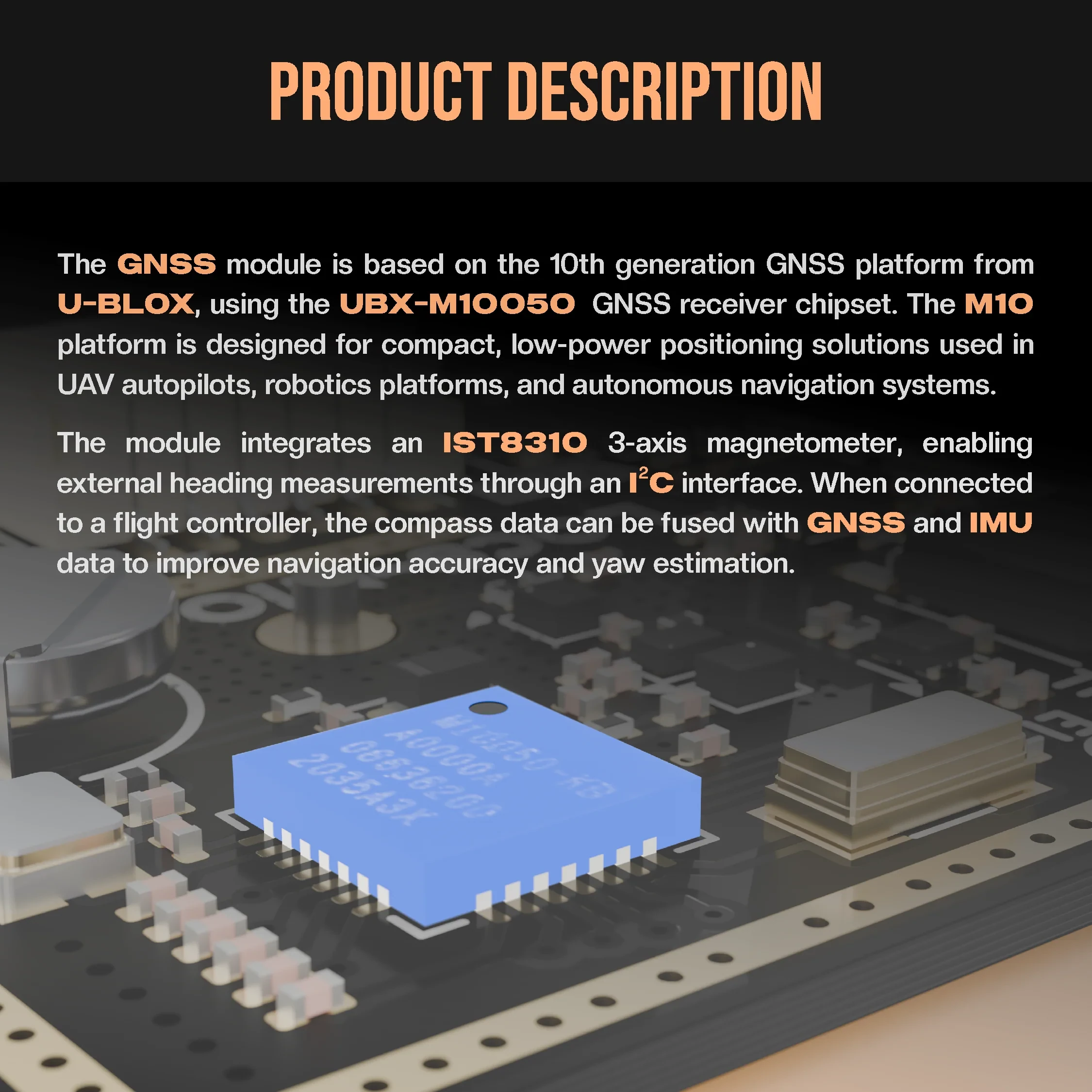

Zerodrag LOC8-M10 is a made-in-India GNSS module built on the u-blox M10 receiver with an onboard magnetometer. It suits FPV quads, fixed-wings and autonomous UAVs that need position hold, return-to-home or waypoint missions, and works with Betaflight, INAV, ArduPilot and PX4.

Key features

• Tracks GPS, GLONASS, Galileo and BeiDou concurrently, for more satellites in view

• Navigation updates at up to 25 Hz on a single constellation, or up to 10 Hz with all four running

• Onboard compass for heading in ArduPilot, INAV and PX4 navigation modes

• UART connection, cable included

• Made in India, with a 12-month manufacturer warranty

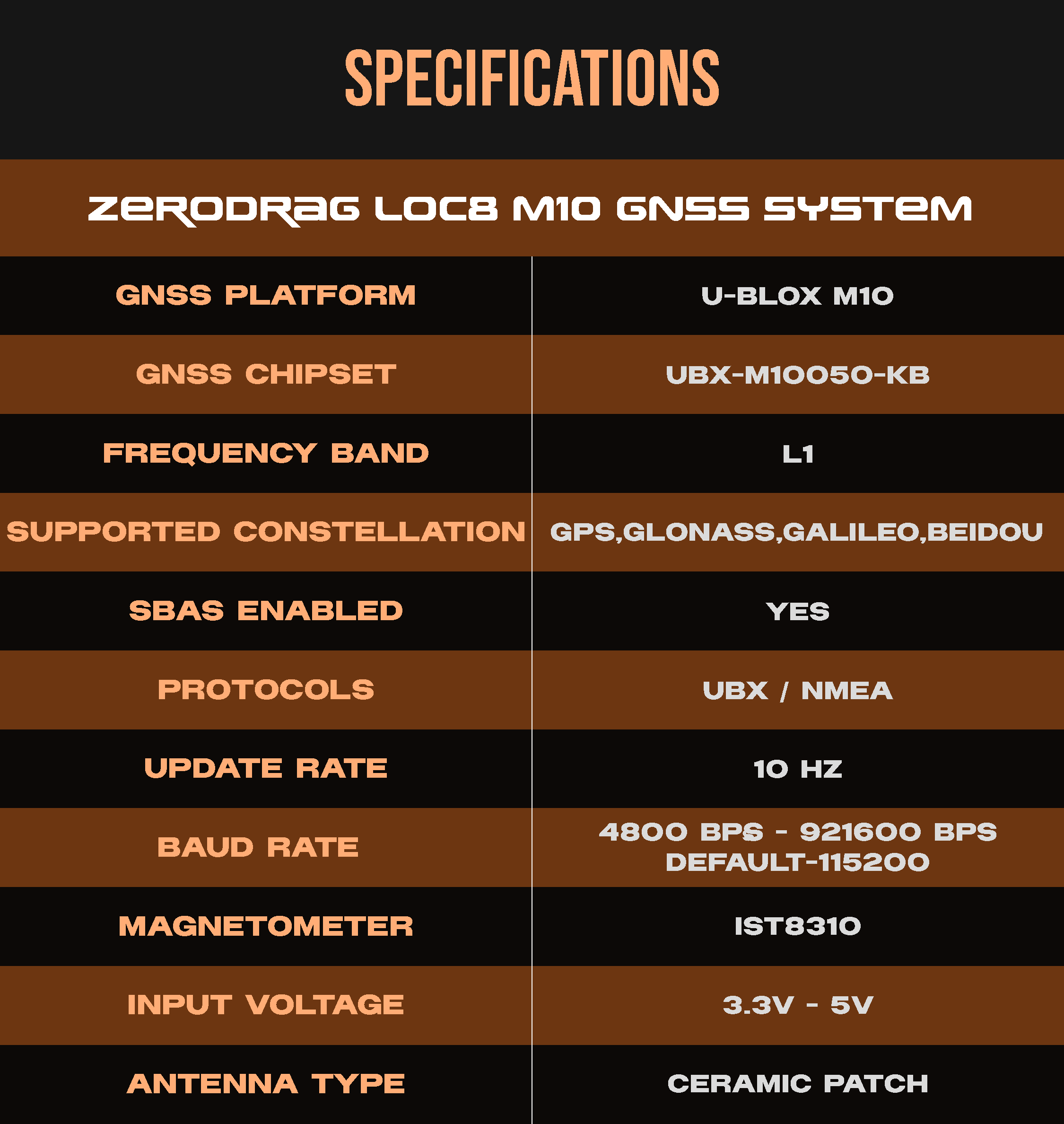

Specifications

• GNSS receiver: u-blox M10

• Constellations: GPS L1 C/A, GLONASS L1OF, Galileo E1B/C, BeiDou B1I/B1C

• Update rate: up to 25 Hz (single GNSS), up to 10 Hz (4 concurrent)

• Compass: onboard magnetometer

• Interface: UART

• Firmware support: ArduPilot 4.3+, INAV 5.0+, PX4 1.14, Betaflight 4.3+

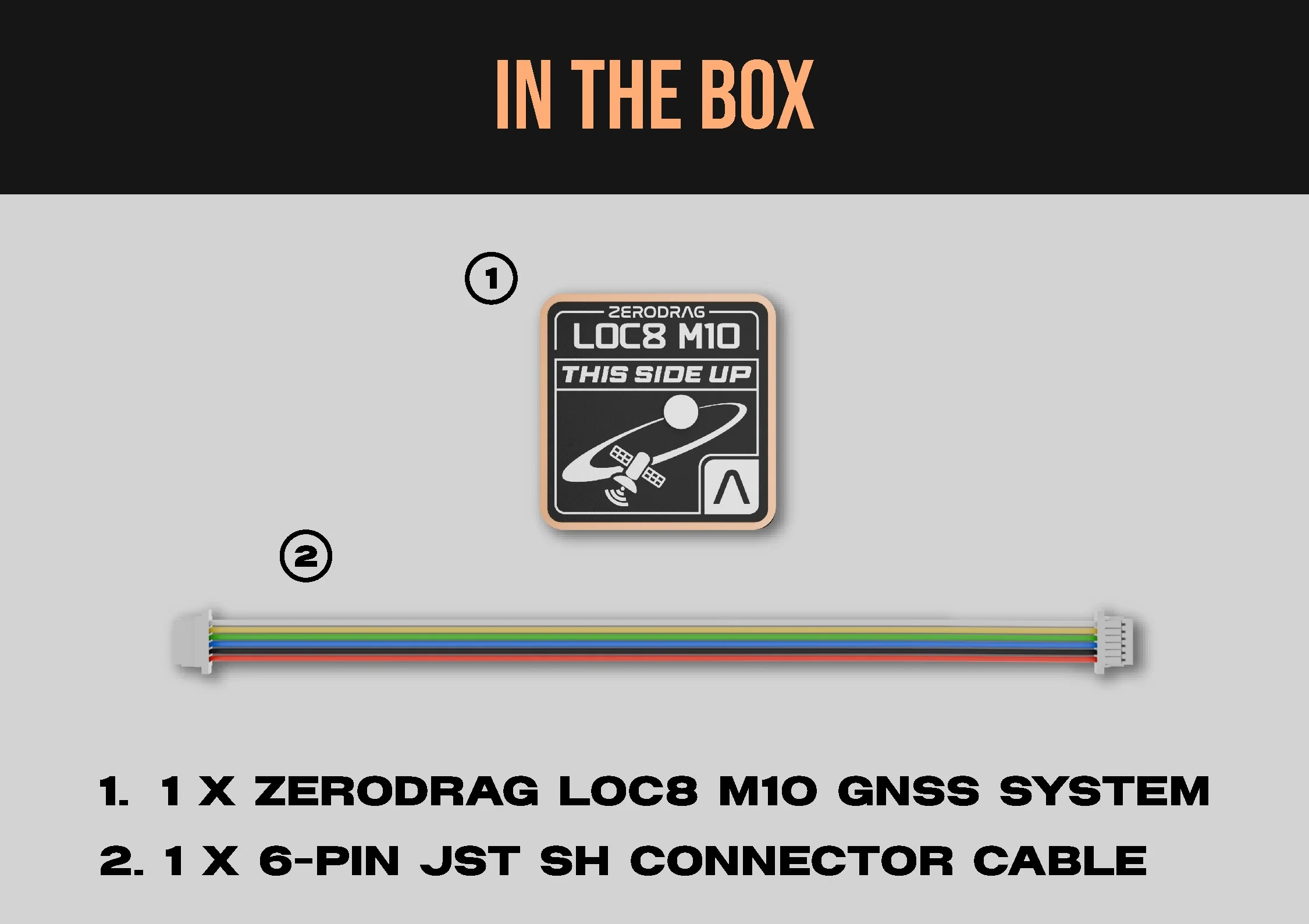

• In the box: GPS module, connecting cable

• Warranty: 12 months

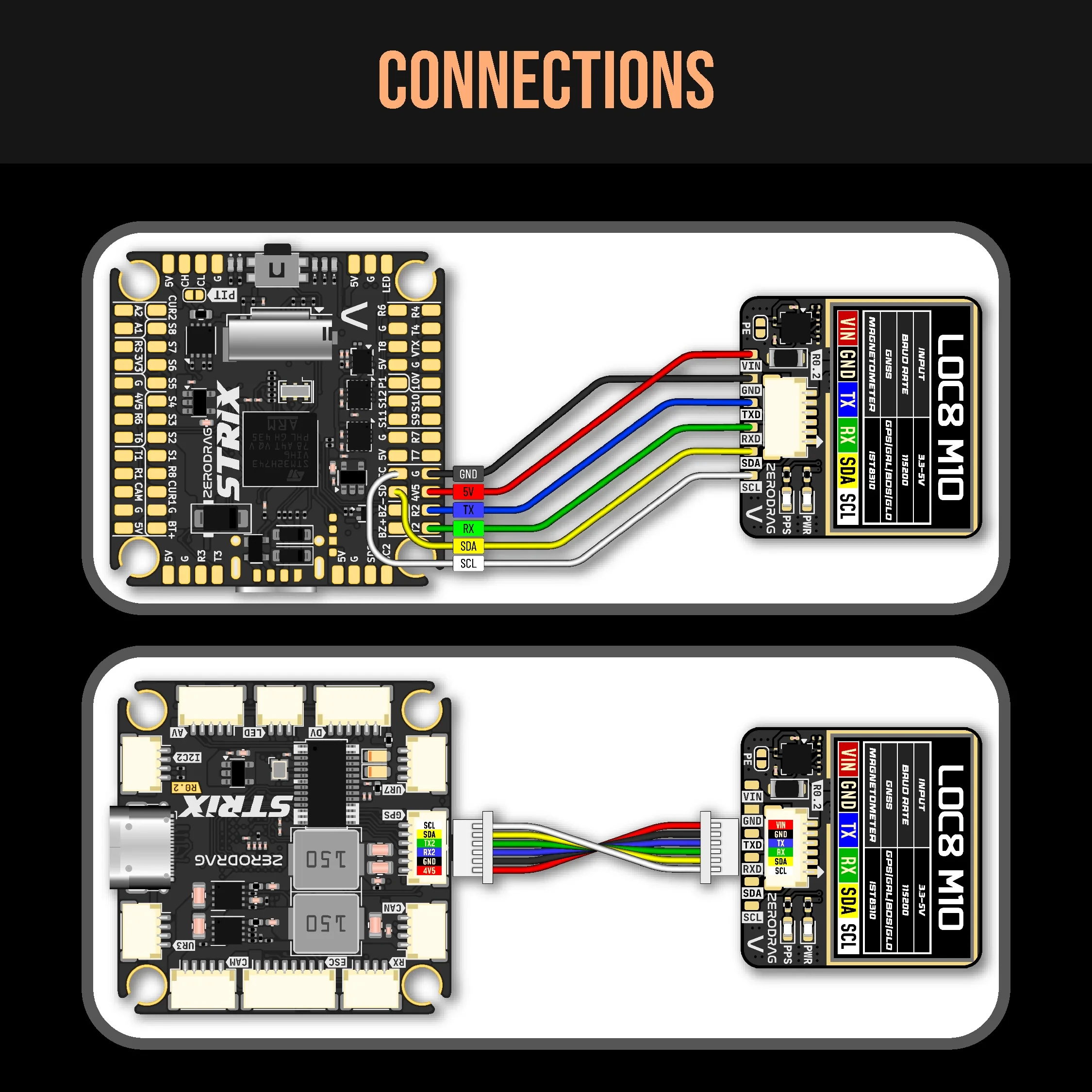

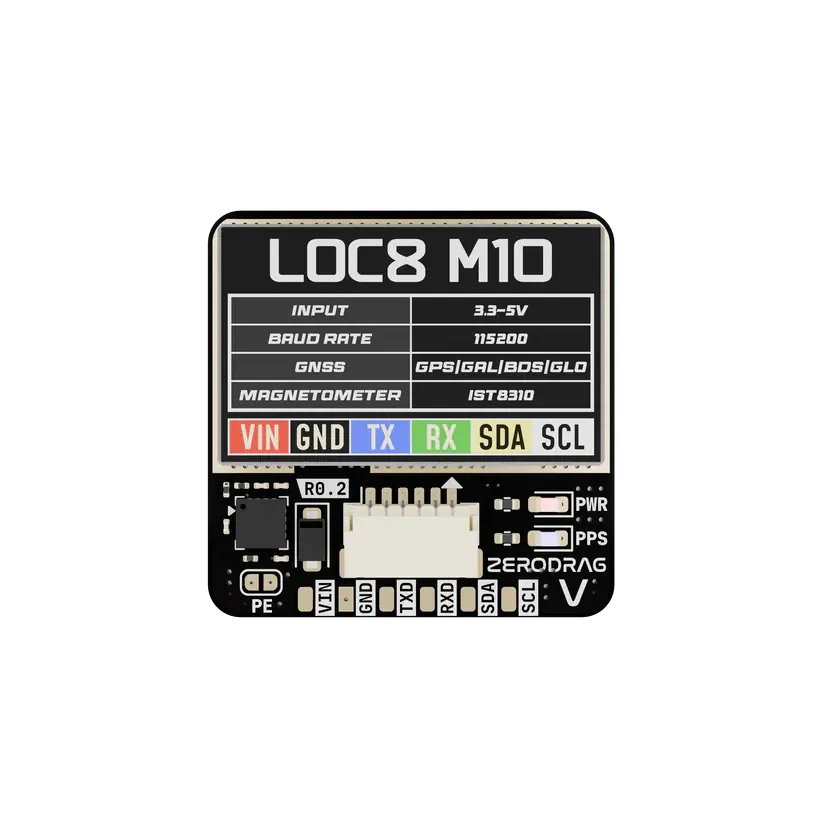

Wire the GPS TX and RX to a free UART on the flight controller (TX to RX, RX to TX), connect the compass lines to the FC's I2C pads, then enable GPS on that port. Mount the module on a mast or high on the frame, away from the VTX, power leads and ESCs, so the compass reads cleanly.
