SEQURE M10-182Q GPS Module
SKU SQ-M10-182Q-GPS
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

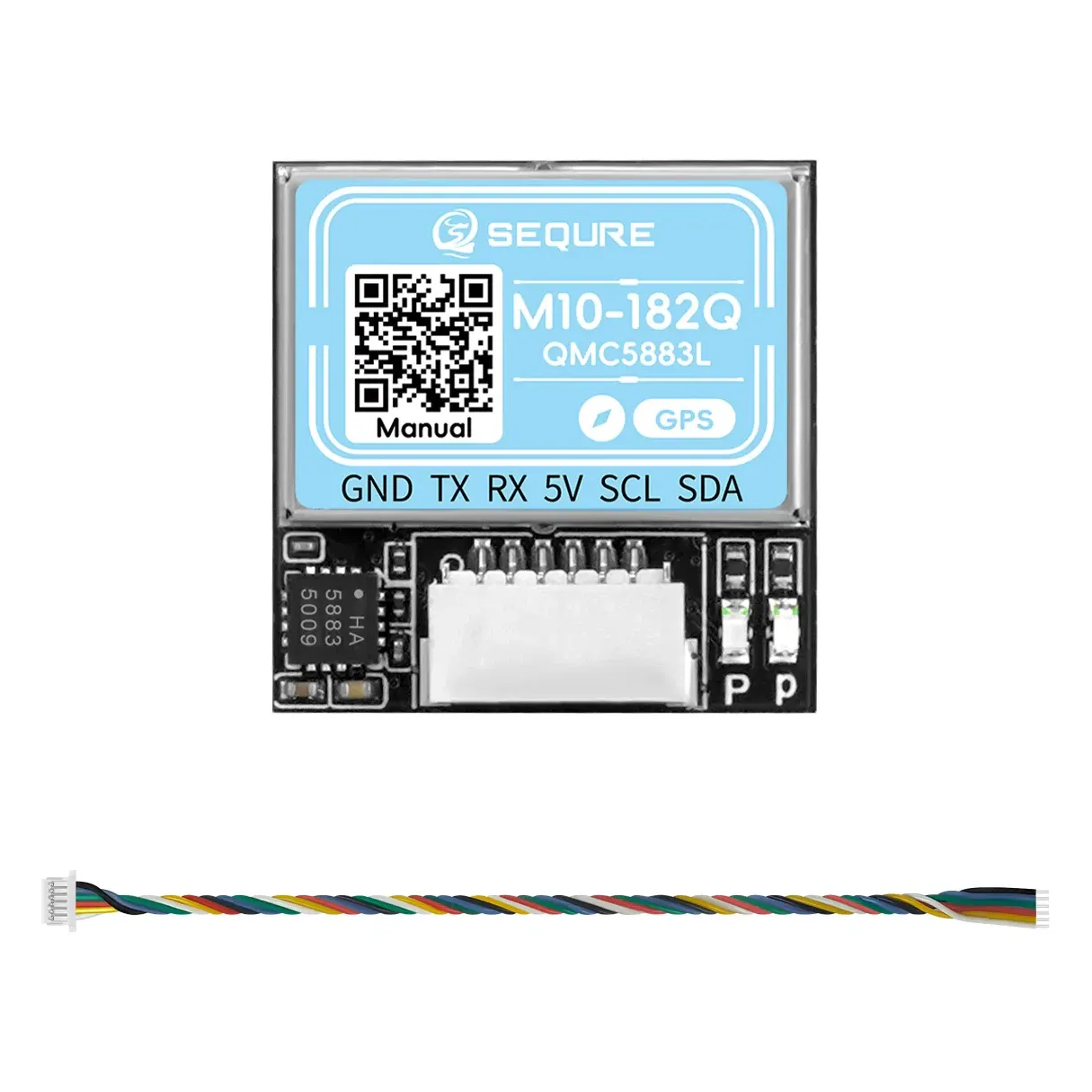

The SEQURE M10-182Q is a compact GPS receiver built around the 10th-generation u-blox M10 chipset. Designed for FPV freestyle rigs and long-range drones, it delivers rapid satellite locking and reliable Return-to-Home (RTH) tracking. Its onboard QMC5883L compass adds heading data alongside position, so mount it clear of high-current battery leads to keep the magnetometer reading clean.
Key features
u-blox M10 chipset ensures fast cold starts and acquires exceptionally high simultaneous satellite counts
Tracks multiple GNSS constellations concurrently alongside QZSS for improved precision

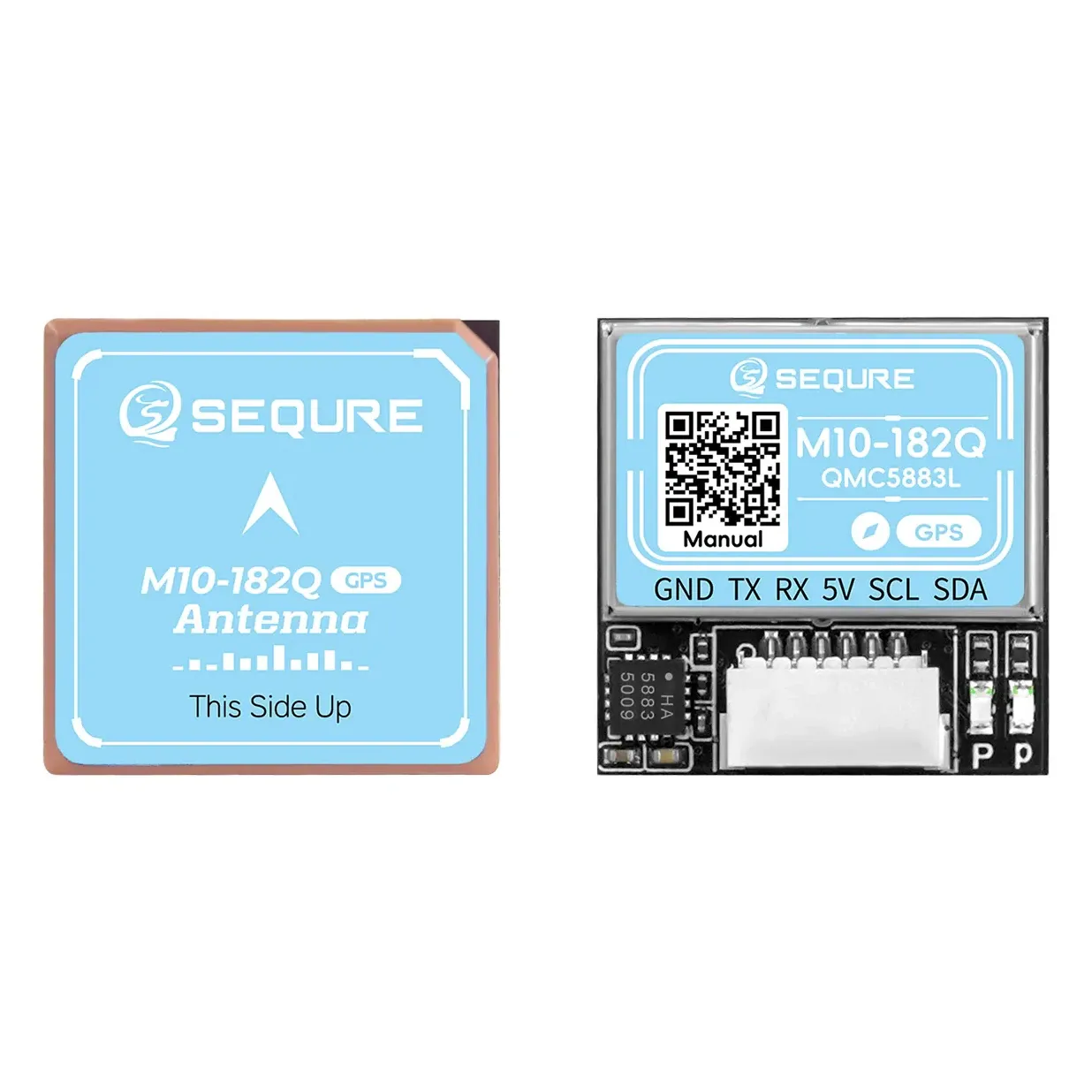

Fitted with an 18mm ceramic patch antenna for high-gain, reliable signal reception
Integrated QMC5883L compass supplies heading data for GPS Rescue and autonomous navigation modes
Specifications
GNSS chipset: u-blox M10
Supported constellations: GPS, BeiDou, Galileo (plus SBAS, QZSS)
Antenna type: 18mm ceramic patch
Compass (Magnetometer): QMC5883L
Working voltage: 3.3-5 V
Dimensions: 18 x 18 x 8.2 mm
Weight: 7.7 g
Connector: SH1.0 6-pin socket
Channels: 72
Baud rate: 115200 bps
Output protocol: NMEA / UBLOX
Update rate: 1-10 Hz (10 Hz default)
In the box: GPS module, cable
The GNSS side connects to a spare UART and the compass to the I2C pads, so Betaflight GPS Rescue, INAV and ArduPilot builds get heading data without a separate magnetometer.
| Compass Included | Yes |
|---|---|
| Made in India | No |
| Brand | SEQURE |
| RTK Support | No |
| GNSS Chipset | u-blox M10 |
| Weight | 7.7 g |
| Supported Firmware | Betaflight, ArduPilot, INAV |
| Barometer | No |
