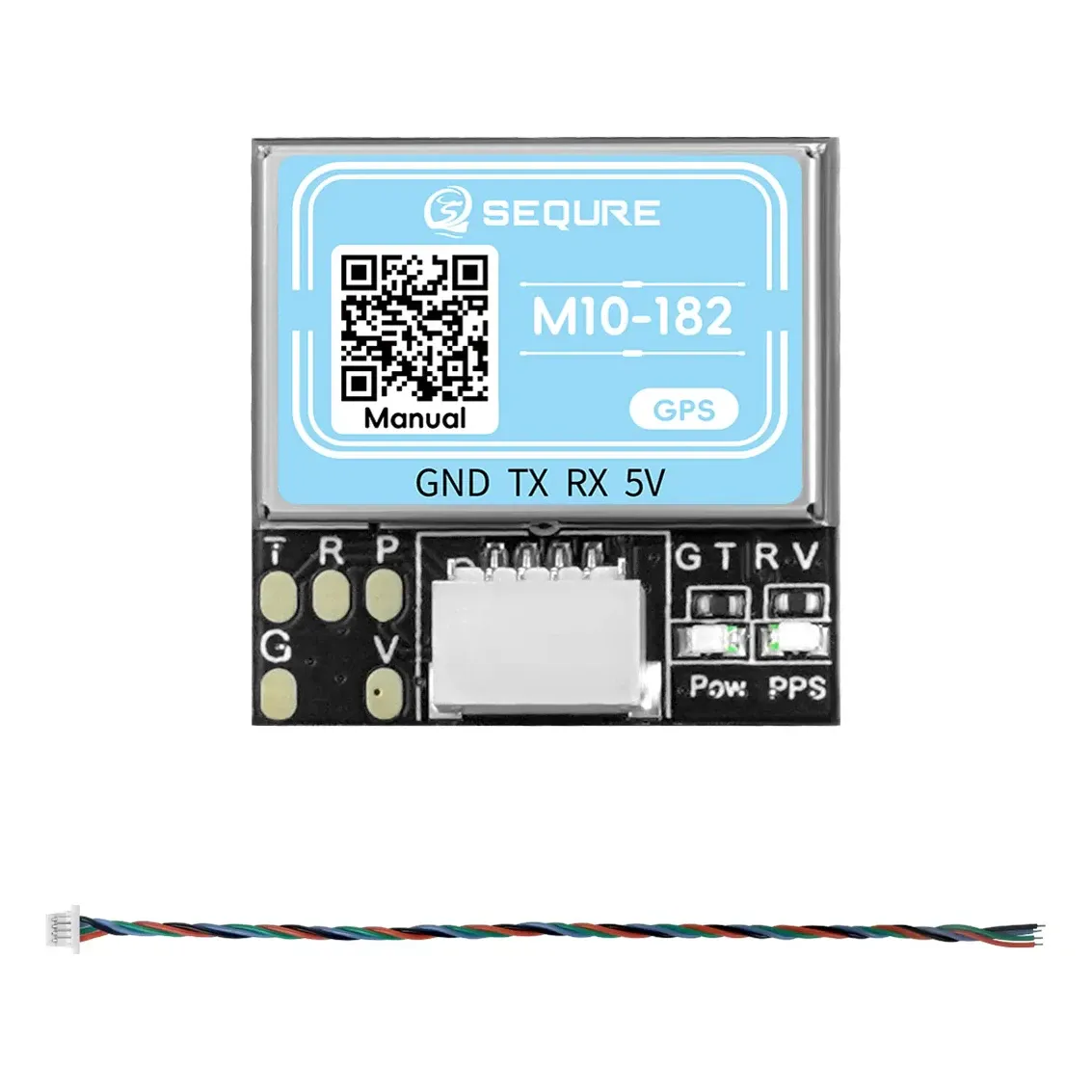

SEQURE M10-182 GPS Module
SKU SQ-M10-182-GPS
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The SEQURE M10-182 is a compact GPS receiver built around the 10th-generation u-blox M10 chipset. Designed for FPV navigation, long-range cruisers, and autonomous builds, it delivers significantly faster satellite acquisition and higher positional accuracy than legacy M8 modules.
Key features
- u-blox M10 architecture ensures rapid cold starts and higher overall satellite counts in challenging environments.

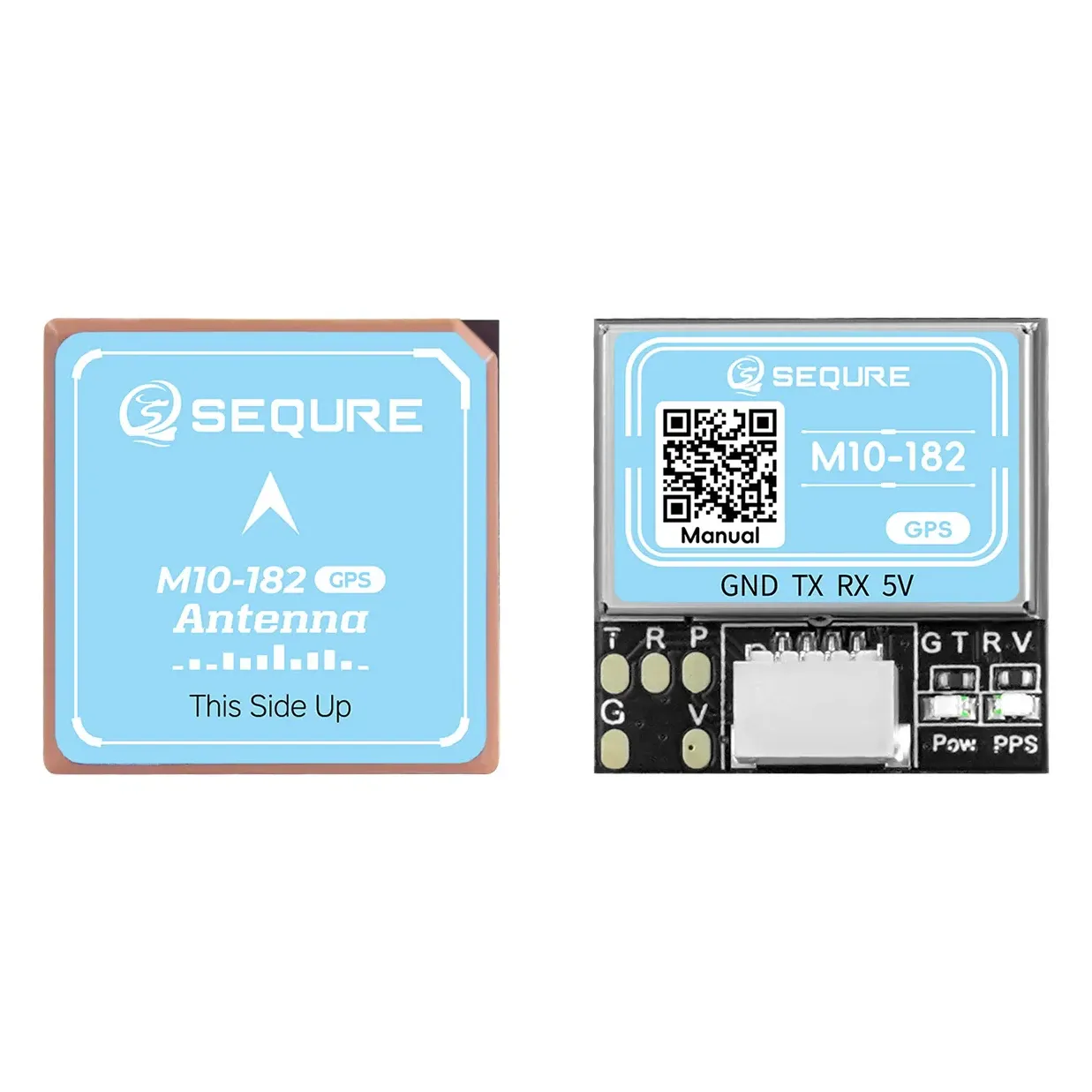

- Fitted with a ceramic patch antenna for strong, stable signal reception.
- Concurrent GPS, BeiDou and Galileo reception, with SBAS and QZSS augmentation.
- Direct plug-in or solder-pad connection for wide compatibility with different flight controllers.
Specifications
- GNSS Chipset: u-blox M10
- Module size: 18 x 18 x 8.2mm
- Weight: 8g
- Interface: UART
- Supported Firmware: Betaflight, INAV, ArduPilot
- Constellations: GPS, BeiDou, Galileo (plus SBAS, QZSS)
- Working voltage: 3.3-5 V
- Connector: SH1.0 4-pin socket or PCB solder pads
- Channels: 72
- Baud rate: 115200 bps
- Output protocol: NMEA / UBLOX
- Update rate: 1-10 Hz (10 Hz default)
- In the box: GPS module, cable
Wiring this module requires a single spare UART on your flight controller. For optimal lock times and satellite counts, ensure the ceramic patch antenna is mounted facing the sky, positioned well clear of the carbon fibre frame and any high-current wiring.
| Compass Included | No |
|---|---|
| Made in India | No |
| Brand | SEQURE |
| RTK Support | No |
| GNSS Chipset | u-blox M10 |
| Weight | 7.7 g |
| Supported Firmware | Betaflight, ArduPilot, INAV |
| Barometer | No |
