Radiolink SE100 M10N GPS Module with Compass

₹4,299Incl. GST

SKU RADIOLINK-SE100-M10N

Compass Included: YesMade in India: NoBrand: RadiolinkRTK Support: No
Dispatched within 3–4 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

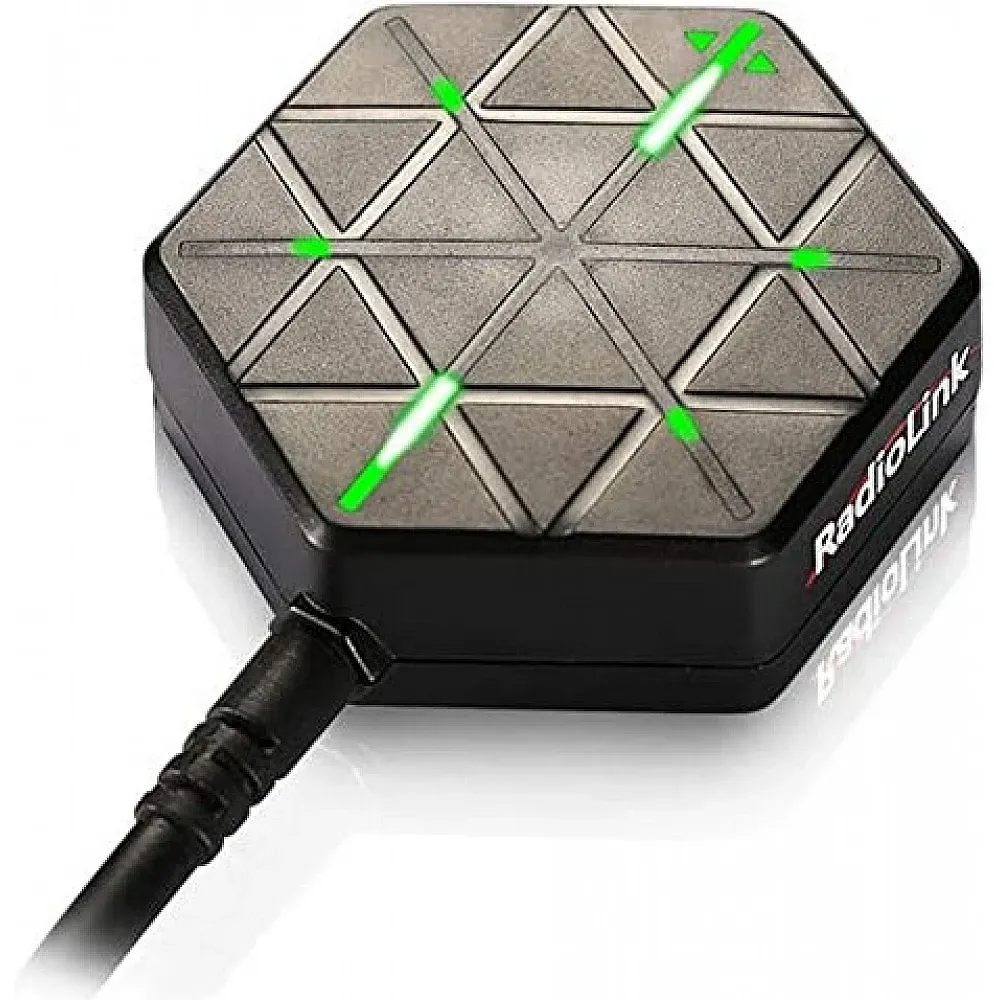

The M10N revision of Radiolink's SE100 GPS uses a u-blox M10 receiver with an onboard compass, for Pixhawk, APM and other flight controllers running ArduPilot or PX4. It gives multirotors, planes and RC vehicles position hold, return-to-home and waypoint missions, with a metal mast bracket to lift it clear of onboard interference.

Key features

  • u-blox M10 (UBX-M10050) receiver tracking GPS, GLONASS, BeiDou and QZSS
  • About 50 cm positioning accuracy; locks around 20 satellites in 6 seconds under open sky
  • 10 Hz navigation updates with -167 dBm tracking sensitivity
  • 2.5 dBi ceramic antenna with SAW filtering for weak-signal reception
  • QMC5883L compass on I2C for heading

Specifications

  • GNSS chip: u-blox M10 (UBX-M10050)
  • Constellations: GPS, GLONASS, BeiDou, QZSS
  • Positioning accuracy: 50 cm
  • Update rate: 10 Hz
  • Tracking sensitivity: -167 dBm
  • Compass: QMC5883L (I2C)
  • Antenna: 2.5 dBi ceramic
  • Acceleration limit: under 4 g

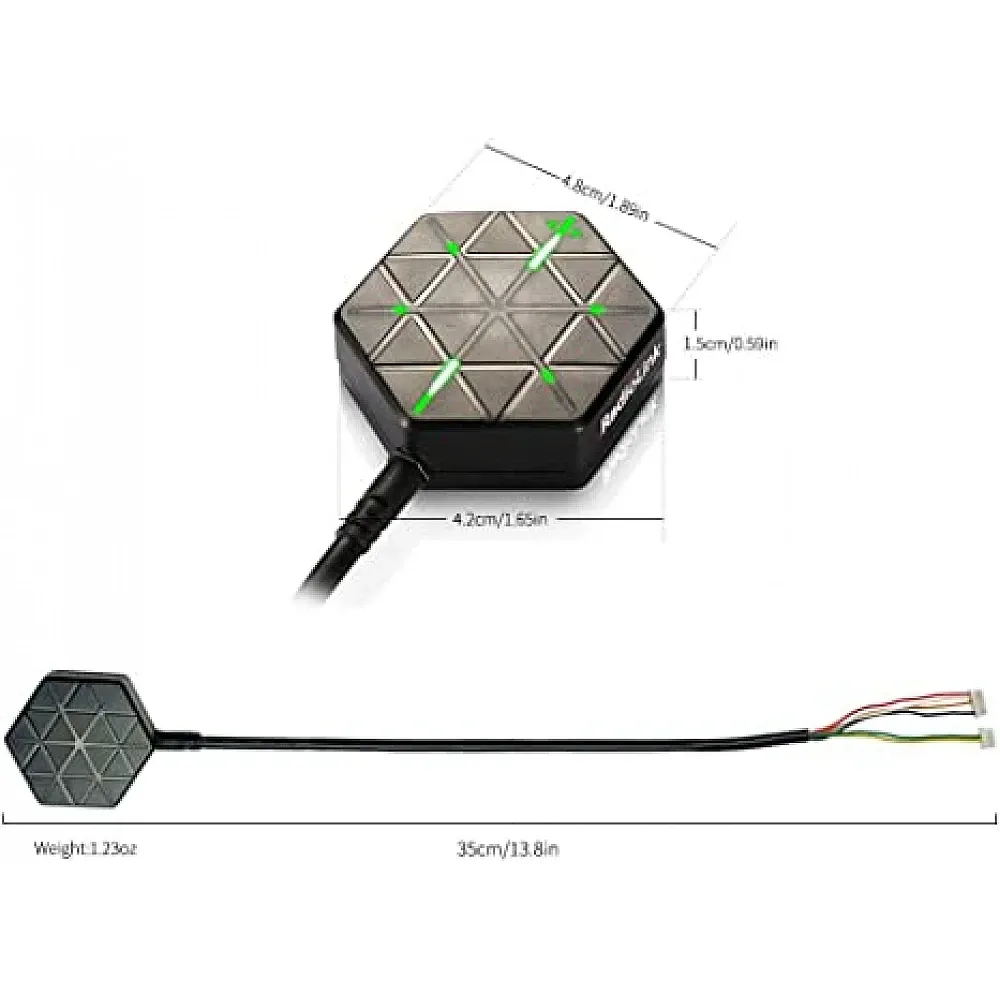

  • Dimensions: 48 x 40.6 x 15 mm

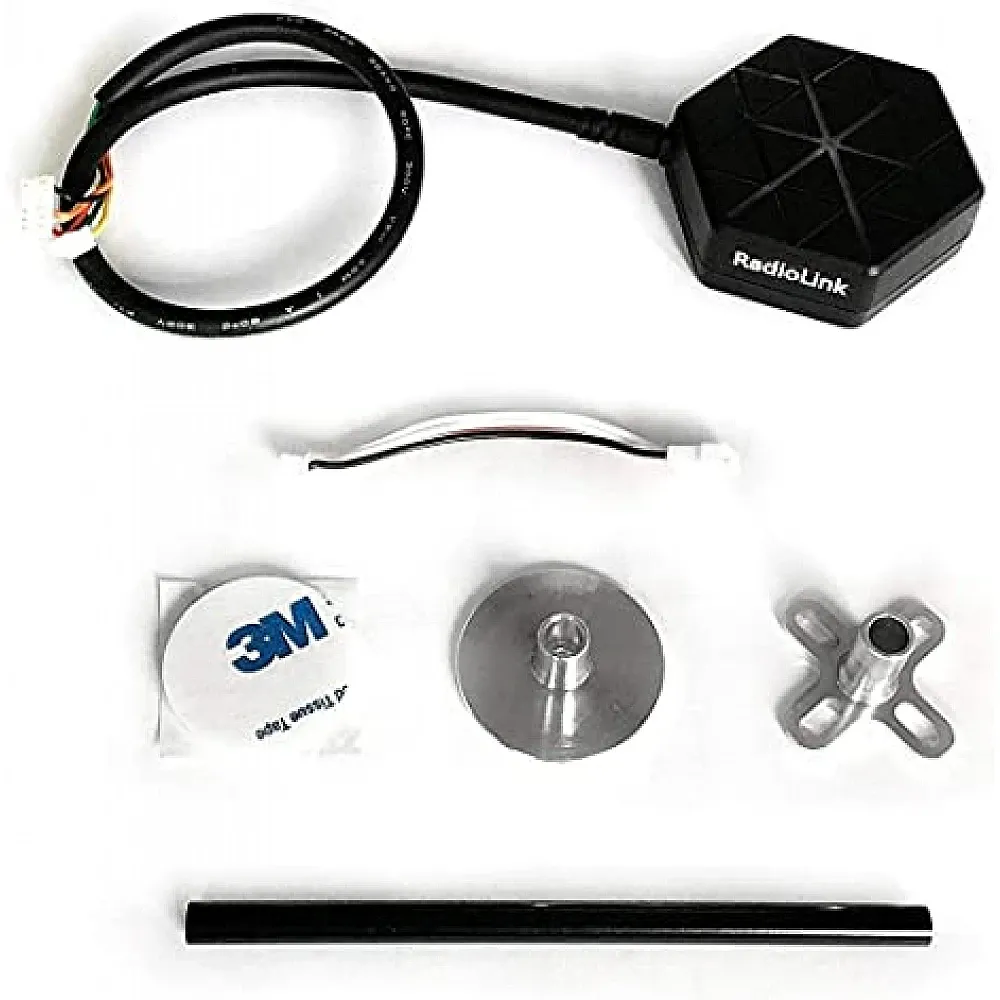

  • In the box: GPS module, metal mast bracket, connecting cable, 2 metal fixing gaskets, foam mounting pad

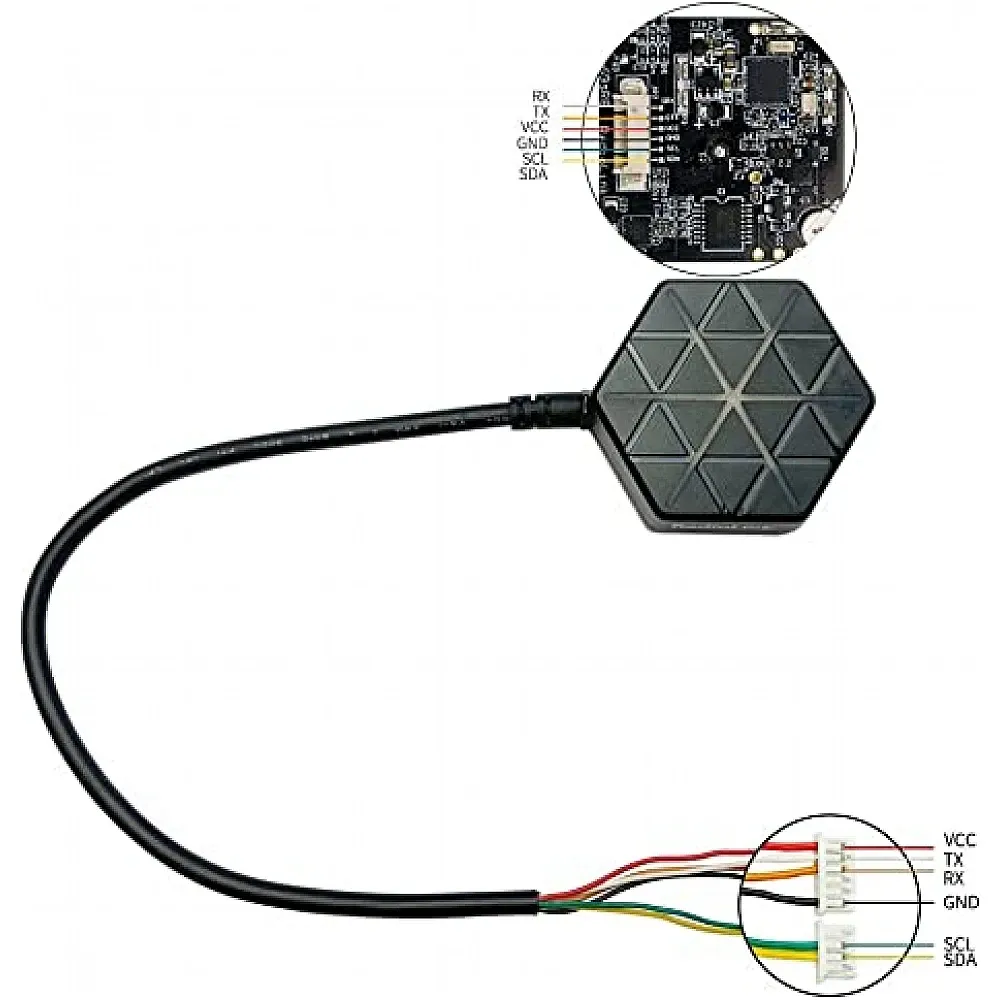

The supplied cable is made for Radiolink and Pixhawk-style controllers; if your flight controller uses a different GPS plug, plan for an adapter lead. Keep the module clear of power wiring and recalibrate the compass after fitting.
