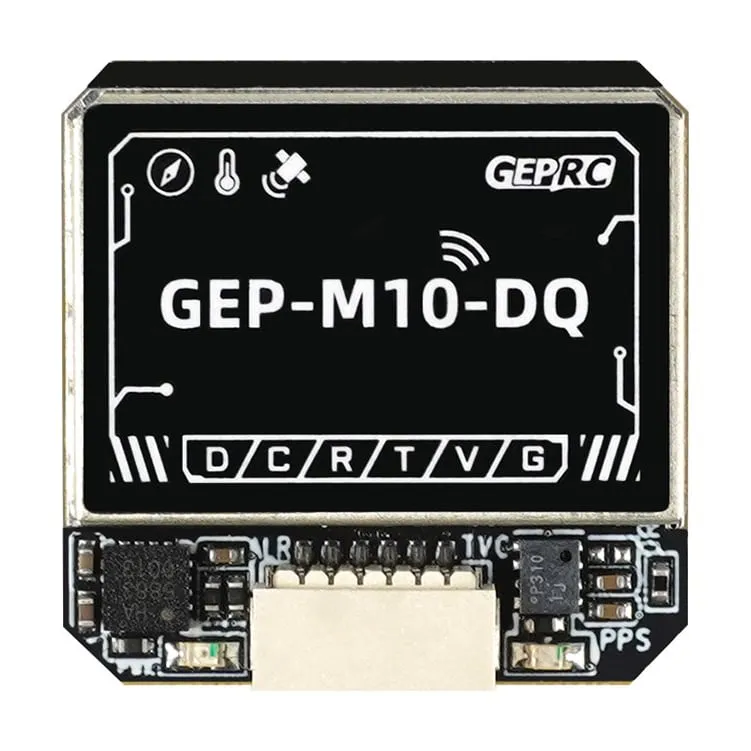

GEPRC M10-DQ GPS Module with Compass
SKU GEPRC-M10-DQ
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The GEPRC M10-DQ is a compact GPS module for FPV drones and other builds that need satellite positioning. Its u-blox M10 chipset and integrated compass provide both location and heading data for navigation setups.
Key features
Multi-GNSS positioning across GPS, BeiDou, Galileo, QZSS and SBAS, tracking up to 32 satellites.
10Hz position update rate with 0.05m/s speed accuracy.
Built-in flash and capacitor store configuration for quick hot starts.
Integrated compass module for heading data alongside GPS.
UART output for GPS data plus I2C for the compass and barometer.

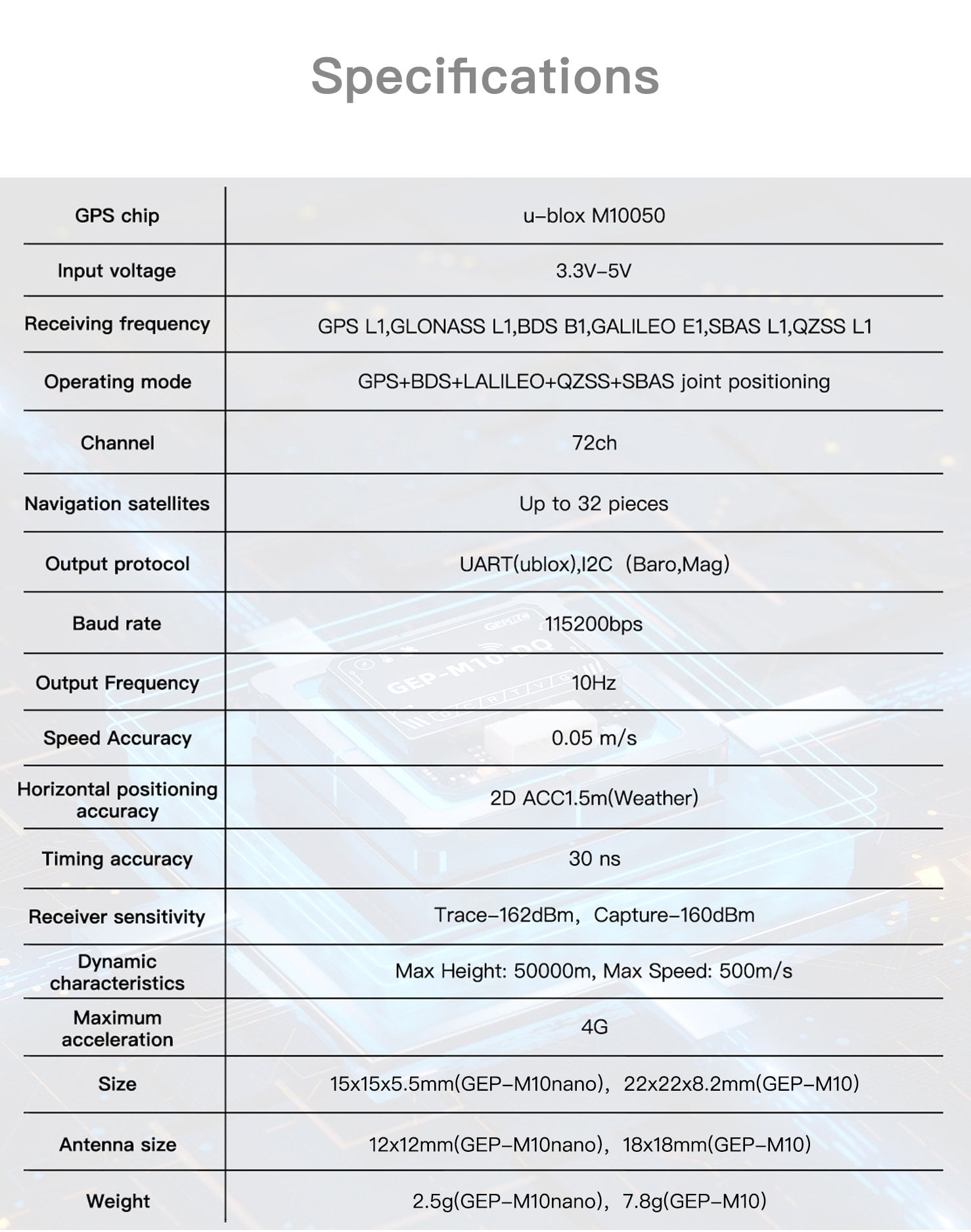

Specifications
GNSS chipset: u-blox M10
Compass included: Yes

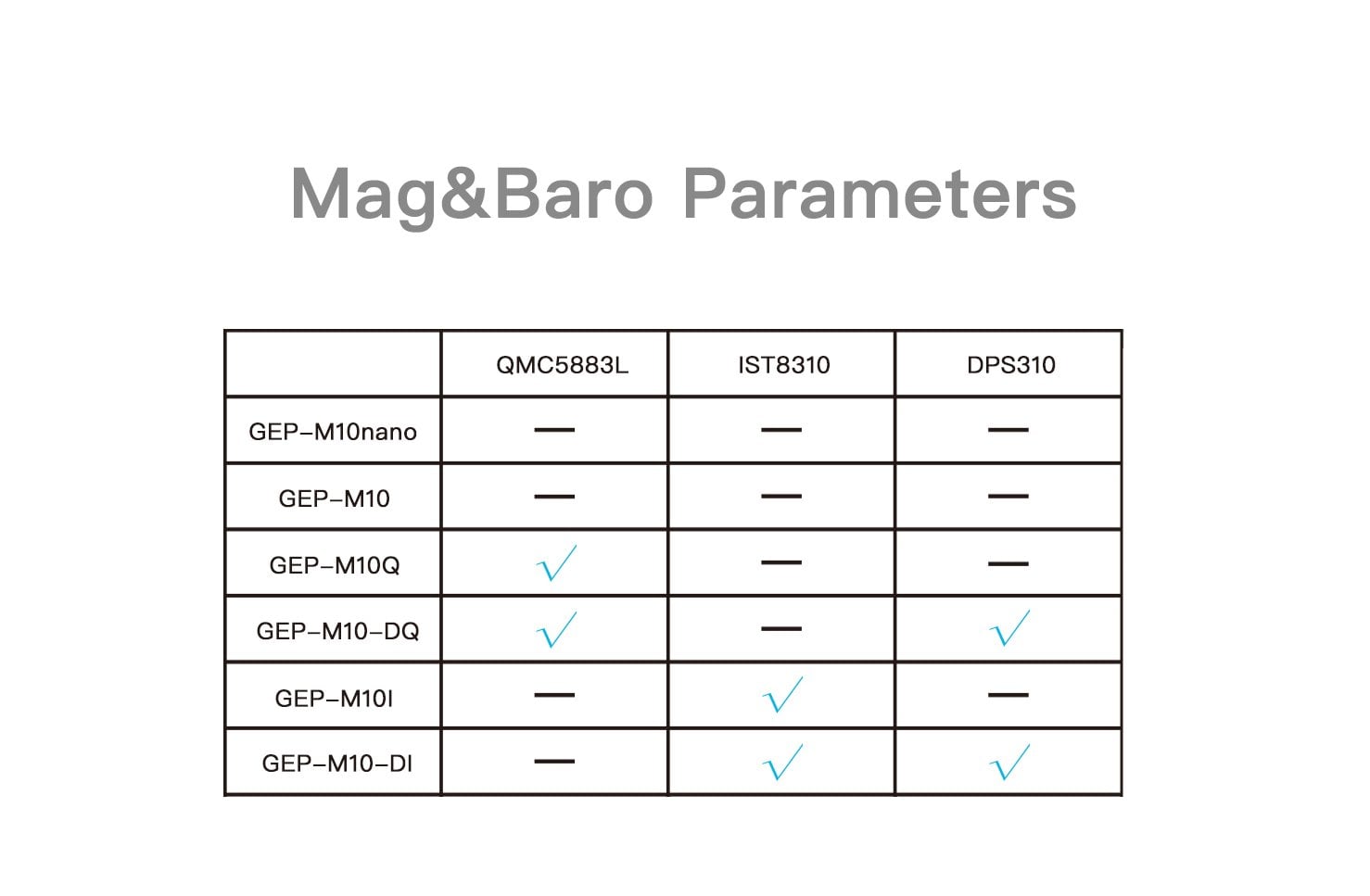

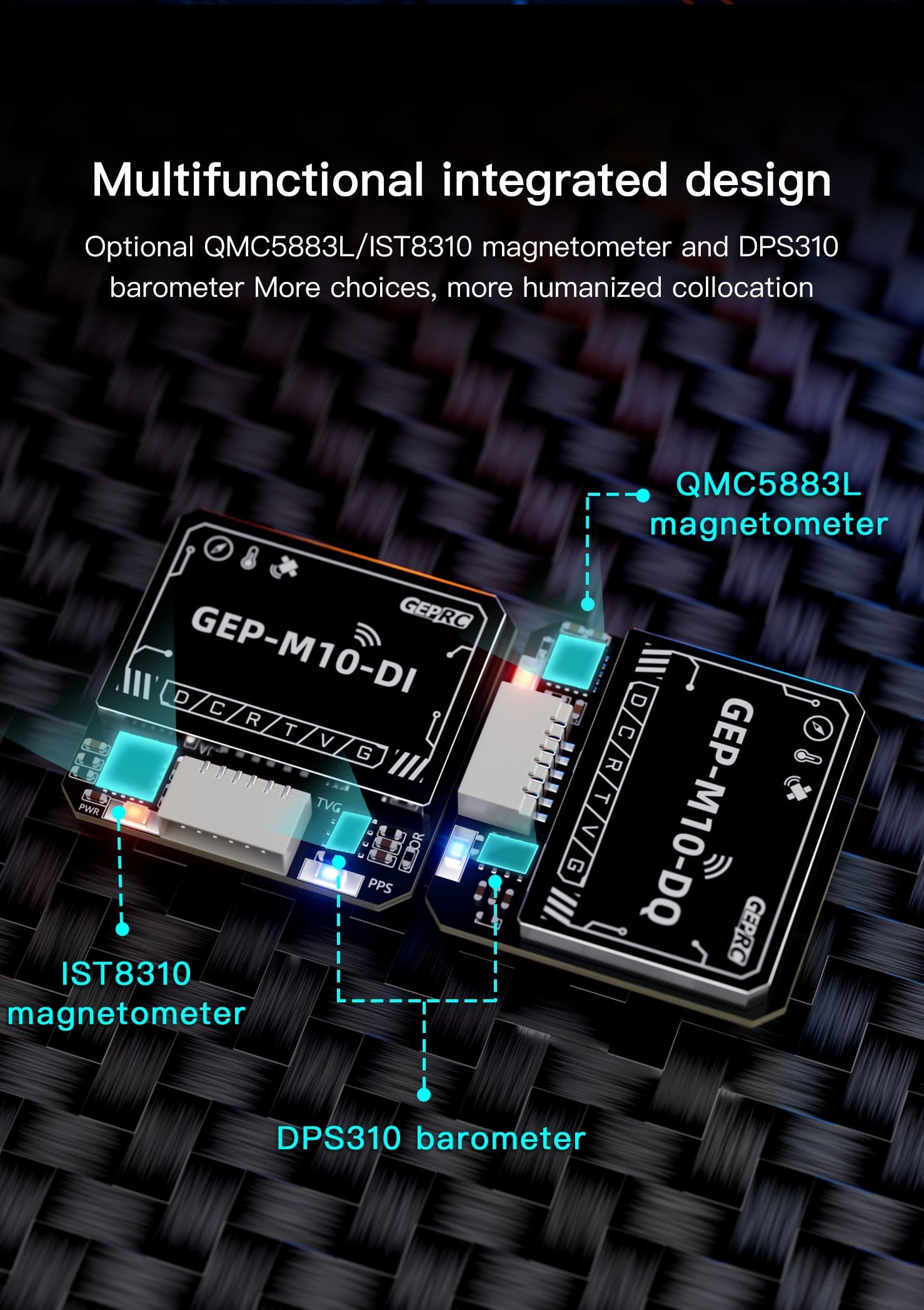

Magnetometer: QMC5883L
Barometer: DPS310 (may ship with the equivalent DPS368)
Satellite systems: GPS, BeiDou, Galileo, QZSS, SBAS
Update rate: 10Hz
Input voltage: 3.3-5 V
Baud rate: 115200 bps

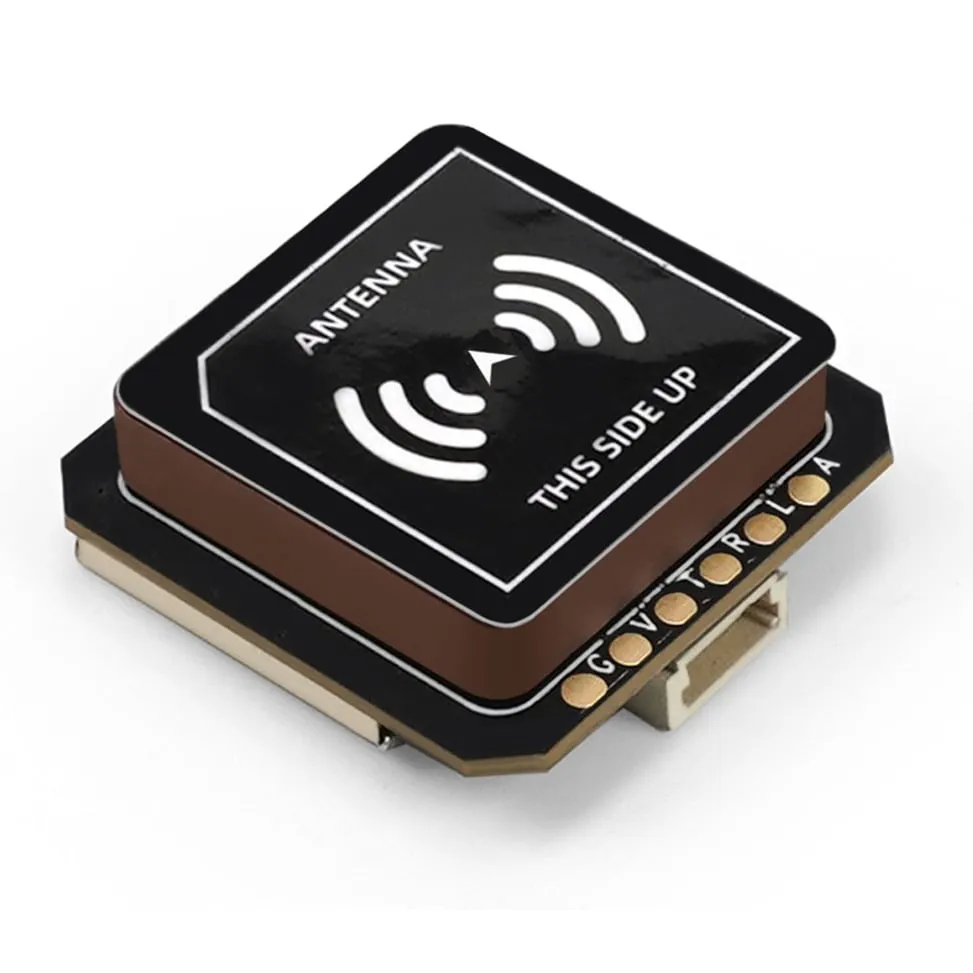

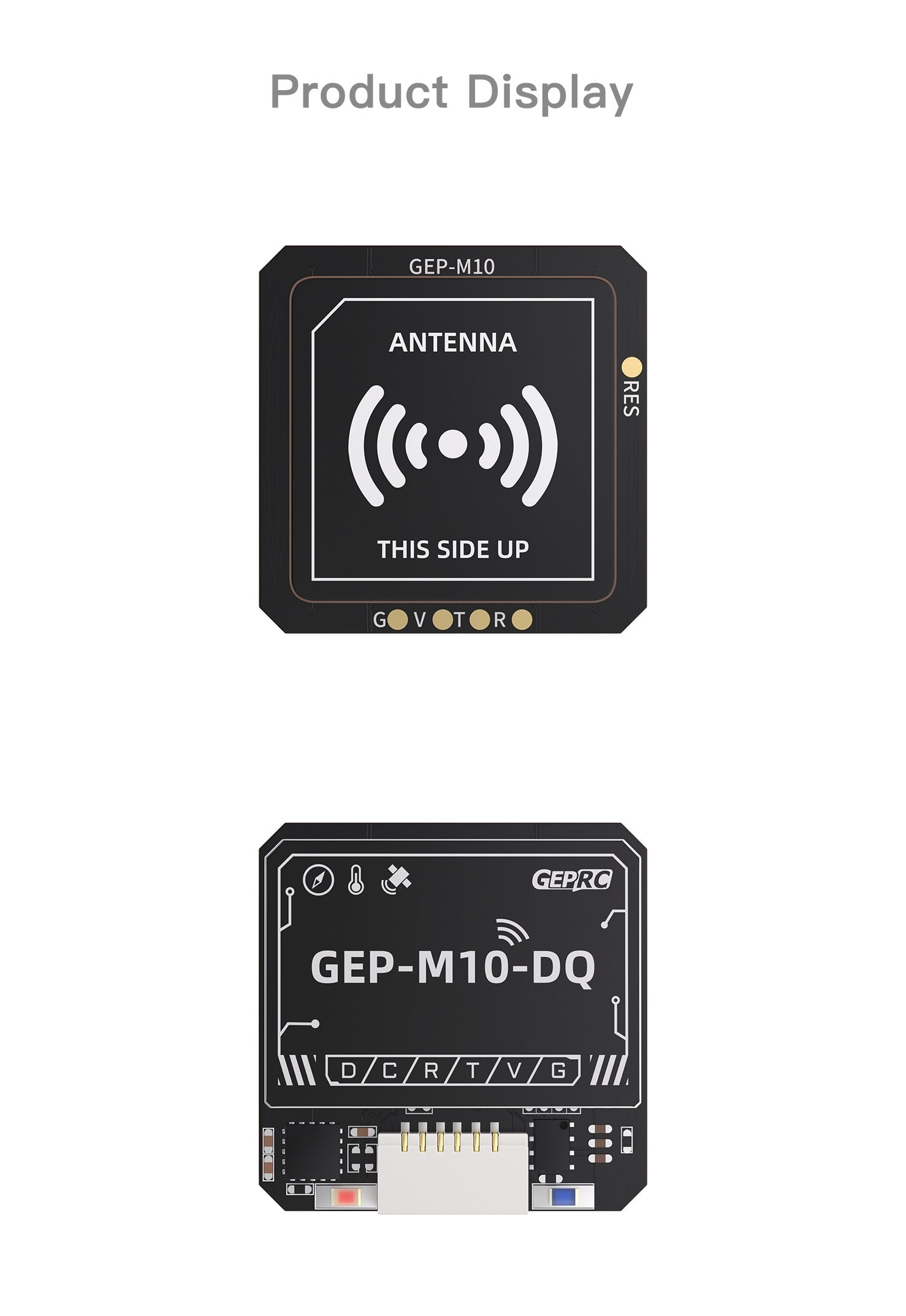

Antenna: 18 x 18 mm ceramic

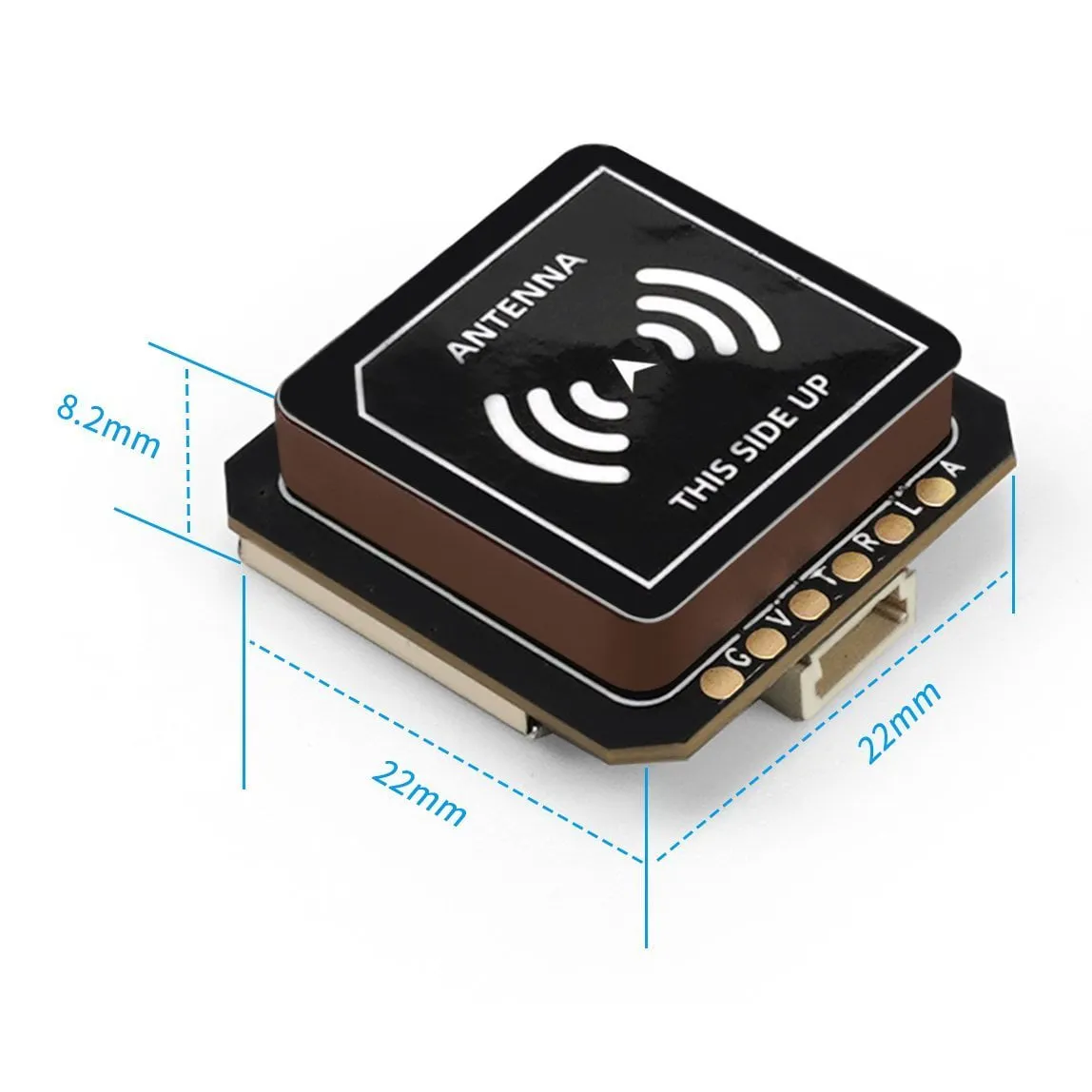

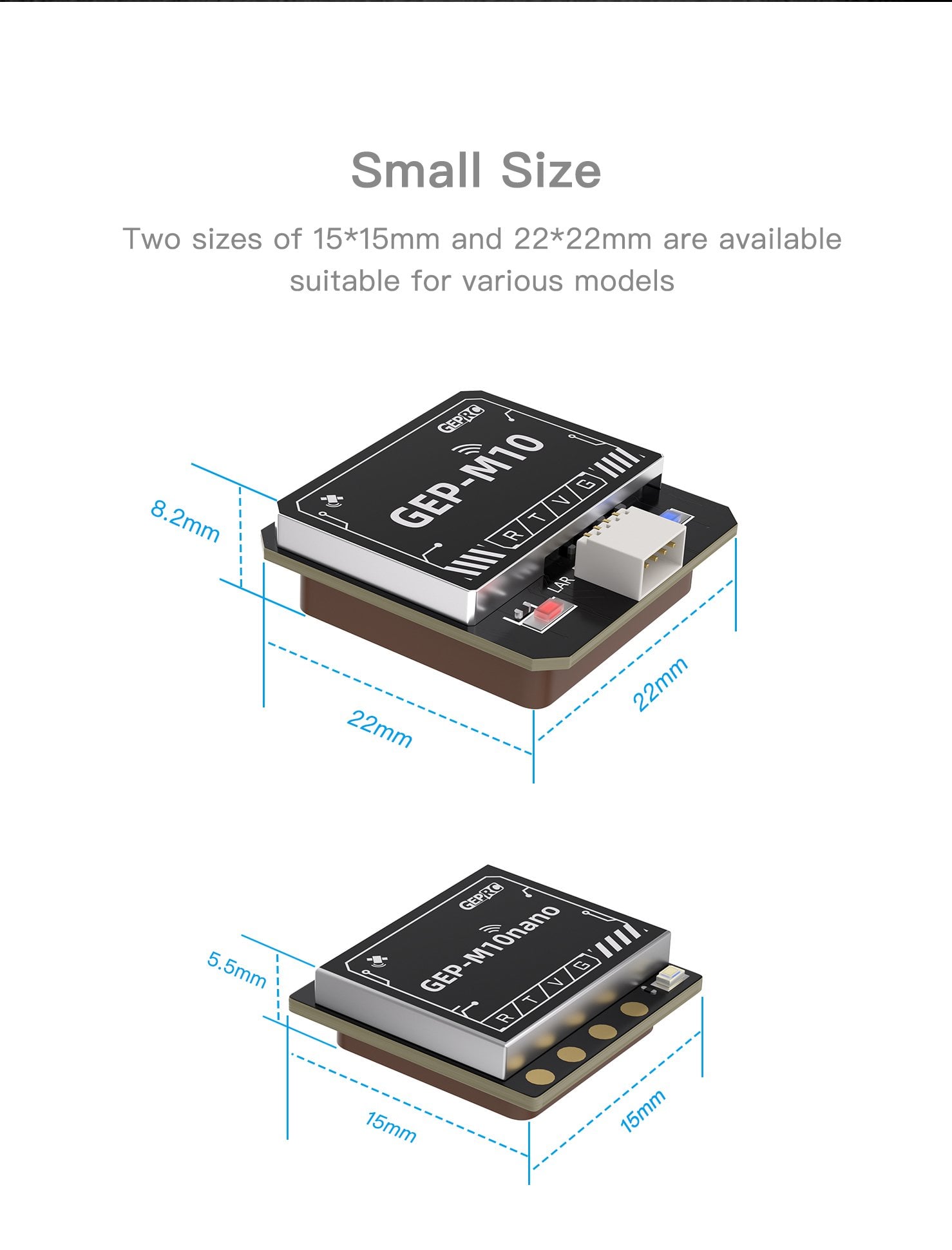

Dimensions: 22 x 22 x 8.2 mm

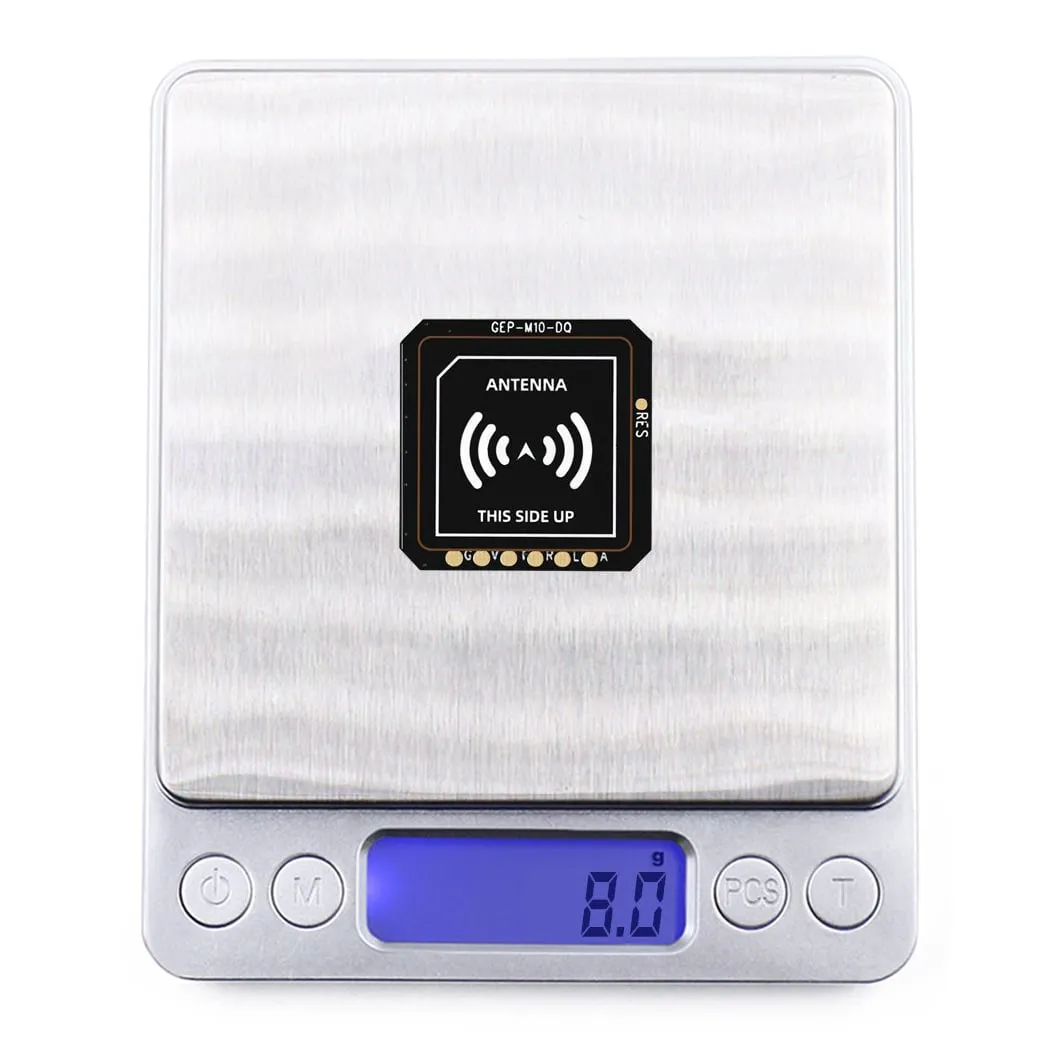

Weight: 7.8 g
Brand: GEPRC

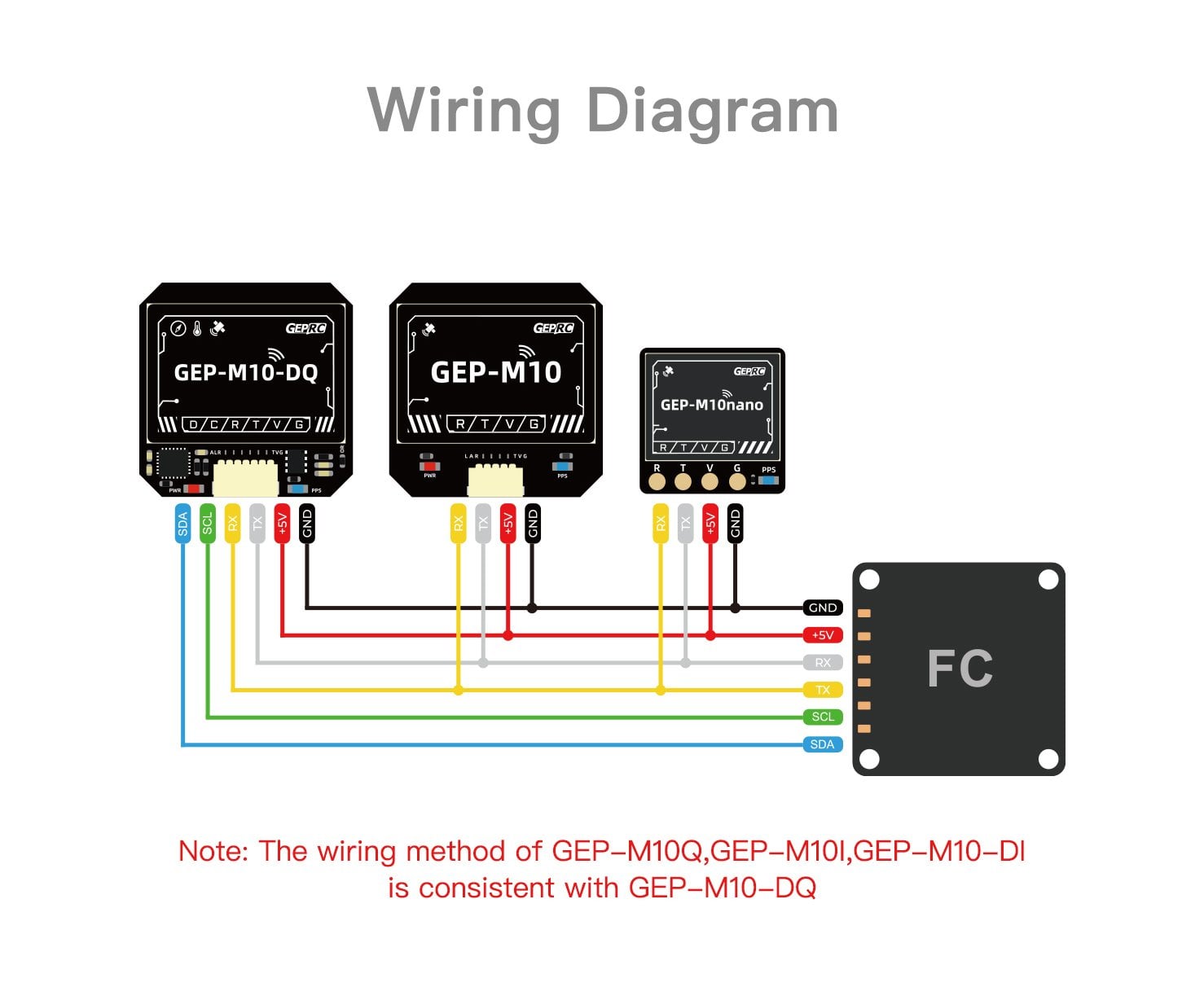

Confirm flight-controller UART and I2C support before wiring this module into the build.
| Compass Included | Yes |
|---|---|
| Made in India | No |
| Brand | GEPRC |
| RTK Support | No |
| GNSS Chipset | u-blox M10 |
| Barometer | Yes |
